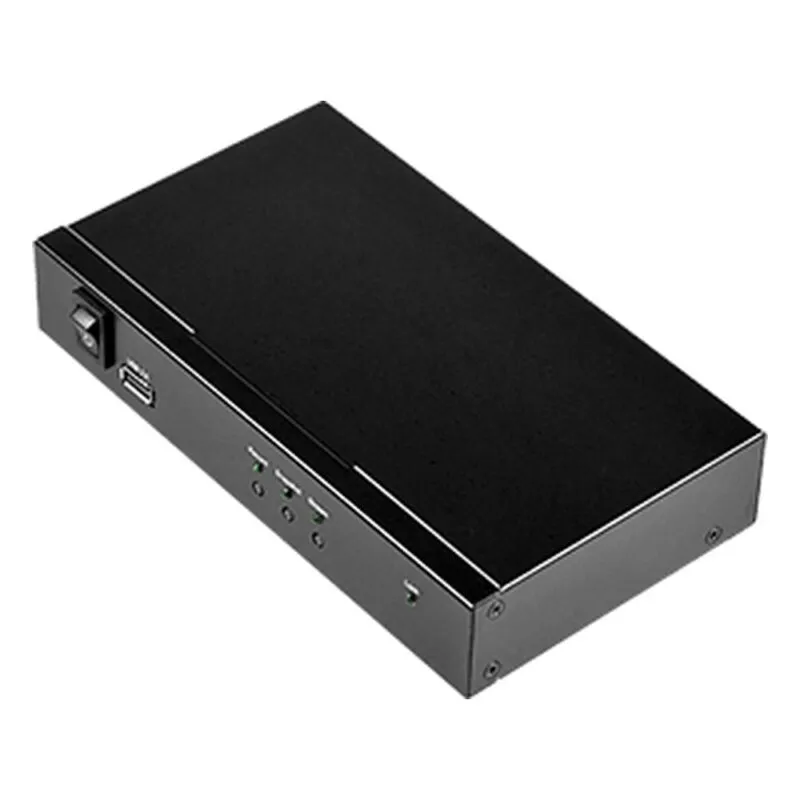

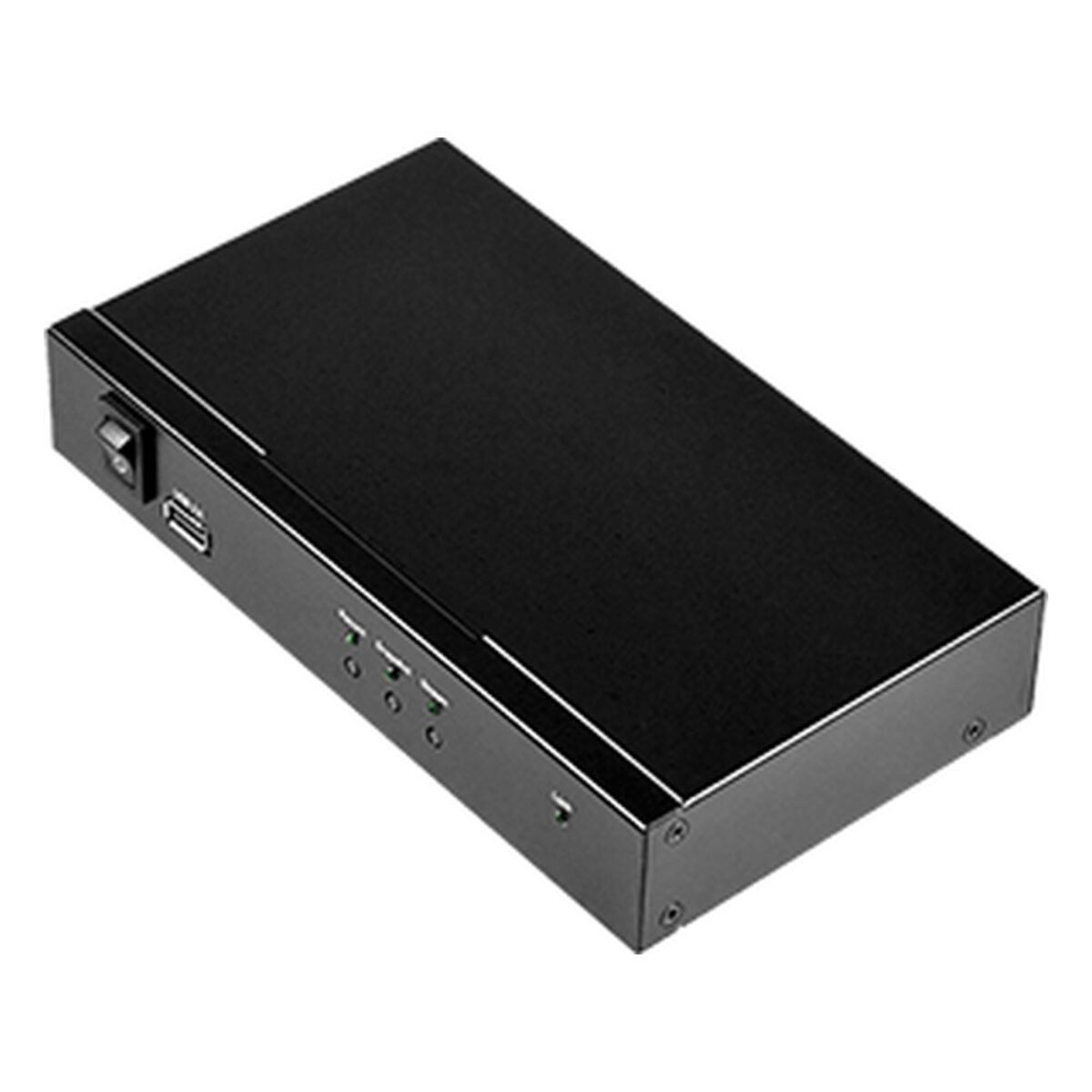

Yuan SC6F0N1 HDMI2.0+ HDMI 2.0 NDI Decoder with Encode, SRT Streaming and PoE at 4K60

Moving an HDMI source across a building is often simpler as a network stream than as a long HDMI run. The Yuan SC6F0N1 HDMI2.0+ is a single-channel HDMI 2.0 NDI decoder that also encodes, so a pair of units can carry a presenter laptop, camera or media player to a distant screen, or one unit can publish the feed to a streaming service.

It has one HDMI 2.0 input and one HDMI 2.0 output with analogue stereo audio in and out, at 3840×2160 up to 60fps and down through 1080p and 720p. Audio is AAC-LC at 48kHz. The SC6F0N1 HDMI2.0+ lists Full NDI, with NDI HX and Dante AV-H as optional licensed protocols, alongside TS over UDP, RTSP, RTMP, HLS and SRT, and records to MP4, TS or MOV.

A web interface handles setup, with upgradable firmware, status LEDs, RS232 and RS485, USB 3.0 and two USB 2.0 ports. Power comes from PoE or a 12V DC input, and Wi-Fi is optional. Where a local monitor or genlock is needed, the SC6F0N1 HDMI2.0 PRO adds a loop-through output and optional reference input. For an SDI chain, the SC6F0N1 12G-SDI+ uses 12G-SDI ports instead.

Because the same model can encode or decode, a spare unit can cover either end of a link, which keeps the spares list short on larger installs. Decide on NDI HX or Dante AV-H licensing before the order, since those protocols are optional. We supply the SC6F0N1 HDMI2.0+ configured and tested with the sources, displays and network it will connect to, so each unit arrives ready for its end of the link.
