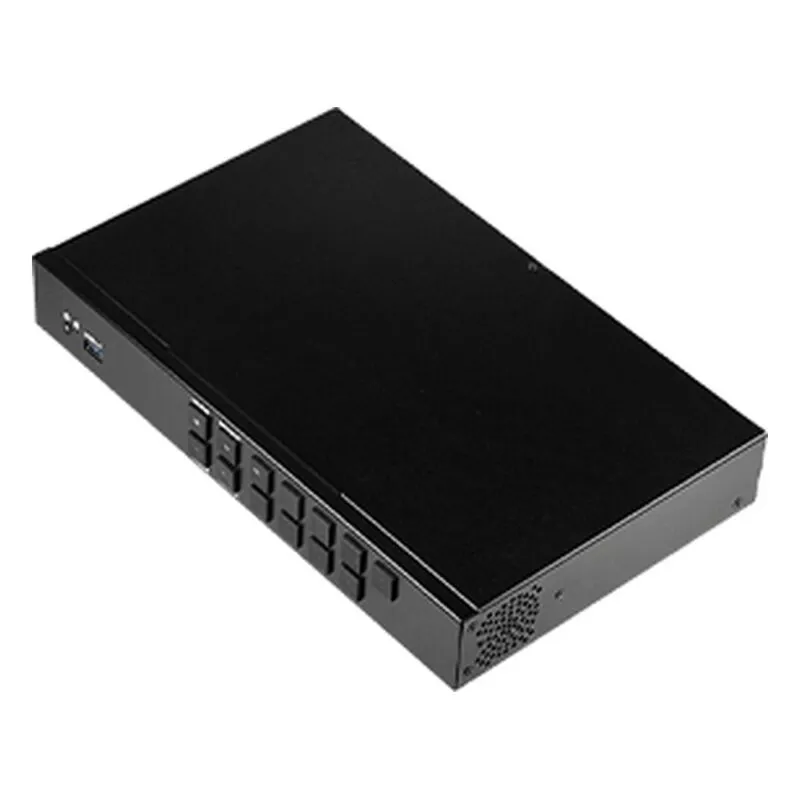

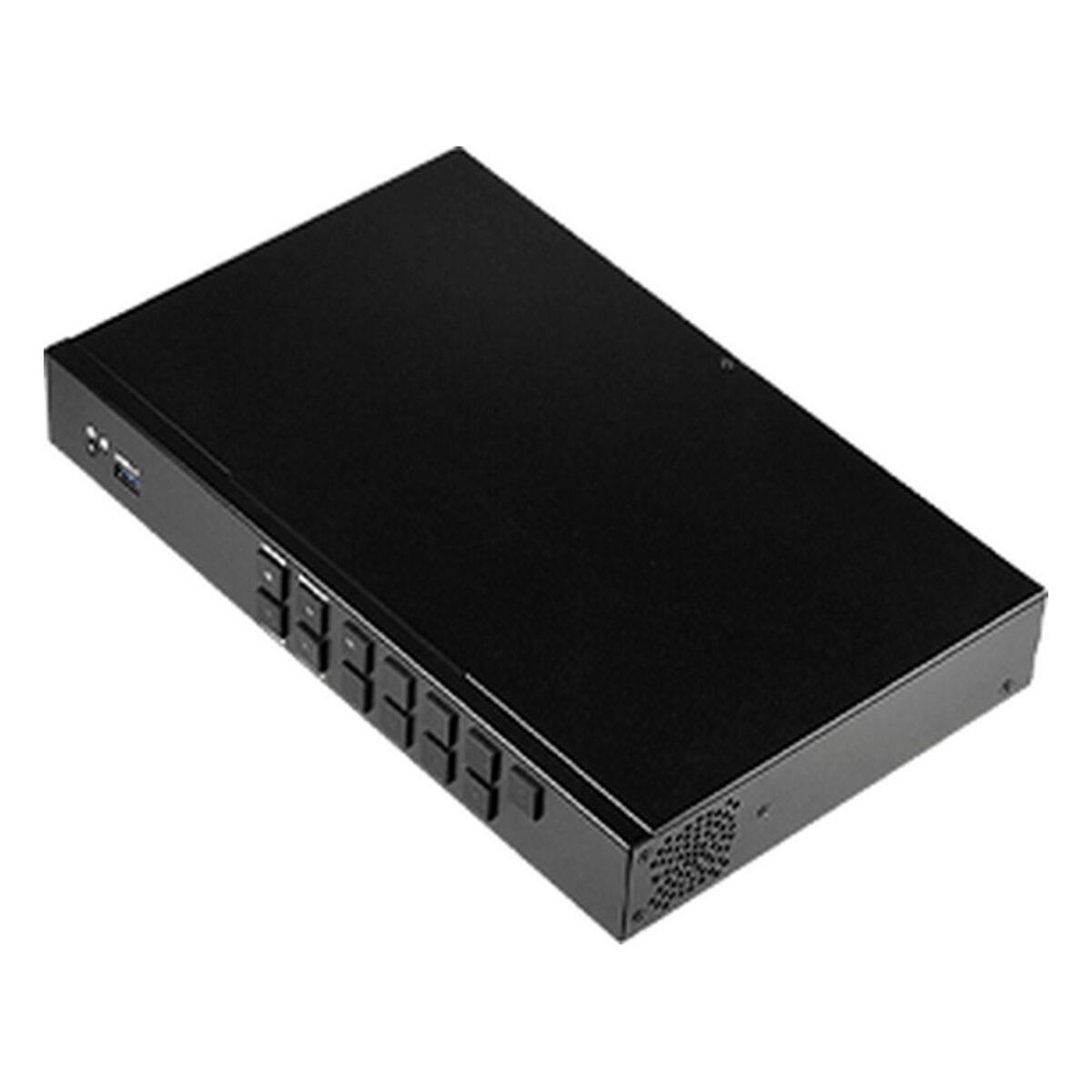

Yuan SC6T0N4 6G-SDI AI+ 4-Channel 6G-SDI AI Video Encoder with Intel Core i7 and Optional 5G at 4K30

Remote and event production often has several SDI cameras but no wired network to stream over. The Yuan SC6T0N4 6G-SDI AI+ is a four-channel 6G-SDI AI video encoder with a built-in multiview switcher and optional LTE and 5G Sub-6 modules, which can suit outside broadcasts, venues and mobile capture where the uplink may be cellular.

Inputs are four 6G-SDI ports, with embedded LPCM audio and an analogue line or mic input. Outputs are two HDMI 2.0 ports for multiview or programme, at up to 4096×2160 at 60fps, with embedded LPCM audio and an analogue line output. Encoding runs at up to 4096×2160 at 30fps or 1080p at 60fps, while the outputs can still run 4K at 60fps. The SC6T0N4 6G-SDI AI+ streams Full NDI, TS over UDP, RTSP, RTMP, HLS and SRT, with NDI HX and Dante AV-H as optional protocols that need a licence.

An 11th Gen Intel Core i7-1165G7 runs the built-in AI functions: face tracking, background effect, handwriting extraction and ePTZ, with custom functions available on request. Yuan’s QCAP and QDEEP SDKs and the Intel OpenVINO toolkit are supported. Two gigabit ports, two USB 3.0 and two USB 2.0 ports are fitted, while Wi-Fi, Bluetooth, LTE Cat20 and 5G Sub-6 are optional. It runs from a 19V DC input. The SC6T0N4 12G-SDI AI+ takes 12G-SDI and encodes at 4K60, and the SC6E0N1 AIO Lite suits a single SDI or HDMI channel at 1080p60.

Recording goes to an external USB 3.0 drive or an internal SATA drive, which is not included, so storage is worth specifying with the order. We supply the SC6T0N4 6G-SDI AI+ configured and tested with the cameras, displays and network it will connect to, with any drive, wireless module and licences fitted before it ships.
