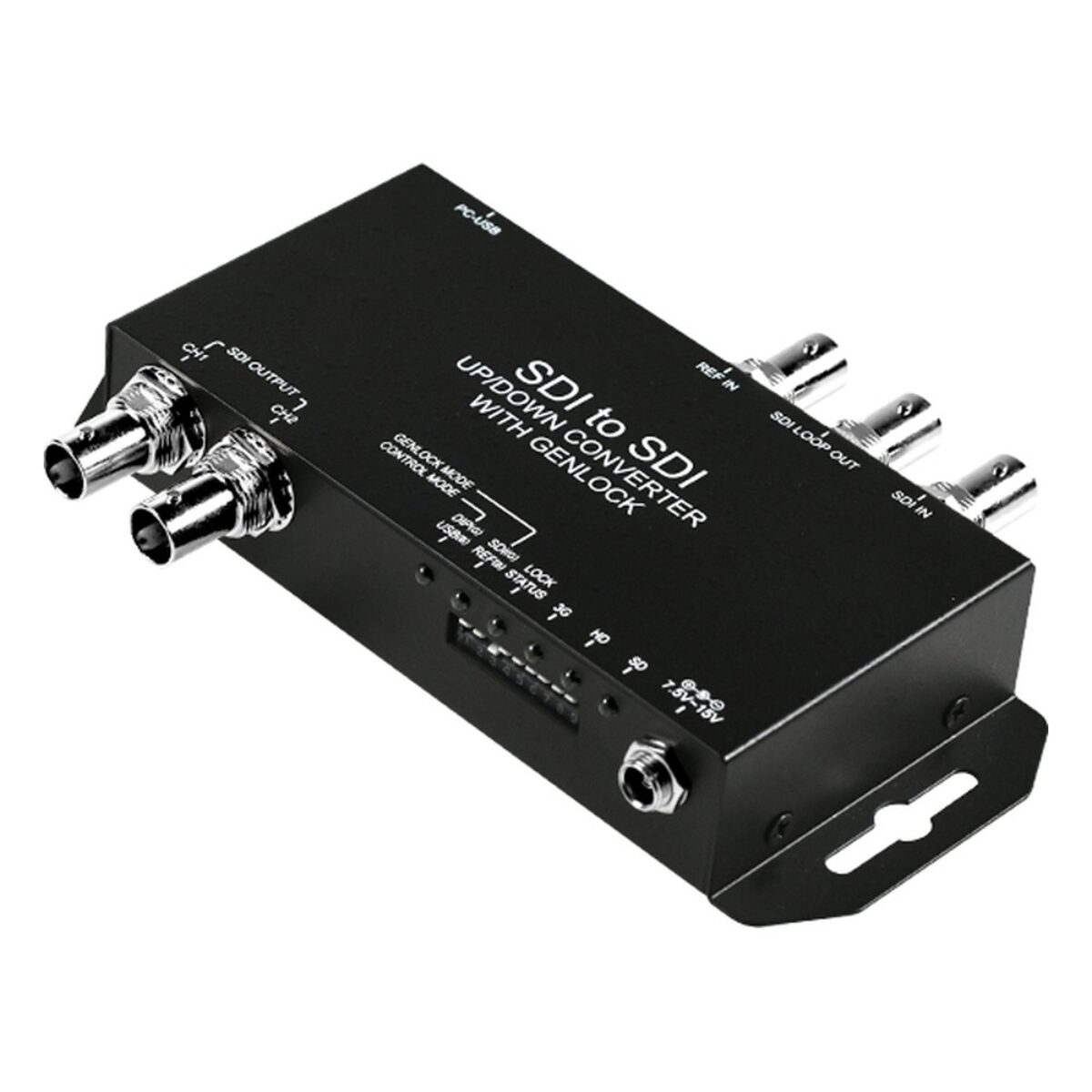

Yuan SDI to SDI Genlock SDI Up/Down Broadcast Video Converter with Frame Synchroniser and Genlock at 1080p60
SDI to SDI Genlock Overview
Remote feeds, wireless cameras and graphics machines often arrive at a router or vision mixer out of time with the house reference. The Yuan SDI to SDI Genlock is a broadcast video converter with a frame synchroniser that locks an SDI source to black burst or tri-level sync, and can change its format at the same time.

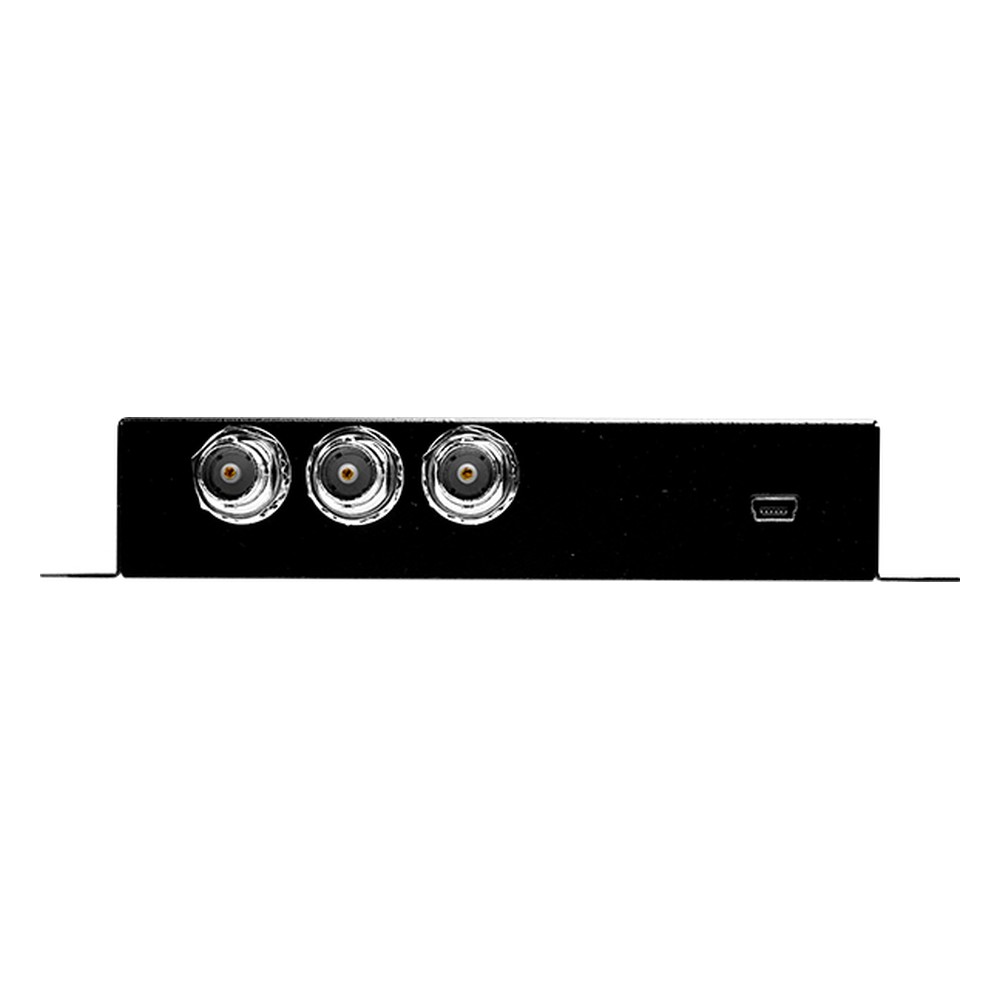

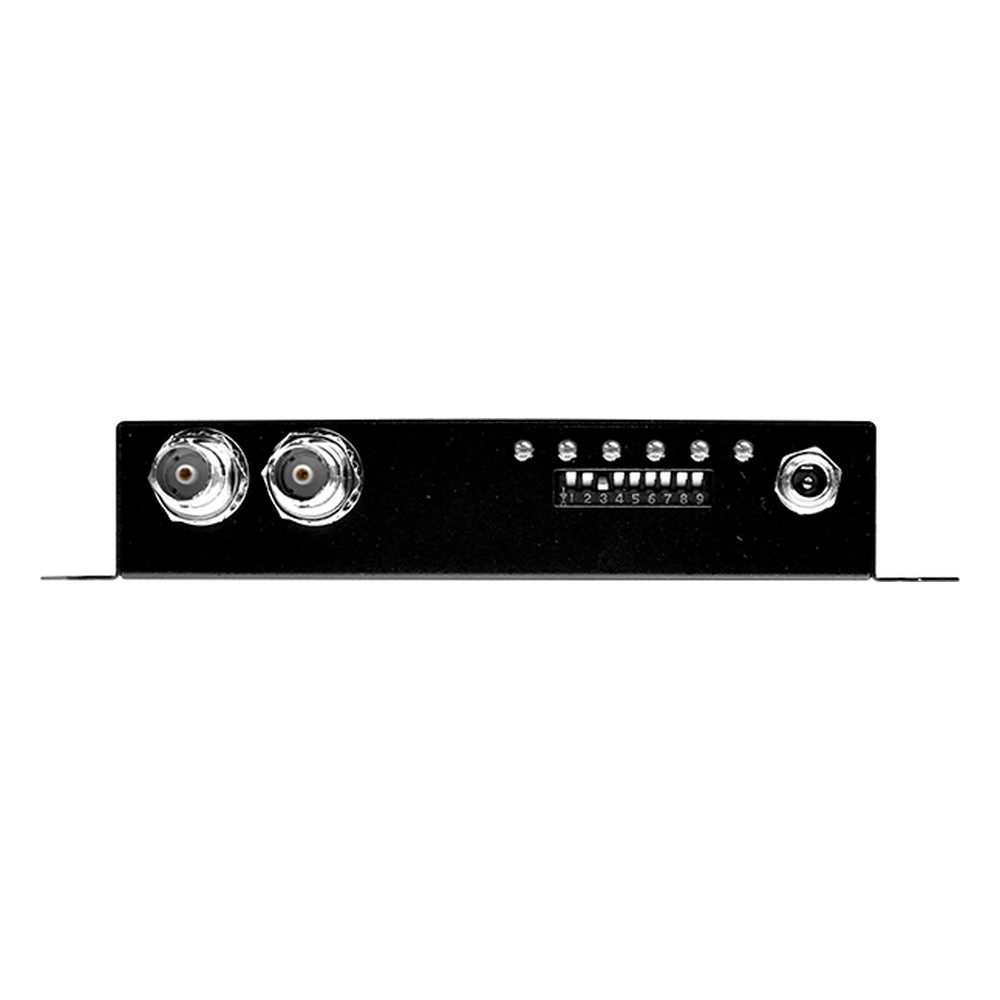

Input is one SDI connection accepting 1080p at 60/50 fps, HD-SDI at 1080p 30/25/24, 1080i and 720p, and SD-SDI at 480i and 576i, plus a REF input for black burst and tri-level sync. Outputs are two up/down converted SDI connections in the same range of formats and one SDI loop-through in the input format. Frame lock modes are free-run and external sync input. Built-in interlacer, de-interlacer and 60 to 59.94 fps conversion are included. Embedded audio is up to eight channels, 24-bit, 48 kHz.
The SDI to SDI Genlock runs from a 7.5 to 15 V DC input. If you need an HDMI output and RCA audio input as well, the SDI to SDI/HDMI Genlock adds both with Level A/B support. For HDMI sources, the HDMI to SDI Genlock applies the same frame synchroniser to HDMI input.
Yuan publishes no operating temperature or certification for this unit, so plan for an equipment rack. If you are not sure which conversion you need, our team can look at the sources and destinations on your system and recommend the converter, cabling and power arrangement that suits. We supply the SDI to SDI Genlock configured and tested with the sources, reference and routing it will connect to.
SDI to SDI Genlock Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SDI to SDI Genlock |
| Video Capture | |
| Video Input | 1x SDI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 2x SDI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Audio Input | 1x SDI Embedded Audio Input |
| Audio Output | 1x SDI Embedded Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 153mm x 64mm x 26mm (6.02" x 2.5" x 1.02") |
Official Yuan UK Distributor
Things Embedded is an official Yuan UK distributor, and we supply the SDI to SDI Genlock configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the SDI to SDI/HDMI Genlock adds an HDMI output and RCA audio input, and the HDMI to SDI Genlock takes HDMI in.
Across our range, the SDI to SDI Genlock sits with our SDI and HDMI converters, our SDI video capture cards and our splitters and matrix switchers.
