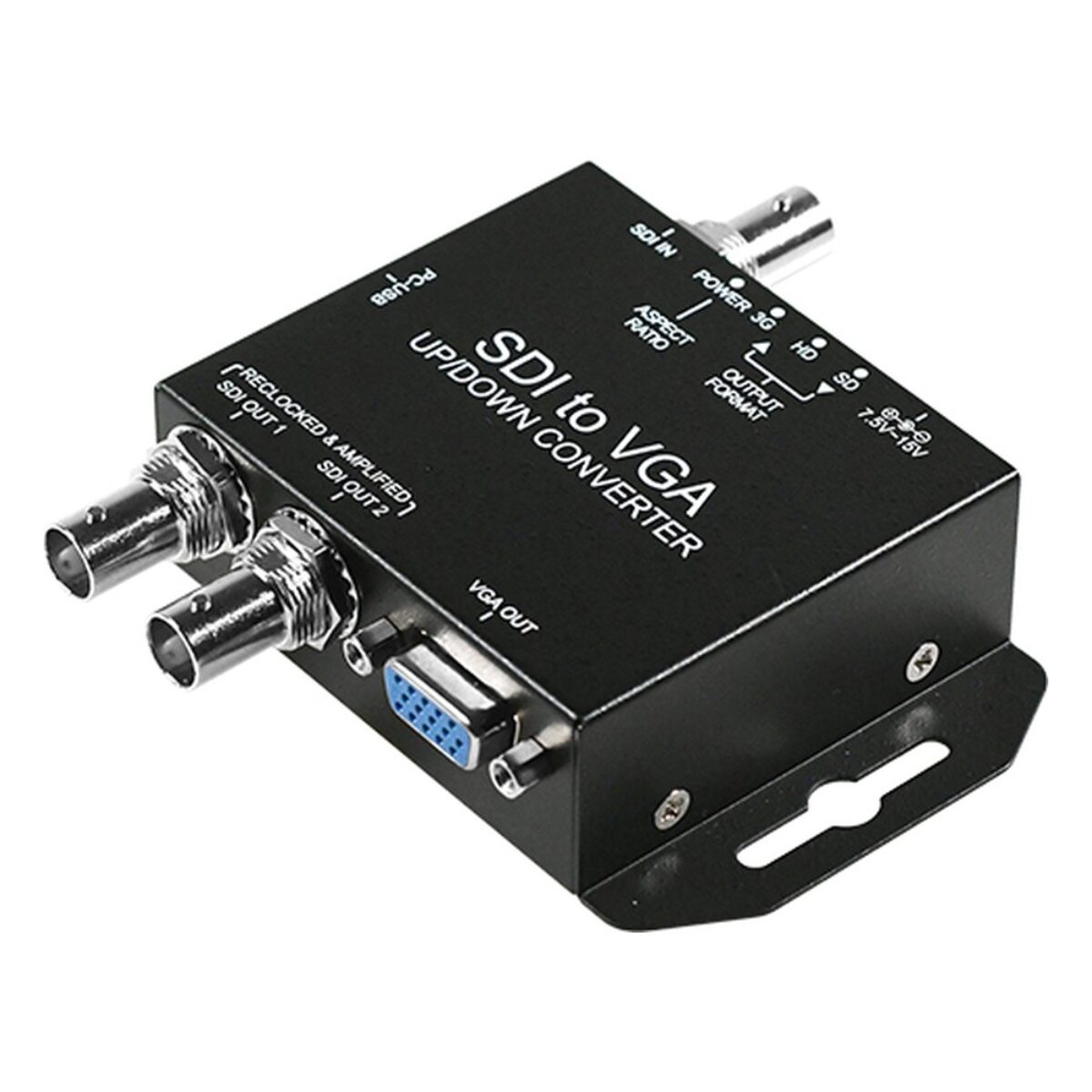

Yuan SDI to VGA-S SDI to VGA Broadcast Video Converter with Up/Down Scaling and Dual SDI Loop-Out
SDI to VGA-S Overview
VGA monitors and projectors are still common in control rooms, classrooms and industrial sites, but the video arriving there is often SDI. The Yuan SDI to VGA-S is a broadcast video converter that scales an SDI feed to the native resolution of a VGA display while passing the SDI signal on.

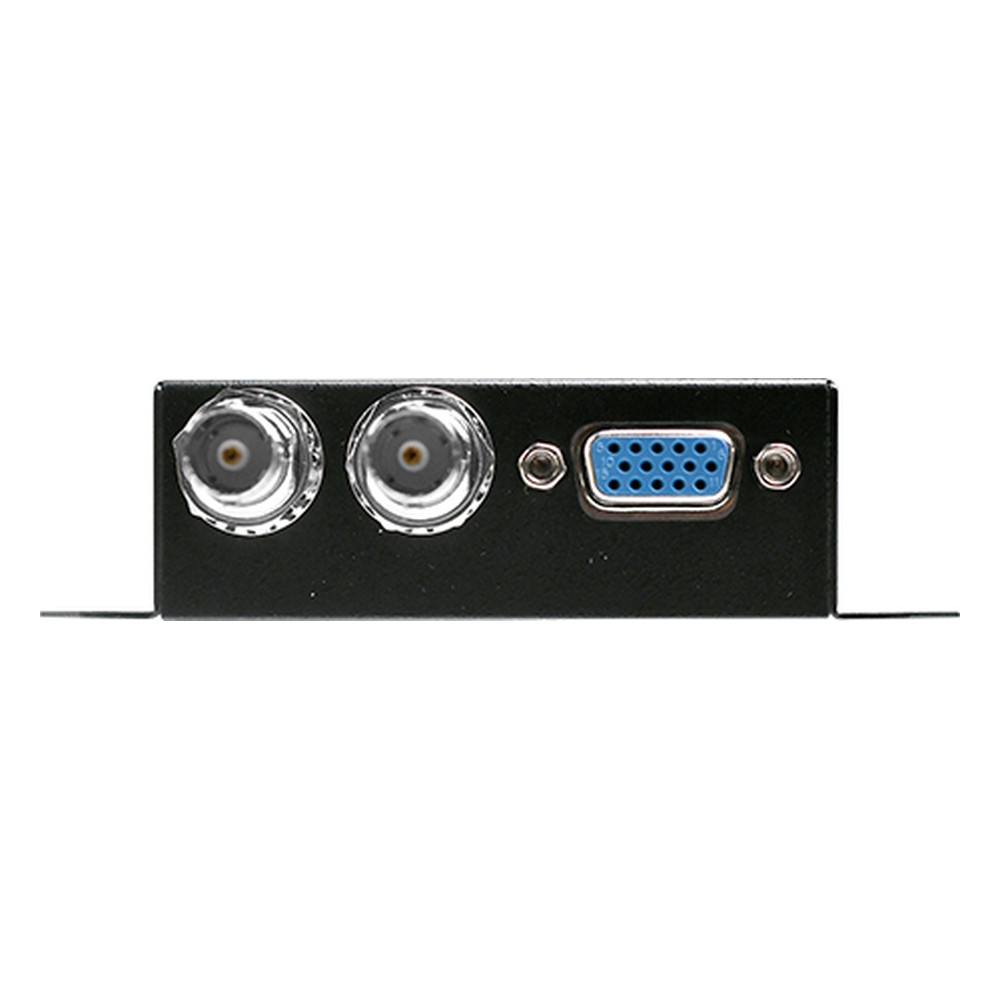

Input is one SDI connection accepting 3G-SDI at 1080p 60/50, HD-SDI at 1080p 30/25/24, 1080i and 720p, and SD-SDI at 480i and 576i. Outputs are one D-Sub VGA connection and two SDI loop-throughs. VGA output is configurable in VESA formats from 640×480 to 1920×1080, with input and output formats set independently. SDI embedded audio of up to 16 channels, 24-bit, 48 kHz is available on the SDI loop outputs.

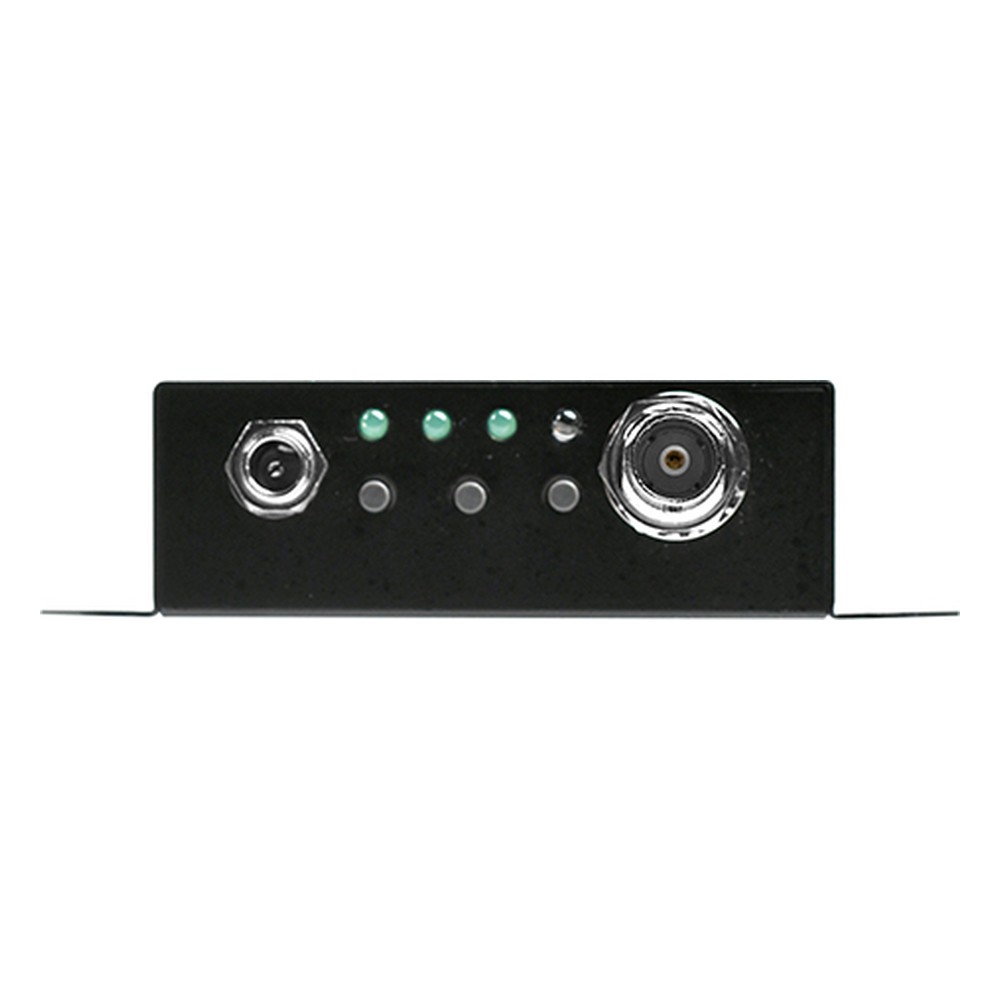

The SDI to VGA-S is set up with buttons and an OSD menu and runs from a 7.5 to 15 V DC input. For HDMI displays, the SDI to HDMI-S offers the same scaling and dual loop with an HDMI output. If the display takes DVI or analogue video, the SDI/HDMI to Multi outputs DVI-I, component, S-Video and composite.
Yuan publishes no operating temperature or certification for this converter, so plan for indoor use. Send us the formats, frame rates and cable runs on your system and we can check this converter fits, then pair it with Yuan capture cards where the signal also needs recording or streaming. If you are not sure which conversion you need, our team can look at the sources and destinations on your system and recommend the converter, cabling and power arrangement that suits. We supply the SDI to VGA-S configured and tested with the SDI sources and displays it will connect to.
SDI to VGA-S Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SDI to VGA-S |
| Video Capture | |
| Video Input | 1x SDI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 1x VGA |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Audio Input | 1x SDI Embedded Audio Input |
| Audio Output | 1x SDI Embedded Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 104mm x 64mm x 26mm (4.09" x 2.5" x 1.02") |
Official Yuan UK Distributor
Things Embedded is an official Yuan UK distributor, and we supply the SDI to VGA-S configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the SDI to HDMI-S outputs scaled HDMI instead of VGA, and the SDI/HDMI to Multi adds DVI-I and analogue outputs.
Across our range, the SDI to VGA-S sits with our SDI and HDMI converters, our SDI video capture cards and our video capture cards.
