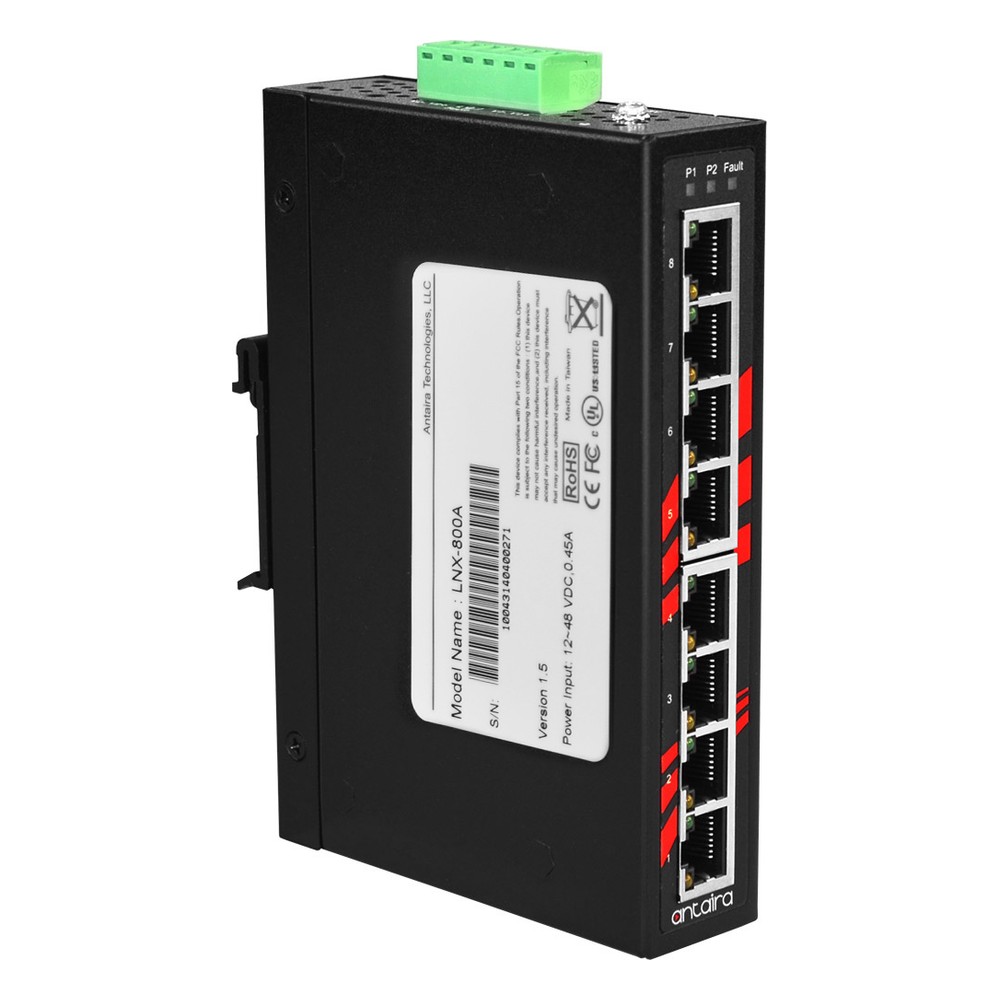

Antaira LNX-800A-T-CC 8-Port Fast Ethernet Unmanaged DIN Rail Switch with Conformal Coating and Extended Temperature
Fanless
Extended Temp
CE
FCC
UL Class 1 Division 2LNX-800A-T-CC Overview
Cabinets exposed to moisture, dust or corrosive gases can corrode a circuit board long before its electronics wear out. The LNX-800A-T-CC answers that with conformal coating: a specialty film that follows the contours of the circuit boards, which Antaira says meets or exceeds the standards for protection against gases, dust and water. Underneath, it is an eight-port Fast Ethernet unmanaged DIN rail switch rated -40 °C to 75 °C.

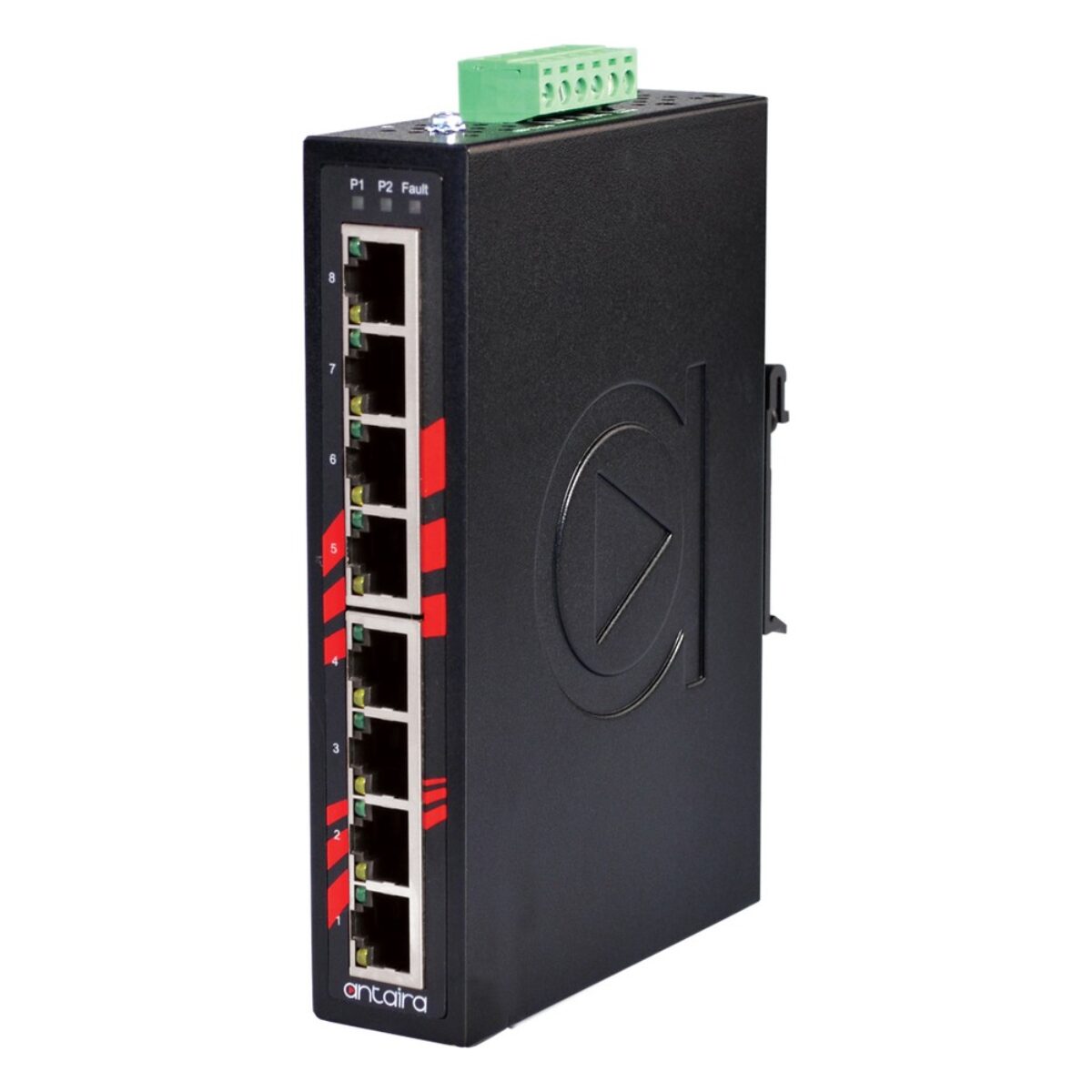

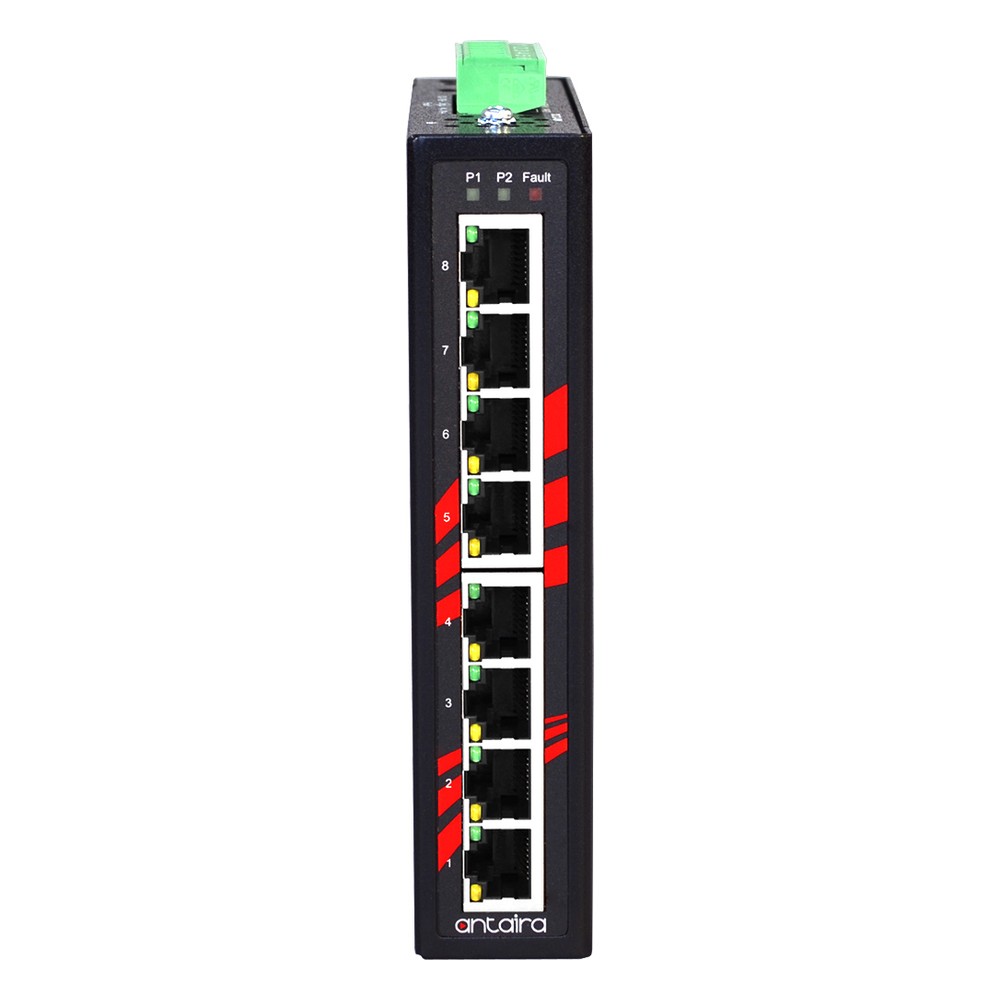

Eight 10/100Base-TX RJ45 ports auto-negotiate speed and duplex and support auto MDI/MDI-X. Store-and-forward switching runs on a non-blocking fabric with a 448 Kbit memory buffer, a 2K MAC address table and IEEE 802.3x flow control. With no management interface, the switch forwards traffic as soon as it is powered, so there is no configuration to back up or restore.
Redundant 12 to 48 V DC inputs connect through a removable 6-contact terminal block, with reverse polarity protection and a resettable overload fuse, and the switch draws 5 W. Ports are protected against surges to 2,000 V DC and ESD to 6,000 V DC, and one relay output alerts maintainers when a power failure or port break occurs.

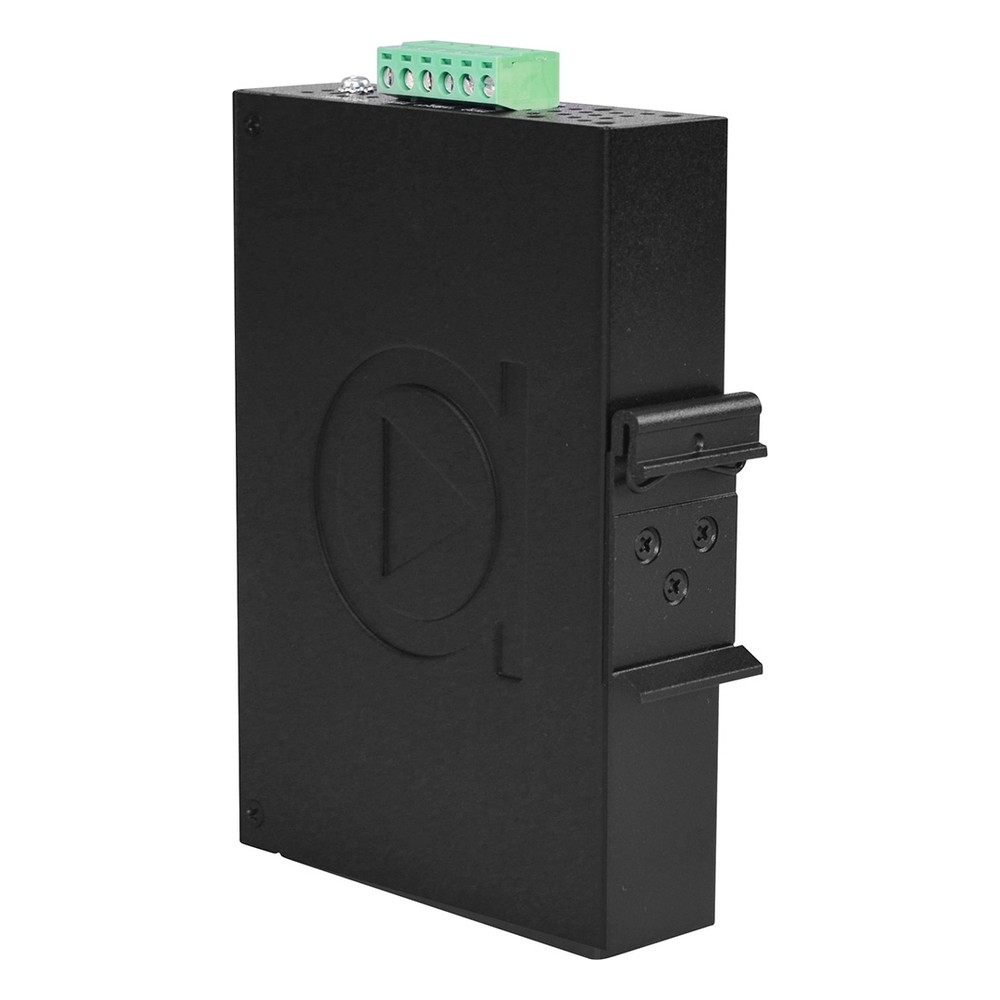

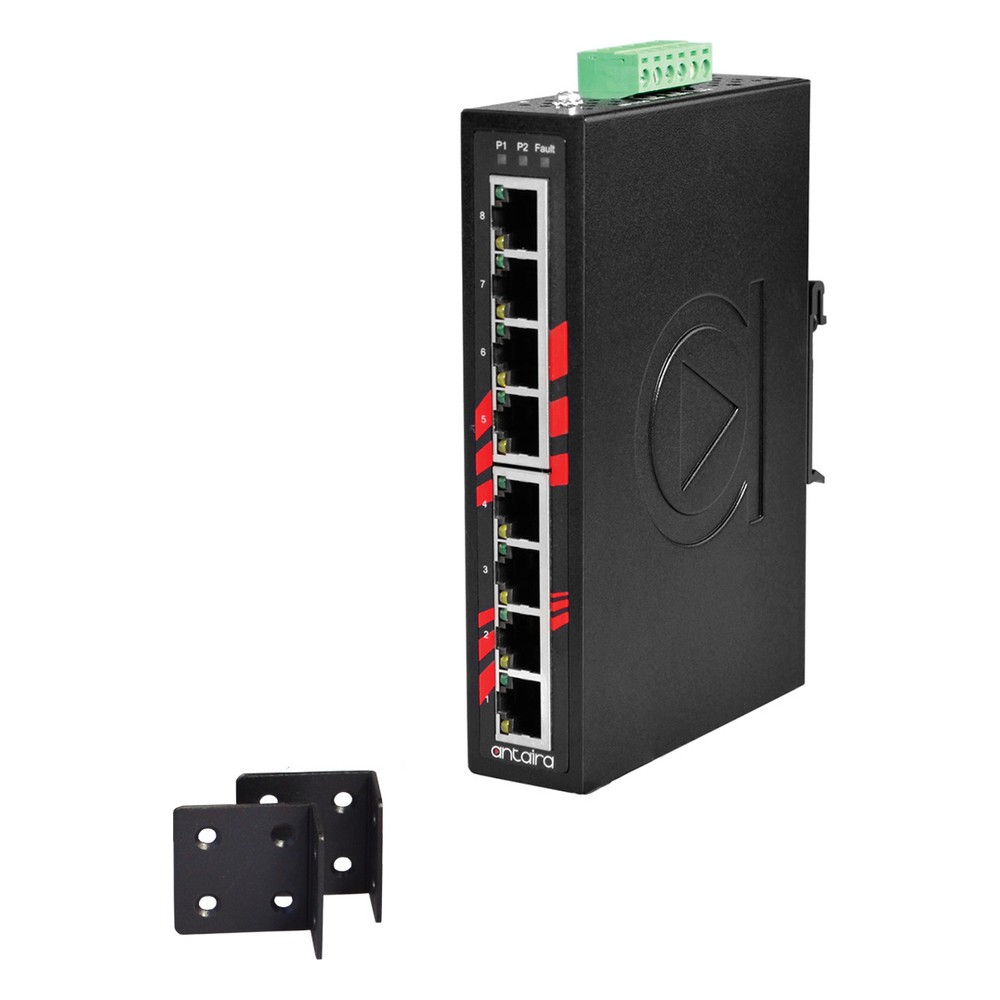

The IP30 metal case mounts on a DIN rail or a wall and is rated to IEC 60068-2-27 shock and IEC 60068-2-6 vibration. Antaira lists the LNX-800A-T-CC as UL Class 1 Division 2 and UL 61010-1 certified, with FCC, CE and RoHS, and backs it with its 5-year warranty. Without the coating, the LNX-800A-T in the LNX-800A series offers the same extended range and adds a 24 V AC input option, while the LNX-C500-T-CC is a coated five-port alternative for smaller cabinets.
LNX-800A-T-CC Specifications
| Overview | |
|---|---|
| Brand & Model | Antaira LNX-800A-T-CC |
| Features | Compact Fanless Industrial |
| Networking | |
| Switch Type | Unmanaged |
| Ethernet Ports | 8x 10/100 BASE-TX [RJ45] |
| Number of Ethernet Ports | 8x Ethernet Ports |
| Networking Standards | IEEE 802.3 10BaseTx Ethernet IEEE 802.3u 100BaseTx Fast Ethernet IEEE 802.3x Back Pressure Flow Control |
| Power | |
| Power Input | 12-48V DC, Terminal Block |
| Environmental Conditions | |
| Operating Temperature | -40°C to 75°C [-40°F to 167°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 95% (Non-condensing) |
| Ingress Protection | IP30 |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
| Certification | CE FCC RoHS UL 61010-1 UL Class 1 Division 2 |
| Mechanical Properties | |
| Weight | 0.5 Kg (1.0 Lbs) |
| Dimensions | 30mm x 140mm x 95mm (1.18" x 5.51" x 3.74") |
| Mounting Options | DIN Mount Wall Mount |
Official Antaira UK Distributor
Things Embedded is an official Antaira UK distributor, and we supply the LNX-800A-T-CC with a matching DIN-rail power supply. Within the Antaira range, the LNX-800A-T same extended temperature switch without conformal coating, with a 24 V AC input option.
Across our range, the LNX-800A-T-CC sits with our unmanaged switches for harsh cabinets, industrial switches for outdoor sites and the wider Ethernet switch range.
