Axiomtek AIE110-ONX NVIDIA Jetson Orin NX Edge AI Developer Kits with PoE and HDMI 2.1

Development on Orin NX often happens before the final camera count, enclosure or I/O list is known, so the first unit needs enough compute for the eventual model without a large bench rig. The Axiomtek AIE110-ONX series is a palm-sized edge AI developer kit supplied with the Jetson Orin NX module fitted, sized for a desk and light enough for a pilot install.

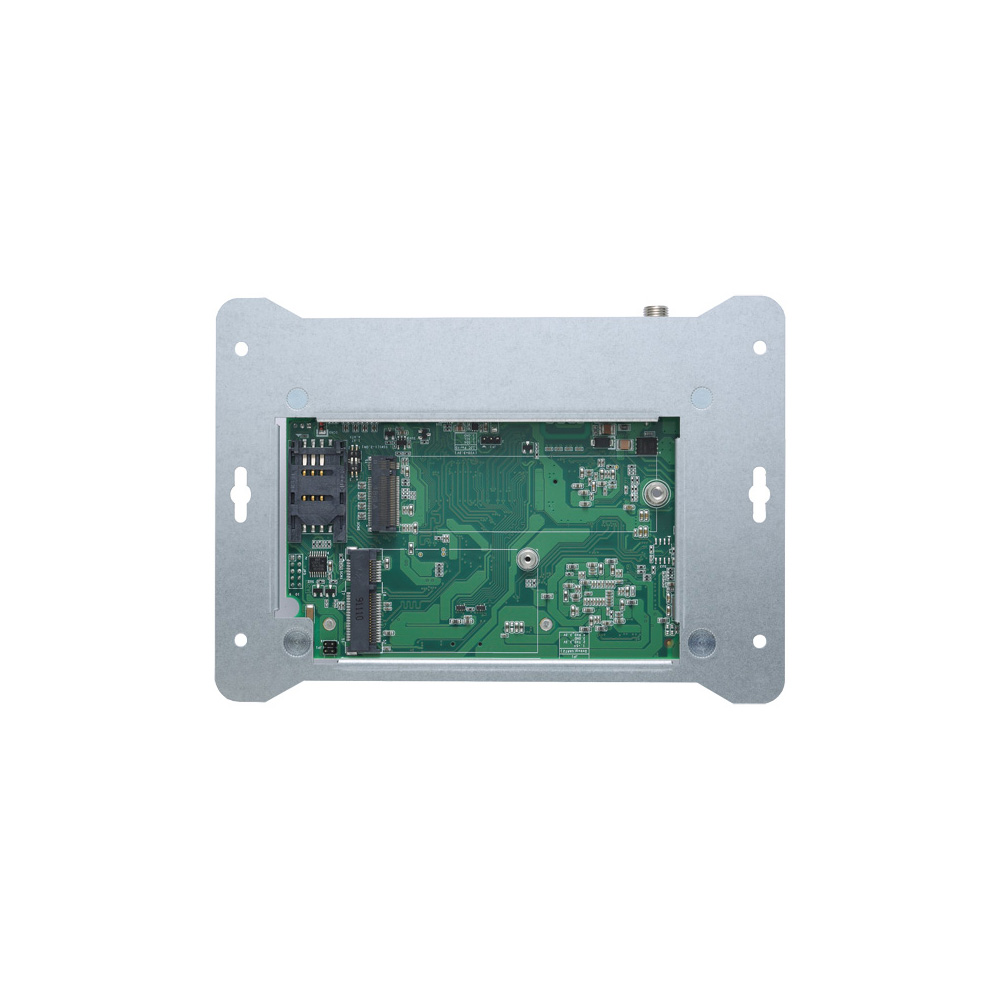

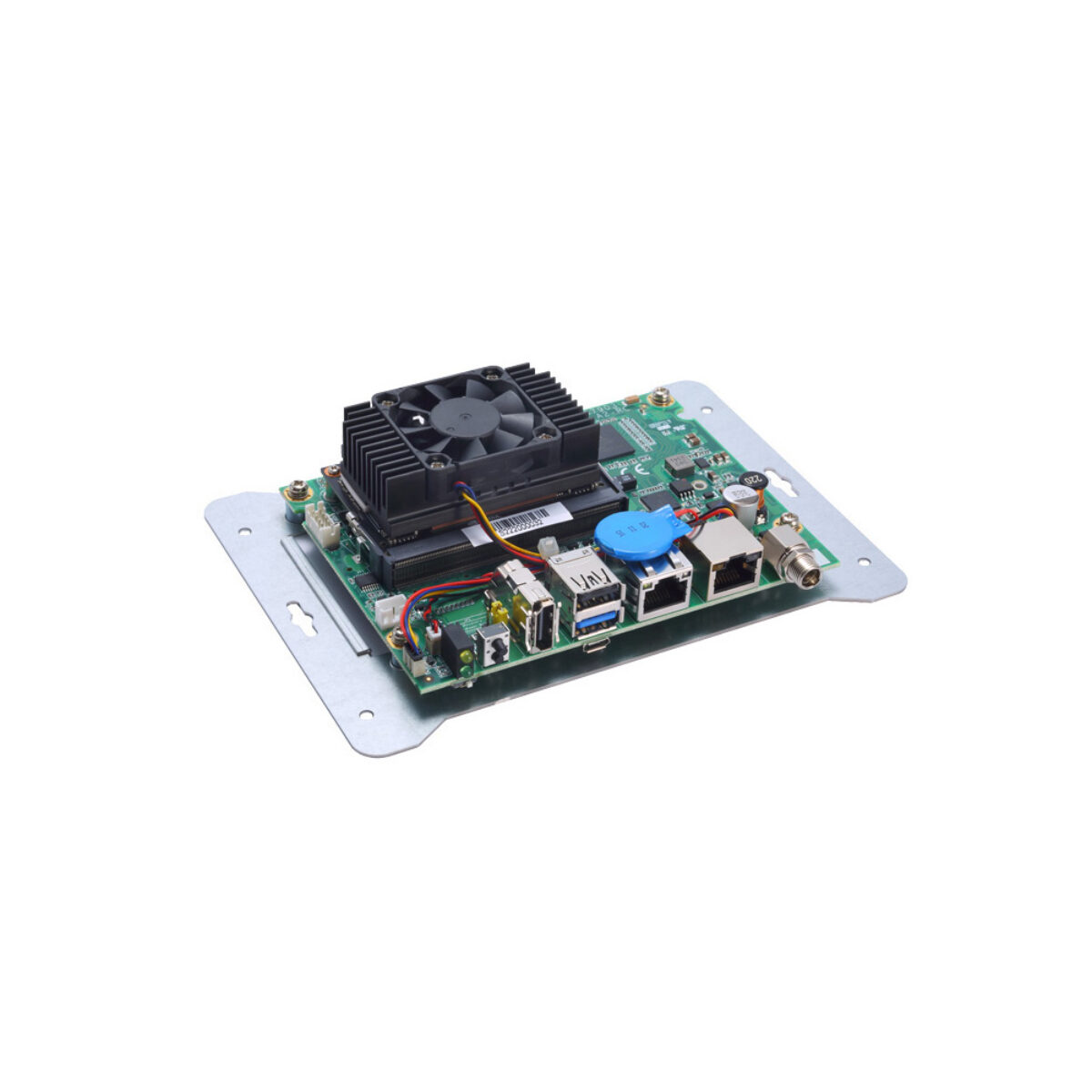

Axiomtek builds the AIE110-ONX around its SBC87903 carrier board, the same board used in the AIE110-ONA, inside an enclosure with an active heatsink. The Orin NX has no eMMC, so an NVMe SSD in the M.2 Key M 2280 slot at PCIe x4 is the boot device. One GbE port comes from the module and a second, on an Intel I210-IT controller, supplies IEEE 802.3af PoE at up to 15 W for one IP camera. HDMI 2.1 with 4K support, one USB 3.2 Gen2 port and one USB 2.0 port cover display and peripherals, and an 8-channel programmable digital I/O header handles triggers. A full-size Mini PCIe slot with a SIM slot adds Wi-Fi, Bluetooth, LTE or GPS.

There are two variants. The AIE110-ONX-8GB carries the Orin NX 8GB with a 6-core Arm Cortex-A78AE CPU and 8 GB of LPDDR5 at 70 TOPS, for detection and tracking on a few streams. The AIE110-ONX-16GB carries the Orin NX 16GB with an 8-core CPU and 16 GB of LPDDR5 at 100 TOPS, for larger models and more concurrent pipelines. Both have a 1024-core Ampere GPU with 32 Tensor Cores, and the enclosure and I/O are identical.

AIE110-ONX developer kits suit vision analytics, robotics and automation development and small pilot deployments. They run from 12 V DC on a screw-type jack with an active heatsink and are rated from -10 to +60 °C, with 3 Grms vibration and 50 G shock tested with an SSD fitted. Axiomtek lists JetPack 5.1.1 or later with Ubuntu 20.04 or later, CE certification and Allxon support for remote monitoring, control and over-the-air updates. The front micro USB port and recovery switch let JetPack be reflashed without opening the unit, which helps during repeated software builds. When a design is ready to deploy, Axiomtek offers the same Orin NX modules in enclosed fanless computers.
