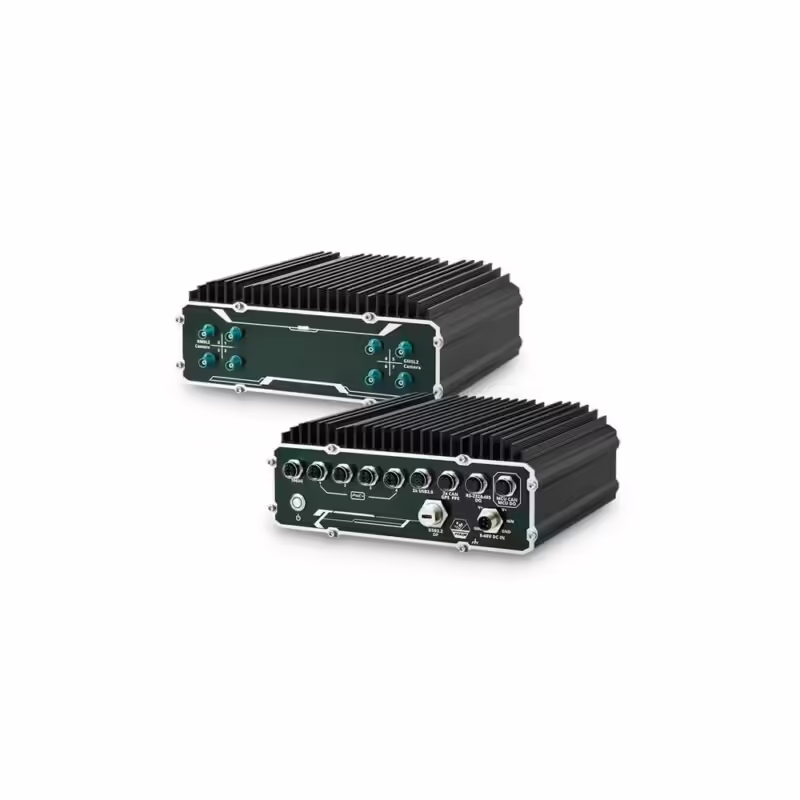

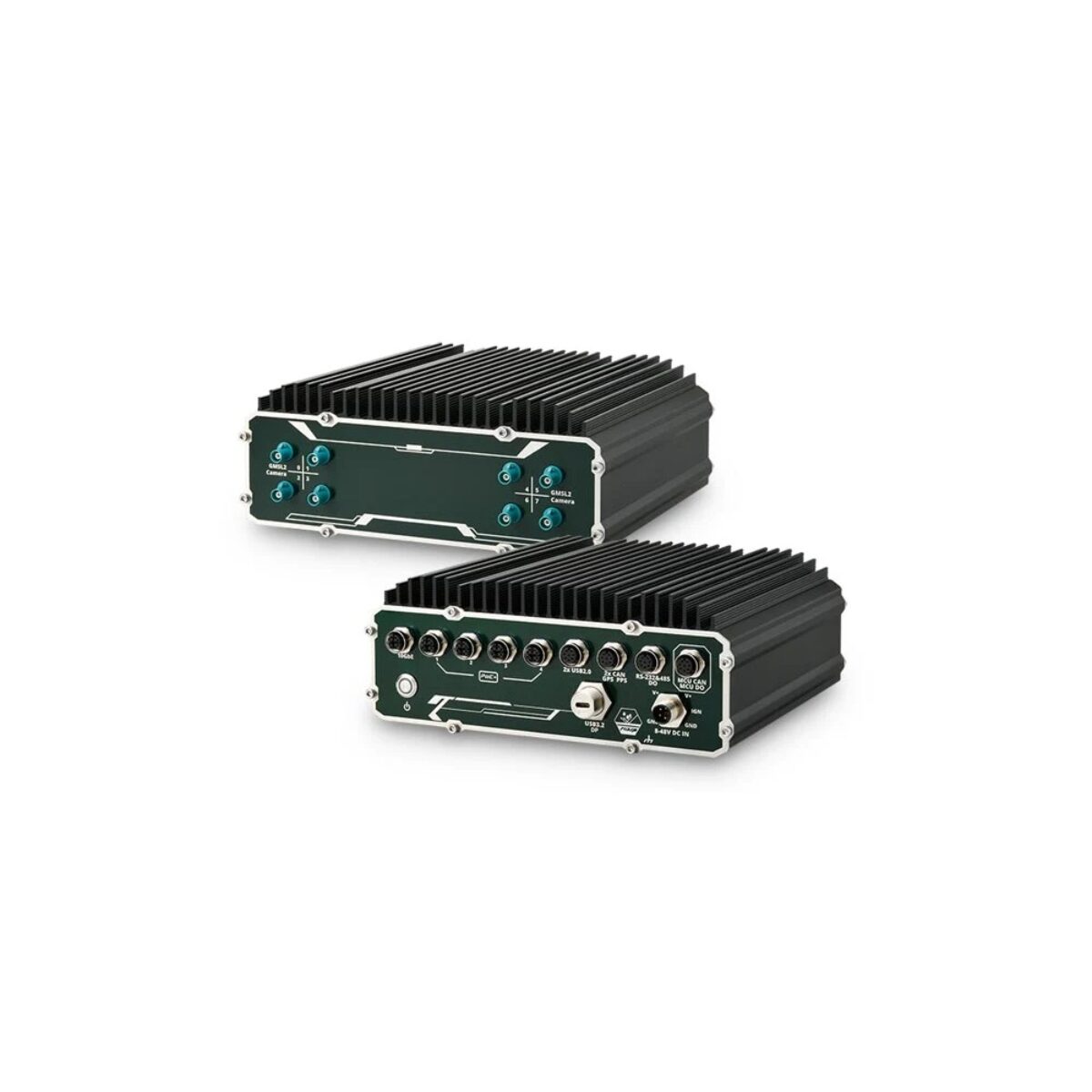

Neousys NRU-230V-AWP / NRU-240S-AWP NVIDIA Jetson AGX Orin IP66 Outdoor Computers with M12 PoE+

Roadside poles, mining and construction vehicles, harbours and food and chemical plants expose a computer to rain, dust and water spray, yet vision AI at those sites still needs Jetson AGX Orin compute and plenty of camera inputs. The Neousys NRU-230V-AWP / NRU-240S-AWP series puts that compute inside IP66 outdoor computers that are waterproof and dustproof, with every external connection made through sealed M12, FAKRA Z or waterproof Type-C connectors rather than a separate enclosure.

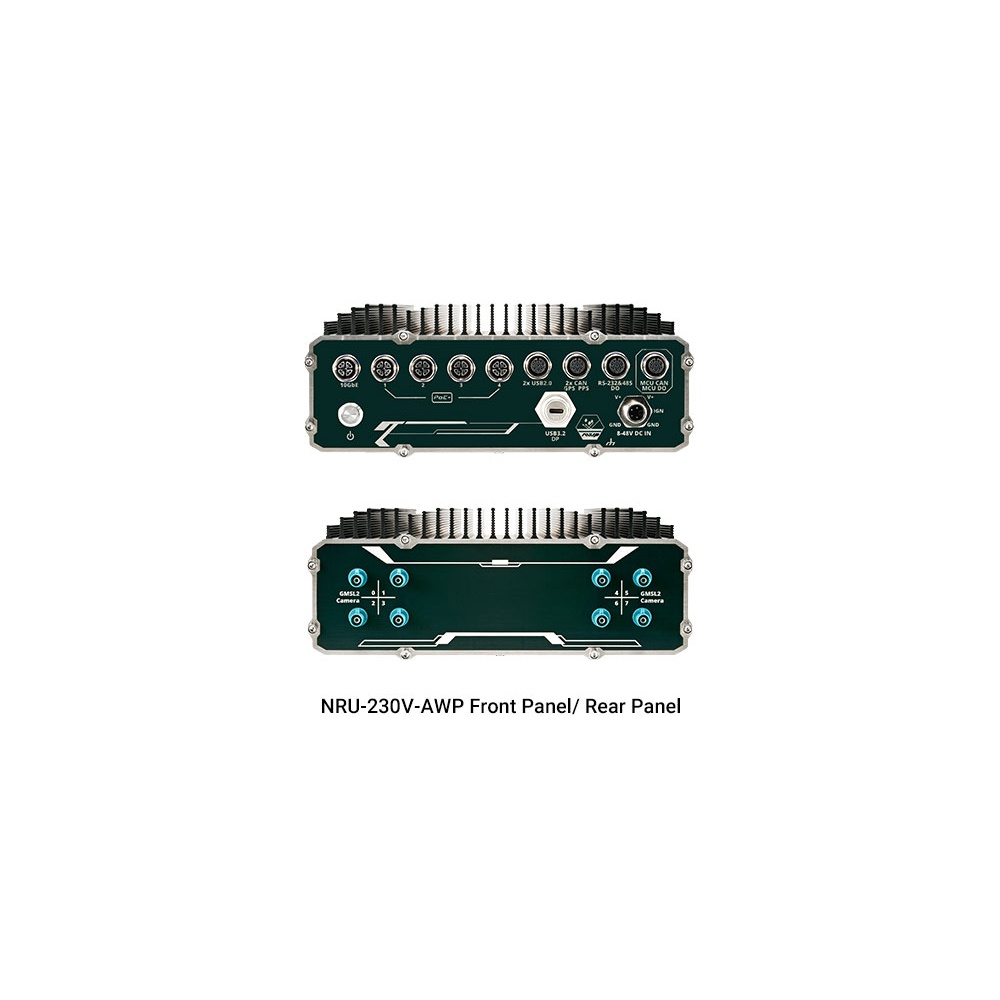

Each model runs an NVIDIA Jetson AGX Orin module, pairing an NVIDIA Ampere GPU with Arm Cortex-A78AE CPU cores, LPDDR5 at 3200 MHz and 64 GB of eMMC 5.1, bundled with JetPack. Neousys quotes up to 275 sparse INT8 TOPS and up to twenty-two 1080p video streams transcoded at once. Storage adds an M.2 2280 NVMe socket on PCIe Gen4 x2 and two internal SATA ports for 2.5-inch SSDs, while two full-size mini PCIe sockets and an M.2 B key socket with dual micro SIM take Wi-Fi 6, CAN, GNSS, 4G LTE or 5G modules. The front panel is common to every model: four Intel I350 Gigabit ports with 802.3at PoE+ from a 100 W budget, an M12 10GbE port, two isolated CAN 2.0 ports, isolated RS-485, RS-232, a GPS PPS input and a system monitoring port run by an automotive-grade MCU.

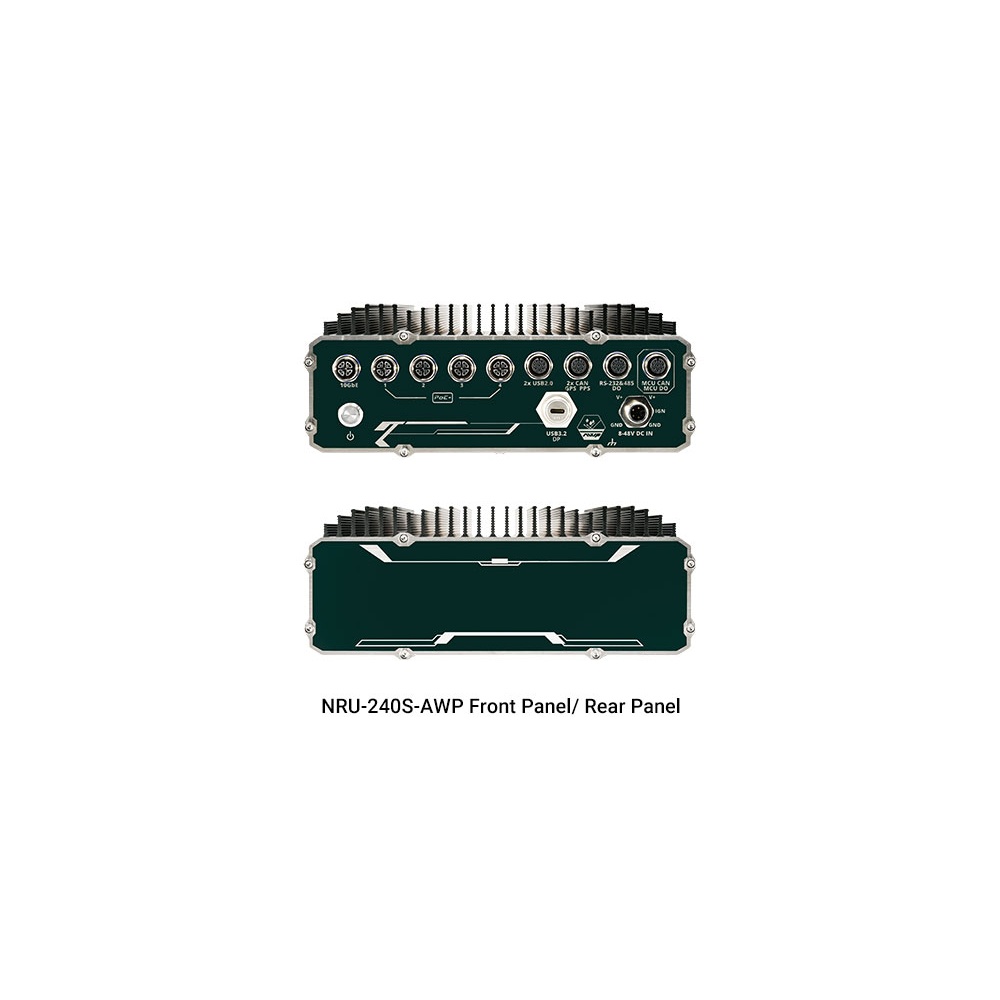

The NRU-230V-AWP / NRU-240S-AWP series splits on cameras and module. The NRU-230V-AWP adds eight GMSL2 inputs on waterproof FAKRA Z connectors for automotive or industrial stereo cameras, and comes as the NRU-230V-AWP-JAO32, NRU-230V-AWP-JAO64 and NRU-230V-AWP-JAOi. The NRU-240S-AWP keeps the same front-panel I/O without the GMSL2 inputs, for PoE+ IP and GigE camera systems, as the NRU-240S-AWP-JAO32, NRU-240S-AWP-JAO64 and NRU-240S-AWP-JAOi. JAO32 and JAO64 models carry the 32 GB and 64 GB Jetson AGX Orin and run from -25 °C to 70 °C, while JAOi models use the Jetson AGX Orin Industrial module and extend that to -40 °C to 70 °C.

Power is 8 V to 48 V DC with ignition control on an M12 L-coded connector, so these outdoor computers suit industrial vehicles and outdoor AMRs as well as fixed roadside and edge inspection points. The full temperature ratings apply in 30 W (JAO32 and JAO64) or 35 W (JAOi) TDP mode without 10GbE traffic or PoE load, with the upper limit falling to 60 °C when every function is in use. Vibration and shock are tested to MIL-STD-810H Methods 514.8 and 516.8, EMC follows CE and FCC Class A, and every NRU-230V-AWP / NRU-240S-AWP model measures 225 x 194 x 88.5 mm, weighs 4.4 kg and wall-mounts on a standard bracket.
