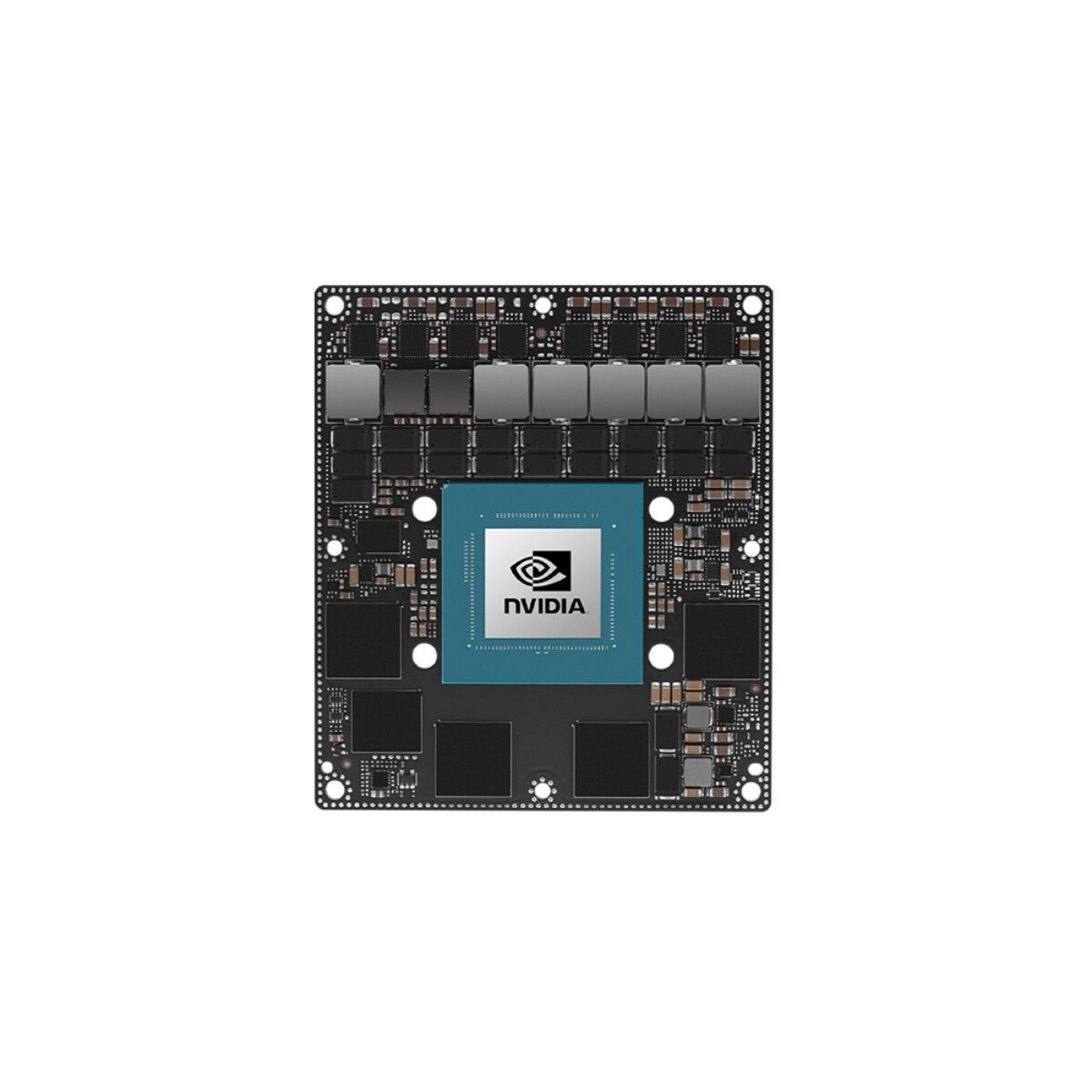

NVIDIA Jetson AGX Orin 64GB Module NVIDIA Jetson AGX Orin 64GB Module with 275 TOPS and 12-Core Arm CPU

The Jetson AGX Orin 64GB Module is the 64GB option in the NVIDIA Jetson AGX Orin series, with up to 275 TOPS, a 2048-core Ampere GPU, a 12-core Arm Cortex-A78AE CPU and 64GB of LPDDR5. It suits multi-camera vision, robotics and generative AI builds with larger models and a power budget of up to 60 W.

  • Up to 275 TOPS: A 2048-core Ampere GPU with 64 Tensor Cores and two NVDLA 2.0 engines deliver up to 275 sparse INT8 TOPS for concurrent models.
  • 12-Core Arm Cortex-A78AE CPU: Twelve cores in three clusters at up to 2.2 GHz, rated at 259 SPECint_rate2006, for control, pre-processing and application code.
  • 64GB 256-Bit LPDDR5: 64 GB of LPDDR5 at 204.8 GB/s holds larger models and several camera pipelines, with 64 GB of eMMC 5.1 for the OS.
  • 15 W to 60 W Power Modes: NVIDIA 15 W, 30 W and 50 W modes, and up to 60 W, let the thermal design set the performance level.
  • 2x 4K60 Encode and 8K30 Decode: Hardware video engines encode 2x 4K60 H.265 and decode 1x 8K30 or 3x 4K60 H.265 streams without loading the GPU.
View Jetson AGX Orin Series
UK Support Team: +44 (0)1785 558 300 Call
Select section
  • Overview
  • Specifications
  • Downloads

Jetson AGX Orin 64GB Module Overview

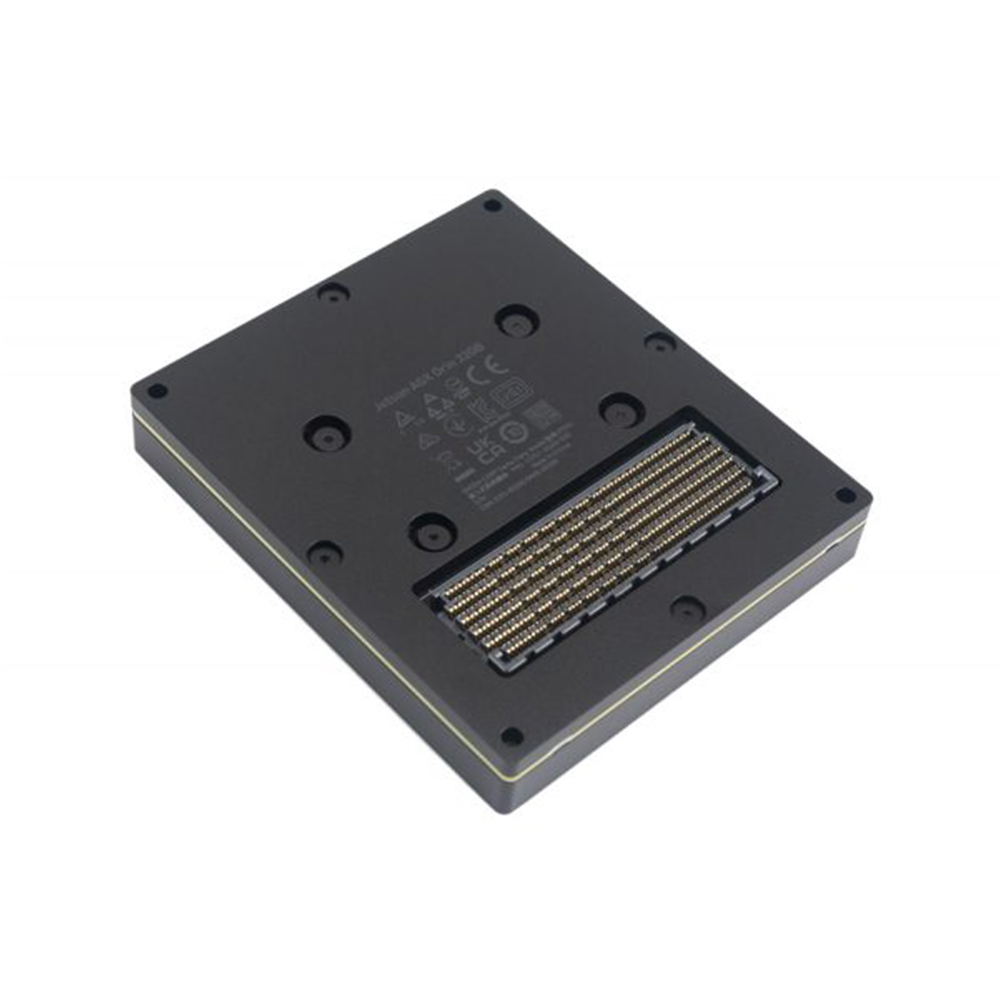

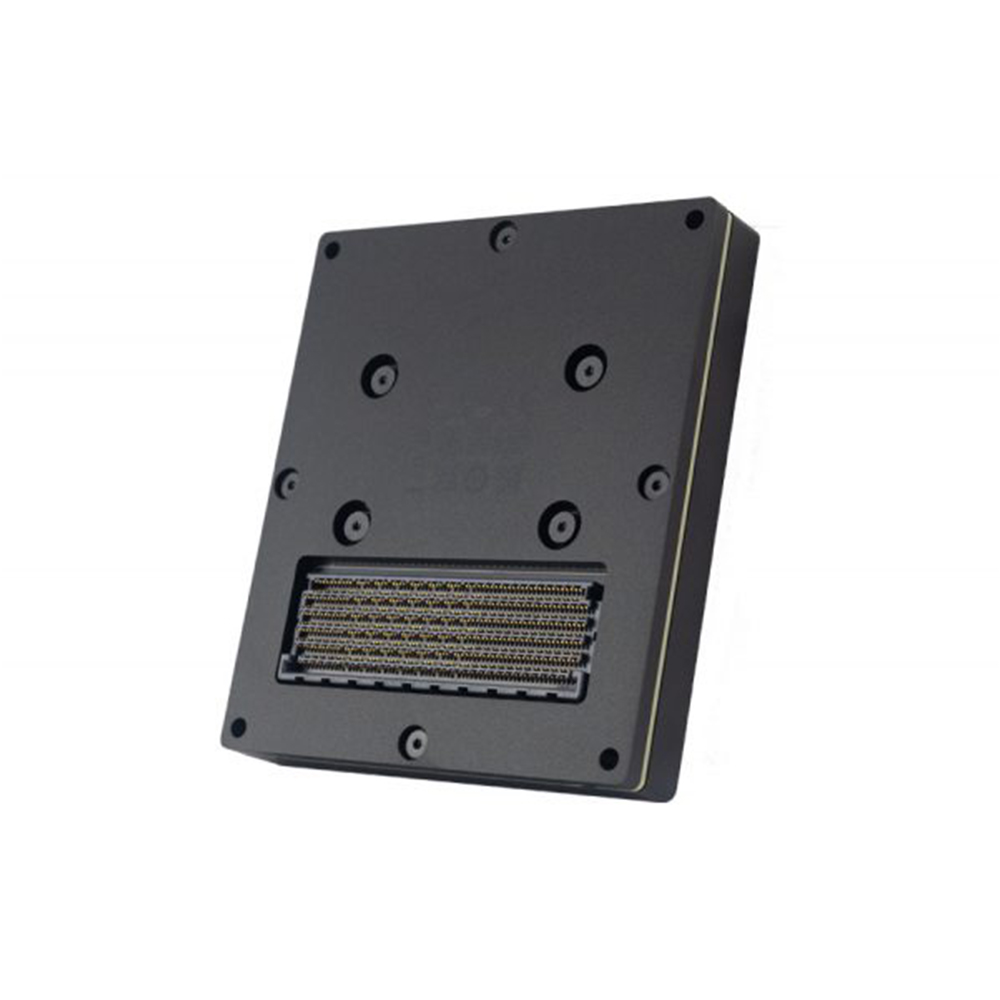

An enquiry for the Jetson AGX Orin 64GB Module usually comes from a team that has settled on the largest AGX Orin memory option, for a production build, a replacement or a stock plan for a long programme. It is the 64GB member of the NVIDIA Jetson AGX Orin series, on the same 699-pin connector and thermal transfer plate as the 32GB module.

NVIDIA rates the module at up to 275 sparse INT8 TOPS. That comes from a 2048-core Ampere GPU with 64 Tensor Cores at up to 1.3 GHz and two NVDLA 2.0 accelerators at up to 105 TOPS, run alongside a 12-core Arm Cortex-A78AE CPU at up to 2.2 GHz. Memory is 64 GB of 256-bit LPDDR5 at 204.8 GB/s, with 64 GB of eMMC 5.1 on the module. Power modes run at 15 W, 30 W and 50 W, and up to 60 W. The Jetson AGX Orin 32GB Module drops to 8 CPU cores and 200 TOPS at up to 40 W for designs with a tighter power budget.

The Jetson AGX Orin 64GB Module brings 16 MIPI CSI-2 lanes, PCIe Gen4 as two x8, one x4 and two x1 links, 3x USB 3.2 Gen2, 4x USB 2.0, 1x GbE and 1x 10GbE to the carrier, with UART, SPI, I2C, I2S and two CAN interfaces. Video engines encode 2x 4K60 H.265 and decode up to 1x 8K30 or 3x 4K60 H.265.

NVIDIA lists the Jetson AGX Orin 64GB as available through January 2032, and the AGX Orin Industrial module through July 2033. The Jetson AGX Xavier 64GB reached end of life in January 2025 on the same NVIDIA lifecycle page, and NVIDIA positions AGX Orin at up to 8x the performance of AGX Xavier in the same form factor, which makes this module the usual migration target; carrier support is confirmed per carrier. NVIDIA lists the next-generation Jetson Thor T5000 module through August 2035.

Jetson AGX Orin 64GB Module Specifications

Overview
Brand & ModelNVIDIA Jetson AGX Orin 64GB Module
Performance
AI Performance275 TOPS
System-on-ModuleNVIDIA Jetson AGX Orin 64GB: 275 TOPS, 2048-core Ampere GPU with 64 Tensor Cores, 12-core Arm Cortex-A78AE 2.2GHz, 64GB 256-bit LPDDR5, 64GB eMMC, 15-60W

NVIDIA Jetson Modules

We supply NVIDIA Jetson modules fitted, imaged and tested in a carrier board or system as standard, as well as sourcing modules for production runs and last-time-buy needs. The Jetson AGX Orin 64GB Module is part of our NVIDIA Jetson AGX Orin range, with the 32GB module and AGX Orin systems alongside it.

For a board to host it, see our AGX Orin carrier boards for Jetson, or the Jetson Orin carrier boards range for the full Orin line. Designs that need the next generation of compute can move to Jetson Thor.
