M.2 Video Capture Cards

// LOADING...

Browse Our M.2 Capture Cards

Video Capture

Displaying of 37 items

View All

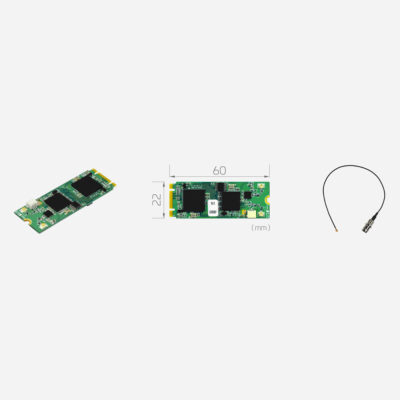

SC550N1 M2 SDI M.2 SDI Frame Grabber with 1080p60 Input

Host: M.2 [2260, B-Key/M-Key]
Simultaneous Video Inputs: 1
Video Input: 1x 3G-SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC550N1 M2 SDIM.2 SDI Frame Grabber with 1080p60 Input

SC540N1 M2 HDMI (B/M) M.2 HDMI Capture Card with 1080p60 Input

Host: M.2 [2242, B-Key/M-Key]
Simultaneous Video Inputs: 1
Video Input: 1x HDMI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC540N1 M2 HDMI (B/M)M.2 HDMI Capture Card with 1080p60 Input

SC540N1 M2 HDV M.2 HDMI and DVI Video Capture Card with 1080p60 Input

Host: M.2 [2260, B-Key/M-Key]
Simultaneous Video Inputs: 1
Video Input: 1x DVI-I, 1x YPbPr
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC540N1 M2 HDVM.2 HDMI and DVI Video Capture Card with 1080p60 Input

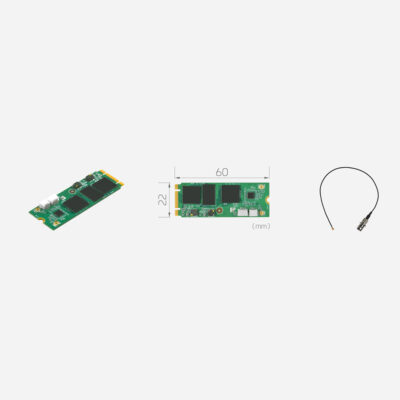

SC540N1 M2 SDI M.2 SDI Frame Grabber with 1080p30 Capture

Host: M.2 [2260, B-Key/M-Key]
Simultaneous Video Inputs: 1
Video Input: 1x SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Video Output: 1x SDI
Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC540N1 M2 SDIM.2 SDI Frame Grabber with 1080p30 Capture

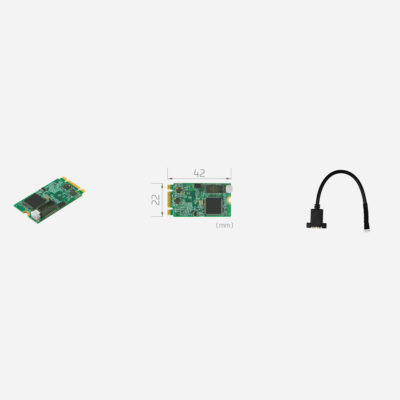

SC5A0N1 M2 HDMI (B/M) M.2 HDMI Capture Card with 1080p60 Input

Host: M.2 [2242, B-Key/M-Key]
Simultaneous Video Inputs: 1
Video Input: 1x HDMI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
Recording Mode: Hardware Compression
Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC5A0N1 M2 HDMI (B/M)M.2 HDMI Capture Card with 1080p60 Input

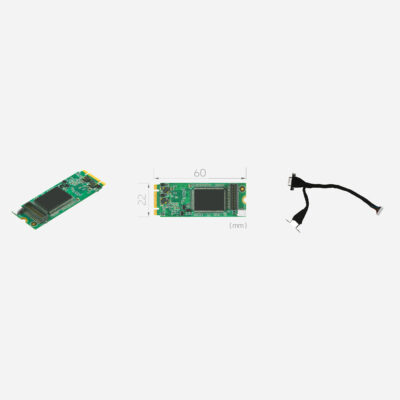

SC5A0N1 M2 HDV M.2 HDMI and DVI Video Capture Card with 1080p60 Input

Host: M.2 [2260, B-Key/M-Key]
Simultaneous Video Inputs: 1
Video Input: 1x DVI-I, 1x YPbPr
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
Recording Mode: Hardware Compression
Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC5A0N1 M2 HDVM.2 HDMI and DVI Video Capture Card with 1080p60 Input

SC5A0N1 M2 SDI M.2 SDI Frame Grabber with 1080p60 Input

Host: M.2 [2260, B-Key/M-Key]
Simultaneous Video Inputs: 1
Video Input: 1x SDI
Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
Video Output: 1x SDI
Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
Recording Mode: Hardware Compression
Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

Yuan

SC5A0N1 M2 SDIM.2 SDI Frame Grabber with 1080p60 Input

Displaying of 37 items

View All

// Video Capture Specialists

Speak to an Embedded Video Specialist.

Tell us the board or compact PC the card goes into, the sources it must capture and the operating system you run. We will recommend the right capture card for the socket, then configure and test it with your system before it ships.
