UK Mini PCIe Video Capture Cards
Mini PCIe Frame Grabbers for Embedded Boards and Box PCs
A Mini PCIe capture card adds HDMI, SDI, DVI or composite capture to an embedded board or box PC through its Mini PCIe socket, keeping video capture inside a compact system. Available with single-input HDMI and SDI cards, all-in-one cards and multi-channel composite models.
Options include loop-through on selected SDI cards and inputs brought out on cables from the card, suited to vehicle systems, kiosks and compact recorders built on embedded boards.
Speak to a video capture specialist to match the inputs and socket to your system.
Browse Our Mini PCIe Capture Cards

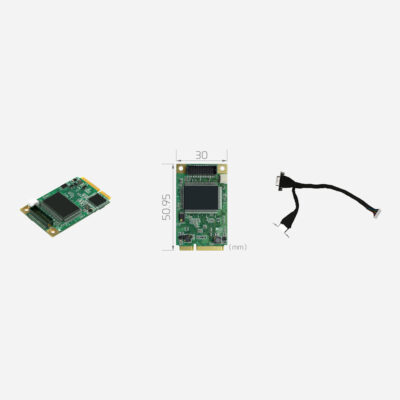

- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Video Input: 1x DVI-I, 1x HDMI, 1x VGA, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Video Input: 1x SDI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 1x SDI
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

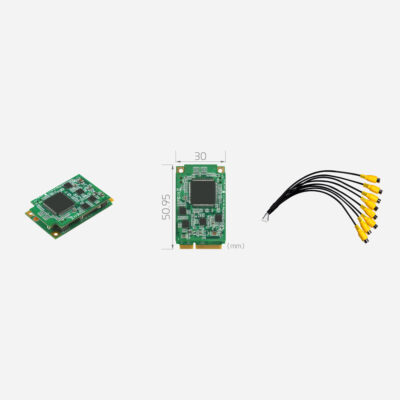

- Host: Mini PCIe
- Simultaneous Video Inputs: 8
- Video Input: 8x Composite
- Max Input Resolution: 480p30 [720x480 @ 30fps], 480p30 [960x480 @ 30fps]
- Max Video Capture Resolution: 480p30 [720x480 @ 30fps], 480p30 [960x480 @ 30fps]
- Recording Mode: Hardware Compression
- Colour Formats: YUY2, YV12

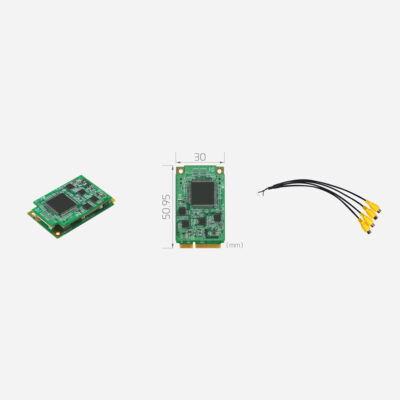

- Host: Mini PCIe
- Simultaneous Video Inputs: 4
- Video Input: 4x Composite
- Max Input Resolution: 480p30 [720x480 @ 30fps], 480p30 [960x480 @ 30fps]
- Max Video Capture Resolution: 480p30 [720x480 @ 30fps], 480p30 [960x480 @ 30fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12
Mini PCIe Capture Card Ranges Configured by Things Embedded
We work with a leading manufacturer of Mini PCIe capture cards, so the ranges below are the ones we specify for embedded boards and box PCs. Compare them by inputs and socket, then browse the models above or ask a video capture specialist which range suits your system.
SC300, SC330, SC350 and SC3C0 Yuan Analogue Frame Grabbers
Composite and S-Video capture from one to 32 channels at D1 and WD1, PAL and NTSC, for CCTV and legacy camera systems.
SC400 and SC410 Yuan Capture Cards
HDMI, 3G-SDI, 6G-SDI and TVI capture on PCIe, M.2 and Mini PCIe, from single-input all-in-one cards to four-channel 4K30 models.
SC540 and SC542 Yuan HD Capture Cards
One to eight channels of HDMI, SDI, DVI-I and analogue capture at up to 1080p on PCIe, M.2 and Mini PCIe.
SC550 Yuan HD Capture Cards
One to eight channels of HDMI, 3G-SDI and DVI capture at 1080p60 on PCIe, M.2 and Mini PCIe, with GPIO on selected cards.
SC5A0 Yuan HD Frame Grabbers
One to eight channels of HDMI, SDI, DVI and analogue capture on PCIe, M.2 and Mini PCIe for recording and monitoring PCs.
SC5C0 Yuan HD Capture Cards With H.26X Encoding
One to eight channels of HDMI, 3G-SDI and DVI capture at up to 1080p60 with on-card H.264 and H.265 encoding on selected models.
Not sure which range fits? Tell us the application and we will recommend the right model.
Explore Our Capture Cards and Frame Grabbers
Compare every video capture category by signal, SDI and HDMI standard or form factor, and jump straight to the cards that fit your sources and host system.
Mini PCIe Capture Innovation & Embedded Video Insights
Speak to an Embedded Capture Specialist.
Tell us the board or compact PC the card goes into, the sources it must capture and the operating system you run. We will recommend the right capture card for the socket, then configure and test it with your system before it ships.
