Winmate R15IE3S-PTC3-POE 15″ PoE PCAP Touch Panel PC with Intel Elkhart Lake Celeron N6211 and XGA Display
PCAP
Intel
Linux
Windows
USB3
2x M.2
Fanless
CE
FCCR15IE3S-PTC3-POE Overview

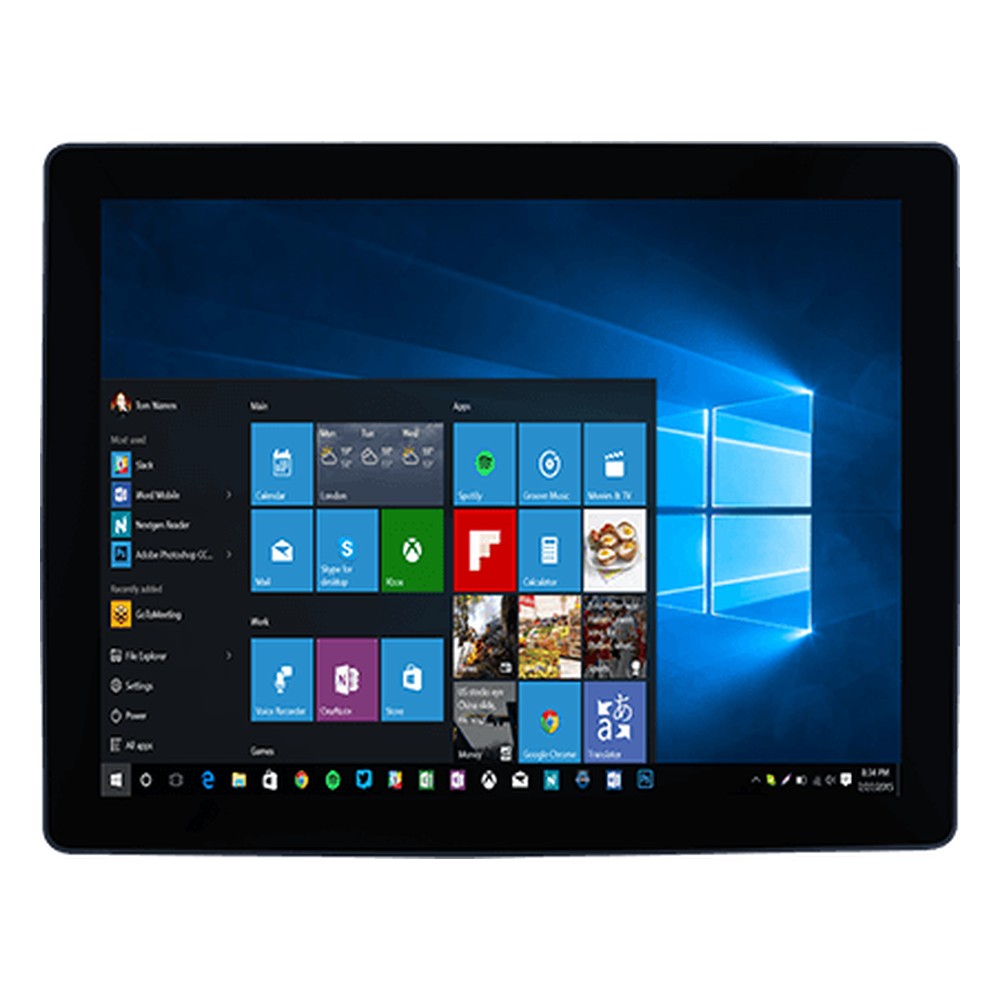

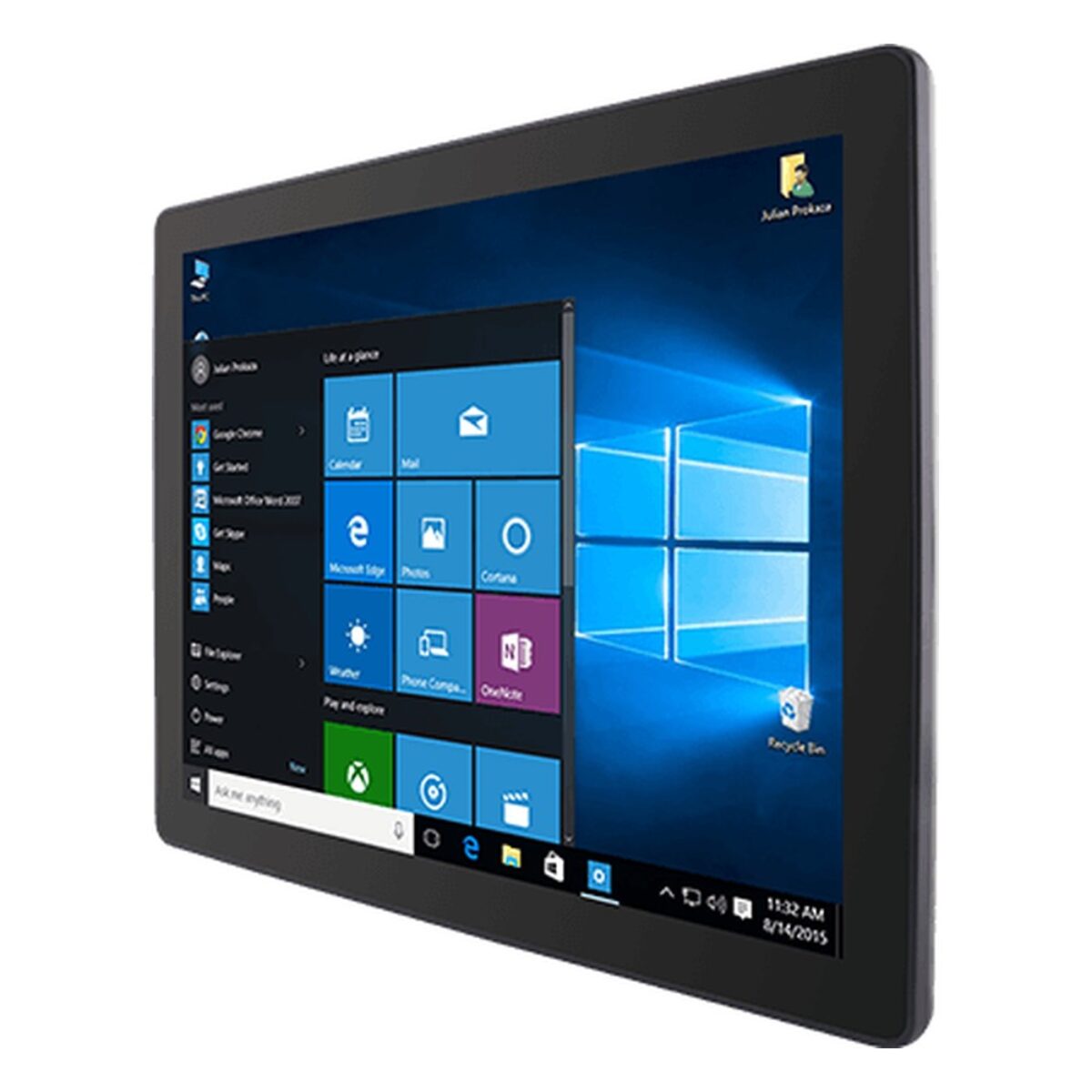

In process control rooms and smart factory cells a touch panel gets wiped down often, and dirt collects wherever a bezel meets the glass. The R15IE3S-PTC3-POE is Winmate’s 15 inch PT Series HMI panel PC for those stations, with a true flat, edge-to-edge front for easy cleaning, an Intel Celeron N6211 and a 15″ 1024 x 768 projected capacitive multi-touch display at 300 nits with 2000:1 contrast.
The Celeron N6211 runs at up to 3.0 GHz with 4 GB of memory as standard and 8 or 16 GB as options, which typically suits HMI software or a process visualisation client. Storage is a 128 GB SSD as standard on an M.2 2242 B-key SATA slot, with options up to 1 TB, and an M.2 2230 E-key slot is there for a Wi-Fi module. Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 22.04 can be installed.
Connections include two Gigabit LAN ports on Intel controllers, one of them a PoE powered device port to IEEE 802.3at (25 W), two USB 3.2 Gen 2 Type-A ports, one RS-232/422/485 port set to RS-232 by default, and two speakers. Micro HDMI is optional. Within the Winmate range the R15IE3S-PTC3 is the 12 V DC version with optional HDMI 2.0 and an optional 2.5″ drive bay, and the R15L100-PTC3-POE is the PoE powered touch monitor in the same housing.

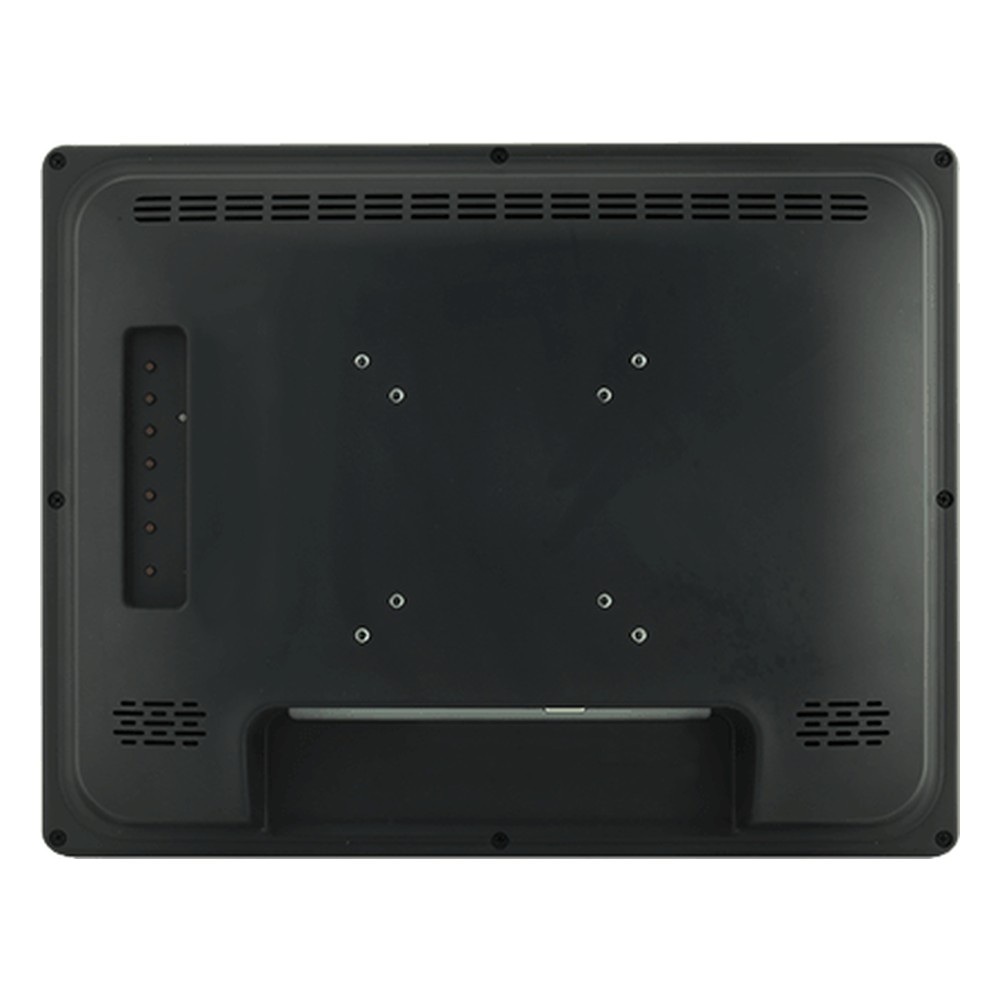

Power arrives over PoE, or from 12 V DC on a terminal block, with a 12 V 50 W AC adapter supplied. The fanless plastic housing is rated IP65 and runs from 0 to 50 °C at 10 to 90% humidity. VESA mounting suits arms, stands and wall brackets, and it carries CE and FCC marks. We supply the R15IE3S-PTC3-POE configured, with the OS installed, and tested before dispatch.
R15IE3S-PTC3-POE Specifications
| Overview | |
|---|---|
| Brand & Model | Winmate R15IE3S-PTC3-POE |
| Features | Fanless Industrial PoE Powered |
| Display | |
| Display | 15"[4:3, 1024 x 768, XGA] |
| Display Treatment | Anti-Glare Treatment |
| Touch Controller | Multi Touch PCAP |
| Brightness | 300 Nits |
| Viewing Angle | Wide Viewing Angle |
| 176° Horizontal, 176° Vertical | |
| Aspect Ratio | 4:3 |
| Format | Standard |
| Contrast | 2000:1 |
| Performance | |
| Processor Series | Intel Celeron N Series Elkhart Lake |
| Processor Models | N6211 |
| Performance Cores | 2 Cores |
| Operating System | Linux Ubuntu 22.04 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Outputs | 1x Optional Micro HDMI |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 1x GbE LAN [RJ45] 1x GbE LAN [RJ45] [PoE-PD] | |
| PoE Standard | PoE+ [IEEE 802.3at] |
| USB | 2x USB Ports |
| 2x USB 3.2 Gen 2 [Type A] | |
| Serial | 1x Serial Ports |
| 1x RS232/422/485 [DB9] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 B-Key [SATA] [2242] 1x M.2 E-Key [2230] | |
| Storage | |
| Storage | 1x M.2 SSD |
| Power | |
| Power Input | 12V DC [Terminal Block] AC Power Supply Included PoE Powered Device (PD) [RJ45] |
| Environmental Conditions | |
| Thermal Dissipation | Fanless Passively Cooled Chassis |
| Operating Temperature | 0°C to 50°C [32°F to 122°F] |
| Storage Temperature | -10°C to 60°C [14°F to 140°F] |
| Humidity | 10-90% (Non-condensing) |
| Ingress Protection | IP65 IP65 [Dustproof, Protection against low pressure water jets spraying from any direction] |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 2.4 Kg (5.3 Lbs) |
| Dimensions | 353mm x 277mm x 45mm (13.88" x 10.89" x 1.77") |
| Mounting Options | VESA Mount |
- R15IE3S-PTC3-POE Datasheet Download
Official Winmate UK Distributor
Things Embedded is an official Winmate UK distributor, supplying the R15IE3S-PTC3-POE configured, with the OS installed, and tested for UK manufacturing and process control projects. Within the Winmate range the R15IE3S-PTC3 is the 12 V DC version with optional HDMI 2.0 and an optional 2.5" drive bay.
The R15IE3S-PTC3-POE sits among our 15 inch panel PCs, our chassis and VESA mount panel PCs and our IP65 panel PCs. Where a 15 inch touch station needs to run from one PoE cable and wipe clean easily, this is a sensible model to specify.
