Winmate W10IAN3S-PMH2 10.1″ Panel Mount PC with Intel N150 and Resistive Touch

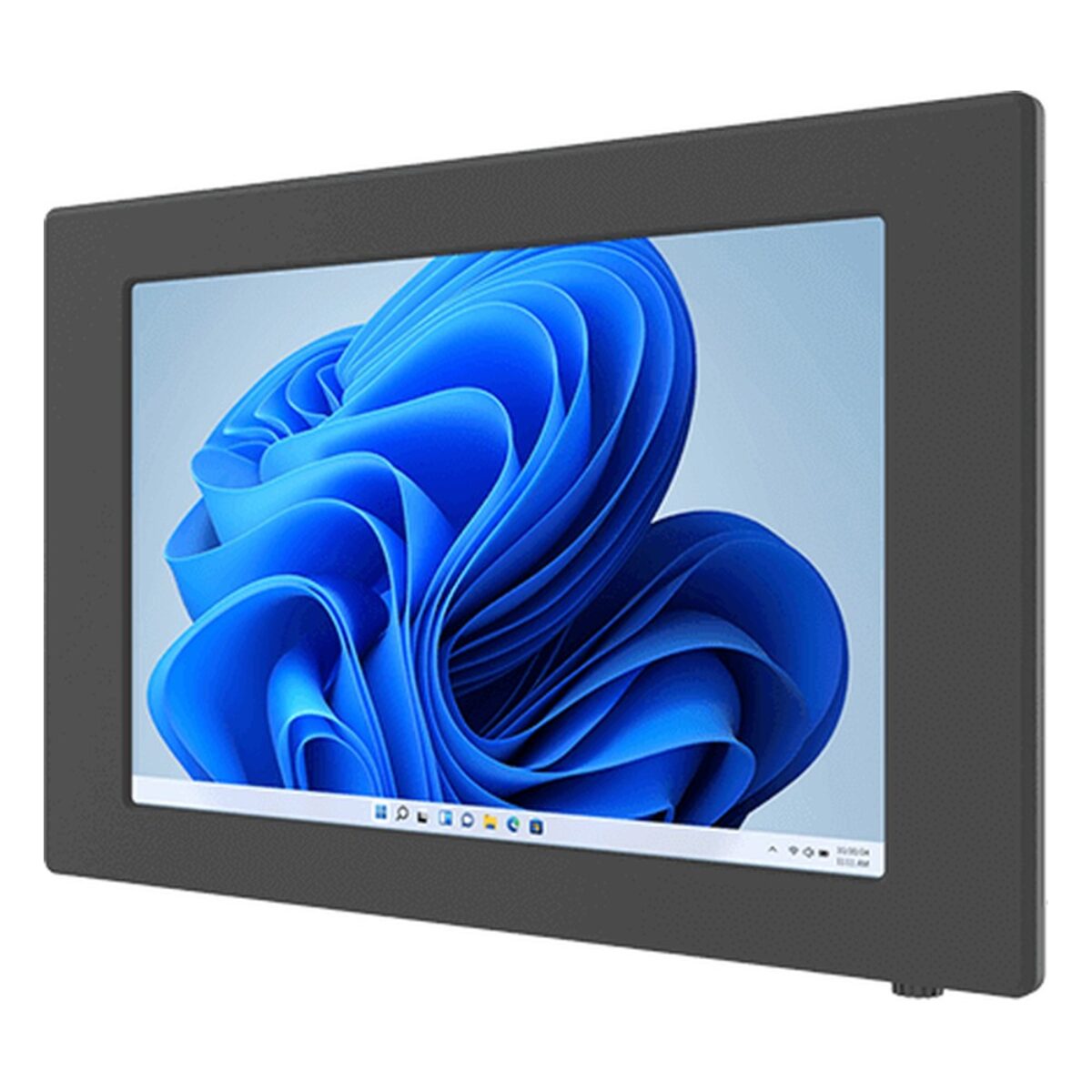

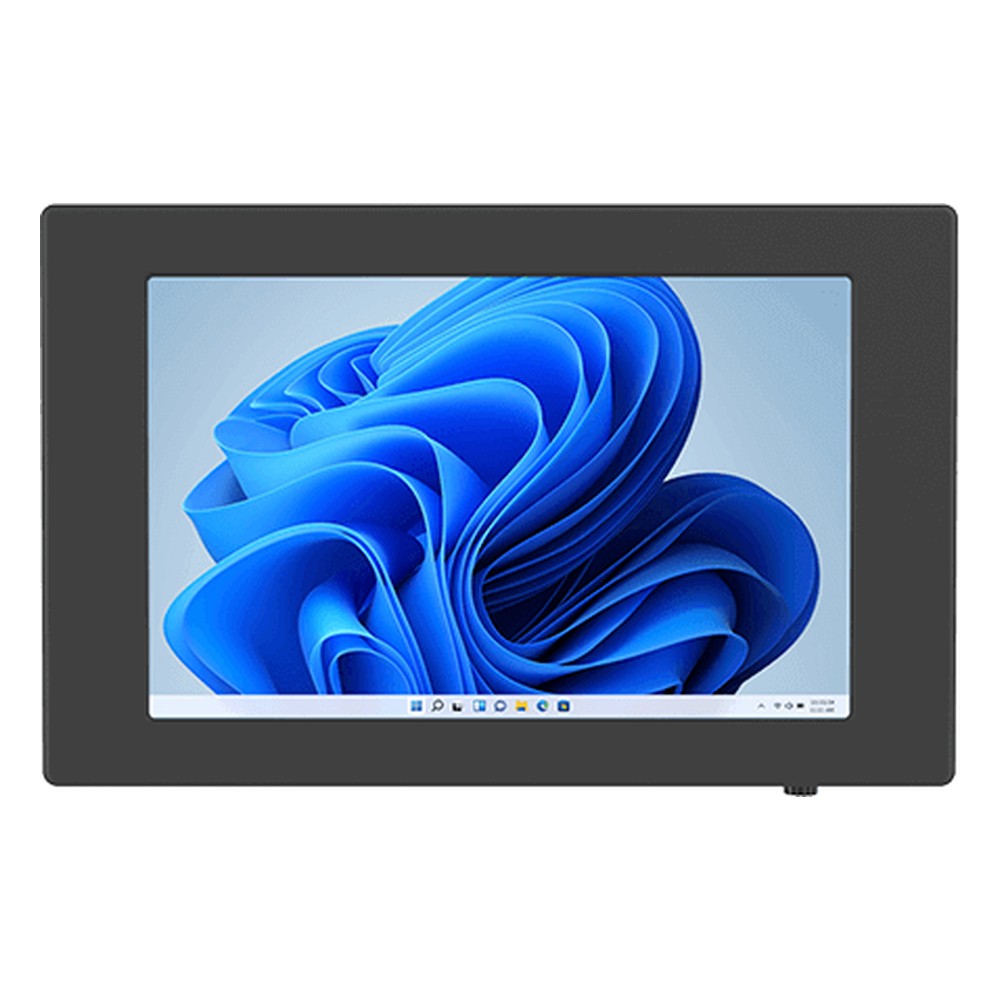

A widescreen HMI on a dry control panel needs a flush fit and enough I/O to talk to the machine, without paying for a sealed front it will not use. The W10IAN3S-PMH2 is Winmate’s 10.1 inch panel mount PC, with a quad-core Intel N150 and a 10.1″ 1280 x 800 display rated at 350 nits with 800:1 contrast, plus resistive touch or plain protection glass as options. Winmate positions it for machine control, factory automation and operator HMI.

Compute comes from the Intel Processor N150, a quad-core Twin Lake part at up to 3.6 GHz with 6 MB cache, matched to one DDR5-4800 SO-DIMM (8 GB standard, 16 GB optional) and a 128 GB SSD with options to 2 TB. That is usually a good fit for HMI software and dashboards. TPM 2.0 is on board, with Windows 11 IoT Enterprise, Windows 11 Pro or Linux Ubuntu 24.04 available.

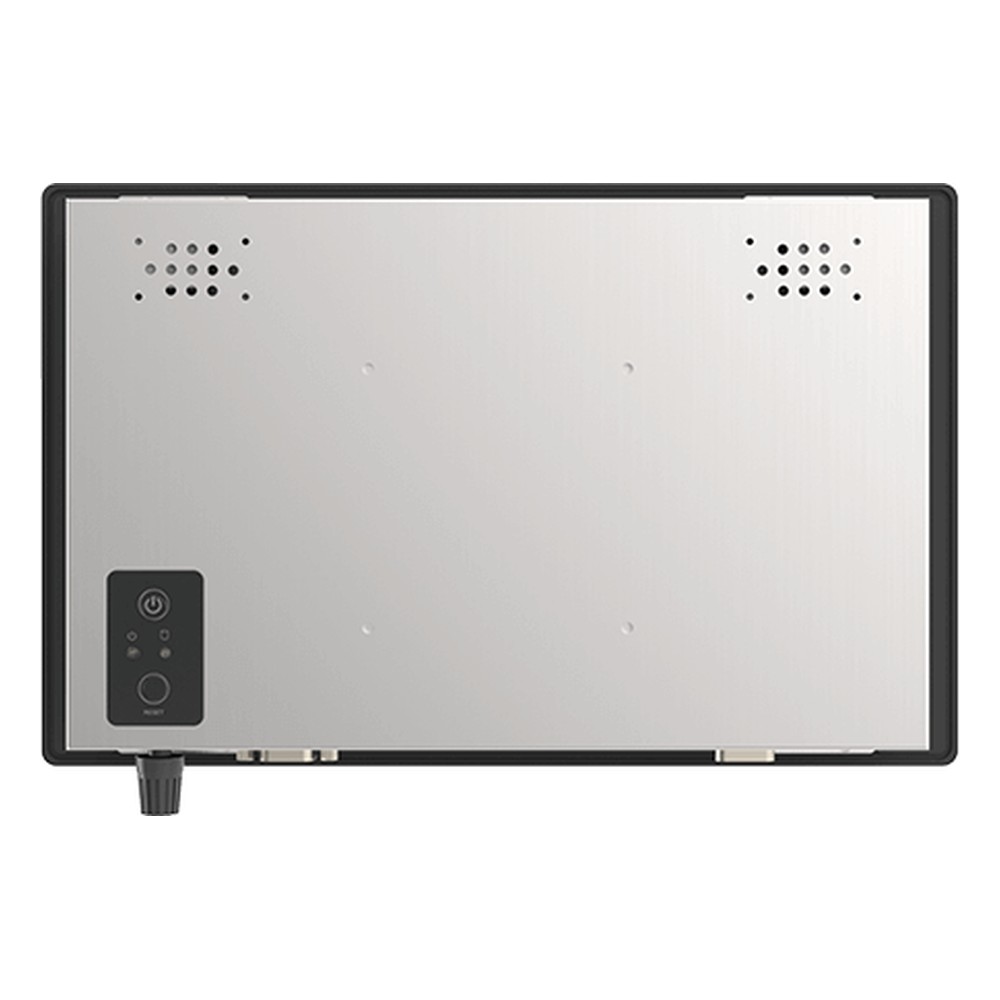

I/O sits on the rear: two 2.5GbE RJ45 ports, two USB 3.2 Gen 1 Type-A ports, a USB 3.2 Gen 2 Type-C port with DisplayPort Alt Mode, and one RS-232/422/485 plus one RS-232 port on DB9 for PLCs and scanners. HDMI 2.0b is optional, as is Wi-Fi through an M.2 2230 E-key slot. The W10IE3S-PMH2 is the earlier 10.1 inch panel mount model with an Intel Celeron N6211, and the W10IAN3S-IPH2 adds a front IP65 rating to this N150 computer.

As a plain panel mount design it suits dry control panels and indoor machine enclosures. It panel mounts with the supplied clips, or on VESA as an option. A 100 to 240 V AC adapter is supplied for the 12 V DC input. The fanless metal housing runs from 0 °C to 50 °C at 10 to 90% humidity, non-condensing, with CE and FCC marks. We supply the W10IAN3S-PMH2 configured, with the OS installed, and tested before dispatch.
