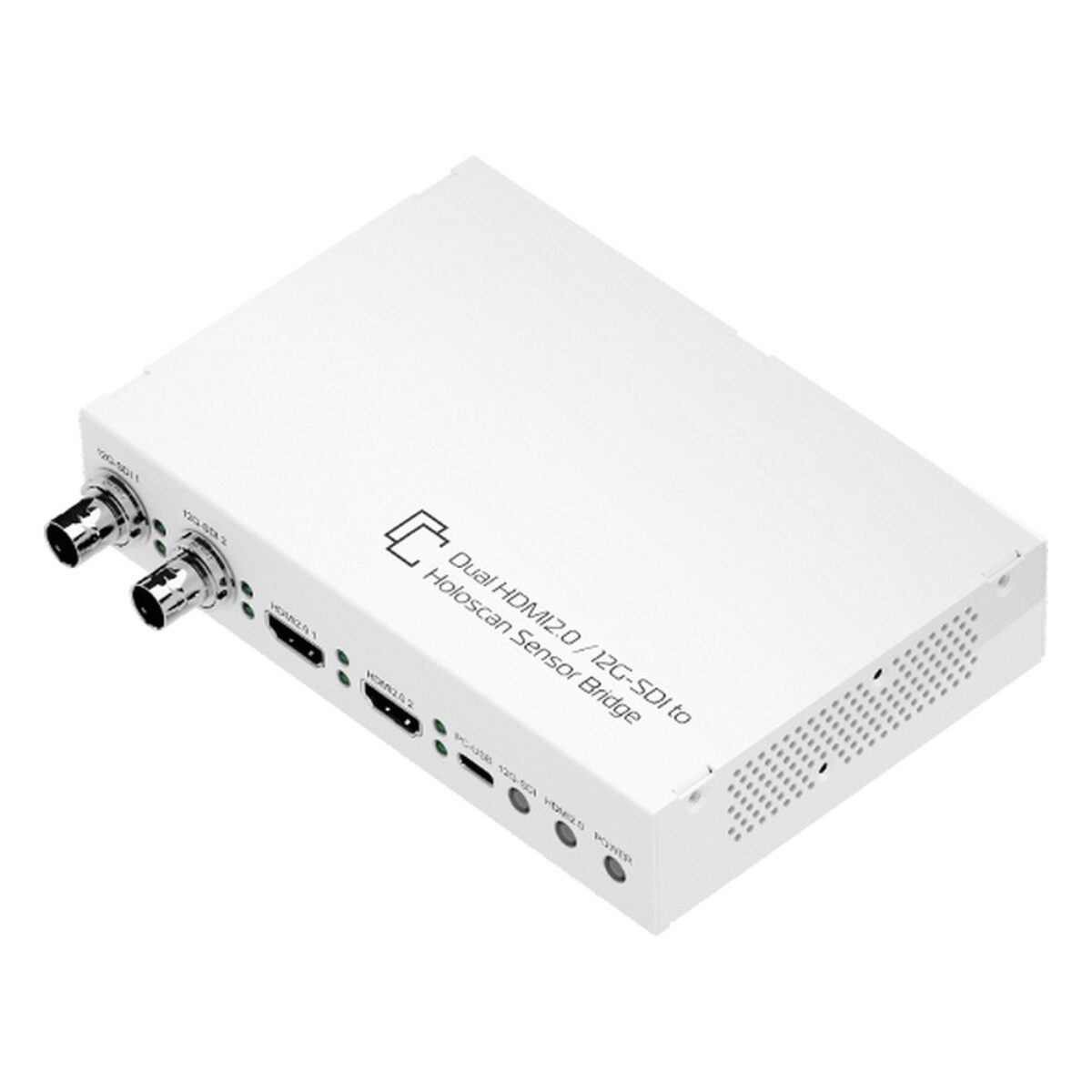

Yuan Dual HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge Dual HDMI 2.0 and 12G-SDI Holoscan Sensor Bridge with Two SFP+ Ports at 4K60
Dual HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge Overview
Edge AI applications built on NVIDIA Holoscan often need live video from cameras, production kit or instruments delivered straight into the processing pipeline with as little delay as possible. The Dual HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge from Yuan is designed for that job where two 4K sources are involved. It converts HDMI 2.0 or 12G-SDI video into Holoscan Sensor Bridge output on two channels.

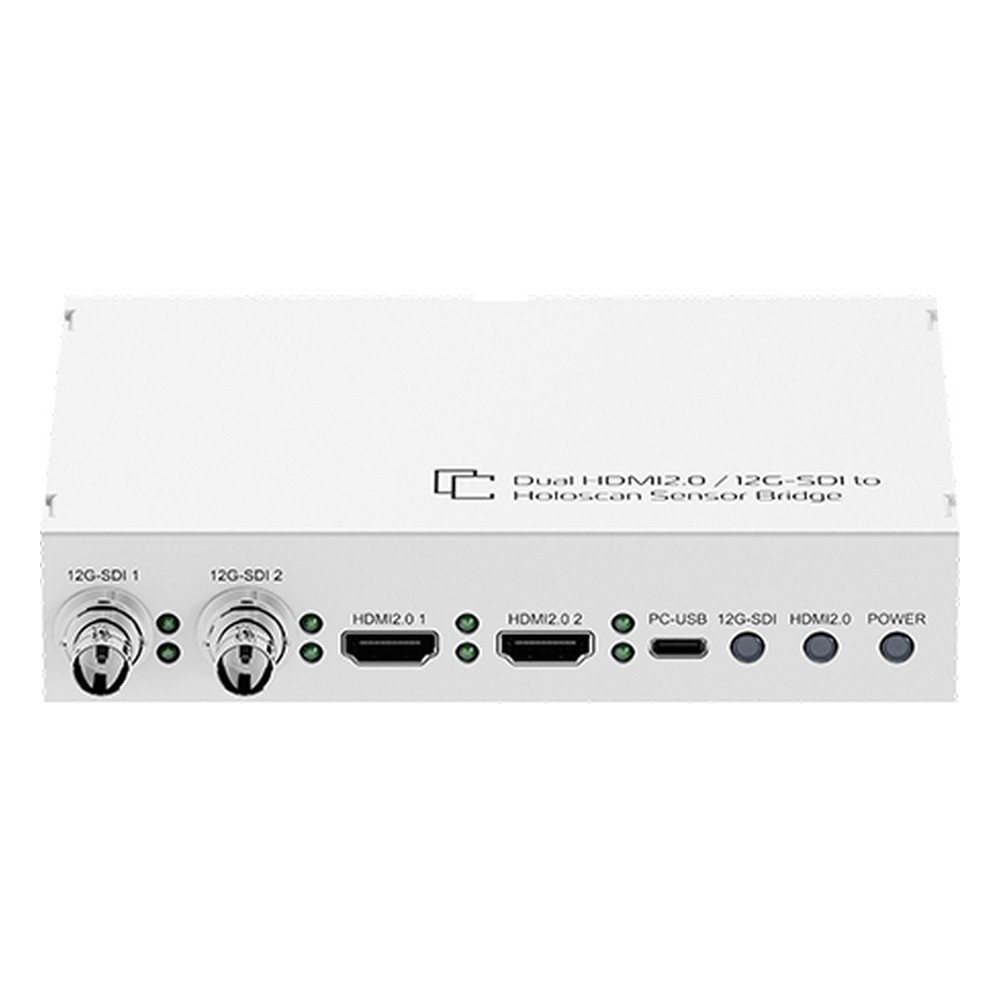

The unit has two HDMI 2.0 inputs and two 12G-SDI inputs, which Yuan describes as dual HDMI 2.0 or 12G-SDI in. HDMI formats run from 3840 x 2160p at 60/50 and 30/25/24 fps through 1080p and 720p to PC resolutions from 1280 x 1024 down to 640 x 480 and SD at 480 and 576 lines. SDI covers 12G-SDI at 2160p60/50, 6G-SDI at 2160p30/25/24, 3G-SDI at 1080p60/50 and HD-SDI at 1080p30 and 720p. Output is on two Holoscan Sensor Bridge channels through SFP+ fibre cages, in the input format.
Yuan specifies long-distance transfer with ultra-low latency, so the processing system can sit in a rack away from the sources. Power comes from a 12V DC input. For a single channel in a fanless housing, the HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge takes one HDMI 2.0 and one 12G-SDI input. When the sources include DisplayPort, DVI or quad-link SDI, the Multi 4K to Holoscan Sensor Bridge accepts all of them and adds HDMI and 12G-SDI outputs.
In practice the bridge sits near the video sources, with fibre running back to the Holoscan system. We supply the Dual HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge configured and tested with the sources, fibre and processing system it will connect to, so the video path is proven before it reaches site.
Dual HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan Dual HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge |
| Video Capture | |
| Simultaneous Video Inputs | 2 |
| Video Input | 2x 12G-SDI 2x HDMI2.0 |
| Video Resolution Input | 4K60 [3840×2160p @ 60/50fps] |
| Video Output | 2x SFP+ (10G) |
| Video Resolution Output | 4K60 [3840×2160p @ 60/50fps] |
| Power | |
| Power Input | 12V DC |
| Mechanical Properties | |
| Dimensions | 146mm x 97mm x 30mm (5.75" x 3.83" x 1.18") |
Official Yuan UK Distributor
Things Embedded is an official Yuan UK distributor, and we supply the Dual HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the HDMI2.0 / 12G-SDI to Holoscan Sensor Bridge is the single-channel, fanless version, and the Multi 4K to Holoscan Sensor Bridge adds DisplayPort, DVI and quad-link SDI inputs with local outputs.
