Yuan H.26X and Multi to SDVoE V2 Multi-Input SDVoE Encoder with H.26X Streaming, USB Recording and 12G-SDI Outputs at 4K60
H.26X and Multi to SDVoE V2 Overview
Live production often needs the same source in two places: on the local AV network at full quality, and out to remote viewers or a streaming service. The H.26X and Multi to SDVoE V2 is Yuan’s multi-input SDVoE encoder for that job. It sends a lossless SDVoE stream and a compressed H.26X stream at the same time, so one unit can cover both.

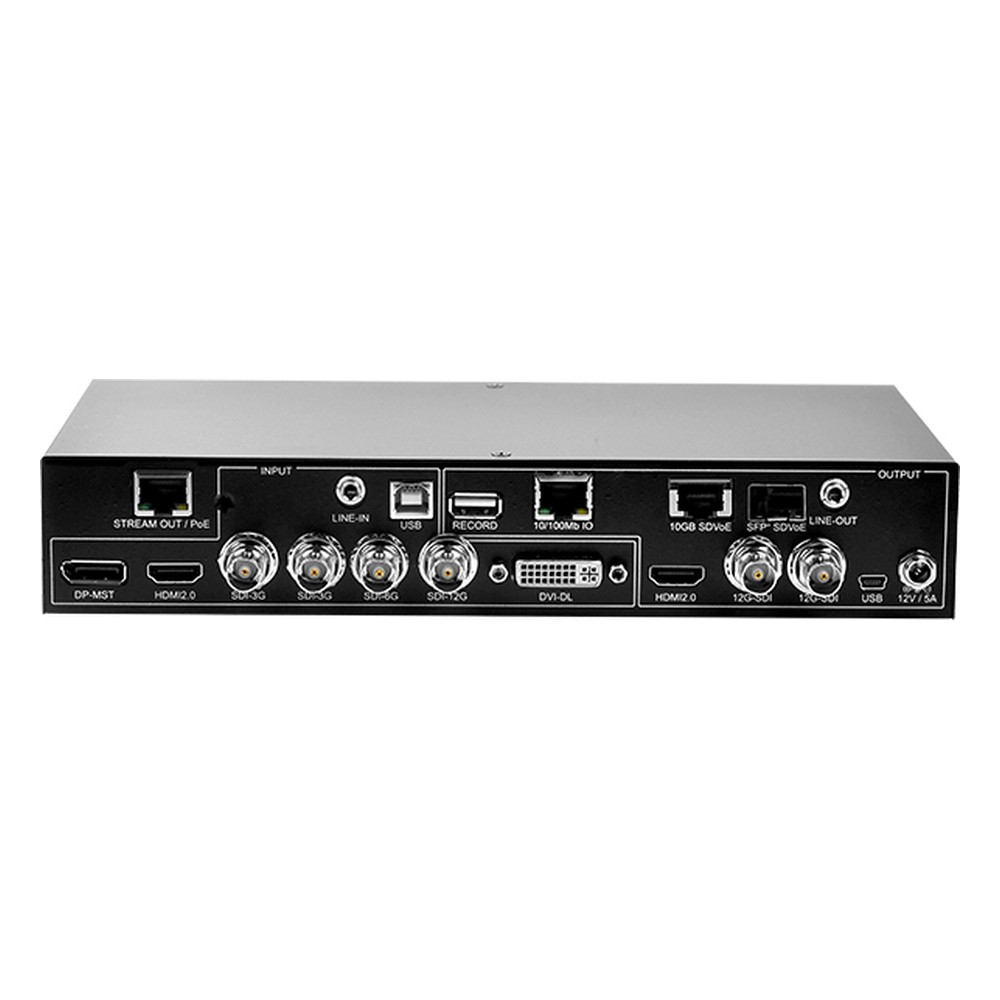

Inputs cover HDMI 2.0 and DisplayPort 1.2 up to 4096 x 2160p60, dual-link DVI up to 2560 x 1600p60, and SDI as single-link 12G, 6G, 3G, HD or SD-SDI, dual-link 6G or 3G-SDI, or quad-link 3G or HD-SDI in two-sample interleave (2SI). DisplayPort supports MST and SST, and the source format is detected automatically. SDVoE leaves on an SFP+ or RJ45 port, and a separate RJ45 stream port carries H.26X with RTMP, RTSP, SRT and TS; Full NDI and NDI HX are supported with a separate NDI licence. Two 12G-SDI outputs and one HDMI 2.0 output give local feeds, and analogue L/R audio is on a stereo phone jack.
A further RJ45 port handles control. One USB Type-B port connects to a PC, and one USB Type-A port is used for video recording. The unit is plug and play and runs from a 7.5 to 15 V DC input. The Multi to SDVoE Pro 4K-F and Multi to SDVoE Pro 4K-C take the same inputs without the H.26X stream output, and the H.26X, SDVoE and HDMI2.0 Transceiver can bridge SDVoE and NDI at the far end.
Yuan does not list operating temperature, certification or mounting for the H.26X and Multi to SDVoE V2, so we check those against your installation. We supply the H.26X and Multi to SDVoE V2 configured and tested with the sources, displays, streaming targets and network it will connect to.
H.26X and Multi to SDVoE V2 Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan H.26X and Multi to SDVoE V2 |
| Video Capture | |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x 12G-SDI 1x DP 1x DVI-DL 1x HDMI2.0 4x 3G-SDI |
| Video Resolution Input | 4K60 [4096×2160p @ 60/50fps] |
| Video Output | 1x HDMI2.0 1x RJ45 (10G) 1x SFP+ (10G) 2x 12G-SDI |
| Video Resolution Output | 4K60 [4096x2160p @ 60/50/30/25/24fps] |
| Streaming Protocols | NDI NDI HX RTMP RTSP SDVoE SRT TS over IP |
| Audio Input | 1x 3.5mm Audio Input |
| Audio Output | 1x 3.5mm Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 250mm x 131mm x 44mm (9.84" x 5.14" x 1.74") |
Official Yuan UK Distributor
Things Embedded is an official Yuan UK distributor, and we supply the H.26X and Multi to SDVoE V2 configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the Multi to SDVoE Pro 4K-F takes the same inputs and sends SDVoE over fibre without H.26X streaming, and the H.26X, SDVoE and HDMI2.0 Transceiver converts between SDVoE, H.26X and NDI with a single HDMI 2.0 input.
Across our range, the H.26X and Multi to SDVoE V2 sits with our SDVoE transmitters and receivers, our NDI encoders and decoders and our video encoders and decoders for H.26X streaming.
