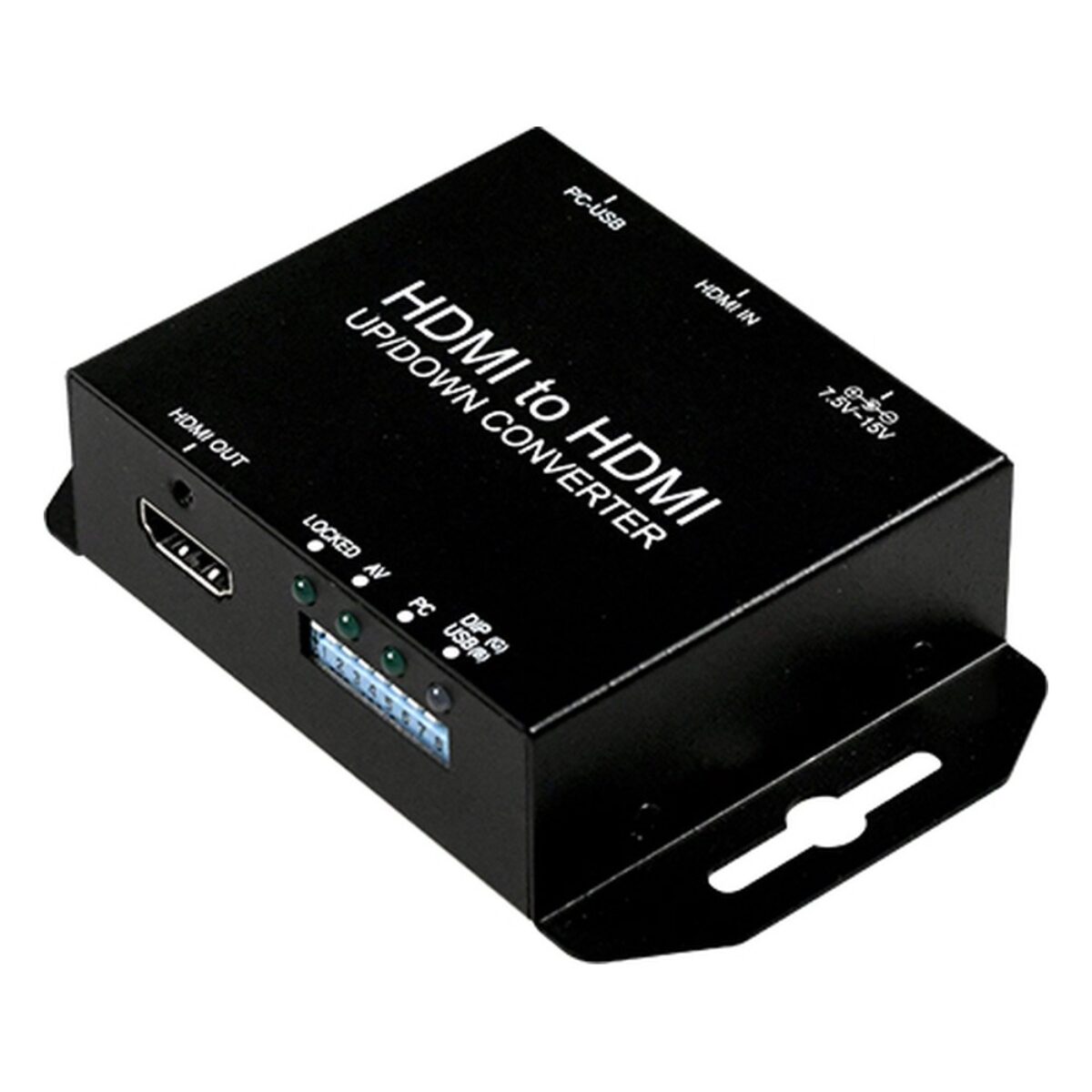

Yuan HDMI to HDMI-S HDMI Broadcast Video Converter with Up/Down Scaling, ROI and VESA Output at 1080p60
HDMI to HDMI-S Overview
Projectors, older monitors and some recorders only accept a narrow set of resolutions, so an HDMI source can fail to show or appear cropped. The Yuan HDMI to HDMI-S is a broadcast video converter that scales HDMI to the format the display wants, which suits pro AV, education, events and control rooms.
Input is one HDMI connection accepting 1920x1080p at 60/50 and 30/25/24 fps, 1080i, 720p, SD and VESA PC formats from 640×480 to 1280×1024. Output is one HDMI connection, up/down converted to any of those formats, with VESA output configurable from 640×480 to 1920×1080. Region of interest crops part of the image and scales it to fill the screen. Yuan also lists it as suitable for mirroring selfie video and photos. Built-in interlacer, de-interlacer and 60 to 59.94 fps conversion are included, and audio runs at up to eight channels, 24-bit, 192 kHz.
The HDMI to HDMI-S is plug and play and runs from a 7.5 to 15 V DC input. For a 4K display, the HDMI to HDMI2.0 4K up-scales HD sources to HDMI 2.0 at 4K60. To send the same HDMI signal into SDI, the HDMI to SDI-S scales HDMI onto two SDI outputs.
No operating temperature or certification is published, so we treat it as an indoor unit. Send us the formats, frame rates and cable runs on your system and we can check this converter fits, then pair it with Yuan capture cards where the signal also needs recording or streaming. We supply the HDMI to HDMI-S configured and tested with the sources and displays it will sit between.
HDMI to HDMI-S Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan HDMI to HDMI-S |
| Video Capture | |
| Video Input | 1x HDMI |
| Video Resolution Input | HD60 [1920x1080p @ 60/50fps] |
| Video Output | 1x HDMI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Audio Input | 1x HDMI Embedded Audio Input |
| Audio Output | 1x HDMI Embedded Audio Output |
| Power | |
| Power Input | 7.5-15V DC |
| Mechanical Properties | |
| Dimensions | 104mm x 64mm x 26mm (4.09" x 2.5" x 1.02") |
Official Yuan UK Distributor
Things Embedded is an official Yuan UK distributor, and we supply the HDMI to HDMI-S configured and tested with the sources, displays and network it will connect to. Within the Yuan range, the HDMI to HDMI2.0 4K up-scales to 4K60 on HDMI 2.0, and the HDMI to SDI-S scales HDMI onto SDI.
Across our range, the HDMI to HDMI-S sits with our SDI and HDMI converters, our HDMI video capture cards and our splitters and matrix switchers.
