Yuan SC720N4 12G-SDI PCIe SDI Video Capture Card with 4 x 12G-SDI Inputs at 4K60
PCI ExpressSC720N4 12G-SDI Overview
Multi-camera production and recording systems built around SDI need every feed captured at full resolution without filling the host with cards. The SC720N4 12G-SDI is Yuan’s four-channel PCIe SDI video capture card with 12G-SDI inputs, bringing four 4K60 sources, or one 8K60 source, into a PC through a single PCIe x8 slot.
Each 12G-SDI input captures up to 4096 x 2160 or 3840 x 2160 at 60 or 50 fps. 6G-SDI sources run at 4K up to 30 fps, 3G-SDI at 1920 x 1080 at 60 fps, and HD-SDI and SD-SDI formats down to 720 x 576i are accepted too. Single, dual and quad-link modes are supported, with quad-link giving 8K60 capture. Colour formats cover 4:4:4 8-bit RGB24 and RGB32, 4:2:2 8-bit YUY2, 4:2:0 8-bit YV12 and NV12, and 4:2:0 10-bit P010. The card captures video, audio and VANC data, with four stereo embedded audio channels at 16-bit and 32 to 48 kHz.
The card uses a PCIe x8 Gen2 interface. On-board processing covers cropping and scaling, auto signal detection and a deinterlace engine, and multi-instance and multi-device support lets software open several streams or cards at once. Yuan provides a Windows and Linux SDK and lists vMix, OBS, Zoom, Teams and Cisco Webex among compatible applications, along with DirectShow and V4L2 software. The SC720N4 HDMI2.0 is the four-channel HDMI 2.0 version, and the SC710N2 12G-SDI takes two 12G-SDI inputs.

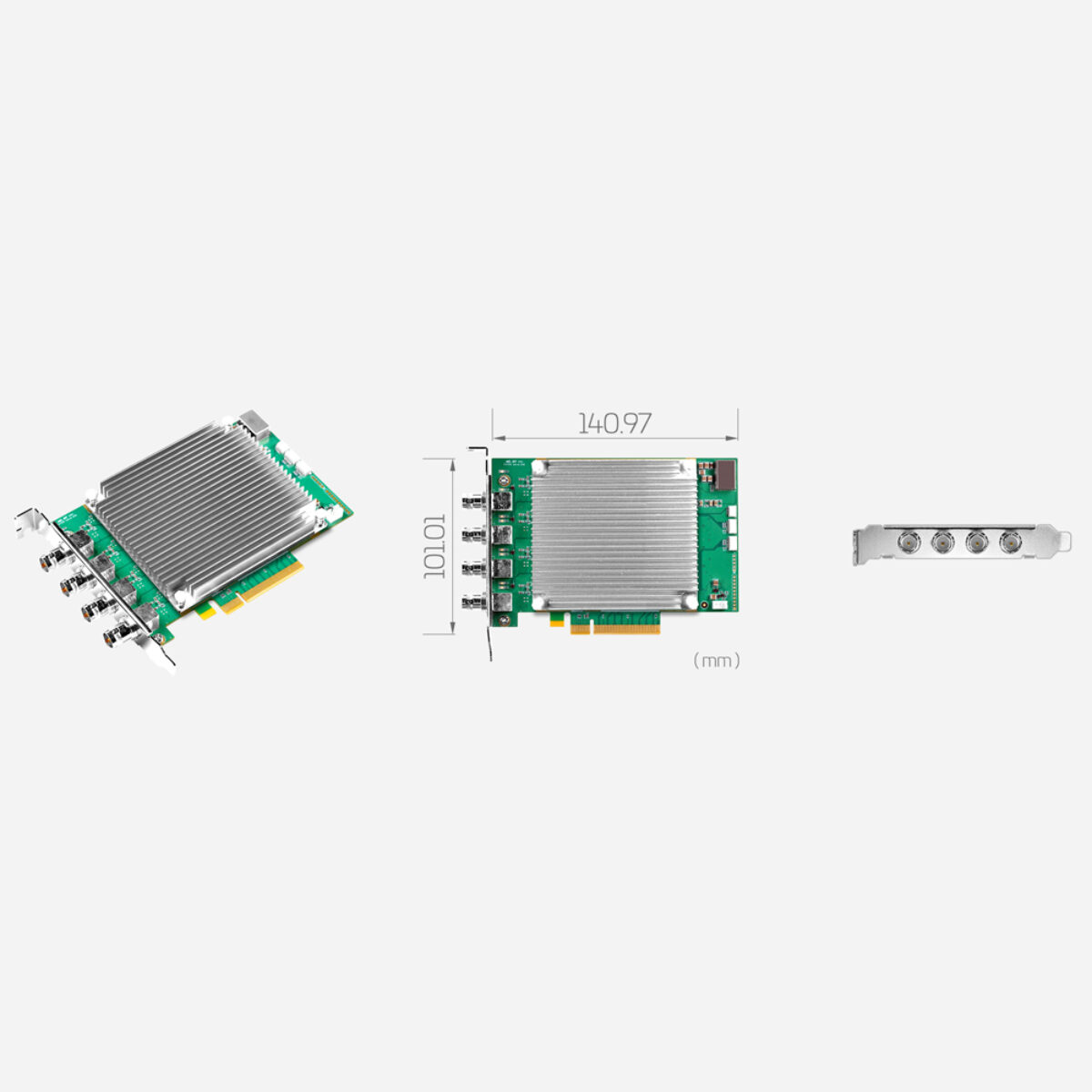

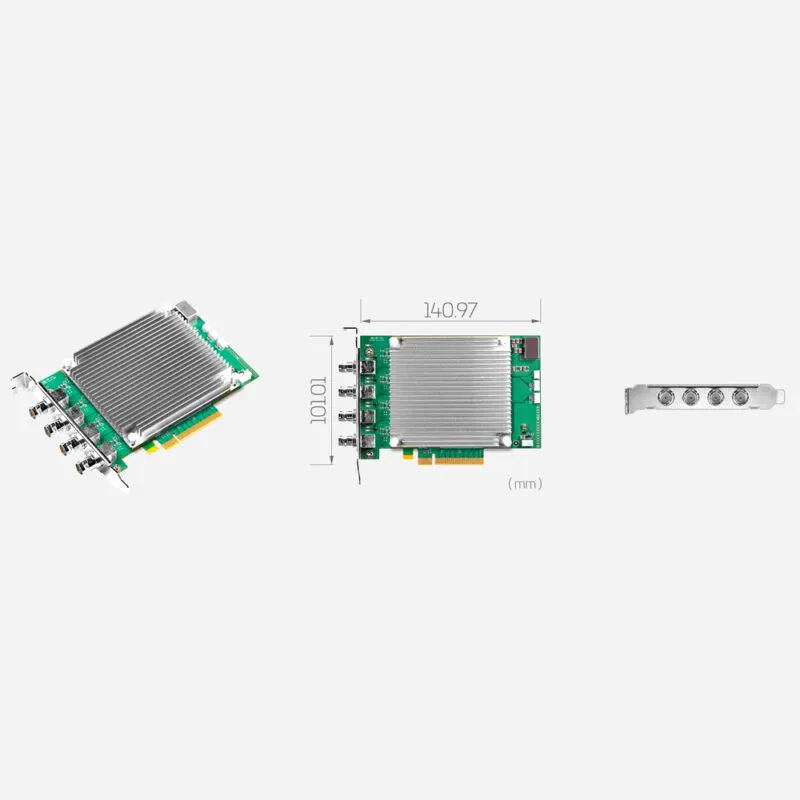

Operating system support covers Windows 7, 8, 8.1 and 10, Linux 4.8 or higher in 32-bit and 64-bit builds, Linux on ARM, and NVIDIA Jetson TX2, Nano, AGX Xavier and Xavier NX. The full height board measures 140.97 x 101.01 mm, which suits standard desktop and rack-mount hosts with a free x8 slot.
SC720N4 12G-SDI Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SC720N4 12G-SDI |
| Video Capture | |
| Host Interface | PCIe [x8, Gen2] |
| Simultaneous Video Inputs | 4 |
| Video Input | 4x 12G-SDI |
| Video Resolution Input | 4K60 [4096×2160p @ 60/50fps] |
| Video Resolution Output | 4K60 [4096x2160p @ 60/50/30/25/24fps] |
| Colour Format | NV12 4:2:0 8Bit P010 4:2:0 10Bit RGB24 4:4:4 8Bit RGB32 4:4:4 8Bit YUY2 4:2:2 8Bit YV12 4:2:0 8Bit |
| Audio Input | 4x Stereo Audio Input |
Official Yuan UK Distributor
Things Embedded is an official Yuan UK distributor, supplying the SC720N4 12G-SDI configured for UK broadcast and live production projects. Within the Yuan range the SC720N4 HDMI2.0 is the same four-channel design for HDMI 2.0 sources, and the SC710N2 12G-SDI suits systems that need two 12G-SDI inputs.
As a four-input 12G-SDI card the SC720N4 12G-SDI sits among our PCIe capture cards and our SDI video capture cards. Where four 4K SDI cameras or one 8K quad-link source must be captured in one PC, this is the model to specify.
