Stereolabs ZED-X-ONE-CORE-NARROW (ZED-413013) OEM Board-Level MIPI Camera with Narrow 4.6 mm Lens, Global Shutter and 6-Axis IMU
Extended TempZED-X-ONE-CORE-NARROW Overview

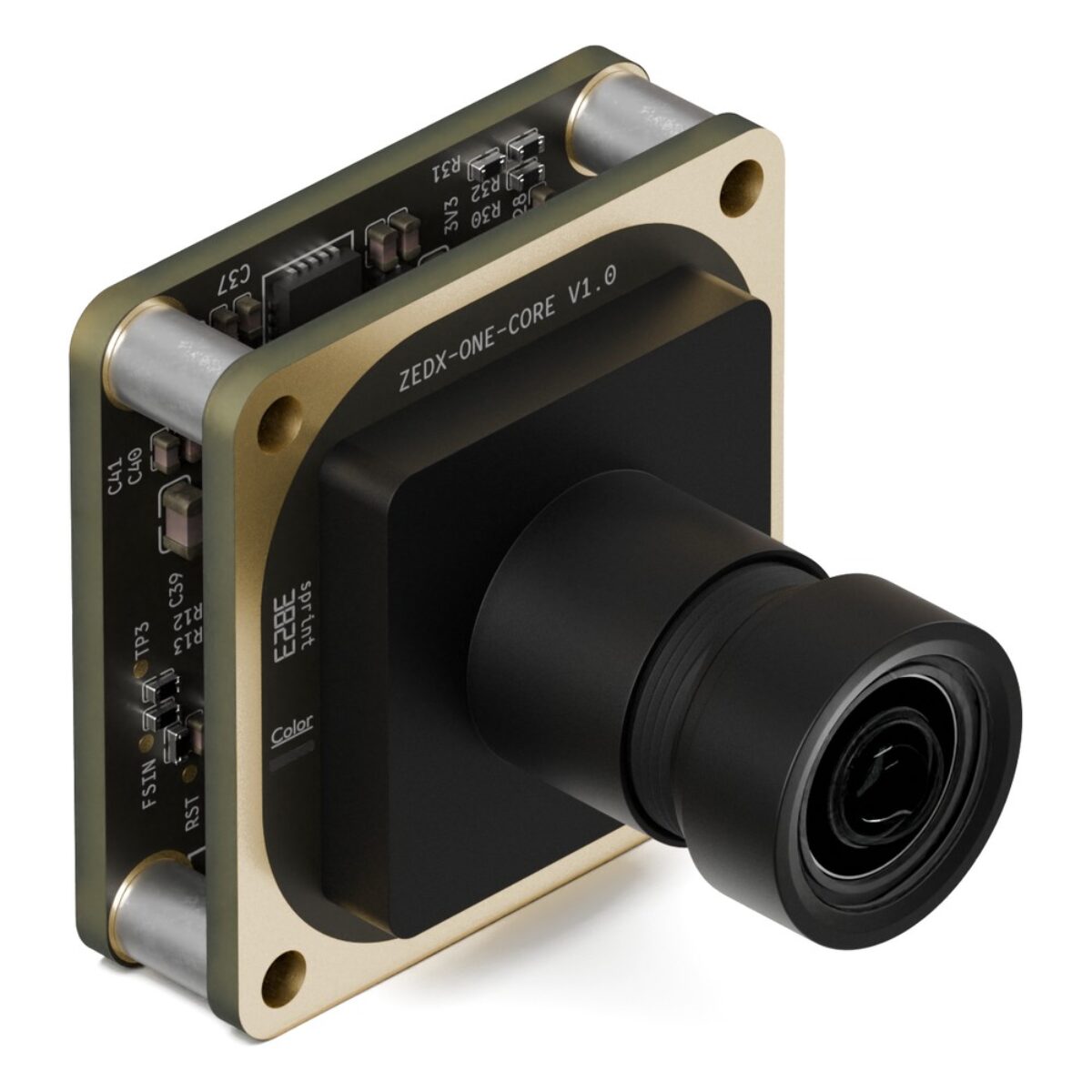

Inspection heads built into OEM machines tend to look at one small area: a weld seam, a connector or a dispensed bead. A narrow lens keeps that area large in the frame. The Stereolabs ZED-X-ONE-CORE-NARROW fits a 4.6 mm f/2.0 lens with a 73° horizontal view to the board-level camera of the ZED-X-ONE-CORE series, and it is the lightest build in the range. The ZED-X-ONE-CORE-WIDE opens the view to 110°, and the ZED-X-ONE-CORE-FISHEYE to 204°.
The full field is 73°(H) x 45°(V) x 87°(D). Behind it, the 1/2.6″ 2.3MP sensor uses a global shutter, so every pixel is exposed at once and parts moving through the station are not skewed. Output runs at 1920 x 1200 at 60 fps, 1920 x 1080 at 60 fps in cropping mode or 960 x 600 at 120 fps in binning mode, with 71.4 dB dynamic range. A Bosch BMI088 six-axis IMU reports at 200 Hz.
Four-lane MIPI CSI-2 leaves the ZED-X-ONE-CORE-NARROW on a 30-pin Micro I-PEX connector that also supplies 3.3 V power, a frame-sync input for triggering several cameras together and a flash-enable output to drive external lighting, which inspection stations often need. The ZED-LINK-MIPI-QUAD connects up to four cameras to a Jetson AGX Orin Developer Kit, or two to Jetson Thor through the NVIDIA Holoscan Sensor Bridge, over I-PEX cables of up to 50 cm.
The camera draws 0.8 W at 3.3 V over the MIPI cable and is rated from -20 °C to 60 °C. Four mounting holes fix the board inside your housing. Stereolabs lists REACH and RoHS compliance and a two-year warranty. We supply it tested with the ZED Link MIPI Quad, I-PEX cables and Jetson host for your machine, with drivers configured before it ships.
ZED-X-ONE-CORE-NARROW Specifications
| Overview | |
|---|---|
| Brand & Model | Stereolabs ZED-X-ONE-CORE-NARROW (ZED-413013) |
| Features | Compact Embedded |
| Camera | |
| Camera Type | Monocular |
| Camera Interface | MIPI CSI-2 [Micro I-PEX] |
| Image Sensor | 2.3MP 1/2.6" [3µm] |
| Video Modes | 1920x1200 @ 60fps 960x600 @ 120fps |
| Shutter Type | Global Shutter |
| Lens | Narrow |
| Field of View | 73°H x 45°V x 87°D [4.6mm] |
| Motion Sensors | 6-axis IMU [200Hz] |
| Compatible Hosts | NVIDIA Jetson Orin NVIDIA Jetson Thor |
| Environmental Conditions | |
| Operating Temperature | -20°C to 60°C [-4°F to 140°F] |
| Certification | REACH RoHS |
| Mechanical Properties | |
| Weight | 14 g (0.5 oz) |
| Dimensions | 27mm x 27mm x 31mm (1.06" x 1.06" x 1.23") |
- ZED-X-ONE-CORE-NARROW Datasheet Download
Official Stereolabs UK Distributor
Things Embedded is an official Stereolabs UK distributor, and we supply the ZED-X-ONE-CORE-NARROW tested with the I-PEX MIPI cable and the ZED Link MIPI Quad on your Jetson host before it ships. Within the Vecow range, the ZED-X-ONE-CORE-FISHEYE trades the 73° narrow view for a 204° fisheye view for all-round awareness.
Across our range, the ZED-X-ONE-CORE-NARROW sits with our industrial camera range and the Stereolabs range.
