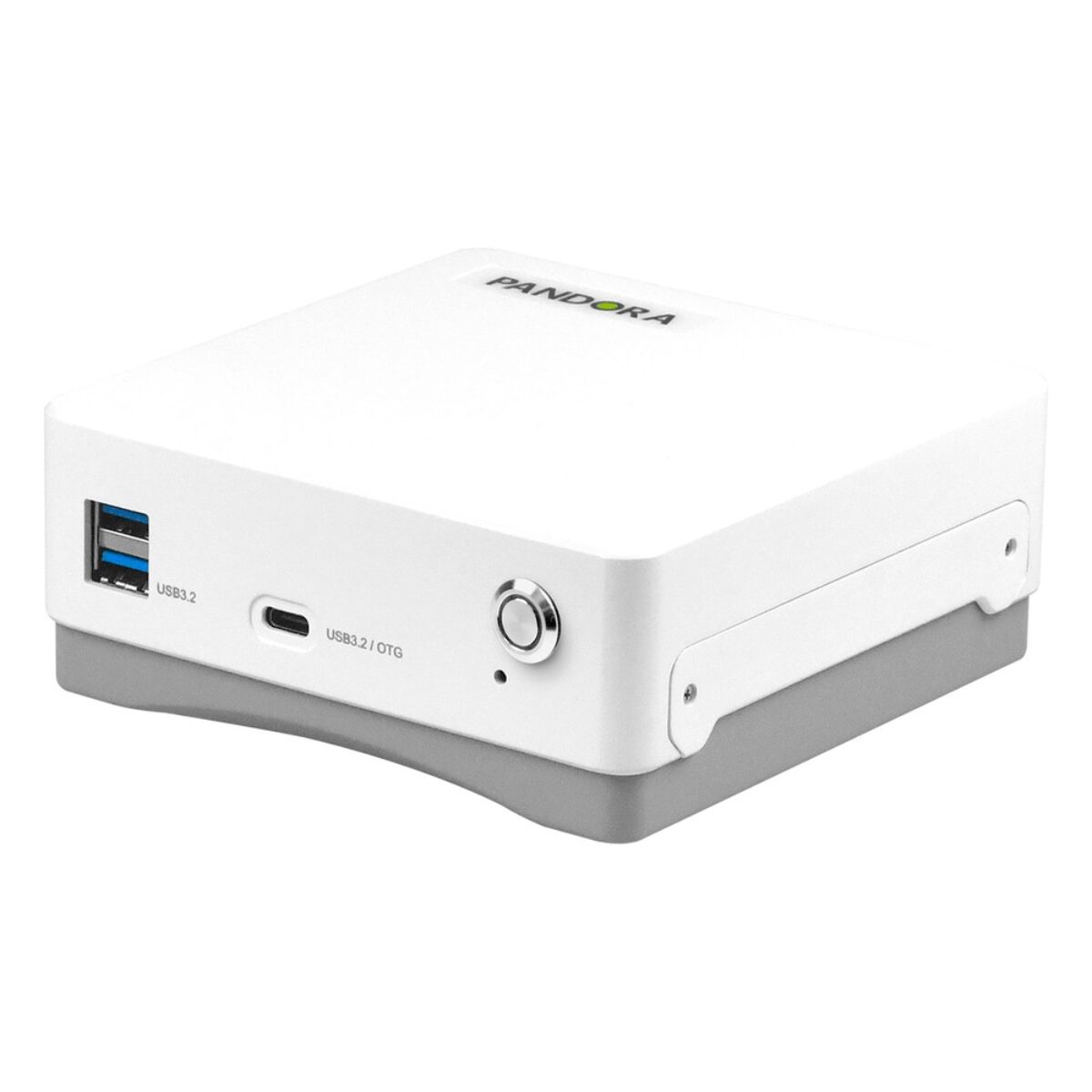

Yuan Pandora Health NX Super HDMI2.0 NVIDIA Jetson Orin NX Super Medical Edge AI Computer with HDMI 2.0 Capture and Loop-Out

Clinical and lab video, such as scopes, cameras and imaging displays, increasingly passes through AI before it reaches a screen or a recorder. The Pandora Health NX Super HDMI2.0 from Yuan is a medical edge AI computer for that kind of HDMI workflow, built on the NVIDIA Jetson Orin NX 16GB or 8GB Super module with HDMI 2.0 capture and loop-out in one compact unit. It may suit AI-assisted viewing and recording projects in medical and other imaging settings.

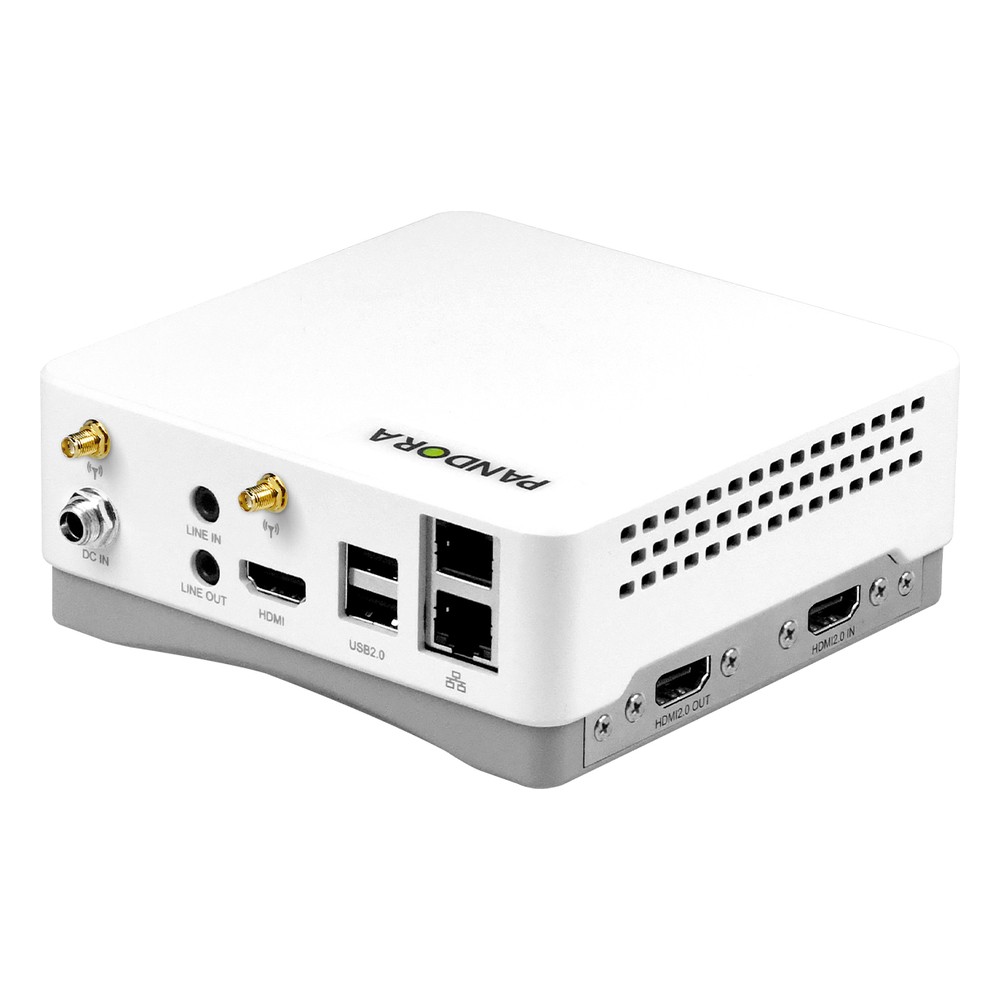

The Jetson Orin NX 16GB Super gives up to 157 TOPS from an eight-core Cortex-A78AE CPU and a 1024-core Ampere GPU; the 8GB Super gives 117 TOPS with six cores. Capture is one HDMI 2.0 input with an HDMI 2.0 loop output, so the original display stays connected while the module analyses the signal. The module can encode one 4K60 stream in AV1 or H.265, or six 1080p60 streams, for recording or streaming the analysed video. Display is one HDMI 2.0 output at up to 4K60 and networking is two GbE ports.

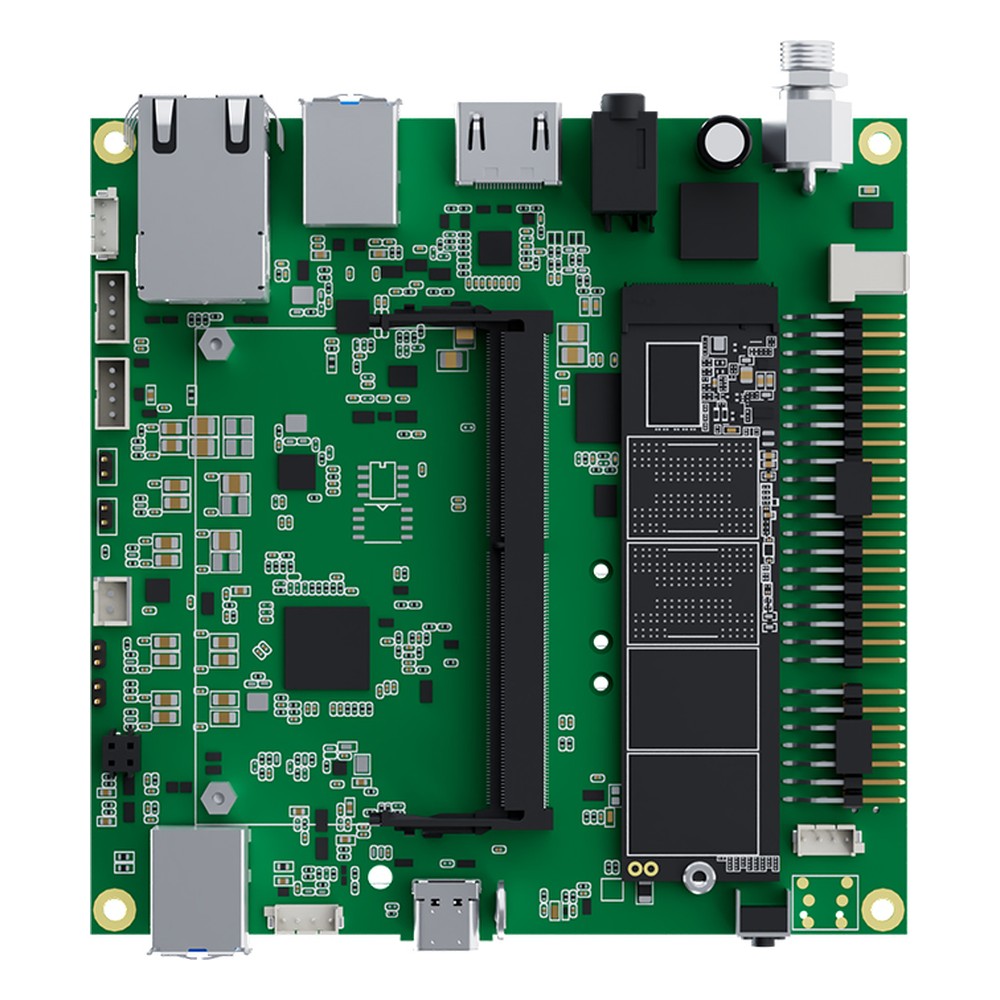

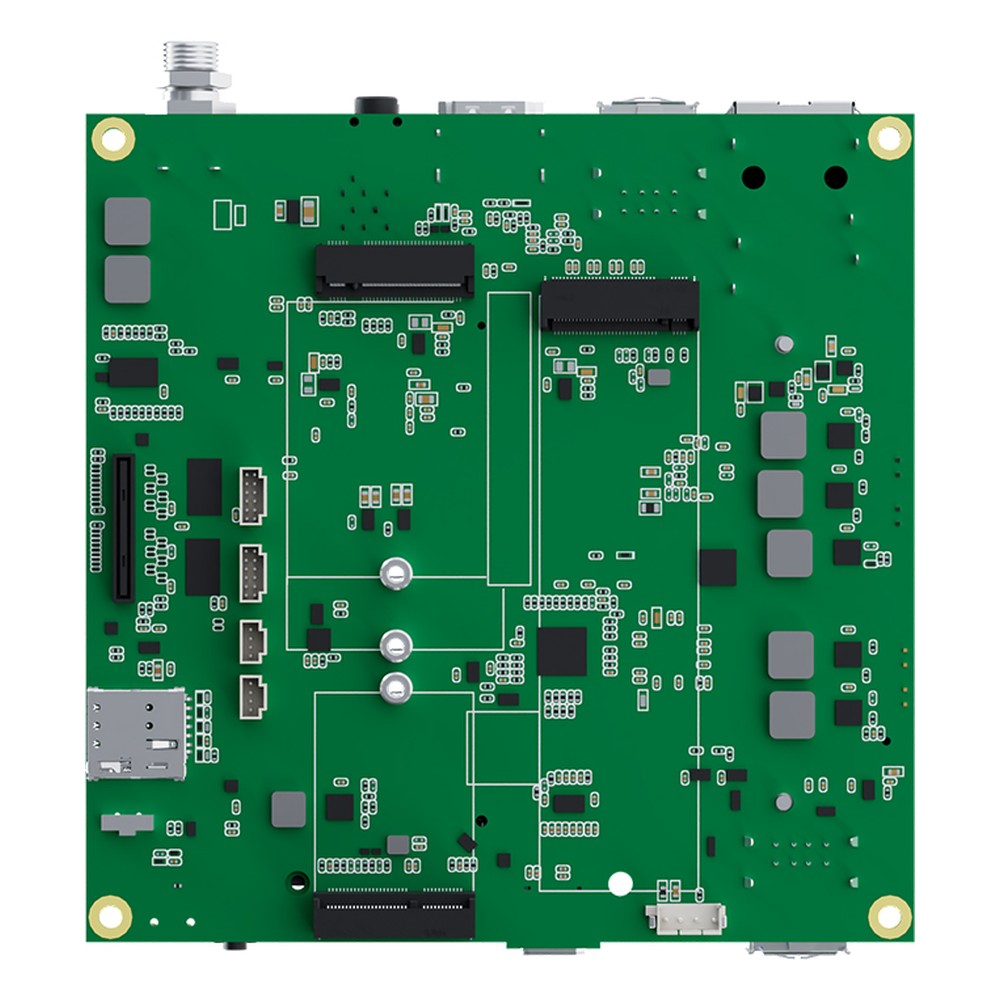

Storage is a pre-installed 128GB SSD in an M key slot at PCIe Gen4 x2, with an E key slot for WiFi and a B key slot with nano SIM for 5G or 4G. USB is two USB 3.2 Gen2 Type-A, one Type-C OTG and two USB 2.0 ports, alongside eight MIPI CSI-2 lanes, line in and out, and headers for I2S, I2C, SPI, UART, GPIO and CAN. A TPM is optional and Yuan rates maximum power at 56W. For SDI sources, the Pandora Health NX Super SDI offers SDI capture with loop-out, and the Pandora Health NX Super AIO takes both HDMI and 3G-SDI.

The Pandora Health NX Super HDMI2.0 supports JetPack 6.2, takes 12 to 36V DC and operates from 0 to 60°C with airflow. Yuan does not list medical certification, so approvals for a finished system are assessed project by project. We supply it configured and tested, with the Jetson module, NVMe storage and JetPack image fitted before it ships.
