Yuan Pandora Health NX Super SDI NVIDIA Jetson Orin NX Super Edge AI Box PC with SDI Capture and SDI Loop-Out

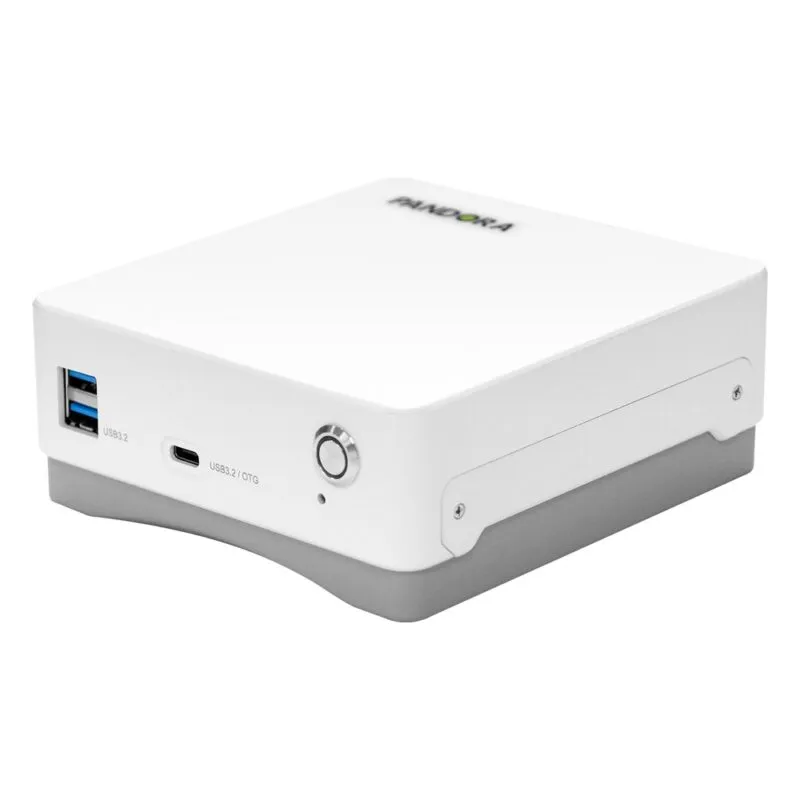

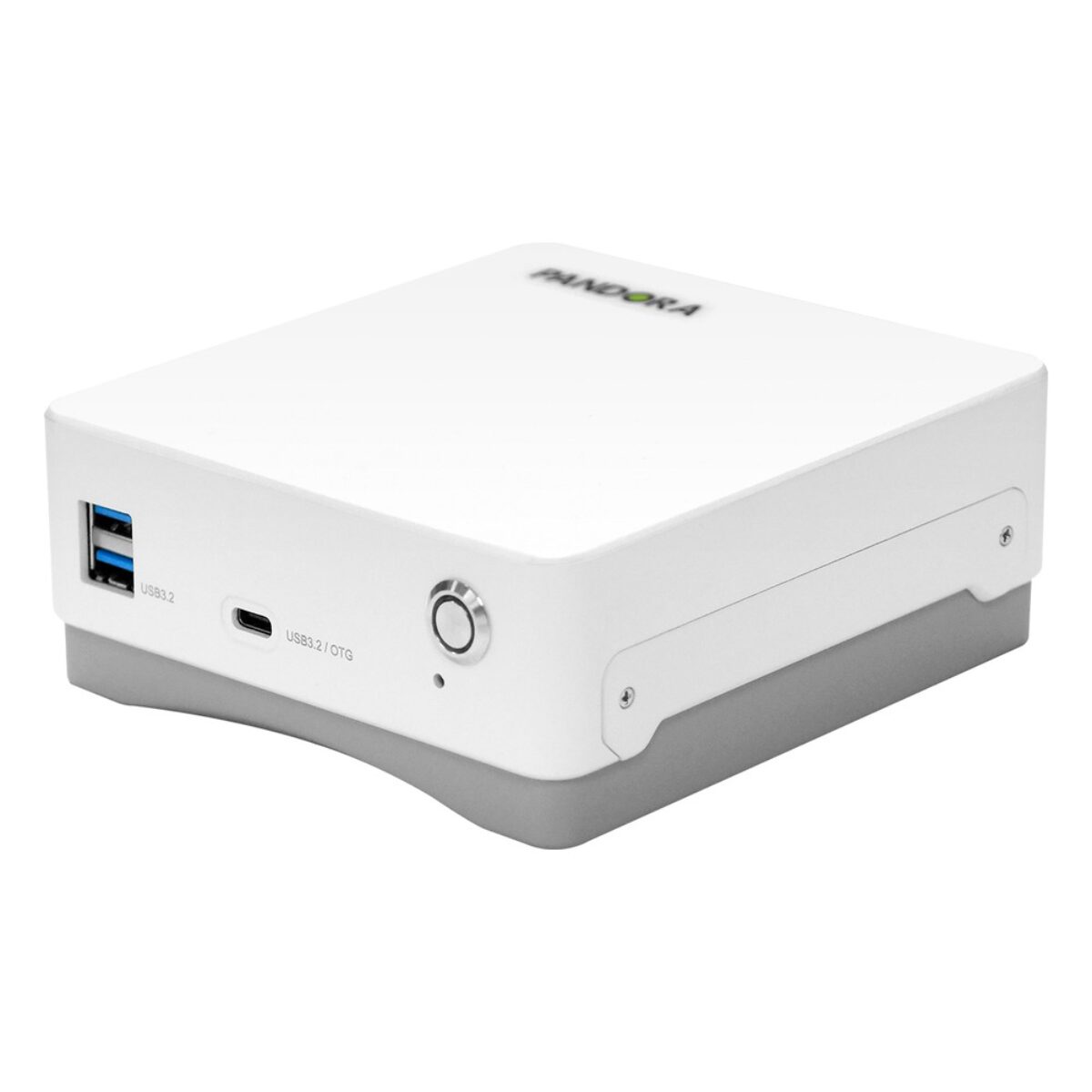

SDI is common wherever cameras sit some distance from the screen, from broadcast and production to imaging rooms, and adding AI usually means tapping into that chain without breaking it. The Pandora Health NX Super SDI from Yuan is an edge AI box PC built on the NVIDIA Jetson Orin NX 16GB or 8GB Super module, with SDI capture and SDI loop-out in one compact unit. It may suit AI-assisted viewing and recording in medical and other video settings.

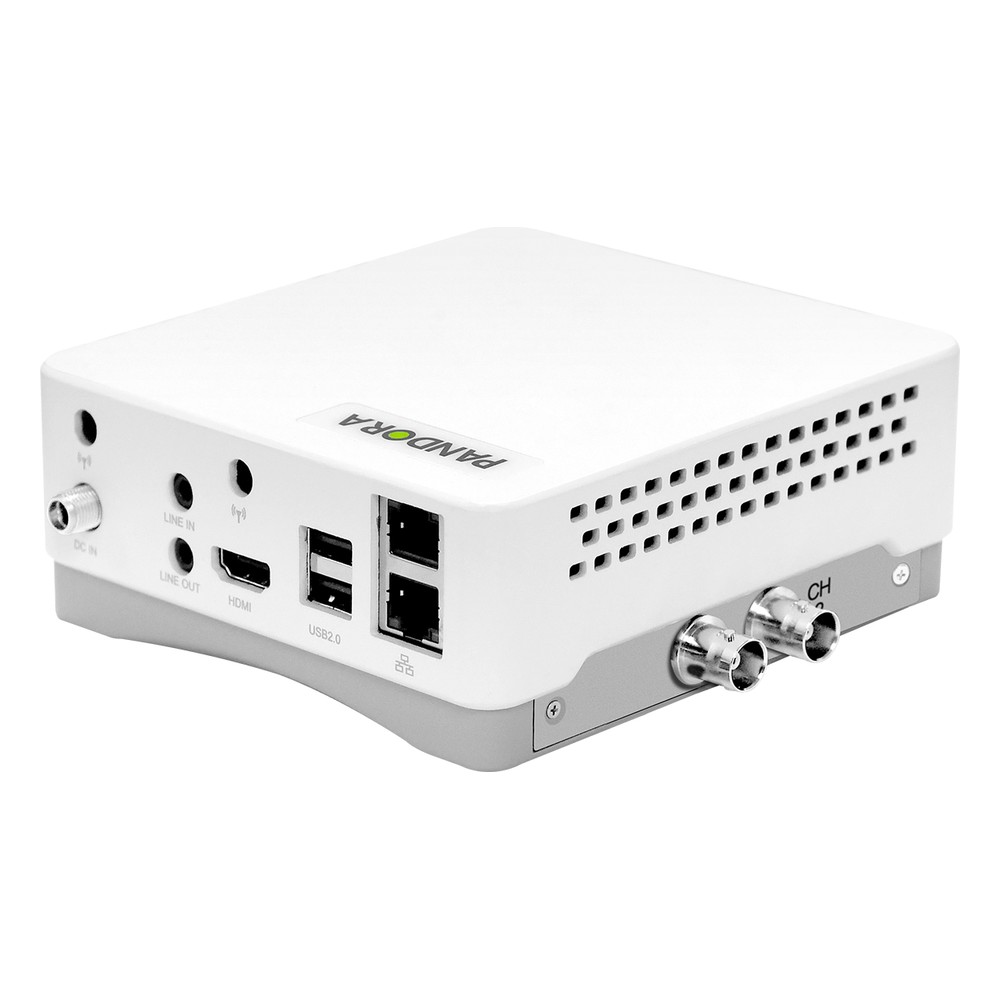

The Jetson Orin NX 16GB Super gives up to 157 TOPS from an eight-core Cortex-A78AE CPU and a 1024-core Ampere GPU; the 8GB Super gives 117 TOPS with six cores. Capture is one SDI input with an SDI loop output, so existing monitors or recorders stay on the chain while the module analyses the signal. The module can encode one 4K60 stream in AV1 or H.265, or six 1080p60 streams, for recording or streaming the analysed video. Display is one HDMI 2.0 output at up to 4K60 and networking is two GbE ports.

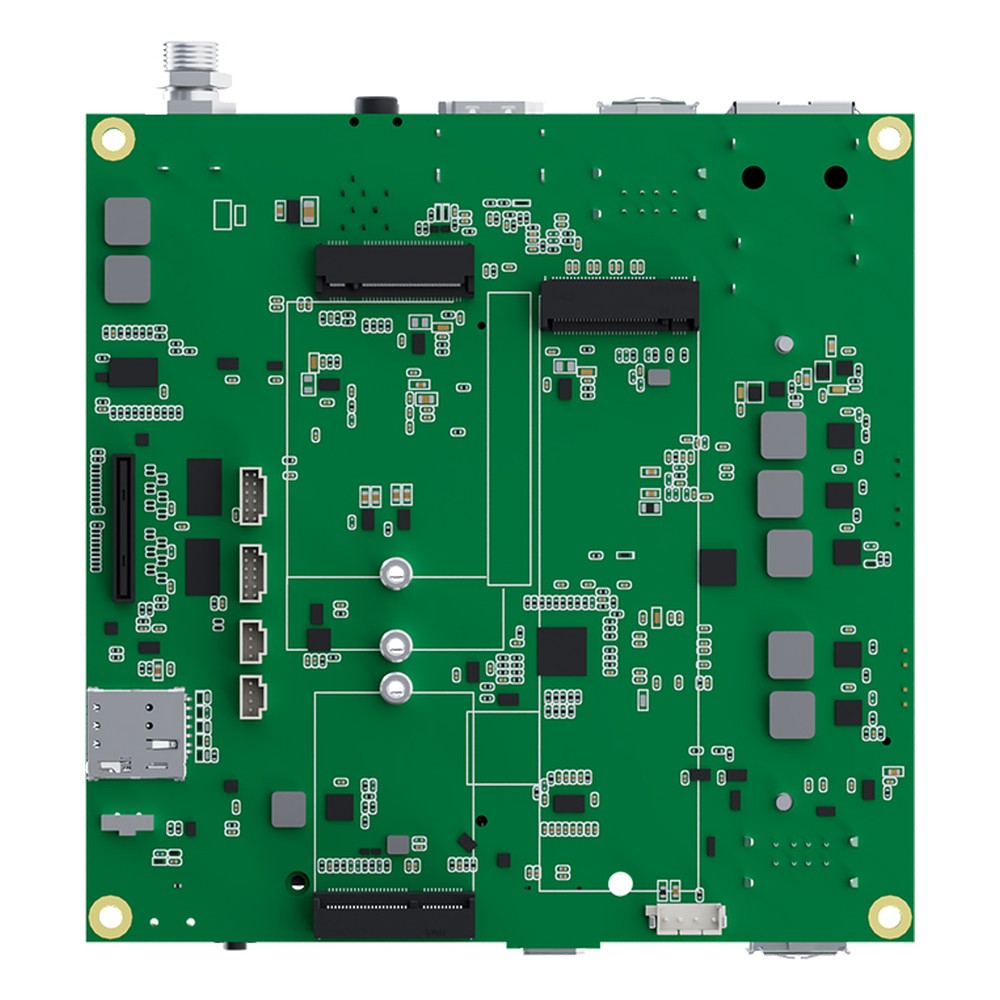

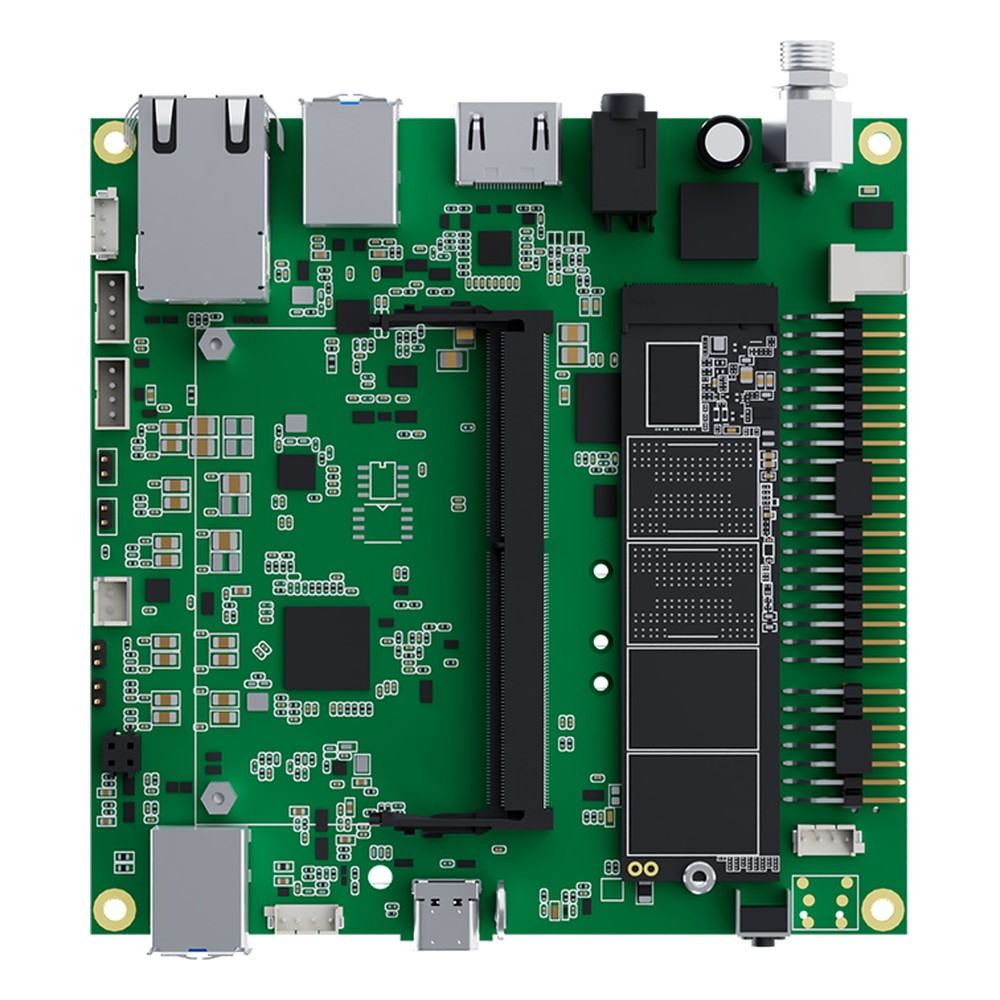

Storage is a pre-installed 128GB SSD in an M key slot at PCIe Gen4 x2, with an E key slot for WiFi and a B key slot with nano SIM for 5G or 4G. USB is two USB 3.2 Gen2 Type-A, one Type-C OTG and two USB 2.0 ports, alongside eight MIPI CSI-2 lanes, line in and out, and headers for I2S, I2C, SPI, UART, GPIO and CAN. A TPM is optional and Yuan rates maximum power at 55.3W. For HDMI sources, the Pandora Health NX Super HDMI2.0 offers HDMI 2.0 capture with loop-out, and the Pandora Health NX Super SDI×4 takes four SDI inputs.

The Pandora Health NX Super SDI supports JetPack 6.2, takes 12 to 36V DC and operates from 0 to 60°C with airflow. Yuan does not list medical certification, so approvals for a finished system are assessed project by project. We supply it configured and tested, with the Jetson module, NVMe storage and JetPack image fitted before it ships.
