AMD EPYC vs Intel Xeon: What Is the Difference?

AMD EPYC and Intel Xeon are the server processor brands of the two x86 chipmakers. Both execute the same x86-64 instruction set, so Windows Server, Linux distributions, hypervisors and applications run on either without changes. The differences lie in how many cores fit in a socket, how much memory bandwidth and PCIe connectivity each socket provides, which accelerators are built in, how many sockets a server can have and how long each platform stays available.

Neither family is better for every job. Each brand now spans several product lines, from compact single-socket parts to dual-socket data centre processors, so the useful comparison is line against line for a given workload. Vendor benchmarks exist for almost every pairing, and each vendor’s figures favour its own parts, so test your own software where the margin matters.

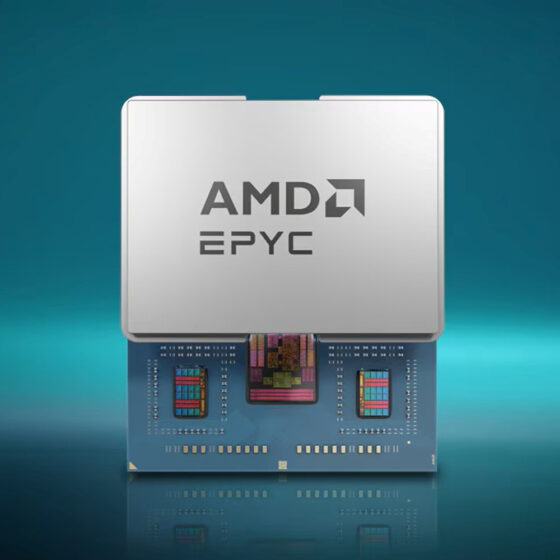

AMD built EPYC from several dies from its first generation in 2017, and since the second generation it has used a chiplet layout: up to 16 core dies grouped around one central I/O die that holds the memory controllers and PCIe. Adding core dies is how AMD reaches high core counts. AMD also makes compact core variants (Zen 4c and Zen 5c) that run the same instructions in less silicon, for denser parts.

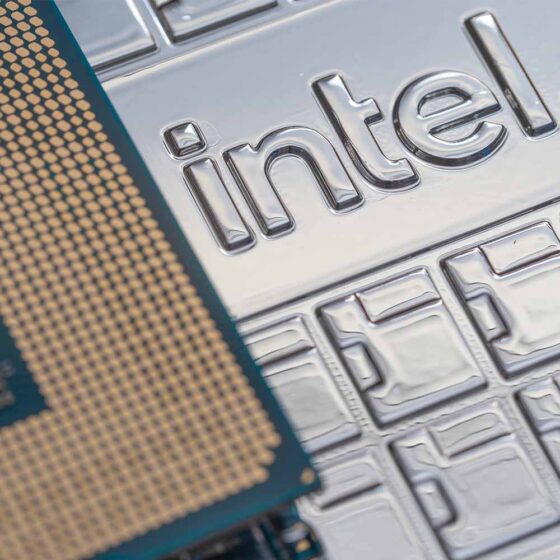

Intel kept large single-die Xeons for longer, then moved to tiles joined by its EMIB bridges with 4th Gen Xeon Scalable. Xeon 6 separates compute tiles from I/O tiles and comes in two core types: P-cores for per-core performance and E-cores for density and efficiency. Our guide to P-cores and E-cores explains the trade between the two. In practice, both companies now build multi-die processors and offer a dense-core option.

The table pairs the current lines that most often compete, from AMD’s and Intel’s published specifications. Figures are maximums for each line; individual models vary.

For servers that carry GPUs, NVMe drives and fast network cards, the I/O often matters more than the cores. PCIe lanes set how many devices can run at full width: a GPU takes 16 lanes, an NVMe drive four. A single EPYC socket offers more lanes than a single Xeon socket at the top of each range, which is why one-socket EPYC servers are common for multi-GPU builds. Our comparison of PCIe 4.0 vs PCIe 5.0 shows what each generation gives per lane.

Memory channels set bandwidth per core. The flagships of both brands have 12 channels per socket; lower lines have two, six or eight, so compare the bandwidth available to each core, not just the total.

Accelerators are where Xeon differs most. Advanced Matrix Extensions (AMX), added with 4th Gen Xeon Scalable, speed up the matrix maths in AI inference on the CPU itself; they are on P-core Xeons, not the E-core models. QuickAssist (QAT) offloads encryption and compression on the models that include it. EPYC relies on its cores, with AVX-512 support since Zen 4, and on add-in GPUs or accelerators for heavy AI work. Software has to be built to use AMX or QAT, so check your stack before counting on them.

A few practical points usually decide it.

Away from the data centre, power, depth and cooling narrow the choice. Single-socket parts dominate, and the lines built for long-life equipment matter most. Our white paper on AMD EPYC 8004 for edge servers compares that platform with Xeon D and Xeon 6 SoC in detail.

Both brands appear in our range. The AMD EPYC range covers EPYC 4005 boards and compact servers, EPYC Embedded 8004 GPU servers and dual EPYC 9004/9005 rackmount systems. On the Intel side, our edge AI servers include wide-temperature Xeon D systems, and our server motherboards include single- and dual-socket Xeon Scalable boards with IPMI remote management.

We build EPYC and Xeon servers for edge and industrial sites with the memory, storage, GPUs and operating system fitted and set up as standard.
