UK How a sunlight readable display works
A sunlight readable display is a screen that keeps its image legible in bright ambient light, up to direct sun. It does that in two ways at once: it puts out more light, and it reflects less of the light that falls on it. Brightness alone is not enough, because reflections from the glass can swamp even a very bright image.
A display does not need direct sun to struggle. The light in a vehicle cab, a glazed lobby or a warehouse doorway is often enough to wash out an ordinary screen. Direct sunlight can reach around 100,000 lux, compared with roughly 300 to 500 lux in a typical office, so an outdoor screen faces hundreds of times more ambient light than the one on a desk.
Why ordinary screens wash out
What the eye sees is contrast: the difference between the brightest white and the darkest black. Indoors, a monitor’s black is close to black. Outdoors, sunlight reflects off the front of the screen and adds the same glare to every pixel. Black turns grey, colours fade and the image disappears.
The figure that matters here is ambient contrast ratio: contrast measured with the light of the real site falling on the screen, not in the dark room a datasheet assumes. Our guide to monitor contrast ratio explains why the datasheet number can mislead. Raising ambient contrast means either adding light to the white or removing reflected light from the black, and the best sunlight readable designs do both.
Most of the reflected light comes from glass-to-air surfaces. Each one reflects around 4% of the incoming light, and an unbonded display with a cover glass or touch sensor has several of them stacked up.
The techniques that make a display readable in sun
Manufacturers combine several techniques, each with its own trade-off. The table compares the main ones.
| Technique | What it does | Effect on readability | Trade-off |
|---|---|---|---|
| High-brightness LED backlight | Raises output to typically 1,000 to 2,500 nits | Lifts the white well above the glare | More power and heat to manage |
| Optical bonding | Fills the air gap with clear adhesive | Removes internal reflections, often the biggest single gain | Done at the factory, harder to rework |
| Anti-reflective (AR) coating | Thin-film layers cancel reflected light | Cuts surface reflection to around 1% or less | Shows fingerprints, needs care to clean |
| Anti-glare (AG) surface | Matte texture scatters reflections | Breaks up mirror images of lamps and sky | Slight haze, less sharp in direct sun |
| Transflective LCD | Reflects ambient light back through the panel | Gets more legible as the light gets brighter | Weaker colour, less common in larger sizes |
| High-TNI liquid crystal | Stays stable at higher panel temperatures | Stops the panel darkening when sun heats it | Specified by the panel maker, not an add-on |
In practice, a bright backlight with optical bonding and an AR-coated cover glass is the usual combination for industrial screens in direct sun. Our guide to optical bonding in industrial displays covers dry and liquid bonding in more depth.
What to check on a datasheet
Sunlight readable is a description, not a certified standard, so the label alone tells you little. These are the specifications that show whether a display will cope with your site.
-
//
Brightness in nits. Around 500 to 700 nits helps in bright interiors and shade. Direct sun usually needs 1,000 nits or more.
-
//
Optical bonding. Check whether the cover glass and touch sensor are bonded, and whether the bonding is dry film or liquid.
-
//
Surface treatment. AR, AG or both, and on which surface of the cover glass.
-
//
Operating temperature. Bright backlights and sun load both add heat, so check the range covers the enclosure as installed.
-
//
Dimming range. A screen bright enough for noon must also dim far enough for night shifts, ideally with an ambient light sensor.
-
//
Touch performance. Projected capacitive touch that works through thick glass, with gloves and when wet, if operators need it.
Brightness, power and heat
Doubling the brightness of an LED backlight roughly doubles its power draw, and nearly all of that power ends up as heat inside the display. On a sealed panel PC or a fanless vehicle display, that heat has nowhere to go but through the enclosure, while the sun heats the front at the same time.
This is why optical bonding and AR glass matter so much: every percent of reflection they remove is contrast you do not have to buy with backlight power. Good designs also use ambient light sensors or automatic dimming, so the screen runs at full brightness only when the light demands it. That cuts power, heat and backlight wear, and it stops a 1,500 nit screen dazzling a driver at night.
Where sunlight readable displays are used

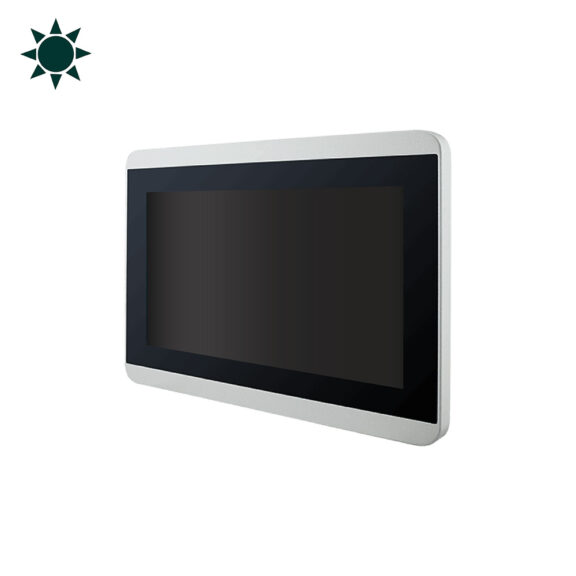

Our sunlight readable monitors are typically rated from around 1,000 to 1,600 nits, with a few brighter models, and our sunlight readable panel PCs combine the display and computer in one sealed enclosure. Our guide to choosing a sunlight readable display walks through the selection in detail.
-
//

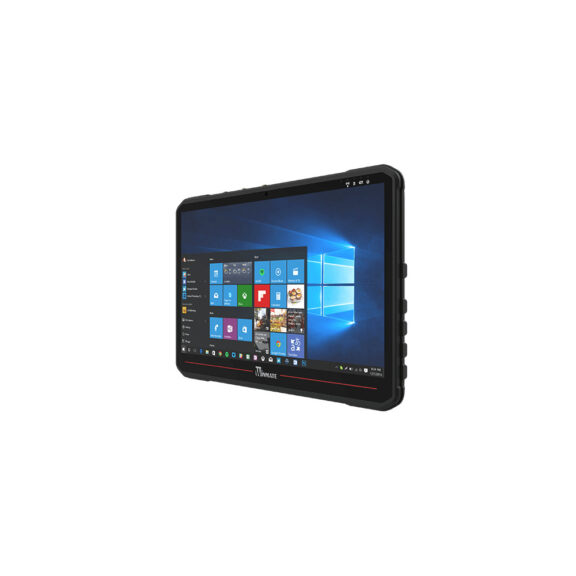

Vehicle cabs and fleets. Forklifts, tow trucks, buses and plant, where the screen faces a windscreen. The towing fleet case study moved from dim notebook screens to a bonded 700 nit display.
-
//
Marine bridges and decks. Bright sky, water glare and spray, often with night-time dimming requirements.
-
//
Outdoor kiosks and HMIs. Ticket machines, charging points, fuel and process control panels in the open.
-
//
Agriculture and construction machinery. Cab displays for guidance, spraying and machine control in full sun.
-
//
Bright indoor sites. Glazed lobbies, loading bays and factory floors near roof lights.
Quick answers on sunlight readable displays
Sunlight readable displays: common questions
How many nits do you need to see a screen in the sun?
Usually 1,000 nits or more. That figure assumes an optically bonded screen with low-reflection glass. An unbonded screen may need far more brightness to reach the same contrast, and shaded or indoor sites can manage with around 500 to 700 nits.
Is a high brightness display the same as a sunlight readable one?
Not always. High brightness describes the backlight. Sunlight readable describes the result, which also depends on reflections, so a bright screen with an air gap and plain glass can still wash out.
Can you make an existing display sunlight readable?
Only partly. A hood or an AR film helps a little. Backlight upgrades and optical bonding are factory processes, so for outdoor use it is usually better to specify a display built for it.
Do polarised sunglasses affect sunlight readable displays?
They can. LCDs emit polarised light, so at some angles polarised lenses make the screen look dark. Some outdoor displays add a treatment that keeps the image visible through them, which is worth asking about for drivers and marine crews.
Are OLED screens sunlight readable?
Rarely in industrial sizes. OLEDs have deep blacks but lower sustained full-screen brightness than high-brightness LCDs, so most industrial sunlight readable displays are LCDs with LED backlights and bonding.
We supply sunlight readable monitors and panel PCs with the brightness, bonding, glass and touch matched to the site, then configure and test each display before it ships.
