Stereolabs ZED-X-ONE-CORE-NO-LENS (ZED-411013) Global Shutter Board-Level MIPI Camera with No Lens, Full HD at 60 fps and Jetson Thor Support
Extended TempZED-X-ONE-CORE-NO-LENS Overview

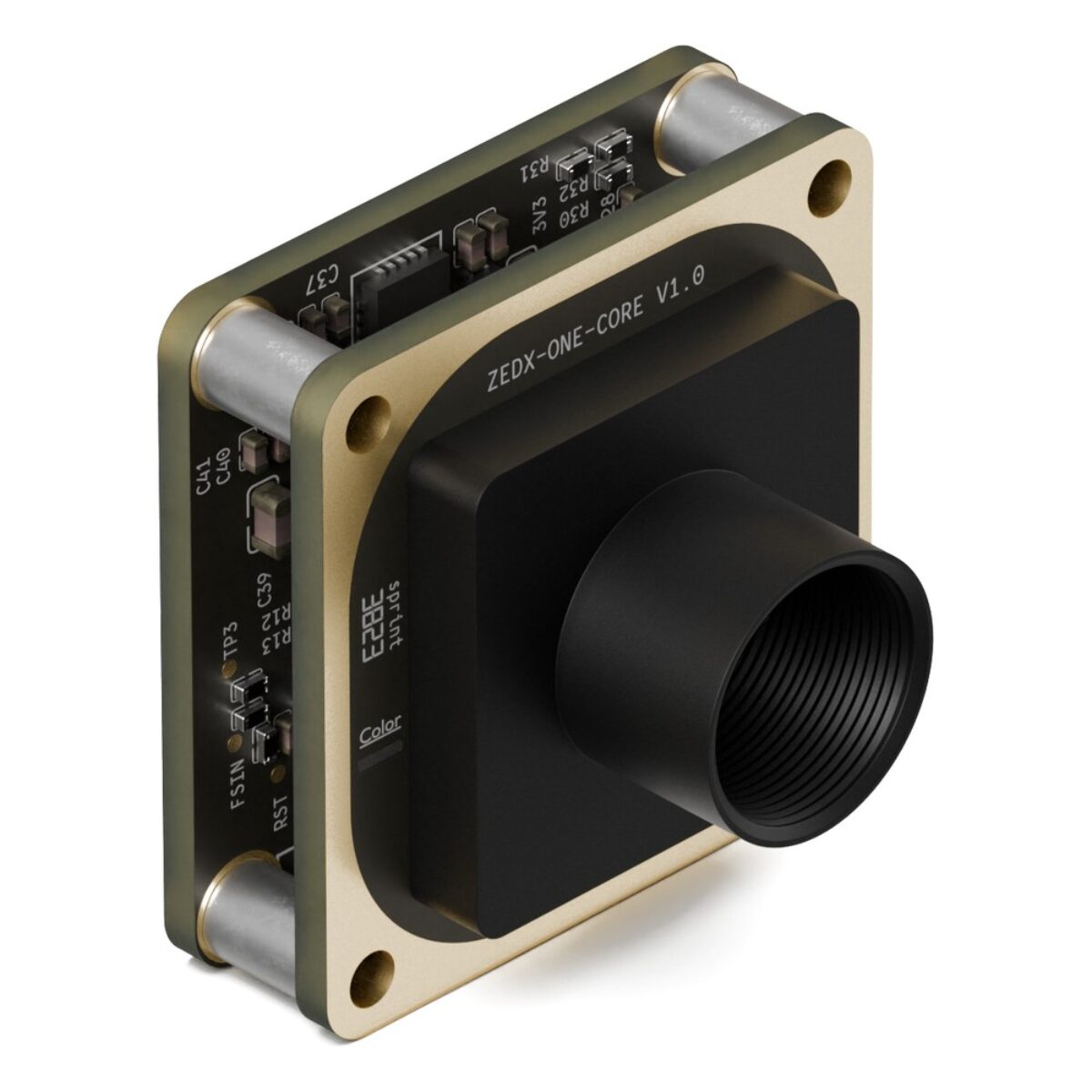

OEMs building a camera into their own product usually want control of the optic and the housing as well as the sensor. The Stereolabs ZED-X-ONE-CORE-NO-LENS is the no-lens build of the ZED-X-ONE-CORE series, a board-level global shutter camera with no lens fitted, ready to design into a small enclosure. If a standard optic will do, the ZED-X-ONE-CORE-FISHEYE, ZED-X-ONE-CORE-WIDE and ZED-X-ONE-CORE-NARROW come with 1.38 mm, 2.2 mm and 4.6 mm lenses.
The 1/2.6″ 2.3MP sensor has a 1928 x 1208 pixel array with 3 µm pixels and a recommended lens chief ray angle of 0° ± 3°, the figure to match when you specify a lens. Its global shutter exposes every pixel at once for skew-free capture of moving parts. Output runs at 1920 x 1200 at 60 fps, 1920 x 1080 at 60 fps in cropping mode or 960 x 600 at 120 fps in binning mode, with 71.4 dB dynamic range and a Bosch BMI088 six-axis IMU at 200 Hz.
The ZED-X-ONE-CORE-NO-LENS outputs four-lane MIPI CSI-2 on a 30-pin Micro I-PEX connector, which also carries 3.3 V power, a frame-sync input for multi-camera triggering and a flash-enable output for external lighting. It connects through the ZED-LINK-MIPI-QUAD, which takes up to four cameras on a Jetson AGX Orin Developer Kit, or two on Jetson Thor through the NVIDIA Holoscan Sensor Bridge, each at 1920 x 1200 and 60 fps over I-PEX cables of up to 50 cm.
Power draw is 0.8 W at 3.3 V over the MIPI cable, and the camera is rated from -20 °C to 60 °C. Four mounting holes fix the board in place, and Stereolabs lists REACH and RoHS compliance with a two-year warranty. We supply it tested with the ZED Link MIPI Quad, I-PEX cables and Jetson host it will run on, with drivers configured before it ships.
ZED-X-ONE-CORE-NO-LENS Specifications
| Overview | |
|---|---|
| Brand & Model | Stereolabs ZED-X-ONE-CORE-NO-LENS (ZED-411013) |
| Features | Compact Embedded |
| Camera | |
| Camera Type | Monocular |
| Camera Interface | MIPI CSI-2 [Micro I-PEX] |
| Image Sensor | 2.3MP 1/2.6" [3µm] |
| Video Modes | 1920x1200 @ 60fps 960x600 @ 120fps |
| Shutter Type | Global Shutter |
| Lens | No Lens |
| Motion Sensors | 6-axis IMU [200Hz] |
| Compatible Hosts | NVIDIA Jetson Orin NVIDIA Jetson Thor |
| Environmental Conditions | |
| Operating Temperature | -20°C to 60°C [-4°F to 140°F] |
| Certification | REACH RoHS |
- ZED-X-ONE-CORE-NO-LENS Datasheet Download
Official Stereolabs UK Distributor
Things Embedded is an official Stereolabs UK distributor, and we supply the ZED-X-ONE-CORE-NO-LENS tested with the I-PEX MIPI cable and the ZED Link MIPI Quad on your Jetson host before it ships. Within the Vecow range, the ZED-X-ONE-CORE-WIDE comes with a 2.2 mm lens fitted for a 110° horizontal view, ready to mount.
Across our range, the ZED-X-ONE-CORE-NO-LENS sits with our embedded vision cameras and Stereolabs cameras and accessories.
