Yuan SC542N2-L SDI PCIe SDI Capture Card with 2 x SDI Inputs at 1080p60
PCI ExpressSC542N2-L SDI Overview
A two-camera stream or recording needs both SDI feeds captured in step, with each one still reaching its monitor. The SC542N2-L SDI is Yuan’s 2-channel PCIe SDI capture card for that set-up, with two SDI inputs and two SDI loop-through outputs on one short card.
Each channel captures SDI up to 1920 x 1080p at 60/50 fps, with HD-SDI at 1080p30/25/24, 1080i60/50 and 720p60/50, and SD-SDI at 720 x 480i and 720 x 576i. Colour formats for capture and preview are 8-bit RGB24 and RGB32 at 4:4:4, YUY2 at 4:2:2, and YV12 and NV12 at 4:2:0. Two embedded audio channels are captured as stereo 16-bit at 32 to 48 kHz. On-board processing handles cropping and scaling, auto signal detection and deinterlacing. There is no built-in hardware encoder, so any encoding is left to the host software.
The card uses a PCIe x1 Gen2 link. Yuan provides a Windows and Linux SDK, supports DirectShow and V4L2 software, and lists vMix, OBS, Zoom, Skype, Teams, Discord, Slack, Cisco Webex and GoToMeeting as compatible applications. The SC542N1-L SDI is the single-channel version, and the SC542N4-L SDI captures four SDI feeds on PCIe x4.

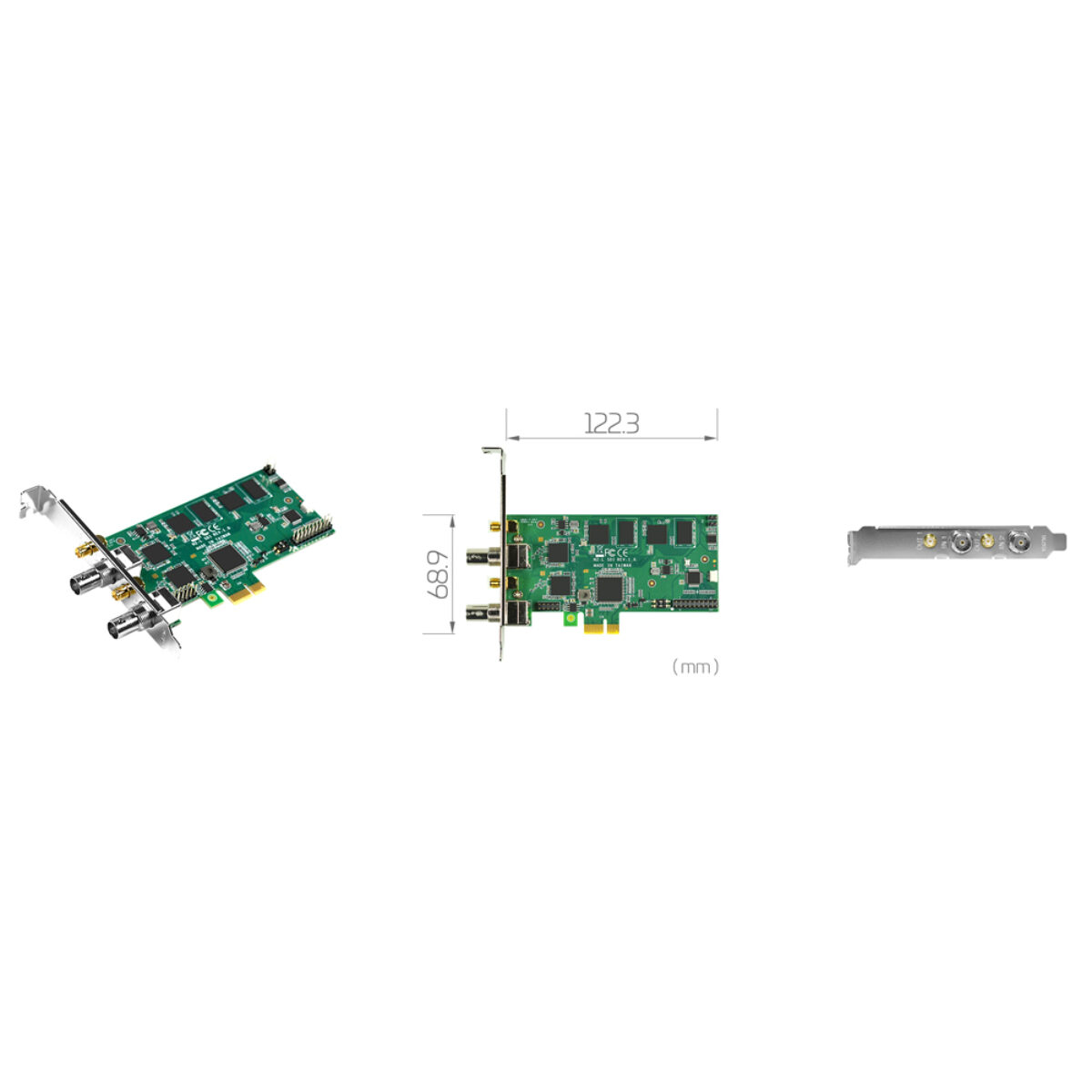

Yuan supports Windows 7, 8, 8.1 and 10, Linux 2.6.14 or later in 32-bit and 64-bit form, Linux on ARM, and the NVIDIA Jetson TX2, Nano, AGX Xavier and Xavier NX. The board measures 122.3 x 68.9 mm and carries 16 GPIO lines and a watchdog. The loop-through outputs keep both feeds on their local monitors while recording runs. Yuan lists multi-device and multi-instance support, for hosts that run more than one card or capture session.
SC542N2-L SDI Specifications
| Overview | |
|---|---|
| Brand & Model | Yuan SC542N2-L SDI |
| Video Capture | |
| Host Interface | PCIe [x1, Gen2] |
| Simultaneous Video Inputs | 2 |
| Video Input | 2x SDI |
| Video Resolution Input | HD30 [1920x1080p @ 30/25fps] |
| Video Output | 2x SDI |
| Video Resolution Output | HD60 [1920x1080p @ 60/50fps] |
| Colour Format | NV12 RGB24 RGB32 YUY2 YV12 |
| Audio Input | 2x SDI Embedded Audio Input |
| Audio Output | 2x SDI Embedded Audio Output |
