Cincoze Rugged Embedded Computers
Cincoze designs fanless embedded computers for vehicles, robots, railway and factory cabinets. The DI series packs a 15 W Intel Core processor, wide 9-48 V DC input and modular CMI and CFM expansion into a small sealed chassis, so one system can take extra LAN, M12, 10GbE, CAN FD, PoE or ignition control as the project needs.
01 Product Range
Cincoze DI Series Rugged Fanless PCs
Two generations of the same sealed DI chassis. The DI-1200 brings 12th Gen Intel Core, dual 2.5GbE and M.2 5G, and the DI-1100 keeps 8th Gen Intel Core with triple display and mini PCIe expansion.

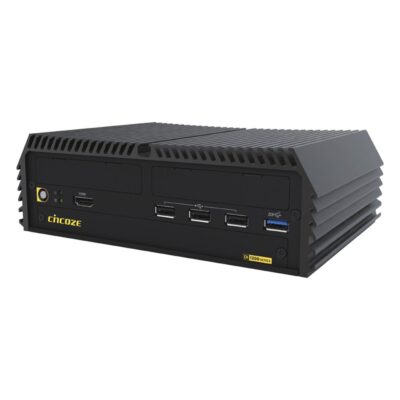

Cincoze DI-1200 Rugged Embedded PCs with 12th Gen Intel Core
The DI-1200 is the current DI model, built on 15 W Intel Core i7-1265UE, i5-1245UE or i3-1215UE processors. It adds dual 2.5GbE, DDR5 memory, a hot-swappable SATA bay and M.2 sockets for 5G, GNSS and Wi-Fi, and runs from -20 °C to 70 °C on 9-48 V DC.
- Core i7-1265UE, i5-1245UE or i3-1215UE with up to ten cores
- Dual 2.5GbE, DDR5 and HDMI plus two DisplayPort outputs
- M.2 B-key with dual SIM for 5G and an M.2 E-key for Wi-Fi
- CMI and CFM modules for LAN, 10GbE, M12, CAN FD, PoE or ignition
Models in This Series

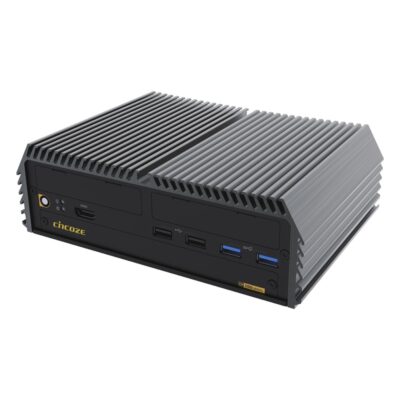

Cincoze DI-1100 Rugged Fanless PCs with 8th Gen Intel Core
The DI-1100 uses 15 W Intel Core i7-8665UE, i5-8365UE or i3-8145UE Whiskey Lake processors with triple display including VGA, two mini PCIe sockets with dual SIM, and an mSATA socket beside the front SATA bay. It runs from -40 °C to 70 °C on 9-48 V DC.
- Core i7-8665UE, i5-8365UE or i3-8145UE at 15 W
- Dual GbE and HDMI, DisplayPort and VGA outputs
- Two full-size mini PCIe sockets and two front SIM slots
- -40 °C to 70 °C with MIL-STD-810G shock and vibration
Models in This Series
// LOADING...
Browse Cincoze Products
Or choose a product family above.
- CPU: Intel Core 12th Gen Alder Lake
- Memory: 1x DDR5 4800MHz SO-DIMM Slot, 32GB
- OS: Linux, Linux Ubuntu 22.04, Windows 11
- Display Outputs: 1x HDMI, 2x Display Port
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type A], 2x USB 3.2 Gen 1 [Type A], 3x USB 2.0 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1 Gen3/USB 3.2/SATA/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1 Gen3/USB 2.0] [2230]
- Storage: 1x 2.5" HDD/SSD
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- RAID: RAID 0, RAID 1
- Power: 9-48V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 70°C [-4°F to 158°F]
- Certification: EN62368-1, IEC 62368-1, CB, CE, cUL 62368-1, E-Mark, EN50121-3-2, FCC, IC (ICES-003), MIL-STD-810, UKCA, UL, UL 62368-1
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
- CPU: Intel Core 8th Gen Whiskey Lake
- Memory: 1x DDR4 2400MHz SO-DIMM Slot, 32GB
- OS: Windows 10
- Display Outputs: 1x Display Port, 1x HDMI, 1x VGA
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232/422/485 [DB9]
- mPCIe: 1x mPCIe [PCIe/USB/SATA], 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x 2.5" HDD/SSD, 1x mSATA
- Front Accessible Storage: Front Accessible Storage
- RAID: RAID 0, RAID 1
- Power: 9-48V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: EN62368-1, IEC 62368-1, CE, E-Mark, EN50121-3-2, FCC, IC (ICES-003), MIL-STD-810, UKCA
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
// Cincoze in the UK
Plan Your Cincoze Build.
Tell us where the system will run, the supply voltage and the I/O you need. We will match the right DI model, fit the memory, storage and any CMI, CFM, Wi-Fi, 4G or 5G modules, load the operating system and test the build before it ships.
