3G-SDI and HD-SDI Capture Cards for 1080p Video
A 3G-SDI capture card takes 1080p60 video from broadcast cameras, switchers and medical equipment over a single coaxial cable, and also accepts HD-SDI and SD-SDI sources, so one card covers older and newer SDI equipment. Available as PCIe, M.2 and Mini PCIe cards and USB units, with one to eight inputs.
Options include loop-through outputs, embedded SDI audio, on-card H.264 and H.265 encoding on selected models and Windows and Linux SDKs, suited to broadcast recording, surgical video, defence systems and control rooms built around 1080p SDI.
Speak to a video capture specialist to match the channel count and host interface to your SDI system.
Browse Our 3G-SDI Frame Grabbers
- Video Input: 1x 3G-SDI
- Host: PCIe [x1, Gen1]
- Simultaneous Video Inputs: 1
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 1x SDI
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

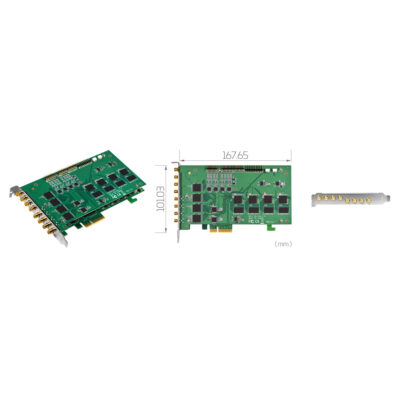

- Video Input: 8x SDI
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 8
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

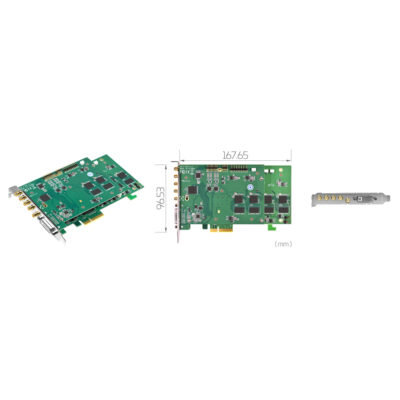

- Video Input: 5x SDI
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 6
- Video Input: 1x DVI-A, 1x DVI-D
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

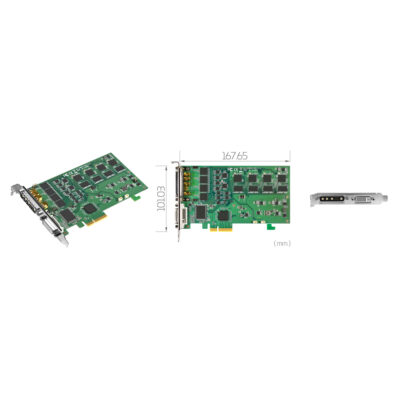

- Video Input: 4x SDI
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- Video Input: 1x DVI-A, 1x DVI-D
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

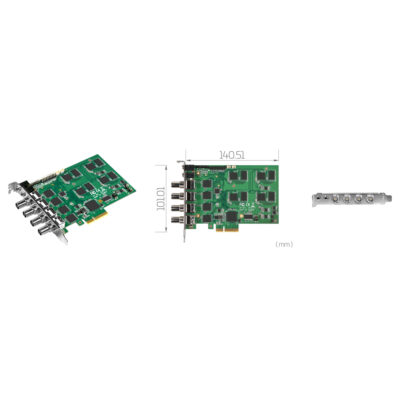

- Video Input: 4x SDI
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

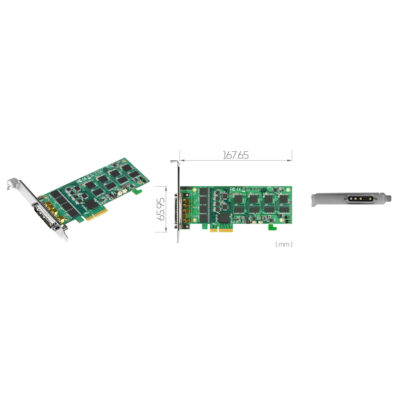

- Video Input: 4x SDI
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12
- Video Input: 1x SDI
- Host: PCIe [x1, Gen2]
- Simultaneous Video Inputs: 2
- Video Input: 1x DVI-I
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

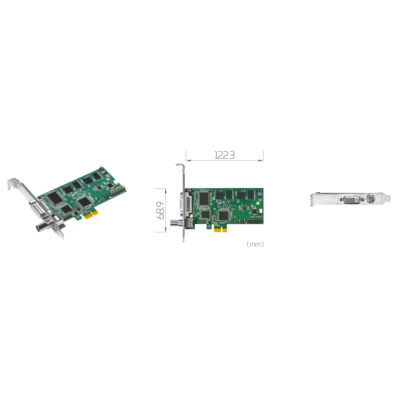

- Video Input: 2x SDI
- Host: PCIe [x1, Gen2]
- Simultaneous Video Inputs: 2
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 2x SDI
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

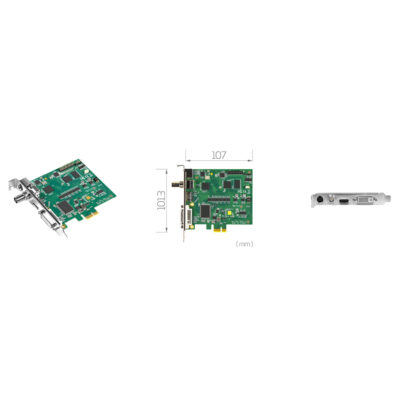

- Video Input: 1x SDI
- Host: PCIe [x1, Gen2]
- Simultaneous Video Inputs: 1
- Video Input: 1x Composite, 1x DVI-I, 1x HDMI, 1x S-Video, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

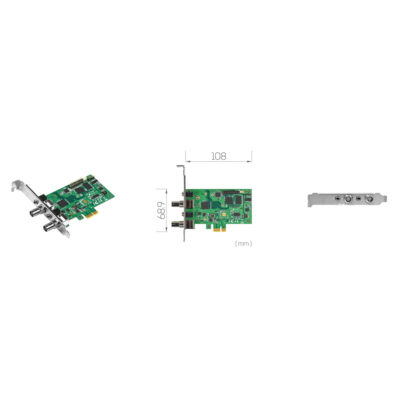

- Video Input: 1x SDI
- Host: PCIe [x1, Gen2]
- Simultaneous Video Inputs: 1
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 1x SDI
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12
- Video Input: 1x SDI
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Video Input: 1x DVI-I, 1x HDMI, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps], UXGA60 [1920x1200 @ 60/50fps]
- Video Output: 1x SDI
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps], UXGA30 [1920x1200 @ 30/25fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12
- Video Input: 1x 3G-SDI
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 1x SDI
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12
- Video Input: 1x SDI
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 1x SDI
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Recording Mode: Hardware Compression
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12
- Video Input: 1x SDI
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Video Input: 1x HDMI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Colour Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Video Input: 1x 3G-SDI
- Host: Mini PCIe
- Simultaneous Video Inputs: 1
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 1x SDI
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Colour Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
3G-SDI Capture Card Ranges Configured by Things Embedded
We work with a leading manufacturer of 3G-SDI and HD-SDI capture cards, so the ranges below are the ones we specify for broadcast, medical and defence systems. Compare them by channel count and host interface, then browse the models above or ask a video capture specialist which range suits your system.
SC400 and SC410 Yuan Capture Cards
HDMI, 3G-SDI, 6G-SDI and TVI capture on PCIe, M.2 and Mini PCIe, from single-input all-in-one cards to four-channel 4K30 models.
SC540 and SC542 Yuan HD Capture Cards
One to eight channels of HDMI, SDI, DVI-I and analogue capture at up to 1080p on PCIe, M.2 and Mini PCIe.
SC550 Yuan HD Capture Cards
One to eight channels of HDMI, 3G-SDI and DVI capture at 1080p60 on PCIe, M.2 and Mini PCIe, with GPIO on selected cards.
SC5A0 Yuan HD Frame Grabbers
One to eight channels of HDMI, SDI, DVI and analogue capture on PCIe, M.2 and Mini PCIe for recording and monitoring PCs.
SC5C0 Yuan HD Capture Cards With H.26X Encoding
One to eight channels of HDMI, 3G-SDI and DVI capture at up to 1080p60 with on-card H.264 and H.265 encoding on selected models.
SC710, SC720 and SC750 Yuan 4K and 8K Capture Cards
HDMI 2.0, HDMI 2.1, 12G-SDI, DisplayPort 1.4a and SDVoE capture at 4K60 and up to 8K on PCIe and M.2.
PD570, PD575 and UB5 Yuan USB Capture Cards
External USB 3.0 capture for HDMI, SDI and TVI sources, from 1080p60 to HDMI 2.0 and 2.1 4K models, working as UVC devices.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a 3G-SDI Capture Card
Our video capture specialists specify every 3G-SDI capture card against the sources, the host system and the software that will use the video. These are the choices we work through with you before recommending a range.
SDI Formats
3G-SDI at 1080p60 with HD-SDI and SD-SDI support for older cameras and switchers.
Channel Count
One to eight inputs per card, so a multi-camera recorder uses a single slot.
Loop-Through
Loop-through passes each feed to a monitor or recorder while it is captured.
Explore Video Capture Cards by Signal and Form Factor
Compare every video capture category by signal, SDI and HDMI standard or form factor, and jump straight to the cards that fit your sources and host system.
3G-SDI Capture Innovation & 1080p Video Insights
Speak to a 3G-SDI Specialist.
Tell us the cameras or sources you need to capture, how long the cable runs are and what records the video. We will recommend the right frame grabber, then configure and test it with your system before it ships.
