UK Neousys
// Headquartered in Taiwan. Founded in 2010.
Neousys Technology UK Distributor
Neousys Technology designs and manufactures rugged fanless computers in Taipei, from compact DIN-rail units to IP69K mission computers and GPU-accelerated edge AI systems. Wide-temperature operation, ignition-aware DC power and PoE+ camera ports are standard across the range, on Intel, AMD, NVIDIA Jetson and Arm processors.
Product Range
Neousys Rugged Computers
Neousys computer families, organised by where the system will live and how much compute it needs rather than by processor, plus the MezIO modules and frame grabber cards that extend them. Pick the family that matches the environment, then the series that matches the I/O.
Nuvo Rugged Fanless Industrial PCs
The core Neousys line: rugged fanless box PCs on Intel Core 8th to 14th Gen, Core Ultra 200S and Intel Atom, from compact PoE+ units to full expansion boxes. Wide-temperature operation, 8 to 48 V DC input with ignition control and PoE+ camera ports are standard across the family.
- GC variants add a 120 W to 600 W NVIDIA GPU, from Quadro and RTX to L4, for inference
- VTC variants add CAN bus, RAID and in-vehicle power management
- AWP variants are IP66 sealed with M12 connectors
- RL variants are designed to EN 50155 railway requirements
Series and Models in This Family
POC Ultra-Compact DIN-Rail Computers
Palm-sized fanless computers for cabinet and machine mounting, on Intel Atom, Core i3-N305 and AMD Ryzen PRO. The same environmental options as Nuvo in a fraction of the volume: flat-top wide-temperature, IP66 and IP67 all-weather and 70 W GPU models.
- DIN-rail and wall mounting
- Up to 3x 2.5GbE with PoE+ on selected models
- POC-960GC pairs Ryzen PRO with an NVIDIA GPU for compact edge AI
- POC-451VTC, POC-551VTC and POC-751VTC cover in-vehicle installs
Series and Models in This Family
SEMIL Waterproof MIL-STD Half-Rack Computers
IP67 and IP69K sealed computers for outdoor, marine and vehicle deployments that see pressure washing, salt and constant vibration. Built to MIL-STD-810 with M12 connectors throughout, on Intel Core 12th to 14th Gen.
- Semil-2000 for IP69K rugged duty, SEMIL-2200 adds M12 10GbE for higher-bandwidth sensor and camera links
- GC variants add an NVIDIA L4 GPU inside the sealed enclosure
- Half-rack format mounts in 19-inch racks or standalone
- Wide-temperature operation and 8 to 48 V DC input
Series in This Family
NRU NVIDIA Jetson Edge AI Computers
Rugged fanless computers built around NVIDIA Jetson Orin NX, Orin Nano and AGX Orin, with the camera interface chosen for the job: PoE+ on the NRU-150-FT, GMSL2 on the NRU-160-FT, and an AGX Orin AI NVR in the NRU-220S. The NRU-160-AWP adds IP66 sealing, the NRU-51V is a four-camera GMSL2 hub with 10GbE and the NRU-52S powers four 90 W PoE++ cameras.
- Jetson Orin NX, Orin Nano, AGX Orin and Xavier NX modules
- PoE+, PoE++ or GMSL2 camera ports depending on model
- NRU-170-PPC packages Jetson in an IP66 10.1-inch panel PC
- JetPack imaged and configured by us before dispatch
Series in This Family
FLYC Companion Computers for Drones and UAVs
A low-SWaP Jetson Orin NX computer sized for airframe payload bays, with the camera, sensor and flight-controller interfaces a UAV needs for inspection, mapping and onboard inference.
- NVIDIA Jetson Orin NX with up to 100 TOPS
- Under 300 g flight weight
- Camera, sensor and flight-controller interfaces on board
GT and RGS Rackmount GPU Computers and Servers
19-inch rackmount computers on Intel 14th Gen with an NVIDIA RTX 2000 Ada GPU, for control rooms, rolling stock and vehicle racks where a rack is the better form factor for the installation, plus the RGS-8805GC and RGS-9805GC rugged HPC servers on AMD EPYC 7003 and EPYC 9005, with NVIDIA RTX A6000, A4500 or two RTX PRO 6000 Blackwell GPUs, for inference and simulation workloads that need full server GPUs.
- 2U and 3U 19-inch rackmount formats
- NVIDIA RTX 2000 Ada for inference and video analytics
- GT-92RL-H is designed to EN 50155 railway requirements
- RGS-8805GC: AMD EPYC 7003 rugged HPC server with NVIDIA RTX A6000 or A4500
- RGS-9805GC: AMD EPYC 9005 with two 400 W NVIDIA GPU slots and PCIe Gen5
Series and Models in This Family
IGT Arm Industrial IoT Gateways
Compact DIN-rail IoT gateways on the TI Sitara AM3352 Arm processor, shipped with Debian pre-installed. Isolated digital I/O, serial and CAN bus sit on terminal blocks, with 10/100 Ethernet, a mini PCIe socket for 3G, 4G or Wi-Fi, and versions with PoE powered device input or 16-bit analogue voltage and current inputs.
- TI Sitara AM3352 Arm gateways with Debian pre-installed
- Isolated DIO, serial and CAN bus on terminal blocks
- PoE+ powered and 16-bit analogue input versions
Series in This Family
SuperCAP UPS Modules for Industrial and Railway PCs
Standalone UPS modules that sit between the DC supply and a box PC, carry it through power dips and shut it down cleanly when the supply fails. They store their energy in supercapacitors instead of batteries, so they run from -25 to 65 °C, or -40 to 70 °C on the railway model, for more than 10 years with no battery to replace.
- PB-9250J-SA and PB-4600J-SA: 9250 or 4600 W·s for PCs drawing up to 180 W or 100 W
- PB-2580J-SA: a 32.8 mm wide 70 W module tested to MIL-STD-810G
- PB-9250J-110V: 43 to 160 V DC railway input, designed to EN 50155 and EN 45545-2
- Automatic safe shutdown and vehicle ignition control with no software to install
Models in This Family
MezIO I/O Modules and Accessories
Plug-in I/O for Nuvo and POC computers. A MezIO module mounts inside the system on a mezzanine connector and adds serial ports, isolated digital I/O, Gigabit Ethernet with PoE+, USB 3.1, a 2.5 inch drive bay or ignition power control. We fit and test the module inside the computer before it ships, and every system page lists the modules that fit it.
- Eight-port RS-232/422/485 serial and 16 or 32-channel isolated digital I/O
- Four Gigabit Ethernet ports, with 802.3at PoE+ on the MezIO-G4P
- USB 3.1, a 2.5 inch SATA drive bay and ignition power control for vehicles
Series in This Family
Neousys Frame Grabber Cards
PCIe cards that bring cameras into a Neousys system: PoE+ frame grabbers from Gigabit to 10GbE, USB 3 and GMSL2 camera inputs, automotive BASE-T1 Ethernet, and Jetson-powered cards that run AI inference beside the host CPU. We fit and test the card inside the computer before it ships, so cameras, drivers and the power budget are proven as one system.
- Two to four-port 802.3at PoE+ cards at Gigabit, 5GBASE-T and 10GbE
- Jetson Orin NX and Xavier NX cards with PoE+, USB 3.2 or GMSL2 camera inputs
- GMSL2 and 100/1000BASE-T1 automotive camera and sensor capture
Series in This Family
// LOADING...
Browse Neousys Products
- CPU: AMD Ryzen PRO 8000 Series
- GPU / AI Accelerator: AMD Ryzen AI NPU
- GPU: NVIDIA RTX PRO 2000 Blackwell
- AI Performance: 16–545 TOPS
- Memory: 1x DDR5 5600MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x HDMI
- USB: 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 M-Key [PCIe x4 Gen3] [2280]
- mPCIe: 2x mPCIe [PCIe/SIM/USB]
- PCIe: 1x PCIe [x16 Slot] [x8 Signal] [Gen4]
- Storage: 1x M.2 SSD
- Power: 12-35V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- Mounting Options: Wall Mount
- Ethernet: 1x 2.5 GbE LAN [RJ45], 4x GbE LAN [RJ45] [PoE]
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- GPU / AI Accelerator: Discrete GPU (PCIe)
- GPU: NVIDIA L4
- AI Performance: 485 TOPS
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x DVI, 1x VGA
- Ethernet: 1x GbE LAN [RJ45], 5x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [DB9], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- PCIe: 2x PCIe [x16 Slot] [x8 Signal] [Gen3] [Cassette]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4], 2x 2.5" HDD/SSD [SATA]
- RAID: RAID 0, RAID 1
- Power: 8-48V DC [Terminal Block]
- Temp: -25°C to 60°C [-13°F to 140°F]
- Mounting Options: Wall Mount
- Certification: IEC 62368-1, CE, FCC, UL 62368-1
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- GPU / AI Accelerator: Discrete GPU (PCIe)
- GPU: NVIDIA RTX PRO 2000 Blackwell, NVIDIA RTX PRO 4000 Blackwell SFF, NVIDIA RTX 2000E Ada
- AI Performance: 142–770 TOPS
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x DVI, 1x VGA
- Ethernet: 1x GbE LAN [RJ45], 5x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [DB9], 2x RS232/422/485 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- PCIe: 1x PCIe [x16 Slot] [x16 Signal] [Gen3]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4], 2x 2.5" HDD/SSD [SATA]
- RAID: RAID 0, RAID 1
- Power: 8-48V DC [Terminal Block]
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- Mounting Options: Wall Mount
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 128GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x DVI, 1x VGA
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45], 4x 2.5 GbE LAN [RJ45] [PoE]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [DB9], 2x RS232/422/485 [DB9]
- CANbus: 2x Isolated CANbus, DB9
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 1x PCIe [x16 Slot] [x16 Signal] [Gen3], 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4], 2x 2.5" HDD/SSD [SATA]
- RAID: RAID 0, RAID 1
- Power: 8-48V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- Mounting Options: Wall Mount
- CPU: Intel Processor N Series Alder Lake
- Memory: 1x DDR5 4800MHz SO-DIMM, 16GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS422/485 [DB9], 1x RS232/422/485 [DB9], 3x RS232 [DB9]
- M.2: 1x M.2 M-Key [SATA] [2280]
- PCIe: 1x PCIe [x4 Slot] [1-Lane Signal] [Gen3], 1x PCIe [x4 Slot] [Gen3]
- Storage: 1x M.2 SSD [SATA]
- Power: 12-24V DC [Terminal Block]
- Temp: -10°C to 70°C [14°F to 158°F]
- Certification: CE, FCC
- Mounting Options: Wall Mount
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 128GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x DVI, 1x VGA
- USB: 1x USB 3.2 Gen 2x2 [Type C], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [DB9], 2x RS232/422/485 [DB9]
- CANbus: 1x Isolated CANbus, DB9
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [2242/3052], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB], 1x mPCIe [USB/SIM]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4], 2x 2.5" HDD/SSD [SATA]
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- RAID: RAID 0, RAID 1
- Power: 8-48V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, E-Mark, EN45545-2, EN50155, FCC
- Mounting Options: Wall Mount
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45], 4x 2.5 GbE LAN [RJ45] [PoE], 4x GbE LAN [RJ45] [PoE]
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 128GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x DVI, 1x VGA
- USB: 1x USB 3.2 Gen 2x2 [Type C], 2x USB 2.0 [Type A], 2x USB 3.2 Gen 1 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 2x RS232 [DB9], 2x RS232/422/485 [DB9]
- CANbus: 1x Isolated CANbus, DB9
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [2242/3052], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 1x PCIe [x16 Slot] [x16 Signal] [Gen3], 1x mPCIe [PCIe/USB], 1x mPCIe [USB/SIM]
- PCIe: 1x PCIe [x16 Slot] [x16 Signal] [Gen3]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4], 2x 2.5" HDD/SSD [SATA]
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- RAID: RAID 0, RAID 1
- Power: 8-48V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, E-Mark, EN45545-2, EN50155, FCC
- Mounting Options: Wall Mount
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45], 4x 2.5 GbE LAN [RJ45] [PoE], 4x GbE LAN [RJ45] [PoE]

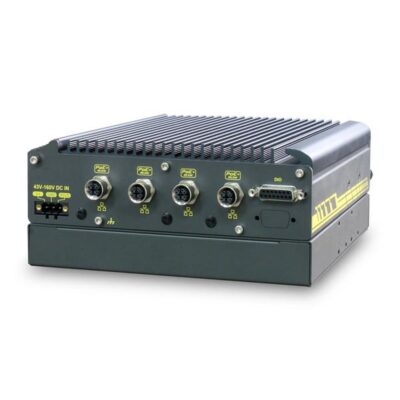

- CPU: Intel Atom X Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x DVI, 1x VGA
- Ethernet: 4x GbE LAN [M12] [PoE]
- USB: 1x USB 3.1 Gen 1 [Type A], 2x USB 2.0 [Type A]
- Serial: 1x Isolated RS485 [DB9], 1x RS422/485 [DB9], 3x RS232 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052]
- mPCIe: 1x mPCIe [PCIe/USB], 1x mPCIe [USB]
- Storage: 1x 2.5" HDD/SSD [SATA], 1x M.2 SSD [SATA]
- Front Accessible Storage: Front Accessible Storage
- Power: 43-160V DC [Terminal Block]
- Temp: -40°C to 70°C [-40°F to 158°F]
- Certification: CE, EN45545-2, EN50155, FCC
- Mounting Options: Wall Mount
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- GPU: NVIDIA RTX 2000 Ada
- AI Performance: 192 TOPS
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 128GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 8x GbE LAN [M12], 1x GbE LAN [M12]
- USB: 4x USB 3.2 Gen 2 [Type A]
- CANbus: 2x Isolated CANbus [M12]
- M.2: 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 2x mPCIe [PCIe/SIM/USB]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4], 2x 2.5" HDD/SSD [SATA]
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- RAID: RAID 0, RAID 1
- Power: 43-160V DC [M12]
- Temp: -40°C to 55°C [-40°F to 131°F]
- Certification: CE, EN45545-2, EN50121-3-2, EN50155, FCC
- Mounting Options: 19" Rack Mount, Wall Mount
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- GPU: NVIDIA RTX 2000 Ada
- AI Performance: 192 TOPS
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 128GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 8x GbE LAN [M12] [PoE], 1x GbE LAN [M12]
- USB: 4x USB 3.2 Gen 2 [Type A]
- CANbus: 2x Isolated CANbus [M12]
- M.2: 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 2x mPCIe [PCIe/SIM/USB]
- Storage: 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4], 2x 2.5" HDD/SSD [SATA]
- Front Accessible Storage: Front Accessible Storage
- Hot Swappable Storage: Hot Swappable SSD Support
- RAID: RAID 0, RAID 1
- Power: 8-48V DC [M12]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 55°C [-13°F to 131°F]
- Certification: CE, EN50121-3-2, EN50155, FCC
- Mounting Options: 19" Rack Mount, Wall Mount
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x VGA
- USB: 2x USB 2.0 [Type A], 4x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS422/485 [DB9], 1x RS232/422/485 [DB9], 3x RS232 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 2x mPCIe [PCIe/SIM/USB]
- Storage: 1x 2.5" HDD/SSD [SATA], 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4]
- Hot Swappable Storage: Hot Swappable SSD Support
- Power: 8-48V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- Mounting Options: Wall Mount
- Ethernet: 4x 2.5 GbE LAN [RJ45] [PoE]
-
Nuvo-2600E-PoE-IGN
NUVO-2600 with Intel Atom x6425E, 4x PoE+ GbE, PCIe Cassette and ignition control -
Nuvo-2600E
NUVO-2600 with Intel Atom x6425E, 4x GbE and PCIe Cassette -
Nuvo-2600E-IGN
NUVO-2600 with Intel Atom x6425E, 4x GbE, PCIe Cassette and ignition power control -
Nuvo-2600E-PoE
NUVO-2600 with Intel Atom x6425E, 4x PoE+ GbE and PCIe Cassette
- CPU: Intel Atom X Series Elkhart Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x DVI, 1x VGA
- USB: 1x USB 3.1 Gen 1 [Type A], 2x USB 2.0 [Type A]
- Serial: 1x Isolated RS485 [DB9], 1x RS422/485 [DB9], 3x RS232 [DB9]
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042/3052]
- mPCIe: 1x mPCIe [PCIe/USB], 1x mPCIe [USB]
- PCIe: 1x PCIe [x4 Slot] [2-Lane Signal] [Gen3] [Cassette]
- Storage: 1x 2.5" HDD/SSD [SATA], 1x M.2 SSD [SATA]
- Front Accessible Storage: Front Accessible Storage
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CE, FCC
- Mounting Options: Wall Mount
- Ethernet: 4x GbE LAN [RJ45] [PoE]
- Power: 8-35V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x VGA
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 2x USB 2.0 [Type A], 4x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS422/485 [DB9], 1x RS232/422/485 [DB9], 3x RS232 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 2x mPCIe [PCIe/SIM/USB]
- Storage: 1x 2.5" HDD/SSD [SATA], 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4]
- Power: 8-35V DC [Terminal Block]
- Certification: CE, FCC
- Mounting Options: DIN Mount, Wall Mount
- Temp: -25°C to 60°C [-13°F to 140°F]
- CPU: Intel Atom X Series Alder Lake
- Memory: 1x DDR5 4800MHz SO-DIMM, 16GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 2x HDMI
- USB: 2x USB 3.2 Gen 1 [Type A], 2x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS422/485 [DB9], 1x RS232/422/485 [DB9], 3x RS232 [DB9]
- M.2: 1x M.2 M-Key [SATA] [2280]
- Storage: 1x M.2 SSD [SATA]
- Power: 8-35V DC [Terminal Block]
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount, Wall Mount
- Ethernet: 3x 2.5 GbE LAN [RJ45]
- CPU: Intel Pentium G Series Alder Lake, Intel Core 12th Gen Alder Lake, Intel Core 13th Gen Raptor Lake, Intel Celeron G Series Alder Lake
- Memory: 1x DDR4 3200MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 10, Windows 11
- Display Outputs: 1x Display Port, 1x VGA
- USB: 2x USB 2.0 [Type A], 4x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS422/485 [DB9], 1x RS232/422/485 [DB9], 3x RS232 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- mPCIe: 2x mPCIe [PCIe/SIM/USB]
- Storage: 1x 2.5" HDD/SSD [SATA], 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4]
- Hot Swappable Storage: Hot Swappable SSD Support
- Power: 8-48V DC [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount, Wall Mount
- Ethernet: 4x 2.5 GbE LAN [RJ45] [PoE]
Why Choose Neousys
Neousys Technology was established in Taiwan in 2010 and designs, manufactures and markets rugged embedded computers and edge AI platforms. Its engineers specialise in the thermal management of high-power CPUs and GPUs and in camera and sensor I/O, backed by patented expansion, mounting and power backup designs. As an official Neousys distributor we bring that range to UK projects.
Fanless Thermal Design
An exclusive mechanical design and thermal pad channel CPU heat straight into the heatsink, so Neousys systems can run at full CPU load at temperatures from -40°C to 70°C.
Patented Expansion Cassette
A patented cassette gives an add-on card its own compartment with a dedicated heat-spreader inside the fanless enclosure, keeping interference low and making cards easy to install and replace.
MezIO Modular I/O
MezIO mezzanine modules add serial ports, isolated digital I/O, PoE+, USB or ignition power control to a standard Neousys system through a high-speed board-to-board connector.
Ruggedised GPU Computing
Patented adaptive and damping brackets hold graphics cards secure against shock and vibration, and a patented ventilation design lets GPU systems operate from -40°C to 70°C.
Camera-Ready Edge AI
Intel and NVIDIA Jetson platforms carry PoE+, USB3 and GMSL2 camera interfaces, and Neousys publishes a list of GMSL2 cameras with drivers pre-installed.
Waterproof Up to IP69K
SEMIL and AWP computers are sealed from IP66 to IP69K in stainless steel or aluminium with M12 connectors, and comply with MIL-STD-810H shock and vibration standards.
SuperCAP Power Backup
A patented supercapacitor backup module works at up to 65°C, where batteries degrade, and monitors stored energy in real time to trigger a safe shutdown that protects data.
Platform Customisation
Neousys modifies existing platforms, from chassis assembly and BIOS to packaging and labelling, and its experienced technicians build and test each system in an ISO certified facility.
Local Support
Your Neousys Partner in the UK
Our Neousys news, case studies and white papers cover the latest hardware and projects we have delivered with them. As the official Neousys distributor in the UK, we help you choose the right Neousys system, configure and test it in the UK as standard, and support it locally for the life of your project. When Neousys launches, updates or retires a product, we will update you directly, with time to plan the change or a last-time buy.
A Small Form Factor Industrial PC Verifies Multi-Gigabit Last-Mile Fibre
An open-access fibre developer needed to verify symmetrical multi-gigabit service remotely, from the cabinet. We build a small form factor industrial PC with a 2.5GbE port, a fitted 4G modem and industrial memory and storage, ready to deploy.
Waterproof AI Edge Computer Controls Autonomous Tractors
A world-leading OEM tractor manufacturer runs its autonomous tractors on a waterproof Jetson AGX Orin edge AI computer that fuses camera, LiDAR and RTK data in real time.
// Official Neousys Distributor
Speak to a Neousys Specialist.
Things Embedded is an official Neousys distributor and integration partner in the UK. Tell us the environment, the compute you need and the interfaces you have to connect, and we will point you to the right family, then configure, image and test the system before it ships.
Phone · UK
+44(0)1785 558 300
