UK Industrial NUC PCs
Industrial NUC Computers for Kiosks, Signage and Edge AI
An industrial NUC puts a full PC in a 4x4-inch footprint that fits behind a screen, inside a kiosk or in a control cabinet. Fanless NUC models run with no fan to clog, while fanned NUC PCs take faster processors for heavier work. The range runs from Intel Core Ultra with an on-chip NPU to earlier Core and Celeron processors and AMD Ryzen.
Options include DDR4 or DDR5 memory, dual 2.5GbE, USB4 and up to four displays, with Wi-Fi fitted on the fanned models, suited to digital signage, retail and self-service kiosks, automation and edge AI where space is tight and the PC must run all day.
Speak to an industrial NUC specialist to match the processor, cooling and I/O to your installation.
// LOADING...
Browse Our Fanless and Fanned NUC Computers
- CPU: AMD Ryzen AI 300 Series Krackan Point
- GPU / AI Accelerator: AMD Ryzen AI NPU
- AI Performance: 50 TOPS
- Memory: 2x DDR5 5600MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI, 2x USB Type C
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type A], 2x USB 3.2 Gen 1 [Type A], 2x USB 4 [Type C]
- M.2: 1x M.2 E-Key [PCIe x1 Gen4/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280], 1x M.2 M-Key [PCIe x4 Gen4] [2242]
- Storage: 2x M.2 SSD
- Power: 12-24V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount
- CPU: Intel Core Ultra Series 3 Panther Lake
- GPU / AI Accelerator: Intel NPU
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI, 2x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 1x USB 4 [Type C], 2x USB 2.0 [Type A], 3x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242], 1x M.2 M-Key [PCIe x4 Gen5] [2242/2280]
- Storage: 2x M.2 SSD
- RAID: RAID 0, RAID 1
- Power: 12-24V DC [Barrel Connector]
- Temp: -20°C to 50°C [-4°F to 122°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
- AI Performance: 47 TOPS
- Memory: 2x DDR5 6400MHz SO-DIMM Slot, 128GB
- CPU: Intel Core Ultra Series 2 Arrow Lake-H
- GPU / AI Accelerator: Intel NPU
- AI Performance: 13 TOPS
- Memory: 2x DDR5 6400MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI, 2x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 1x USB 4 [Type C], 2x USB 2.0 [Type A], 3x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232/422/485 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280], 1x M.2 M-Key [PCIe x4 Gen4] [2242]
- Storage: 1x 2.5" HDD/SSD [SATA], 2x M.2 SSD
- RAID: RAID 0, RAID 1
- Power: 12-24V DC [Barrel Connector]
- Temp: -20°C to 50°C [-4°F to 122°F]
- Certification: CE, FCC
- Mounting Options: DIN Mount, VESA Mount, Wall Mount
- CPU: Intel Core Ultra Series 3 Panther Lake
- GPU / AI Accelerator: Intel NPU
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI, 2x USB Type C
- Ethernet: 1x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 1x USB 4 [Type C], 4x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen5] [2280], 1x M.2 M-Key [PCIe x4] [2242]
- Storage: 2x M.2 SSD
- RAID: RAID 0, RAID 1
- Power: 12-24V DC [Barrel Connector]
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount
- AI Performance: 47 TOPS
- Memory: 2x DDR5 6400MHz SO-DIMM Slot, 128GB
- CPU: Intel Core Ultra Series 2 Arrow Lake-H
- GPU / AI Accelerator: Intel NPU
- AI Performance: 13 TOPS
- Memory: 2x DDR5 6400MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI, 2x USB Type C
- Ethernet: 1x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 1x USB 4 [Type C], 4x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x1 Gen4] [2242], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- Storage: 2x M.2 SSD
- RAID: RAID 0, RAID 1
- Power: 12-24V DC [Barrel Connector]
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount
- CPU: Intel Core Ultra Series 3 Panther Lake
- GPU / AI Accelerator: Intel NPU
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI, 2x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 1x USB 4 [Type C], 3x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242], 1x M.2 M-Key [PCIe x4 Gen5] [2242/2280]
- Storage: 2x M.2 SSD
- RAID: RAID 0, RAID 1
- Power: 12-24V DC [Barrel Connector]
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount
- AI Performance: 47 TOPS
- Memory: 2x DDR5 6400MHz SO-DIMM Slot, 128GB
- CPU: Intel Core Ultra Series 2 Arrow Lake-H
- GPU / AI Accelerator: Intel NPU
- AI Performance: 13 TOPS
- Memory: 2x DDR5 6400MHz SO-DIMM Slot, 96GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI, 2x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2x2 [Type C], 1x USB 4 [Type C], 3x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280], 1x M.2 M-Key [PCIe x4 Gen4] [2242]
- Storage: 1x 2.5" HDD/SSD [SATA], 2x M.2 SSD
- RAID: RAID 0, RAID 1
- Power: 12-24V DC [Barrel Connector]
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- Mounting Options: VESA Mount
- CPU: Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type A], 1x USB 4 [Type C], 1x USB 3.2 Gen 2 [Type C]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
- Storage: 1x M.2 SSD
- Power: 19V DC [Barrel Connector]
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- Mounting Options: Desktop, VESA Mount
- CPU: Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type A], 1x USB 4 [Type C], 1x USB 3.2 Gen 2 [Type C]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
- Storage: 1x M.2 SSD
- Power: 19V DC [Barrel Connector]
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- Mounting Options: Desktop, VESA Mount
- CPU: Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 2x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 4 [Type C], 1x USB 3.2 Gen 2 [Type C], 2x USB 2.0 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12-19V DC [Barrel Connector]
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- CPU: Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 32GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 2x USB Type C
- Ethernet: 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 4 [Type C], 1x USB 3.2 Gen 2 [Type C], 2x USB 2.0 [Type A], 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [DB9]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 12-19V DC [Barrel Connector]
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- Memory: 2x DDR5 4800MHz SO-DIMM Slot, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 2x USB Type C
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 2 [Type A], 2x USB 2.0 [Type A], 2x USB 4 [Type C]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2260/2280]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 19V DC [Barrel Connector], Optional AC Power Supply
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- Mounting Options: Desktop, VESA Mount, Wall Mount
- CPU: AMD Ryzen 7
- CPU: Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45]
- USB: 1x USB 4 [Type C], 1x USB 3.2 Gen 2 [Type C], 4x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
- Storage: 1x M.2 SSD
- RAID: RAID 0, RAID 1, RAID 5, RAID 10
- Power: 19V DC [Barrel Connector]
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- Mounting Options: Desktop, VESA Mount
- CPU: Intel Core 13th Gen Raptor Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Display Outputs: 2x HDMI
- Ethernet: 1x 2.5 GbE LAN [RJ45]
- USB: 1x USB 4 [Type C], 1x USB 3.2 Gen 2 [Type C], 4x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 M-Key [PCIe x4/SATA] [2242/2280]
- Storage: 1x M.2 SSD
- Power: 19V DC [Barrel Connector]
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- Mounting Options: Desktop, VESA Mount
- CPU: Intel Core 11th Gen Tiger Lake
- Memory: 2x DDR4 3200MHz SO-DIMM Slots, 64GB
- OS: Linux, Windows 11
- Display Outputs: 1x Display Port, 1x HDMI, 2x USB Type C
- Ethernet: 1x 2.5 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 2x USB 3.2 Gen 2 [Type C], 3x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280]
- Storage: 1x M.2 SSD, 1x SATA Port
- Power: 19V DC [Barrel Connector], AC Power Supply Included
- Temp: 0°C to 40°C [32°F to 104°F]
- Certification: CE, FCC
- Mounting Options: Desktop, VESA Mount
Industrial NUC Ranges Configured by Things Embedded
We work with ASRock Industrial, which builds the 4x4 NUC form factor into fanless and fanned PCs. Compare the ranges by processor generation and cooling, then browse the NUC computers above or ask a specialist which range suits your installation.
Industrial NUC PCs
ASRock Industrial

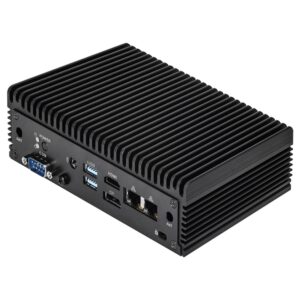

iBOX Ultra 300 and Ultra 200 Fanless NUCs
Fanless NUC PCs on Intel Core Ultra Series 3 (Panther Lake) and Core Ultra 200H (Arrow Lake), with USB4, dual 2.5GbE and four display outputs.
ASRock Industrial
iBOX 1300, 1200 and 1100 Fanless NUC PCs
Fanless NUC computers on 13th, 12th and 11th Gen Intel Core and Elkhart Lake, in DDR4 and DDR5 builds with RS-232 and dual LAN.
ASRock Industrial

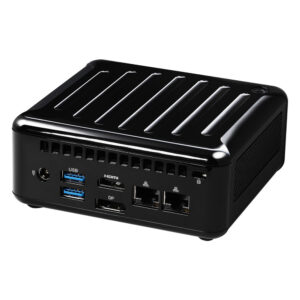

NUC BOX and NUCS BOX Ultra NUC Mini PCs
Fanned NUC mini PCs and slim NUCS models on Core Ultra Series 3 and 200H, with Wi-Fi fitted, USB4 and quad display.
ASRock Industrial
NUC BOX and NUCS BOX 1300, 1200 and 1100 NUC PCs
Fanned NUC computers on 13th, 12th and 11th Gen Intel Core and Elkhart Lake, with dual 2.5GbE on the newer builds.
ASRock Industrial
4X4 BOX AMD NUC PCs
Fanned 4x4 NUC PCs on AMD Ryzen 7535U and 7735U with DDR5, USB4 and four 4K outputs.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Fanless or Fanned NUC
Our specialists specify every NUC against the screen, cabinet and software it will run with. These are the choices we work through with you before recommending a model.
Processor
Core Ultra adds an NPU and stronger graphics for AI and signage; earlier Core and Celeron models suit simpler duties.
Cooling
Fanless iBOX models suit dusty or sealed spaces; fanned NUC BOX models take faster processors in clean, ventilated ones.
Displays
Count the screens: most current models drive four displays over HDMI, DisplayPort and USB-C.
Memory and Storage
DDR4 or DDR5 SO-DIMMs and one or two M.2 NVMe drives, fitted and imaged before the NUC ships.
Networking
Dual 2.5GbE on most models, with Wi-Fi fitted on the fanned range and optional on the fanless one.
Industrial NUC Innovation & Edge Computing Insights
We specialise in small-footprint PCs for kiosks, signage and machines. Our team of embedded system design engineers recommends and configures industrial NUC computers to the processor, cooling and I/O your installation needs, then fits the memory, storage and operating system and tests each unit before it ships. Discover how we help integrators and machine builders deploy small PCs across many sites, or read our guides to edge computing and choosing an industrial PC.
What Is Intel Platform Trust Technology (PTT)?
Intel Platform Trust Technology (PTT) is Intel’s firmware TPM. It provides TPM 2.0 functions from firmware running in the processor’s security engine instead of a separate chip, so Windows 11, BitLocker and measured boot work without a discrete TPM. AMD’s equivalent is fTPM.
What Is USB4?
USB4 is the USB Implementers Forum’s data standard that runs at 20 or 40 Gb/s, or 80 Gb/s in USB4 Version 2.0, over a USB-C connector only. It is built on the Thunderbolt 3 protocol and can tunnel USB, DisplayPort video and PCIe traffic through one cable at the same time.
What Is USB-C?
USB-C is a small, reversible 24-pin connector defined by the USB Implementers Forum. It is a connector, not a speed: the same port can carry USB 2.0, USB 3.2 or USB4 data, DisplayPort video, Thunderbolt and up to 240 W of USB Power Delivery, depending on what the device and cable support.
What Is a Thunderbolt Port?
A Thunderbolt port is a high-speed connection developed by Intel that carries data, video, PCIe and power through one cable. Since Thunderbolt 3 it uses the USB-C connector and is marked with a lightning bolt icon. Thunderbolt 4 runs at 40 Gb/s and Thunderbolt 5 at 80 Gb/s, with up to 120 Gb/s for displays.
Thunderbolt vs USB-C: What Is the Difference?
USB-C is a connector; Thunderbolt is an Intel interface that uses it. Thunderbolt 3, 4 and 5 run over USB-C ports and cables, so every Thunderbolt port is also a USB-C port. A plain USB-C port may run only USB 2.0 or USB 3.2, while Thunderbolt guarantees 40 Gb/s or more, PCIe and display support.
