UK PCIe Video Capture Cards
Internal PCIe Capture Cards for Recording and Vision PCs
A PCIe capture card is an internal capture card that brings HDMI, SDI, DVI, DisplayPort or analogue video into a desktop, rack or industrial PC over the PCIe bus. Available in low profile and full height formats, from single-input cards to eight-channel 3G-SDI and HDMI frame grabbers and 4K and 8K models.
Options include loop-through outputs, embedded audio, GPIO, on-card H.264 and H.265 encoding on selected models and Windows and Linux SDKs, suited to recording servers, medical carts, control rooms and inspection PCs.
Speak to a video capture specialist to match the inputs, channel count and PCIe slot to your system.
Browse Our PCIe Frame Grabbers
- AI Performance: 21 TOPS
- OS: Linux
- Serial: 1x RS232 [Board]
- CANbus: 1x Isolated CANbus [Board]
- Host: PCIe [x2, Gen3]
- Simultaneous Video Inputs: 6
- Video Input: 6x GMSL2
- Max Input Resolution: HD30 [1920x1080p @ 30/25fps]
- M.2: 1x M.2 M-Key [PCIe x1 Gen3] [2242]
- Storage: 1x M.2 SSD
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- SOM: NVIDIA Jetson Xavier NX 16GB
- Display Outputs: 1x Display Port
- Ethernet: 4x 2.5 GbE LAN [RJ45] [PoE]
- Serial: 1x Isolated RS485 [Board], 1x RS232 [Board]
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- M.2: 1x M.2 M-Key [PCIe x2 Gen4] [2242]
- Storage: 1x M.2 SSD
- Power: 12V DC
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- Display Outputs: 1x Display Port
- USB: 2x USB 3.2 Gen 2 [Type A], 4x USB 3.2 Gen 1 [Type A]
- Serial: 1x Isolated RS485 [Board], 1x RS232 [Board]
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 6
- M.2: 1x M.2 M-Key [PCIe x2 Gen4] [2242]
- Storage: 1x M.2 SSD
- Power: 12V DC
- Temp: -25°C to 60°C [-13°F to 140°F]
- Certification: CE, FCC
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 1
- Video Input: 1x RJ45 (10G)
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Colour Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 1
- Video Input: 1x SFP+ (10G)
- Max Input Resolution: 4K60 [4096×2160p @ 60/50fps]
- Video Output: 1x HDMI2.0
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Colour Formats: NV12 4:2:0 8Bit, P010 4:2:0 10Bit, RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- Video Input: 4x RJ45 (10G)
- Max Input Resolution: 4K60 [3840×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Colour Formats: RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- Video Input: 4x SFP+ (10G)
- Max Input Resolution: 4K60 [3840×2160p @ 60/50fps]
- Max Video Capture Resolution: 4K60 [4096x2160p @ 60/50/30/25/24fps]
- Colour Formats: RGB24 4:4:4 8Bit, RGB32 4:4:4 8Bit, YUY2 4:2:2 8Bit, YV12 4:2:0 8Bit
- Host: PCIe [x1, Gen2]
- Simultaneous Video Inputs: 1
- Video Input: 1x DVI-I, 1x SDI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Colour Formats: NV12, P010, RGB24, RGB32, YUY2, YV12

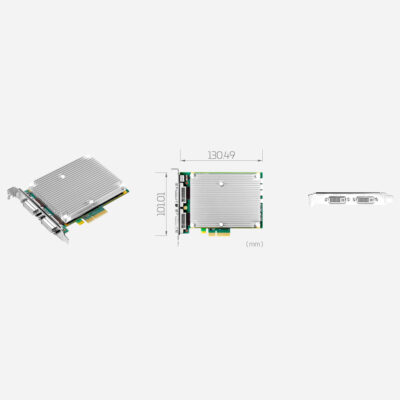

- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 16
- Video Input: 16x TVI
- Max Input Resolution: HD30 [1920x1080p @ 30/25fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Colour Formats: NV12, RGB24, RGB32, YUY2, YV12

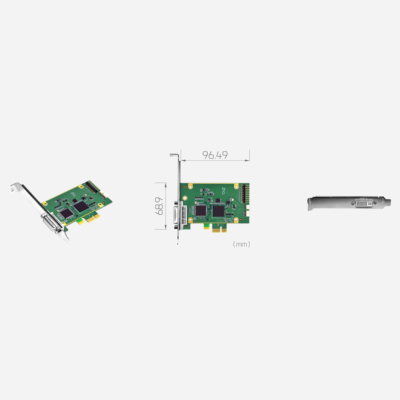

- Host: PCIe [x1, Gen2]
- Simultaneous Video Inputs: 4
- Video Input: 4x TVI
- Max Input Resolution: HD30 [1920x1080p @ 30/25fps]
- Max Video Capture Resolution: HD30 [1920x1080p @ 30/25fps]
- Colour Formats: NV12, P010, RGB24, RGB32, YUY2, YV12
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- Video Input: 4x HDMI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Colour Formats: NV12, P010, RGB24, RGB32, YUY2, YV12
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 4
- Video Input: 4x SDI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Colour Formats: NV12, P010, RGB24, RGB32, YUY2, YV12
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 2
- Video Input: 2x HDMI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Colour Formats: NV12, P010, RGB24, RGB32, YUY2, YV12
- Host: PCIe [x4, Gen2]
- Simultaneous Video Inputs: 2
- Video Input: 2x SDI
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Video Output: 2x SDI
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Colour Formats: NV12, P010, RGB24, RGB32, YUY2, YV12
- Host: PCIe [x1, Gen2]
- Simultaneous Video Inputs: 1
- Video Input: 1x CVBS, 1x DVI-I, 1x HDMI, 1x S-Video, 1x SDI, 1x YPbPr
- Max Input Resolution: HD60 [1920x1080p @ 60/50fps]
- Max Video Capture Resolution: HD60 [1920x1080p @ 60/50fps]
- Colour Formats: NV12, P010, RGB24, RGB32, YUY2, YV12
PCIe Capture Card Ranges Configured by Things Embedded
We work with a leading manufacturer of PCIe capture cards, so the ranges below are the ones we specify for recording, medical and vision PCs. Compare them by signal, channel count and slot, then browse the models above or ask a video capture specialist which range suits your PC.
SC300, SC330, SC350 and SC3C0 Yuan Analogue Frame Grabbers
Composite and S-Video capture from one to 32 channels at D1 and WD1, PAL and NTSC, for CCTV and legacy camera systems.
SC400 and SC410 Yuan Capture Cards
HDMI, 3G-SDI, 6G-SDI and TVI capture on PCIe, M.2 and Mini PCIe, from single-input all-in-one cards to four-channel 4K30 models.
SC540 and SC542 Yuan HD Capture Cards
One to eight channels of HDMI, SDI, DVI-I and analogue capture at up to 1080p on PCIe, M.2 and Mini PCIe.
SC550 Yuan HD Capture Cards
One to eight channels of HDMI, 3G-SDI and DVI capture at 1080p60 on PCIe, M.2 and Mini PCIe, with GPIO on selected cards.
SC5A0 Yuan HD Frame Grabbers
One to eight channels of HDMI, SDI, DVI and analogue capture on PCIe, M.2 and Mini PCIe for recording and monitoring PCs.
SC5C0 Yuan HD Capture Cards With H.26X Encoding
One to eight channels of HDMI, 3G-SDI and DVI capture at up to 1080p60 with on-card H.264 and H.265 encoding on selected models.
SC710, SC720 and SC750 Yuan 4K and 8K Capture Cards
HDMI 2.0, HDMI 2.1, 12G-SDI, DisplayPort 1.4a and SDVoE capture at 4K60 and up to 8K on PCIe and M.2.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a PCIe Capture Card
Our video capture specialists specify every PCIe capture card against the sources, the host system and the software that will use the video. These are the choices we work through with you before recommending a range.
Slot and Lanes
x1, x4 and x8 cards: check the lanes and slot height the PC has free.
Signal Type
HDMI, SDI, DVI, DisplayPort or analogue, chosen from the sources you already have.
Channels
Multi-input cards capture several cameras from one slot.
Software and SDK
Windows and Linux drivers and SDKs for the capture application.
Explore Video Capture by Standard and Interface
Compare every video capture category by signal, SDI and HDMI standard or form factor, and jump straight to the cards that fit your sources and host system.
PCIe Capture Innovation & Recording System Insights
Speak to a Frame Grabber Specialist.
Tell us the sources you need to capture, the PC or embedded system the card goes into and the software that will record or process the video. We will recommend the right capture card, then configure and test it with your system before it ships.
