UK NVIDIA Jetson Carrier Boards
// LOADING...
Browse Our NVIDIA Jetson Carrier Boards
- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 1 [Type A]
- Serial: 2x RS232 [RJ11], 2x RS232/422/485 [DB9]
- CANbus: 2x CANbus [RJ11]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 2x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 64GB eMMC
- Power: 7-20V DC
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: CE, FCC
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Terminal Block]
- M.2: 1x M.2 B-Key [USB/SIM] [3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- Power: 9-28V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC
- AI Performance: 1.3 TOPS
- SOM: NVIDIA Jetson TX2 NX 4GB
- CANbus: 1x CANbus [Terminal Block]
- Storage: 16GB eMMC, 1x M.2 SSD, 1x Micro SD
-
STV-BB03
STEVIE with 1x GbE, 2x serial, 16 GPIO, without module -
STV-AGX32-01
STEVIE with Jetson AGX Xavier 32GB module, 2x GbE, 4x serial, ADC/DAC -
STV-AGX32-02
STEVIE with Jetson AGX Xavier 32GB module, 1x GbE, 4x serial, ADC/DAC -
STV-AGX32-03
STEVIE with Jetson AGX Xavier 32GB module, 1x GbE, 2x serial, 16 GPIO -
STV-BB01
STEVIE with 2x GbE, 4x serial, ADC/DAC, without module -
STV-BB02
STEVIE with 1x GbE, 4x serial, ADC/DAC, without module
- AI Performance: 32 TOPS
- SOM: NVIDIA Jetson AGX Xavier 32GB, NVIDIA Jetson AGX Xavier 64GB
- OS: Linux Ubuntu 18.04
- Display Outputs: 1x HDMI
- USB: 2x USB 2.0 [Type A], 2x USB 3.1 Gen 1 [Type A]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 1x Micro SD, 32GB eMMC
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CE, FCC
- Ethernet: 1x GbE LAN [RJ45]
- Serial: 2x RS232/422/485 [Board]
- Power: 9-20V DC [Barrel Connector]
-
FLD-BB02
FLOYD with 1x GbE, 1x HDMI, PCIe x4 M.2, RS-232 and RS-232/485, no module -
FLD-BB01
FLOYD with 2x PoE+ GbE, 2x HDMI, Mini PCIe, 2x RS-232/422/485, no module -
FLD-NAO-FS-01
FLOYD with Jetson Nano module and fan sink, 2x PoE+ GbE, 2x HDMI, Mini PCIe -
FLD-NAO-FS-02
FLOYD with Jetson Nano module and fan sink, 1x GbE, 1x HDMI, PCIe x4 M.2 -
FLD-XNX-FS-01
FLOYD with Jetson Xavier NX module and fan sink, 2x PoE+ GbE, 2x HDMI, CAN -
FLD-XNX-FS-02
FLOYD with Jetson Xavier NX and fan sink, 1x GbE, 1x HDMI, PCIe x4 M.2
- OS: Linux Ubuntu 18.04
- USB: 1x USB 3.0 [Type A], 2x USB 2.0 [Type A]
- Storage: 16GB eMMC, 1x M.2 SSD, 1x Micro SD
- Power: 12-24V DC [Barrel Connector]
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: CE, FCC
- Mounting Options: Desktop, DIN Mount
- AI Performance: 0.5–21 TOPS
- SOM: NVIDIA Jetson Nano 4GB, NVIDIA Jetson TX2 NX 4GB, NVIDIA Jetson Xavier NX 16GB, NVIDIA Jetson Xavier NX 8GB
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- Serial: 1x RS232 [Board], 1x RS232/485 [Board]
- M.2: 1x M.2 M-Key [PCIe x4] [2280]
-

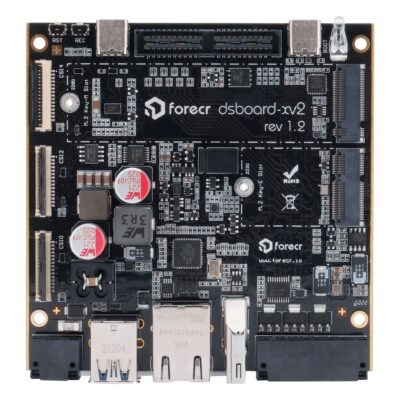

DSBOARD-XV2-AD
DSBOARD-XV2 with Jetson AGX Xavier 64GB module, 32 TOPS -
DSBOARD-XV2-AA
DSBOARD-XV2 with no module fitted, for AGX Xavier 32GB, 64GB or Industrial -
DSBOARD-XV2-AB
DSBOARD-XV2 with Jetson AGX Xavier 32GB module, 32 TOPS -
DSBOARD-XV2-AC
DSBOARD-XV2 with Jetson AGX Xavier Industrial module, 30 TOPS
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4/SATA] [2280]
- Storage: 1x M.2 SSD, 1x Micro SD, 32GB eMMC
- Power: 18-30V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC
- AI Performance: 32 TOPS
- SOM: NVIDIA Jetson AGX Xavier 64GB
Beyond Carrier Boards: Jetson Computers
// Edge AI Specialists
Speak to a Jetson Carrier Board Specialist.
Tell us the module, the interfaces you need and where the board will be installed. We will recommend the right Jetson carrier board, or adapt one, then fit the module, image and test it before it ships.
