Browse Our NVIDIA Jetson Computers
-
DSBOARD-ORNX-LAN-AC8
DSBOARD-ORNX-LAN with Jetson Orin Nano 8GB module, 40 TOPS -
DSBOARD-ORNX-LAN-AA
DSBOARD-ORNX-LAN with no module fitted, for Orin NX or Orin Nano -
DSBOARD-ORNX-LAN-AB16
DSBOARD-ORNX-LAN with Jetson Orin NX 16GB module, 100 TOPS -
DSBOARD-ORNX-LAN-AB8
DSBOARD-ORNX-LAN with Jetson Orin NX 8GB module, 70 TOPS -
DSBOARD-ORNX-LAN-AC4
DSBOARD-ORNX-LAN with Jetson Orin Nano 4GB module, 20 TOPS
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 3x USB 3.1 Gen 1 [Type-C]
- Serial: 1x RS232/422/485 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280], 1x M.2 M-Key [PCIe] [2230]
- Storage: 2x M.2 SSD
- Power: 9-28V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- AI Performance: 40 TOPS
- SOM: NVIDIA Jetson Orin Nano 8GB
-
DSBOARD-ORNX-AC8
DSBOARD-ORNX with Jetson Orin Nano 8GB module, 40 TOPS -
DSBOARD-ORNX-AA
DSBOARD-ORNX with no module fitted, for Orin NX or Orin Nano -
DSBOARD-ORNX-AB16
DSBOARD-ORNX with Jetson Orin NX 16GB module, 100 TOPS -
DSBOARD-ORNX-AB8
DSBOARD-ORNX with Jetson Orin NX 8GB module, 70 TOPS -
DSBOARD-ORNX-AC4
DSBOARD-ORNX with Jetson Orin Nano 4GB module, 20 TOPS
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232 [Terminal Block], 1x RS422 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [USB/SIM] [3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280], 1x M.2 M-Key [PCIe] [2230]
- Storage: 2x M.2 SSD
- Power: 9-28V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- AI Performance: 40 TOPS
- SOM: NVIDIA Jetson Orin Nano 8GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [SFP+], 2x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [USB/SIM] [3042/3052], 1x M.2 E-Key [SDIO/UART], 2x M.2 M-Key [PCIe x4] [2280]
- Storage: 2x M.2 SSD, 64GB eMMC
- Power: 12-30V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- AI Performance: 275 TOPS
- SOM: NVIDIA Jetson AGX Orin 64GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042], 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 1x M.2 SSD, 1x Micro SD, 64GB eMMC
- Power: 12-30V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- AI Performance: 275 TOPS
- SOM: NVIDIA Jetson AGX Orin 64GB
- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [RJ45], 1x GbE LAN [RJ45], 8x GbE LAN [RJ45] [PoE]
- USB: 1x USB 2.0 [Type A], 1x USB 3.0 [Type A]
- Serial: 1x RS485 [DB9], 2x RS232 [DB9]
- M.2: 1x M.2 B-Key [PCIe/USB] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 1x M.2 SSD, 1x Micro SD, 2x 2.5" HDD/SSD, 64GB eMMC
- Power: 9-55V DC Input [Terminal Block]
- Ignition Sensing: Supports Ignition Control
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, FCC
- Mounting Options: Desktop
- AI Performance: 30–32 TOPS
- SOM: NVIDIA Jetson AGX Xavier 32GB, NVIDIA Jetson AGX Xavier 64GB, NVIDIA Jetson AGX Xavier Industrial 32GB
- OS: Linux
- Display Outputs: 1x Display Port, 1x HDMI
- Ethernet: 2x GbE LAN [RJ45], 8x GbE LAN [RJ45] [PoE]
- USB: 2x USB 2.0 [Type A], 2x USB 3.0 [Type A]
- Serial: 1x RS232 [DB9], 1x RS232/485 [DB9]
- CANbus: 1x CANbus, DB9
- M.2: 1x M.2 B-Key [PCIe/USB] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 1x M.2 SSD, 1x Micro SD, 2x 2.5" HDD/SSD, 32GB eMMC
- Power: 9-36V DC Input [Terminal Block]
- Temp: -20°C to 60°C [-4°F to 140°F]
- Certification: CE, EN50155, FCC
- Mounting Options: Desktop
- AI Performance: 30–32 TOPS
- SOM: NVIDIA Jetson AGX Xavier 32GB, NVIDIA Jetson AGX Xavier 64GB, NVIDIA Jetson AGX Xavier Industrial 32GB
- OS: Linux
- Display Outputs: 1x HDMI, 1x LVDS
- Ethernet: 2x GbE LAN [Board]
- USB: 2x USB 2.0 [Board], 2x USB 3.1 Gen 1 [Board]
- Serial: 4x RS232/422/485 [Board]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 M-Key [PCIe x4] [2242]
- Storage: 1x M.2 SSD, 64GB eMMC
- Power: 9-20V DC [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC
- AI Performance: 1.3 TOPS
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 1x USB 3.0 [Type A]
- Serial: 2x RS232 [Board]
- Storage: 32GB eMMC
- Power: 5.5-18V DC [Barrel Connector], 9-18V DC [Barrel Connector]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC
- Mounting Options: Desktop, DIN Mount
- SOM: NVIDIA Jetson TX2i 8GB
- AI Performance: 1.3 TOPS
- SOM: NVIDIA Jetson TX2 4GB, NVIDIA Jetson TX2 8GB, NVIDIA Jetson TX2i 8GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 1x USB 3.0 [Type A]
- Serial: 2x RS232 [Board]
- Storage: 32GB eMMC
- Power: 5.5-18V DC [Barrel Connector], 9-18V DC [Barrel Connector]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC
- AI Performance: 200–275 TOPS
- SOM: NVIDIA Jetson AGX Orin 32GB, NVIDIA Jetson AGX Orin 64GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [RJ45], 1x GbE LAN [RJ45]
- USB: 4x USB 3.2 Gen 1 [Type A]
- Serial: 2x RS232 [RJ11], 2x RS232/422/485 [DB9]
- CANbus: 2x CANbus [RJ11]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 2x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 64GB eMMC
- Power: 7-20V DC
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: CE, FCC
- AI Performance: 0.5 TOPS
- SOM: NVIDIA Jetson Nano 4GB
-
Jetson TX2i Module
Jetson TX2 with 8GB ECC LPDDR4, 32GB eMMC and -40 to 85 °C rating -
Jetson TX2 4GB Module
Jetson TX2 with 4GB LPDDR4, 16GB eMMC and 9.0-19.6 V input -
Jetson TX2 Module
Jetson TX2 with 8GB LPDDR4, 32GB eMMC and Wi-Fi and Bluetooth -
Jetson TX2 NX Module
Jetson TX2 NX with 4GB LPDDR4, 1.33 TFLOPS and 260-pin SO-DIMM
- AI Performance: 1.3 TOPS
- SOM: NVIDIA Jetson TX2i 8GB

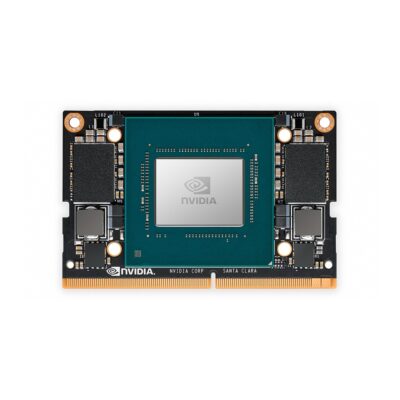

- AI Performance: 21 TOPS
- SOM: NVIDIA Jetson Xavier NX 16GB

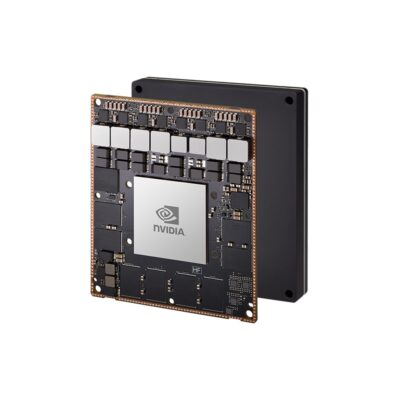

- AI Performance: 30 TOPS
- SOM: NVIDIA Jetson AGX Xavier Industrial 32GB
- AI Performance: 40 TOPS
- SOM: NVIDIA Jetson Orin Nano 8GB
