UK NVIDIA Jetson Carrier Boards
NVIDIA Jetson Carrier Boards for Every Module Generation
A Jetson carrier board is the baseboard that turns a Jetson module into a working computer, breaking out its Ethernet, camera, serial, CAN and expansion interfaces into the connectors a system needs. The range covers industrial and rugged carrier boards, Mini-ITX carriers and mil-grade boards for Orin Nano, Orin NX, AGX Orin and AGX Thor, alongside boards for the Xavier, TX2 and Nano modules still in service.
Options include compact boards that match the module footprint, extended temperature ratings, PoE, GMSL and frame grabber camera inputs, and M.2 slots for storage and cellular, suited to building a robot, drone, vehicle system or machine around your own enclosure. Not sure which board fits? Read our guide to choosing a Jetson carrier board.
Speak to a Jetson carrier board specialist to match the board, the module and the interfaces to your platform.
Browse Our NVIDIA Jetson Carrier Boards
-

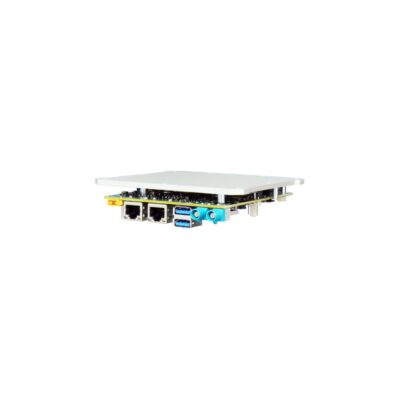

FLYC-300-JON16
FLYC-300 with Orin NX 16GB module on a board-level heat spreader -
FLYC-300-EC-JON16
FLYC-300 with Orin NX 16GB module, enclosure and three antenna holes -
FLYC-300-EC-JON8
FLYC-300 with Orin NX 8GB module, enclosure and three antenna holes -
FLYC-300-JON8
FLYC-300 with Orin NX 8GB module on a board-level heat spreader
- OS: Linux
- Display Outputs: 1x Display Port
- Ethernet: 1x GbE LAN [RJ45], 2x 2.5 GbE LAN [RJ45]
- USB: 1x USB 3.2 Gen 1 [Type A], 1x USB 3.2 Gen 2 [Type A]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 B-Key [3042/3052], 1x M.2 M-Key [PCIe x4 Gen4] [2230]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 12-60V DC Input [XT-30]
- Temp: -25°C to 70°C [-13°F to 158°F]
- Certification: CE, FCC, UL 62368-1
- Mounting Options: Wall Mount
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- OS: Linux
- Display Outputs: 2x HDMI
- Ethernet: 4x 10 GbE LAN [Board]
- USB: 3x USB 3.2 [Board]
- Serial: 4x RS232/422/485 [Board]
- CANbus: 4x Isolated CANbus [Board]
- M.2: 1x M.2 M-Key [PCIe x1 Gen5] [2280], 1x M.2 M-Key [PCIe x2 Gen5] [2280], 1x M.2 M-Key [PCIe x4 Gen5] [2280]
- Storage: 1x M.2 M-Key [PCIe x4 Gen5] [2280], 1x M.2 M-Key [PCIe x1 Gen5] [2280], 1x M.2 M-Key [PCIe x2 Gen5] [2280]
- Power: 18-36V DC [4-Pin]
- Temp: -40°C to 85°C [-40°F to 185°F]
- AI Performance: 1,200 TOPS
- SOM: NVIDIA Jetson T4000
- OS: Linux
- Display Outputs: 2x HDMI
- USB: 2x USB 3.2 Gen 2 [Type C]
- Serial: 1x RS232/422/485 [Terminal Block]
- CANbus: 2x CAN FD [Board], 2x CAN FD [Terminal Block]
- M.2: 1x M.2 B-Key [USB/SIM] [3042/3052], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x2 Gen4] [2242], 1x M.2 M-Key [PCIe x4 Gen4] [2280]
- Storage: 1x M.2 SSD [M-Key 2242, PCIe Gen 4 x2], 1x M.2 SSD [M-Key 2280, PCIe Gen 4 x4]
- Power: 18-36V DC [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
- AI Performance: 1,200 TOPS
- SOM: NVIDIA Jetson T4000
- Ethernet: 3x 25GbE LAN [QSFP28], 1x GbE LAN [RJ45]
-

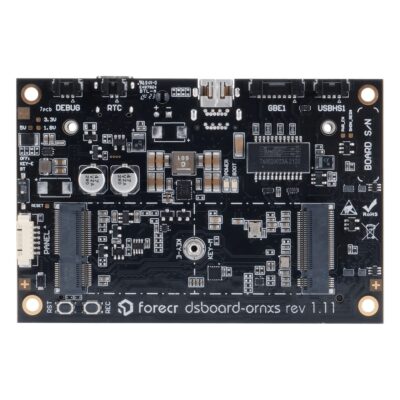

DSBOARD-ORNXS-AC8
DSBOARD-ORNXS with Jetson Orin Nano 8GB module, 40 TOPS -
DSBOARD-ORNXS-AA
DSBOARD-ORNXS with no module fitted, for Orin NX or Orin Nano -
DSBOARD-ORNXS-AB16
DSBOARD-ORNXS with Jetson Orin NX 16GB module, 100 TOPS -
DSBOARD-ORNXS-AB8
DSBOARD-ORNXS with Jetson Orin NX 8GB module, 70 TOPS -
DSBOARD-ORNXS-AC4
DSBOARD-ORNXS with Jetson Orin Nano 4GB module, 20 TOPS
- OS: Linux
- Display Outputs: 1x Mini Display Port
- Ethernet: 2x GbE LAN [Board]
- USB: 2x USB 2.0 [Board]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe] [2230]
- Storage: 1x M.2 SSD
- Power: 9-28V DC [2-Pin]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC
- AI Performance: 40 TOPS
- SOM: NVIDIA Jetson Orin Nano 8GB
- AI Performance: 21 TOPS
- SOM: NVIDIA Jetson Xavier NX 8GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45], 1x GbE LAN [RJ45] [PoE]
- USB: 1x USB 2.0 [Type A], 1x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD, 1x Micro SD
- Power: 12V DC [Barrel Connector]
- Temp: -10°C to 60°C [14°F to 140°F]
- Certification: CE, FCC
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45], 1x GbE LAN [RJ45] [PoE]
- USB: 1x USB 2.0 [Type A], 1x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- Power: 12V DC [Barrel Connector]
- Temp: -10°C to 60°C [14°F to 140°F]
- Certification: CE, FCC
- AI Performance: 100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45], 1x GbE LAN [RJ45] [PoE]
- USB: 1x USB 2.0 [Type A], 1x USB 3.2 Gen 2 [Type A]
- M.2: 1x M.2 M-Key [PCIe x4] [2280]
- mPCIe: 1x mPCIe [PCIe/USB]
- Storage: 1x M.2 SSD
- Power: 12V DC [Barrel Connector]
- Temp: -10°C to 60°C [14°F to 140°F]
- Certification: CE, FCC
- AI Performance: 40 TOPS
- SOM: NVIDIA Jetson Orin Nano 8GB
-
AIR6N0-C-MB NX 12G-SDI
AIR6N0-C-MB NX with 12G-SDI capture board, 4K60 input and loop-out -
AIR6N0-C-MB NX
AIR6N0-C-MB NX with no expansion board, 8-lane MIPI CSI-2 -
AIR6N0-C-MB NX 12G-SDI QL
AIR6N0-C-MB NX with four-input SDI board, 12G-SDI or quad-link 3G-SDI -
AIR6N0-C-MB NX 4xGMSL2
AIR6N0-C-MB NX with 4x GMSL2 camera input board and CAN on DB9 -
AIR6N0-C-MB NX 4xUSB3.2
AIR6N0-C-MB NX with 4x USB 3.2 Gen1 Type-A expansion board -
AIR6N0-C-MB NX HDMI2.0
AIR6N0-C-MB NX with HDMI 2.0 capture board, 4K60 input and loop-out -
AIR6N0-C-MB NX HDMI2.1
AIR6N0-C-MB NX with HDMI 2.1 capture board, 4K60 4:4:4 input and loop-out -
AIR6N0-C-MB NX IO
AIR6N0-C-MB NX with I/O expansion board, RS232, RS485, M.2 2280 and microSD
- AI Performance: 70–100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
- Ethernet: 1x GbE LAN [RJ45], Optional PoE Modules
- Power: 24V DC
- Temp: 0°C to 60°C [32°F to 140°F]
- Certification: CE, FCC, UKCA
- Display Outputs: 2x HDMI
- USB: 1x USB 3.0 [Board], 1x USB 3.2 Gen 1 [Board], 4x USB 3.2 Gen 2 [Type A]
- Serial: 1x RS232 [Board], 1x RS485 [Board]
- Simultaneous Video Inputs: 1
- Video Input: 1x 12G-SDI
- Video Output: 1x 12G-SDI
- M.2: 1x M.2 M-Key [PCIe x1] [2280], 1x M.2 M-Key [PCIe x4] [2280]
-
JAX-ASY-ONX16
JACKSON with Jetson Orin NX 16GB module, 100 TOPS, 128GB NVMe -
JAX-ASY-ONA8
JACKSON with Jetson Orin Nano 8GB module, 40 TOPS, 128GB NVMe -
JAX-ASY-ONX8
JACKSON with Jetson Orin NX 8GB module, 70 TOPS, 128GB NVMe -
JAX-BB01
JACKSON for Orin NX and Orin Nano, 2x GbE, 2x 4-lane CSI, without module
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 1x USB 3.2 Gen 2 [Type A], 2x USB 3.2 Gen 2 [Board]
- Serial: 1x RS232 [Board], 1x RS232/485 [RJ11]
- CANbus: 1x CANbus [Board]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2242/2280]
- mPCIe: 1x mPCIe [PCIe/USB/SIM]
- Storage: 1x M.2 SSD
- Power: 7-20V DC [Barrel Connector]
- Temp: -25°C to 80°C [-13°F to 176°F]
- Certification: CE, FCC
- AI Performance: 70–100 TOPS
- SOM: NVIDIA Jetson Orin NX 16GB, NVIDIA Jetson Orin NX 8GB
-

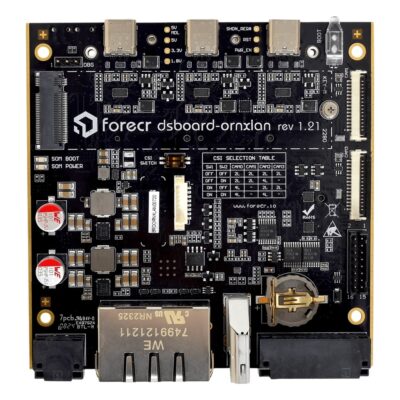

DSBOARD-ORNX-LAN-AC8
DSBOARD-ORNX-LAN with Jetson Orin Nano 8GB module, 40 TOPS -
DSBOARD-ORNX-LAN-AA
DSBOARD-ORNX-LAN with no module fitted, for Orin NX or Orin Nano -
DSBOARD-ORNX-LAN-AB16
DSBOARD-ORNX-LAN with Jetson Orin NX 16GB module, 100 TOPS -
DSBOARD-ORNX-LAN-AB8
DSBOARD-ORNX-LAN with Jetson Orin NX 8GB module, 70 TOPS -
DSBOARD-ORNX-LAN-AC4
DSBOARD-ORNX-LAN with Jetson Orin Nano 4GB module, 20 TOPS
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 2x GbE LAN [RJ45]
- USB: 3x USB 3.1 Gen 1 [Type-C]
- Serial: 1x RS232/422/485 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280], 1x M.2 M-Key [PCIe] [2230]
- Storage: 2x M.2 SSD
- Power: 9-28V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- AI Performance: 40 TOPS
- SOM: NVIDIA Jetson Orin Nano 8GB
-
DSBOARD-ORNX-AC8
DSBOARD-ORNX with Jetson Orin Nano 8GB module, 40 TOPS -
DSBOARD-ORNX-AA
DSBOARD-ORNX with no module fitted, for Orin NX or Orin Nano -
DSBOARD-ORNX-AB16
DSBOARD-ORNX with Jetson Orin NX 16GB module, 100 TOPS -
DSBOARD-ORNX-AB8
DSBOARD-ORNX with Jetson Orin NX 8GB module, 70 TOPS -
DSBOARD-ORNX-AC4
DSBOARD-ORNX with Jetson Orin Nano 4GB module, 20 TOPS
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232 [Terminal Block], 1x RS422 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [USB/SIM] [3042], 1x M.2 E-Key [PCIe x1/USB 2.0] [2230], 1x M.2 M-Key [PCIe x4] [2280], 1x M.2 M-Key [PCIe] [2230]
- Storage: 2x M.2 SSD
- Power: 9-28V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- AI Performance: 40 TOPS
- SOM: NVIDIA Jetson Orin Nano 8GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x 10 GbE LAN [SFP+], 2x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [USB/SIM] [3042/3052], 1x M.2 E-Key [SDIO/UART], 2x M.2 M-Key [PCIe x4] [2280]
- Storage: 2x M.2 SSD, 64GB eMMC
- Power: 12-30V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- AI Performance: 275 TOPS
- SOM: NVIDIA Jetson AGX Orin 64GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 2x USB 3.1 Gen 1 [Type A]
- Serial: 1x RS232/422/485 [Terminal Block]
- CANbus: 1x CANbus [Terminal Block]
- M.2: 1x M.2 B-Key [PCIe x1/USB/SIM] [3042], 1x M.2 M-Key [PCIe x4] [2280]
- Storage: 1x M.2 SSD, 1x Micro SD, 64GB eMMC
- Power: 12-30V DC [Terminal Block]
- Temp: -25°C to 85°C [-13°F to 185°F]
- Certification: CE, FCC, RoHS
- AI Performance: 275 TOPS
- SOM: NVIDIA Jetson AGX Orin 64GB
- AI Performance: 30–32 TOPS
- SOM: NVIDIA Jetson AGX Xavier 32GB, NVIDIA Jetson AGX Xavier 64GB, NVIDIA Jetson AGX Xavier Industrial 32GB
- OS: Linux
- Display Outputs: 1x HDMI, 1x LVDS
- Ethernet: 2x GbE LAN [Board]
- USB: 2x USB 2.0 [Board], 2x USB 3.1 Gen 1 [Board]
- Serial: 4x RS232/422/485 [Board]
- CANbus: 2x CANbus [Board]
- M.2: 1x M.2 M-Key [PCIe x4] [2242]
- Storage: 1x M.2 SSD, 64GB eMMC
- Power: 9-20V DC [Terminal Block]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC
- AI Performance: 1.3 TOPS
- SOM: NVIDIA Jetson TX2 4GB, NVIDIA Jetson TX2 8GB, NVIDIA Jetson TX2i 8GB
- OS: Linux
- Display Outputs: 1x HDMI
- Ethernet: 1x GbE LAN [RJ45]
- USB: 1x USB 2.0 [Type A], 1x USB 3.0 [Type A]
- Serial: 2x RS232 [Board]
- Storage: 32GB eMMC
- Power: 5.5-18V DC [Barrel Connector], 9-18V DC [Barrel Connector]
- Temp: -40°C to 85°C [-40°F to 185°F]
- Certification: CE, FCC
Explore Jetson Computers, Thor and Rugged Builds
Rather start from a finished system? Explore our Jetson Orin and Thor computers and our rugged Jetson builds.
Custom Jetson Carrier Board Design
NVIDIA’s Jetson platform stands as a leading choice in Edge AI, delivering comprehensive solutions for a variety of industries dependent on autonomous machines. Our Jetson carrier boards are compatible with the complete range of compute modules, including the Nano, TX2, Xavier, and Orin series, catering to diverse requirements in performance, power efficiency, and form factors. These carrier boards offer extensive interfaces and expansion options to fully exploit the advanced processing capabilities of the Jetson modules, enabling high-speed data transfer, efficient power management, and essential connectivity for AI-driven applications. This seamless integration not only simplifies the development process and reduces time-to-market but also provides a reliable platform for deploying advanced AI and edge computing applications in numerous industrial sectors.
At Things Embedded, we specialise in adapting Jetson Carrier board designs to suit individual client requirements. Proficient in Jetson technology, we focuses on integrating expansion cards or developing entirely custom designs based on specific client needs. Our approach is to provide reliable and functional custom Jetson Carrier board solutions that adhere to the required performance and safety standards, ensuring they are ready for deployment in industrial environments.
NVIDIA’s newest range of Jetson Orin carrier boards, tailored to complement the Orin Nano, Orin NX, and AGX Orin modules, feature the latest developments in GPU architecture.
Jetson Carrier Board Ranges Configured by Things Embedded
We work with the leading manufacturers of Jetson carrier boards, so the ranges below are every board family we carry. Compare them by module, size and interfaces, then browse the boards above or ask a specialist which one suits your platform.
RAIBOARD Railway Jetson Carrier Boards
The railway carrier boards from inside the RAIBOX computers, for integrators building their own rolling-stock or trackside enclosure around NVIDIA Jetson AGX Orin, Orin NX or Orin Nano. Field I/O sits on locking Molex Dura-Clik connectors at the board edge, with sealed HDMI and USB ports, and RAIBOARD-ORNX adds isolated serial, CAN and digital I/O.
MILBOARD Militarised Jetson Carrier Boards
A MIL-STD-designed carrier board for integrators building their own sealed enclosure around NVIDIA Jetson AGX Thor or AGX Orin. MILBOARD-THR is the board-level half of the MILBOX-THR, and MILBOARD-AGXMAX and MILBOARD-AGX carry AGX Orin.
DSBOARD Industrial Jetson Carrier Boards
Bare carrier boards for integrating NVIDIA Jetson into your own enclosure or product, from Orin Nano and Orin NX through AGX Orin to the AGX Thor T4000 and T5000. Wide-temperature industrial designs with the camera, Ethernet and storage interfaces exposed for your build.
NVIDIA Jetson Carrier Boards and Development Kits
Carrier boards and development kits for NVIDIA Jetson: the Jackson and rugged Jackson-ER for Orin NX and Orin Nano, the Osbourne and rugged Osbourne-ER for AGX Orin, the Stevie and Elton for AGX Xavier, and the Floyd and Ziggy for the Nano, Xavier NX, TX2 NX and TX2 generations. Each pairs with a JetBox of the same name when you want it built into an enclosure.
FLYC Companion Computers for Drones and UAVs
A low-SWaP Jetson Orin NX computer sized for airframe payload bays, with the camera, sensor and flight-controller interfaces a UAV needs for inspection, mapping and onboard inference.
NVIDIA Jetson and IGX Edge AI Boards and Computers
Edge AI hardware built around video input: Jetson Thor and AGX Orin carrier boards and computers, an AI NVR with eight PoE ports, the NEAR T7X on NVIDIA IGX Thor, the AIR6N0-C-MB NX carrier for Orin NX and Orin Nano, compact Pandora systems including Pandora Health builds with HDMI and SDI capture, VPP6N0 computers, and Holoscan sensor bridges that feed live video into NVIDIA Holoscan.
AIE NVIDIA Jetson Edge AI Computers and Developer Kits
Compact fanless Jetson computers on Orin Nano and Orin NX for vision and inference at the edge, with the AIE110 developer kits sharing the same modules so a prototype moves straight to the AIE100 or AIE810 deployment box.
Not sure which range fits? Tell us the application and we will recommend the right model.
What to Specify in a Jetson Baseboard
Our embedded engineers specify every carrier board against the module, the interfaces and the enclosure it goes into. These are the choices we work through with you before recommending a board.
Module Fit
Orin Nano and Orin NX share a 260-pin connector, AGX Orin and AGX Thor use their own, and boards for Xavier and TX2 support modules still in service.
Interfaces and Expansion
Gigabit and multi-gigabit Ethernet, serial and CAN for control networks, and M.2 or mini PCIe slots for NVMe storage, Wi-Fi, 4G and 5G.
Camera Inputs
Camera connectors on the board itself, or an M.2 or mini PCIe frame grabber for GMSL, SDI and HDMI video where the board has none.
Temperature Range
Industrial ratings of -25 °C to 85 °C on most Orin boards, and -40 °C to 85 °C on selected Thor boards.
Off-the-Shelf or Custom
Start from an off-the-shelf board, or we adapt one or design a custom carrier around your interfaces, connectors and enclosure.
Board Support Package
The carrier manufacturer's board support package matched to the JetPack release you need, flashed and tested with the module fitted.
Jetson Carrier Board Innovation & Custom Design Insights
Speak to a Jetson Carrier Board Specialist.
Tell us the module, the interfaces you need and where the board will be installed. We will recommend the right Jetson carrier board, or adapt one, then fit the module, image and test it before it ships.
