Antaira LMP-0602-V2 6-Port Fast Ethernet Managed Industrial Network Switches with 4x PoE+ (120W), 2x 100FX SC Multi-mode Fiber and Extended Temperature Options

Fiber is often the only practical link between buildings or across a large site, where copper runs out at 100 m and picks up electrical noise. The Antaira LMP-0602-V2 series gives each node two 100Base-FX multi-mode fiber ports for a ring and four PoE+ ports for local devices, with Layer 2+ management, in a DIN-rail case.

Every LMP-0602-V2 switch shares the same design. Each switch has four 10/100Base-TX RJ45 ports with IEEE 802.3af/at PoE+ at up to 30 W each from a 120 W budget and two 100Base-FX multi-mode fiber ports, SC or ST, up to 2 km, on a 1.2 Gbps store-and-forward fabric with an 8K MAC table. Management is Layer 2+, with IEEE 802.1Q VLANs, QoS, IGMP v1/v2/v3 multicast filtering, LACP and SNMP v1/v2c/v3, plus static routes and DHCP Option 82. ITU-T G.8032 ERPS restores a broken ring in under 50 ms, STP, RSTP and MSTP are supported, and Modbus TCP lets a SCADA system monitor each switch. Set-up is by web console, Telnet or CLI, with HTTPS, SSH and IEEE 802.1X for secure access. Power arrives on 48 V to 55 V DC redundant inputs through a removable 6-pin terminal block, with reverse polarity, overload current, EFT and ESD protection and a 24 V DC, 1 A relay contact to flag a power loss or fault.

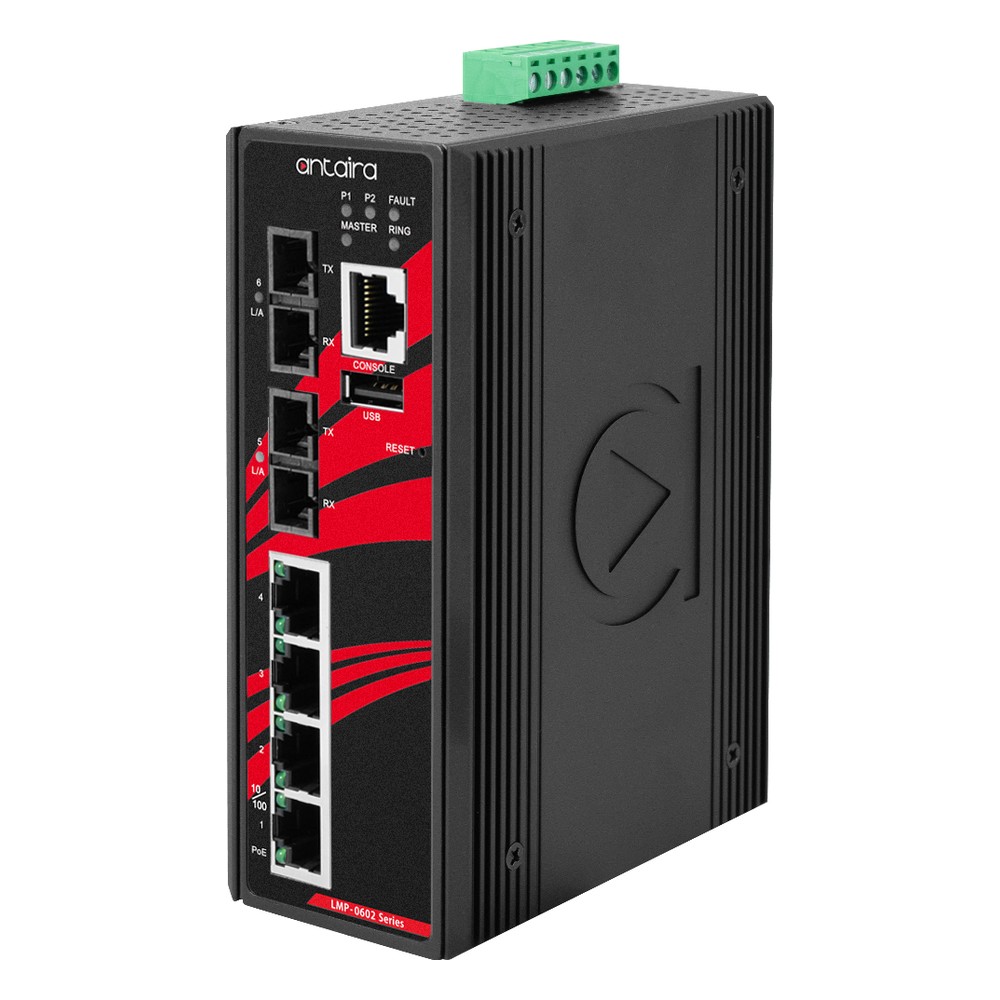

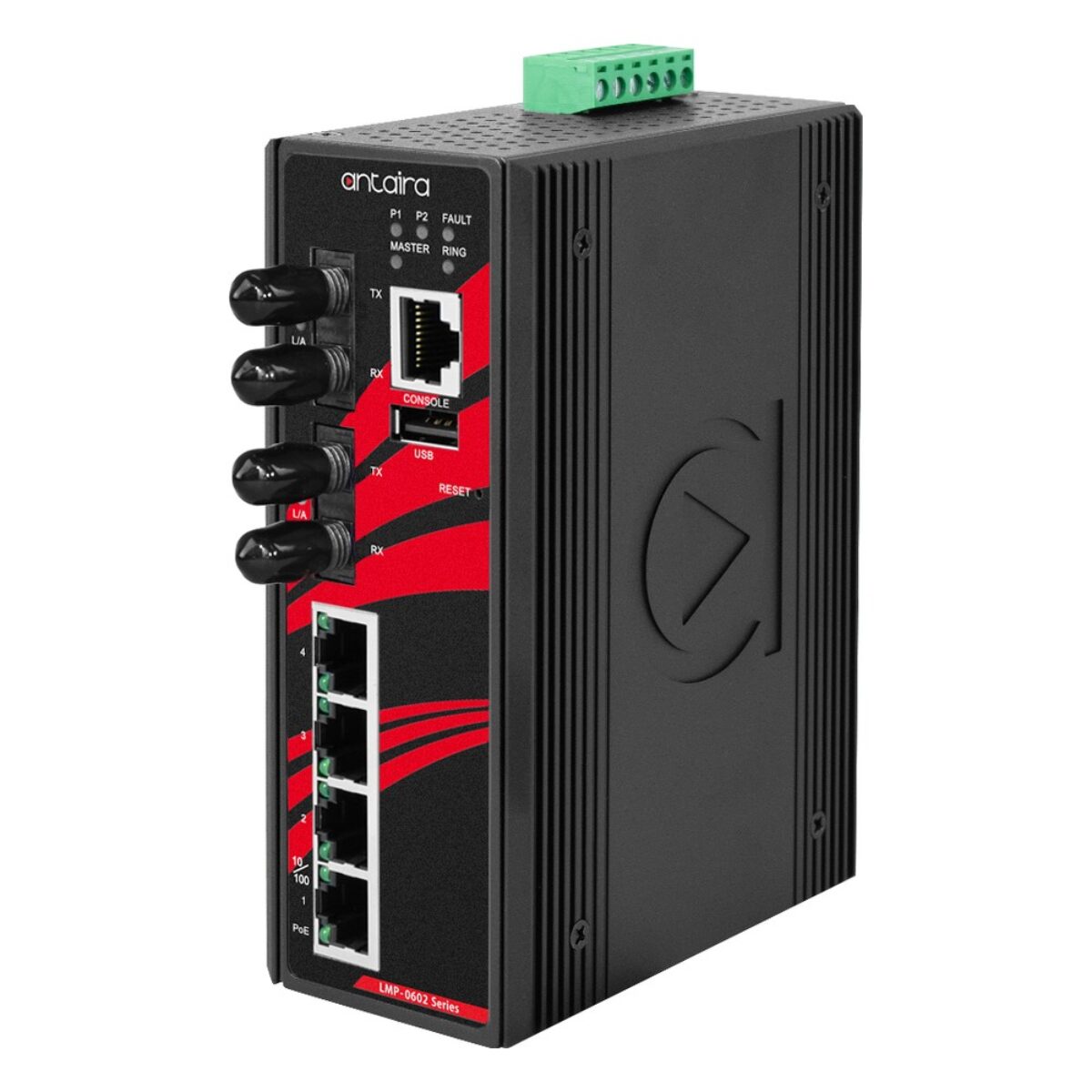

The series splits on connector and temperature. The LMP-0602-M-V2 has SC connectors and is rated -10 °C to 70 °C, and the LMP-0602-M-T-V2 is its -40 °C to 75 °C build. The LMP-0602-ST-M-V2 uses ST connectors for sites already patched in ST, and the LMP-0602-ST-M-T-V2 is the extended temperature ST build. All four reach up to 2 km on multi-mode fiber. For a 12 V to 55 V DC supply the LMP-0602-24-V2 series is the matching range.

Antaira names power and utility, water and wastewater, oil, gas and mining, factory automation, security surveillance and ITS among the applications for the LMP-0602-V2 series. Standard builds run from -10 °C to 70 °C and -T builds from -40 °C to 75 °C, so the same switch can serve an indoor panel and an unheated roadside or utility enclosure. Every model has an IP30 metal housing for DIN-rail or wall mounting, is designed to IEC 60068-2-27 shock and IEC 60068-2-6 vibration, and Antaira lists FCC, CE and UL 61010-1 certifications with RoHS compliance. Every model carries Antaira’s 5-year warranty. We supply the LMP-0602-V2 series and can pre-configure IP addressing, VLANs and ring settings before the switches ship.
