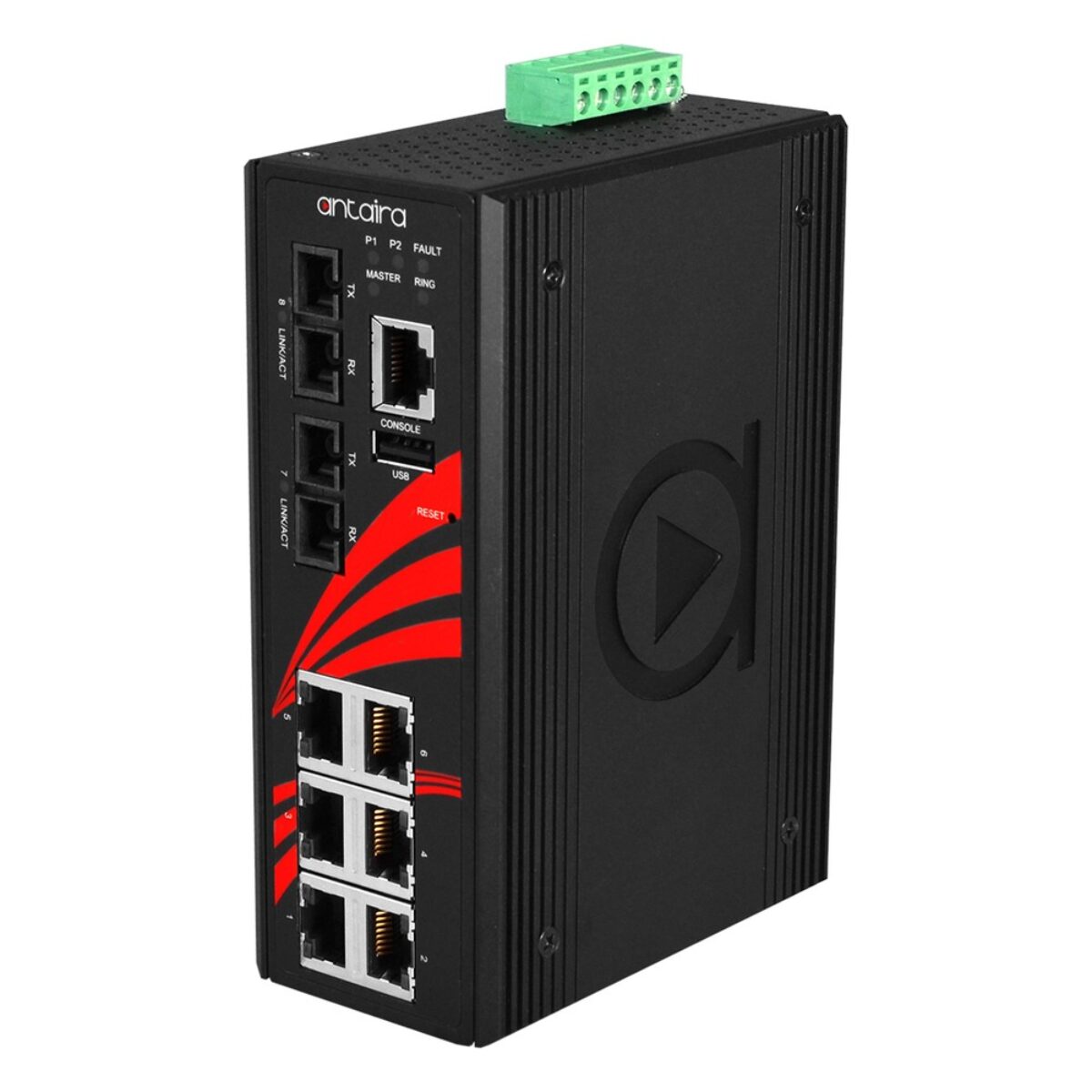

Antaira LMX-0802-S3 8-Port Fast Ethernet Managed Industrial Ethernet Switch with 2x 100FX SC Single-mode Fiber

The LMX-0802-S3 is the SC single-mode, standard temperature build of the Antaira LMX-0802 series: an eight-port managed switch with six Fast Ethernet RJ45 ports and two 100FX SC fiber ports, rated -10 °C to 65 °C, with G.8032 ERPS and 802.1X. It suits long runs to remote outstations.

  • Two 100FX Single-Mode SC Ports: Two 100Base-FX single-mode fiber ports with SC connectors and fixed optics, for a fiber ring or a long uplink.
  • Six Fast Ethernet RJ45 Ports: Six 10/100Base-TX copper ports for PLCs, remote I/O, drives and HMIs, on a 1.6 Gbps store-and-forward fabric.
  • G.8032 ERPS Under 50 ms: ITU-T G.8032 ERPS ring recovery in under 50 ms across the fiber ports, with STP, RSTP and MSTP.
  • 802.1X, RADIUS and TACACS+: Port security with 802.1X, RADIUS, TACACS+, ACLs and ARP inspection, plus Modbus TCP and static routes.
  • UL 61010-1 Certified: UL 61010-1 certified with FCC and CE marks, on 12 to 48 V DC input with a relay alarm.
View LMX-0802 Series
Thermal Dissipation: FanlessFanless
Operating Temperature: Extended TemperatureExtended Temp
Certification: CECE
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Overview
  • Specifications
  • Downloads

LMX-0802-S3 Overview

Remote outstations on pipelines, water networks and ITS routes can sit a long way from the control room, which makes single-mode fiber the natural link. The LMX-0802-S3 is the SC, single-mode, standard temperature build in the Antaira LMX-0802 series: an eight-port managed switch with two 100Base-FX fiber ports, rated -10 °C to 65 °C.

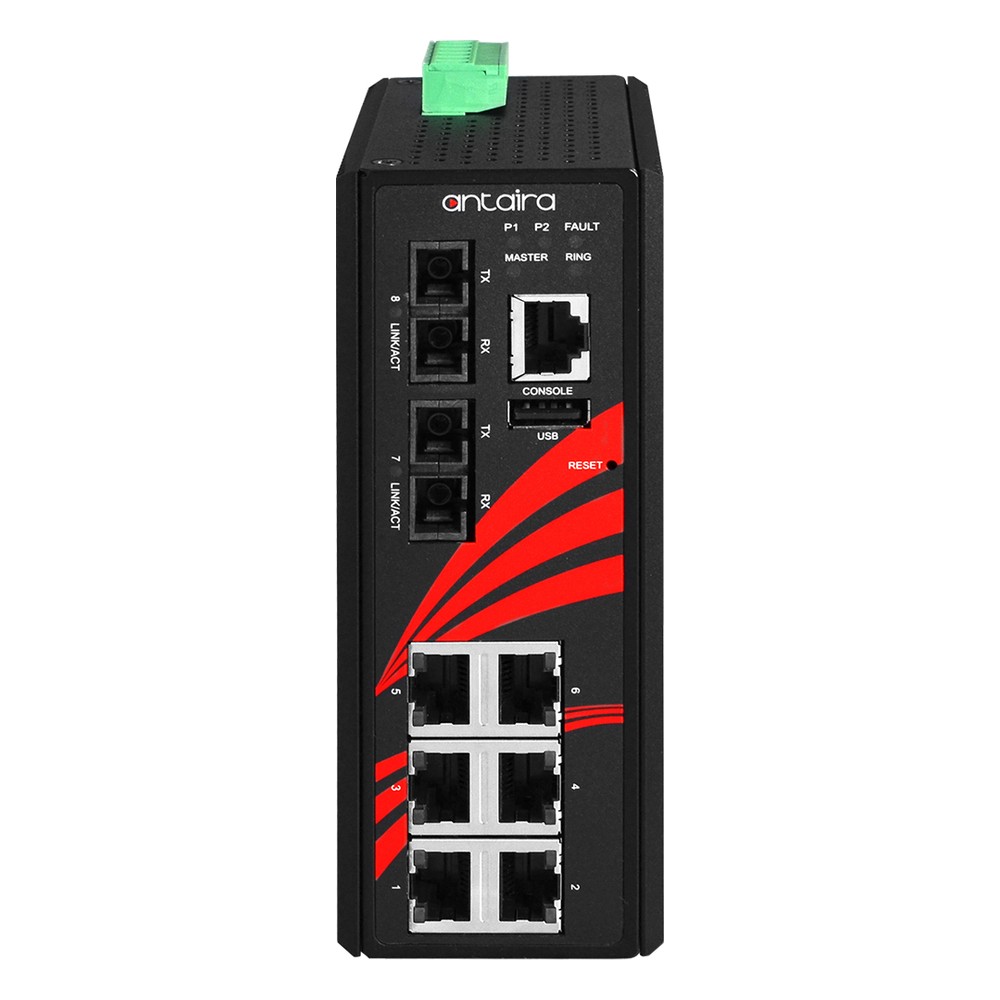

It has six 10/100Base-TX RJ45 ports with auto-negotiation and two 100Base-FX single-mode fiber ports with SC connectors and fixed optics. Switching is store-and-forward on a 1.6 Gbps fabric with an 8K MAC table and a 4 Mbit buffer. The Layer 2+ firmware covers port, MAC, protocol and private VLANs, QoS, IGMP snooping, LACP, LLDP, RMON, sFlow, DDMI and Modbus TCP, with static routes and NAT. Security includes 802.1X, RADIUS, TACACS+, ACLs, IP source guard and ARP inspection. The two fiber ports suit an ITU-T G.8032 ERPS ring with recovery in under 50 ms, and STP, RSTP and MSTP are supported.

Power arrives on a 12 to 48 V DC input on a terminal block, and the switch draws 15 W. A power lost warning and relay trigger drive a relay contact rated 24 V DC, 1 A, and the switch can also send automatic warnings by e-mail. Overload current and reverse polarity protection are built in, and Antaira gives the switch high EFT and ESD protection with EMS testing to IEC 61000-4-2, 3, 4, 5, 6 and 8. Set-up is through the web console, Telnet or CLI, with USB configuration backup.

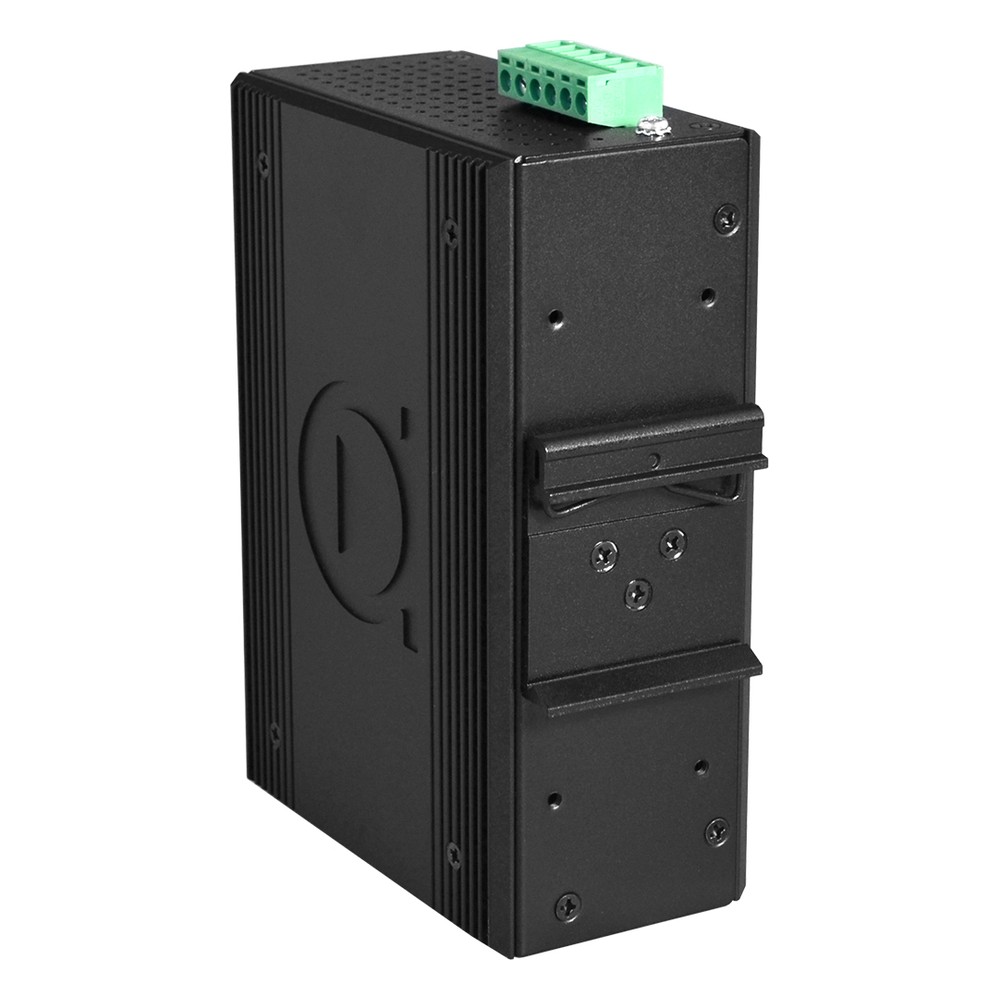

The LMX-0802-S3 sits in an IP30 metal case for DIN rail or wall mounting. It is UL 61010-1 certified, carries FCC and CE marks, is RoHS compliant and comes with Antaira’s 5-year warranty. The LMX-0802-S3-T is the same switch rated -40 °C to 75 °C, the LMX-0802-M uses multi-mode fiber and the LMX-0802-ST-S3 has ST connectors. We supply and specify the LMX-0802 range, with IP addressing, VLANs and ring settings pre-configured before it ships if you would like.

LMX-0802-S3 Specifications

Overview
Brand & ModelAntaira LMX-0802-S3
FeaturesFanless
Industrial
Managed Ethernet Switch
Networking
Switching LayerLayer 2+
Switch TypeManaged
Ethernet Ports6x 10/100 BASE-TX [RJ45]
Number of Ethernet Ports6x Ethernet Ports
Number of Fiber Ports2x 100FX [SC] [Single-mode]
Networking StandardsIEEE 802.1AB LLDP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1X Port-Based Network Access Control
IEEE 802.3 10BaseTx Ethernet
IEEE 802.3ad Link Aggregation
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3u 100BaseTx Fast Ethernet
IEEE 802.3x Back Pressure Flow Control
ITU-T G.8032 ERPS
Power
Power Input12-48V DC, Terminal Block
Environmental Conditions
Operating Temperature-10°C to 65°C [14°F to 149°F]
Storage Temperature-40°C to 85°C [-40°F to 185°F]
Humidity5% - 95% (Non-condensing)
Ingress ProtectionIP30
ShockIEC 60068-2-27
VibrationIEC 60068-2-6
CertificationCE
FCC
RoHS
UL 61010-1
Mechanical Properties
Weight1.1 Kg (2.4 Lbs)
Dimensions54mm x 142mm x 99mm (2.13" x 5.59" x 3.9")
Mounting OptionsDIN Mount
Wall Mount

Official Antaira USA Distributor

Things Embedded is an official Antaira USA distributor, and we supply the LMX-0802-S3 with a matching DIN-rail power supply, with IP addressing, VLANs and ring settings pre-configured on request. Within the Antaira range, the LMX-0802-M multi-mode SC fiber in place of single-mode.

Across our range, the LMX-0802-S3 sits with our managed DIN rail and cabinet switches, switches built for industrial sites and Ethernet switches from every range.
