Antaira LNX-1604G-SFP 16-Port Gigabit Unmanaged DIN Rail Switches with 4x SFP and Extended Temperature Options

A cabinet that collects links from several remote cameras or machines needs fiber ports as much as copper, and a switch with one SFP slot soon runs short. The Antaira LNX-1604G-SFP series balances the two: industrial gigabit unmanaged Ethernet switches with 12 copper ports and four SFP slots, which Antaira describes as ideal for high-density port connections with wide network bandwidth. There is no management interface and nothing to configure, so the switch forwards traffic as soon as it is powered, and each fiber link can be sized to its own run.

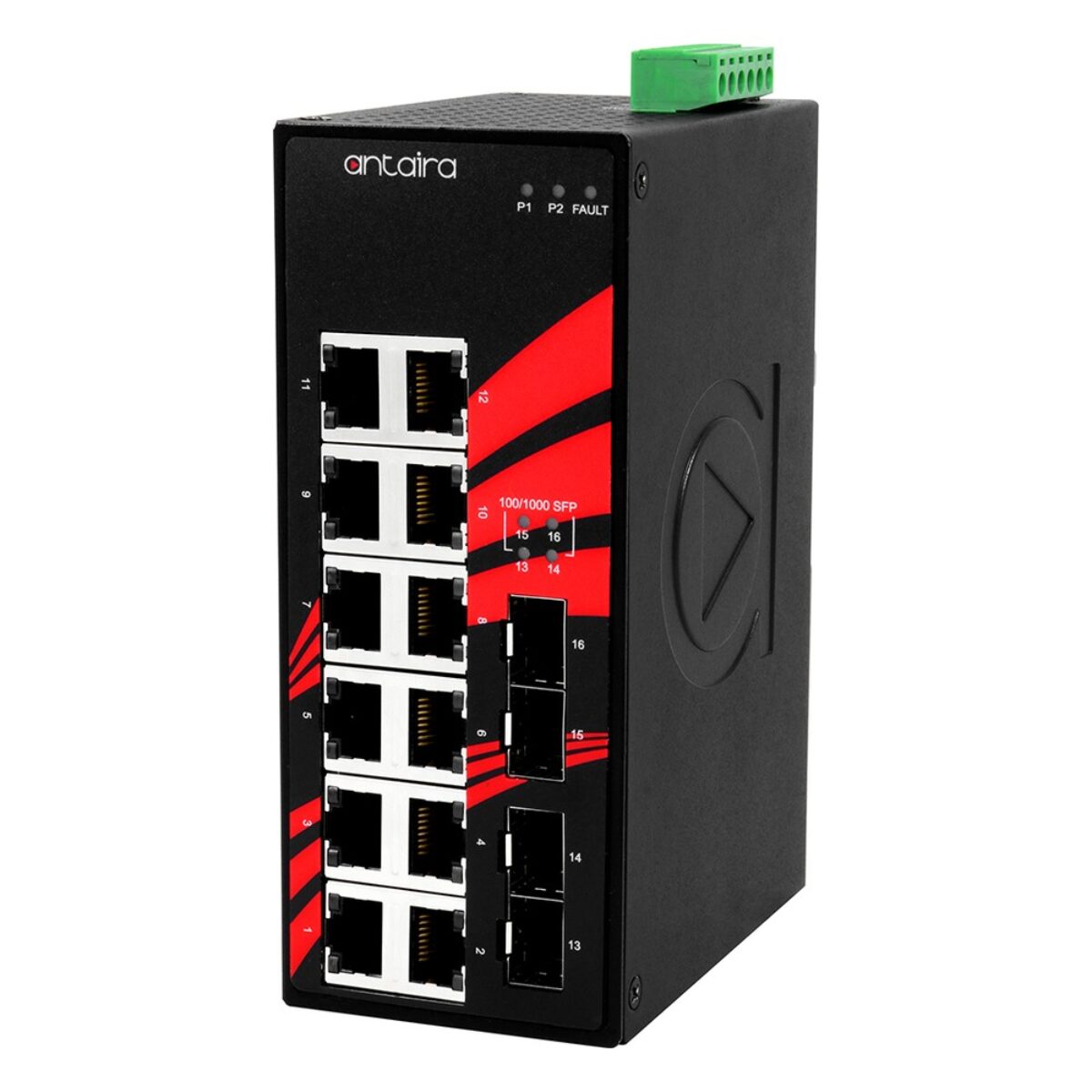

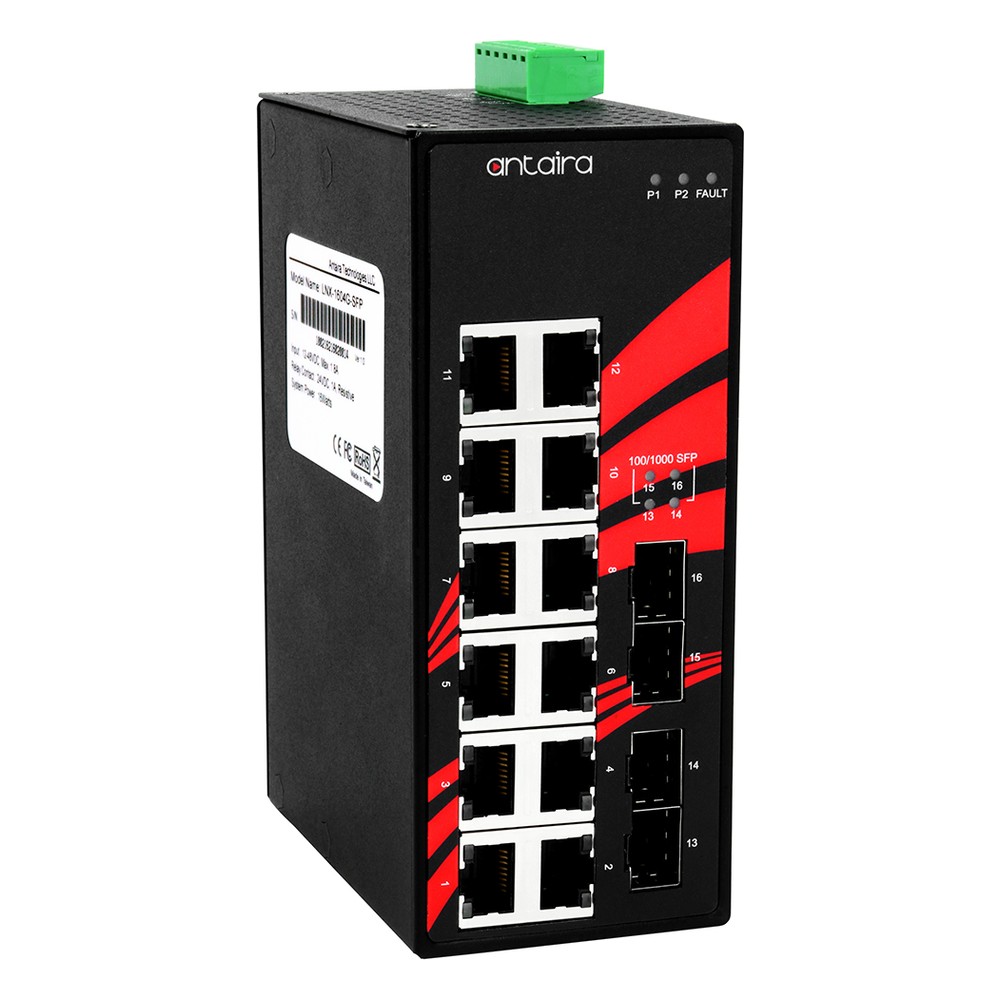

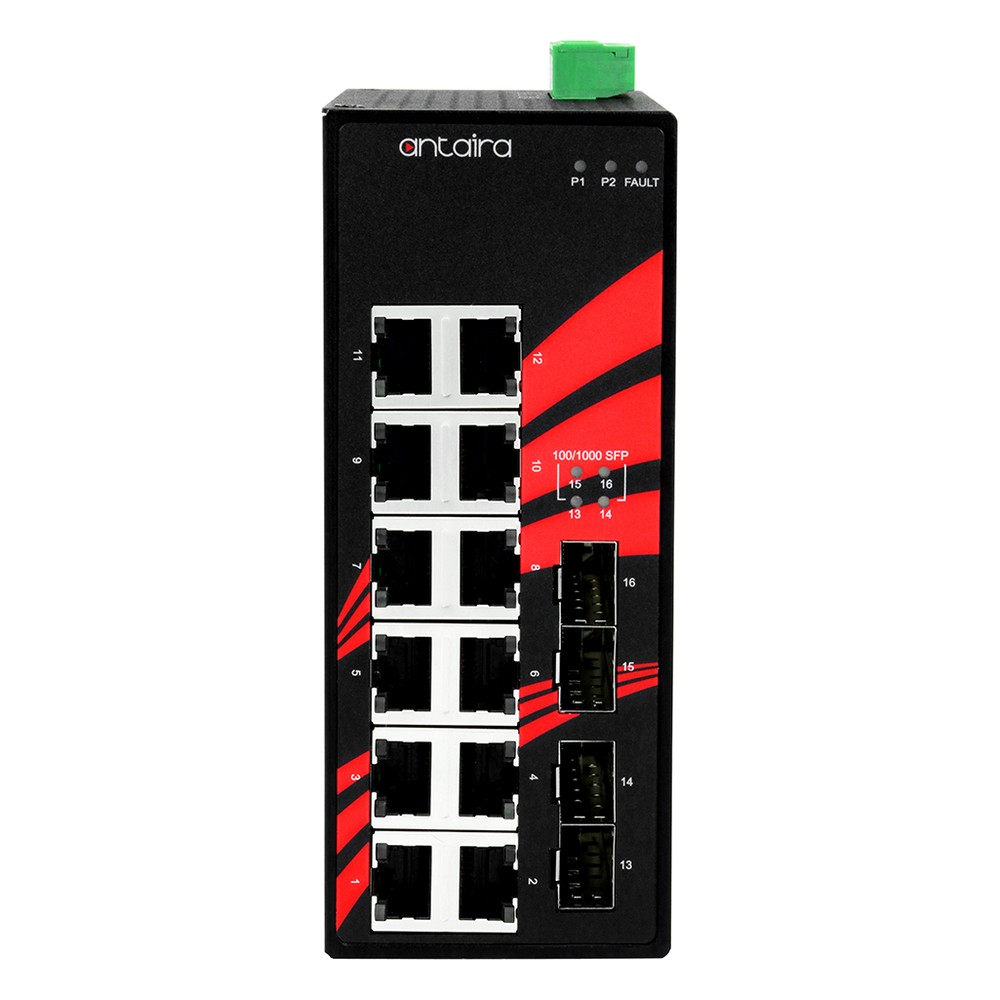

Every LNX-1604G-SFP shares the same design. The 12 RJ45 ports at 10/100/1000Base-T support auto negotiation and auto MDI/MDI-X, and the four dual-rate SFP slots take 100 or 1000 Mbps transceivers, so each fiber link can use the mode and reach it needs. Switching is unmanaged and store-and-forward on a 32 Gbps fabric with an 8K MAC table, a 4 Mbit buffer, 9.6 KB jumbo frames and IEEE 802.3x flow control. Power arrives on 12 to 48 V DC redundant inputs with reverse polarity protection and a slow-blow fuse, the switch draws a maximum of 15 W at full load, and a relay rated 24 V DC, 1 A warns of a power redundancy failure.

Two builds separate the series by temperature. The LNX-1604G-SFP is the standard model, rated -10 °C to 65 °C for heated or indoor cabinets. The LNX-1604G-SFP-T is the extended temperature model, rated -40 °C to 75 °C for unheated and outdoor enclosures. Both share ports, power and approvals. For 16 copper ports with the same four SFP slots, the LNX-2004G-SFP series adds four more RJ45 ports.

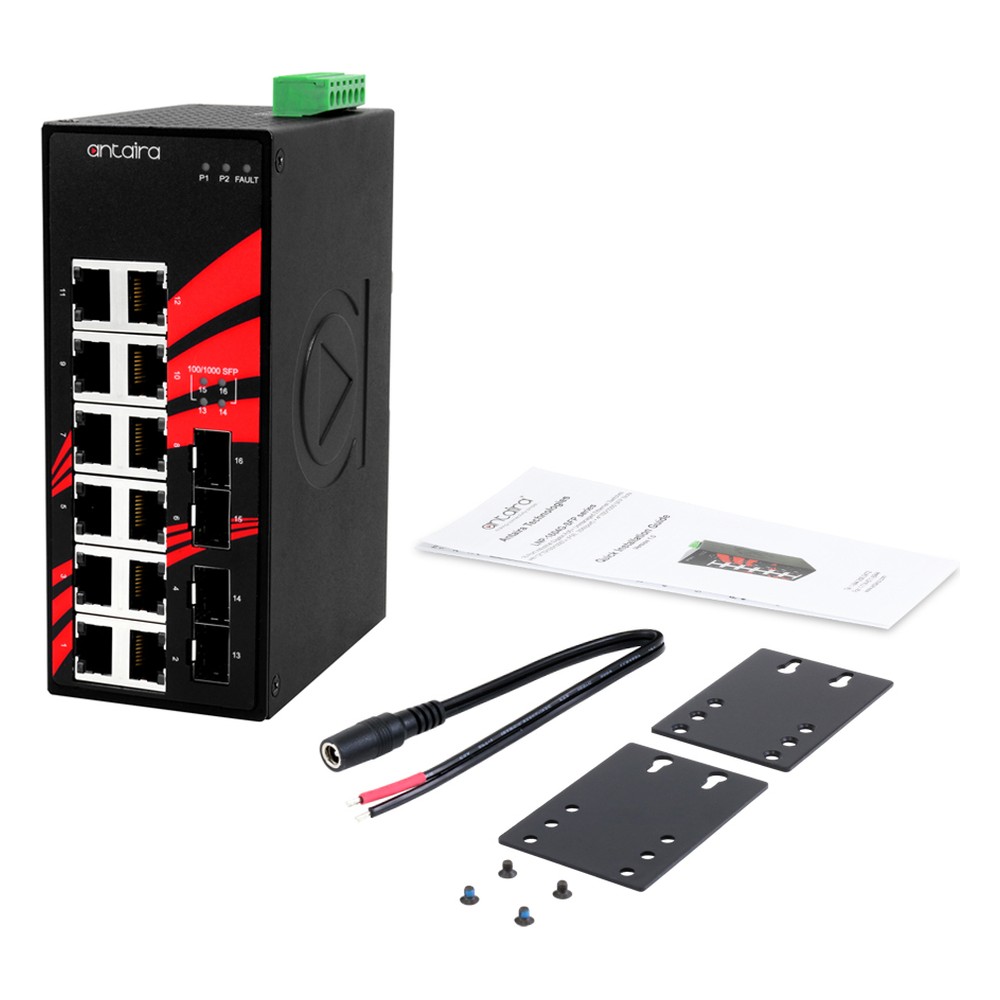

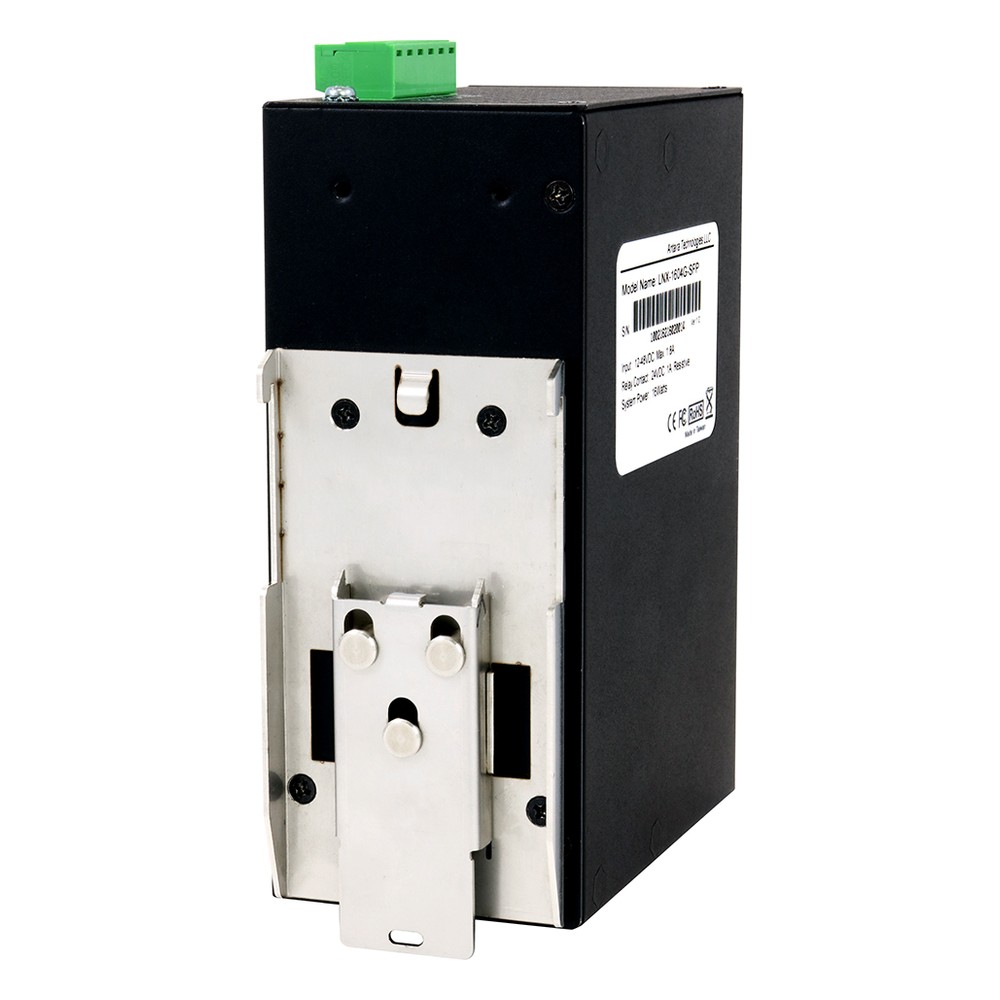

Both LNX-1604G-SFP models come in an IP30 metal case for DIN-rail or wall mounting, and follow IEC 60068-2-27 shock and IEC 60068-2-6 vibration testing. Antaira lists UL 61010-1 certification, with FCC and CE marks and RoHS compliance, and covers the series with its 5-year warranty. Antaira names security video surveillance, GigE machine vision, process control automation and intelligent transportation as applications where the LNX-1604G-SFP series works well. In practice, four SFP slots let one cabinet gather fiber from several remote points, with multi-mode links to nearby enclosures and single-mode links to distant ones.
