Arestech PPC-S1264P 12.1″ PCAP Industrial HMI Panel PC with Intel Celeron J6412 and Stainless Front IP66/IP69K

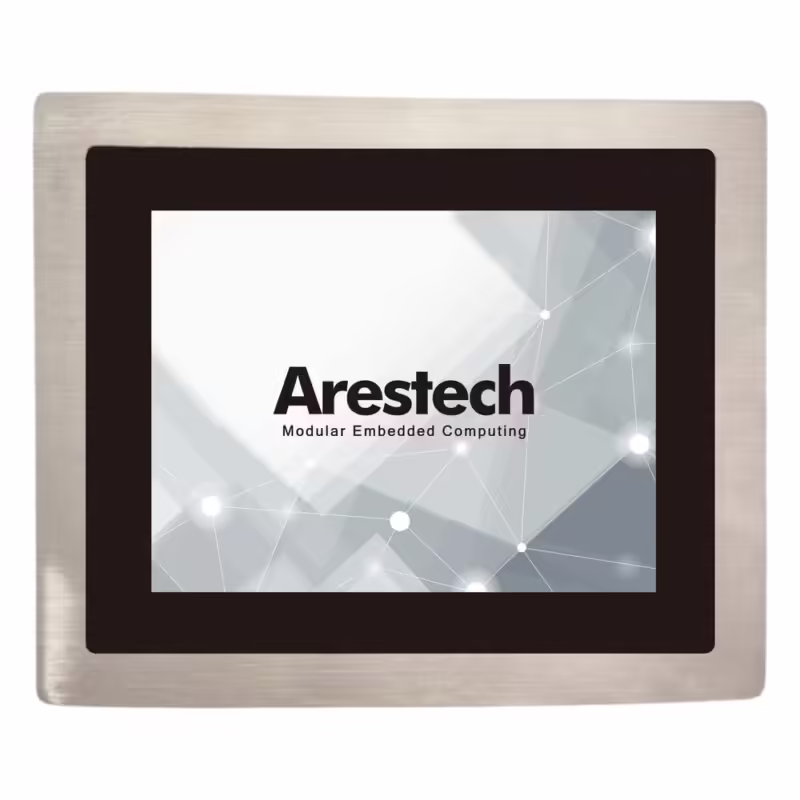

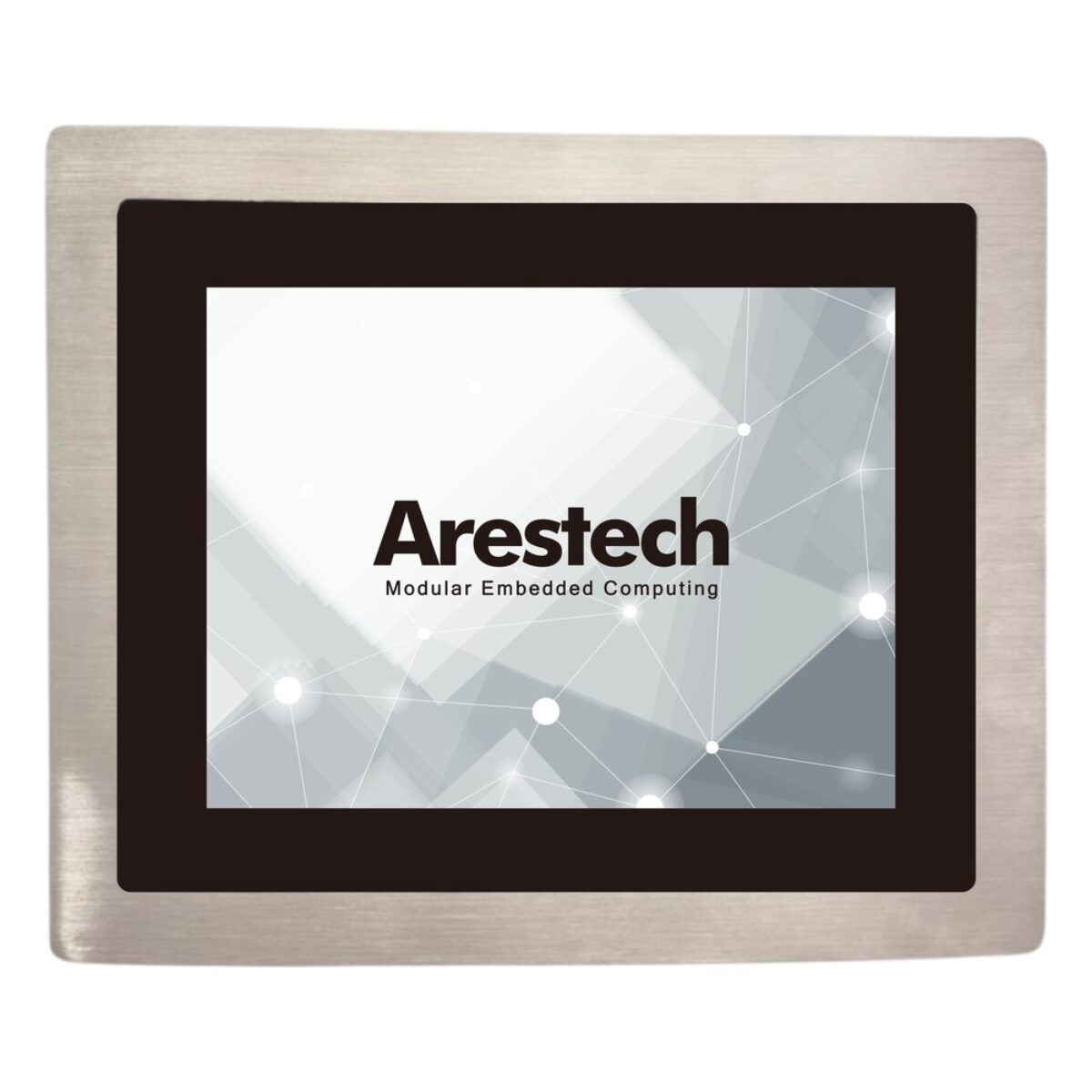

Where a machine builder fits the screen into the chassis of the equipment itself, the front face takes most of the exposure and the rear stays inside. The PPC-S1264P is the projected capacitive configuration in the Arestech PPC-S1264 series: a 12.1 inch fanless industrial HMI panel PC with a true flat 304 stainless steel front panel sealed to IP66 and IP69K and an SECC steel back cover. Projected capacitive touch gives a light, bare-finger response across the 12.1″ screen.

The Intel Celeron J6412 runs at up to 2.60 GHz and takes two DDR4-3200 SO-DIMMs for up to 32 GB, which typically suits a single HMI, recipe or status application running full time. Security is firmware TPM (fTPM), and Windows 11 IoT or Professional and Linux are supported. The XGA LCD runs at 1024 x 768 (4:3) with 600 nits, 1000:1 contrast and 178° horizontal and vertical viewing angles.

On the bottom edge are two GbE ports on Intel I211-AT, two HDMI 2.0 outputs up to 4096 x 2160, four USB 3.2 Gen 1 ports and a line-out, with two RS-232/422/485 ports optional. Storage is a 2.5-inch SSD bay plus an M.2 2280 M-Key socket with PCIe x2 or SATA, and a Mini-PCIe socket with a SIM slot takes an optional 4G LTE or Wi-Fi module. The PPC-S1264R is the same build with 5-wire resistive touch, and the PPC-S1212P pairs the same front with the Core i5-1235U and 2.5GbE.

Power is 12 to 36 V DC on a two-pin terminal block with AT/ATX modes. The PPC-S1264P operates from -20 °C to 60 °C, is tested to IEC 60068-2-64 vibration and IEC 60068-2-27 shock, and carries CE and FCC Class A marks. The IP66/IP69K rating applies to the front panel, with 316 stainless optional, so it suits a panel cut-out or VESA mount where the rear stays dry; the TPM-S3312P-A1 is the matching stainless-front touch monitor. We supply it configured, with the OS installed, and tested for USA machine building and food and beverage sites.
