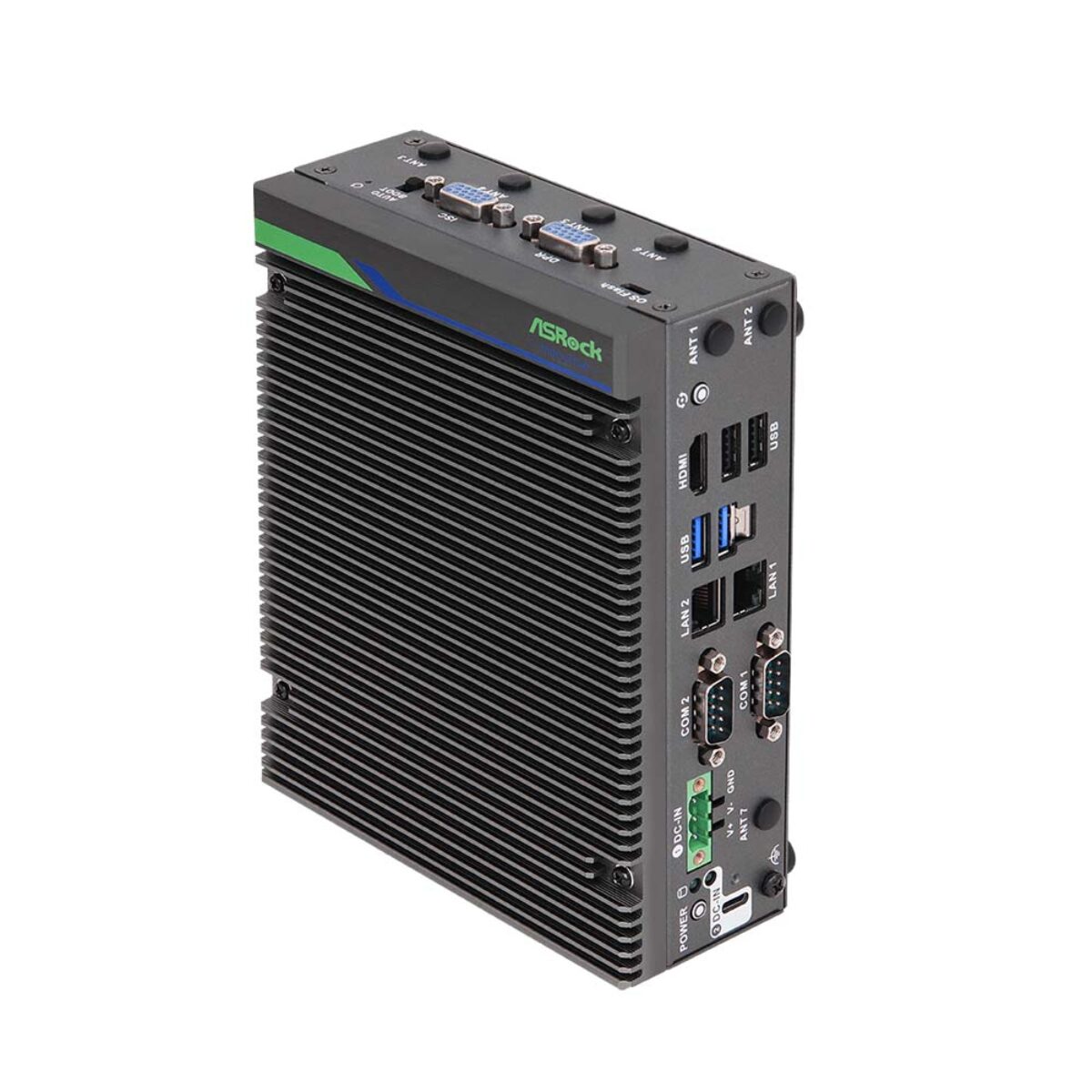

ASRock Industrial iEP-6013E-000 NVIDIA Jetson Orin Nano 4GB Compact Embedded Computer with 2x COM and 12-36V DC

Machine monitoring, data logging and simple camera checks often need a little AI compute and plenty of industrial I/O, in a unit that copes with shock, vibration and an unheated cabinet. The ASRock Industrial iEP-6013E-000 is a compact embedded computer for that job, using the NVIDIA Jetson Orin Nano 4GB in the same ultra-compact case as the iEP-6012E series.

The iEP-6013E-000 has 4 GB of 64-bit LPDDR5 and runs NVIDIA JetPack 5. Storage is an M.2 M-key 2280 socket for a PCIe Gen3 x4 NVMe SSD, with the M.2 B-key socket able to hold a second, PCIe Gen3 x1 SSD, a microSD slot and TPM 2.0. Display output is one HDMI 1.4 port.

I/O covers two Gigabit LAN ports, two USB 3.2 Gen 2 ports (one locking), two USB 2.0 ports, one RS-232 and one RS-232/422/485 port, and two DB15 connectors with four digital inputs, four digital outputs, CAN bus, I2C and SPI. An M.2 E-key socket takes a Wi-Fi module. Power is 12 to 36 V DC with 80 V surge, over-voltage and reverse protection, plus a locking USB Type-C PD 20 V backup input.

ASRock Industrial rates the iEP-6013E-000 from -25 °C to 60 °C with a wide temperature NVMe SSD, with 100 G operating shock to IEC 60068-2-27 and 5 Grms random vibration to IEC 60068-2-64. The 55 mm wide, 1.3 kg compact embedded computer mounts on a DIN rail, a wall or a VESA bracket. The iEP-6012E-000 uses the Orin Nano 8GB in the same case for larger models.
