ASRock Industrial IMB-1316 Intel Bartlett Lake-S and 12th to 14th Gen Core Q670 Micro-ATX Motherboard with vPro, Quad Display and 6x COM

The IMB-1316 is the Q670 Micro-ATX board in ASRock Industrial's Bartlett Lake-S and 12th to 14th Gen Core range: Intel vPro and AMT, quad display, two PCIe Gen5 slots and six COM ports, with non-ECC DDR5 up to 192 GB. It suits managed machine control, signage and test equipment builds that need several cards.

Q670 Chipset with vPro and AMT: Intel vPro and AMT on the Intel I226LM 2.5GbE port allow remote management, with TPM 2.0 fitted onboard.
Quad Display Output: Two HDMI 2.0b and one DisplayPort at up to 4K and 60 Hz, plus dual-channel LVDS, drive four displays.
Six COM Ports and GPIO: COM1 and COM2 support RS-232/422/485 and four more run RS-232, with 8x GPI, 8x GPO and a parallel port.
Two PCIe Gen5 Slots: PCIE1 and PCIE4 run one card at x16 or two at x8 each, with two more PCIe x4 Gen4 slots.
Up to 125 W Processors: Takes Bartlett Lake-S and 14th, 13th and 12th Gen Core processors up to 125 W, with DDR5 up to 192 GB.

Datasheet

Intel

Linux

Windows

Quad Display Support

2.5GbE

Type C

4x M.2

4x PCIe

1x SIM

Wi-Fi

NVMe SSD

Extended Temp

Overview Specifications Downloads

USA Support Team: +1 407 214 9446 Call

IMB-1316 Overview

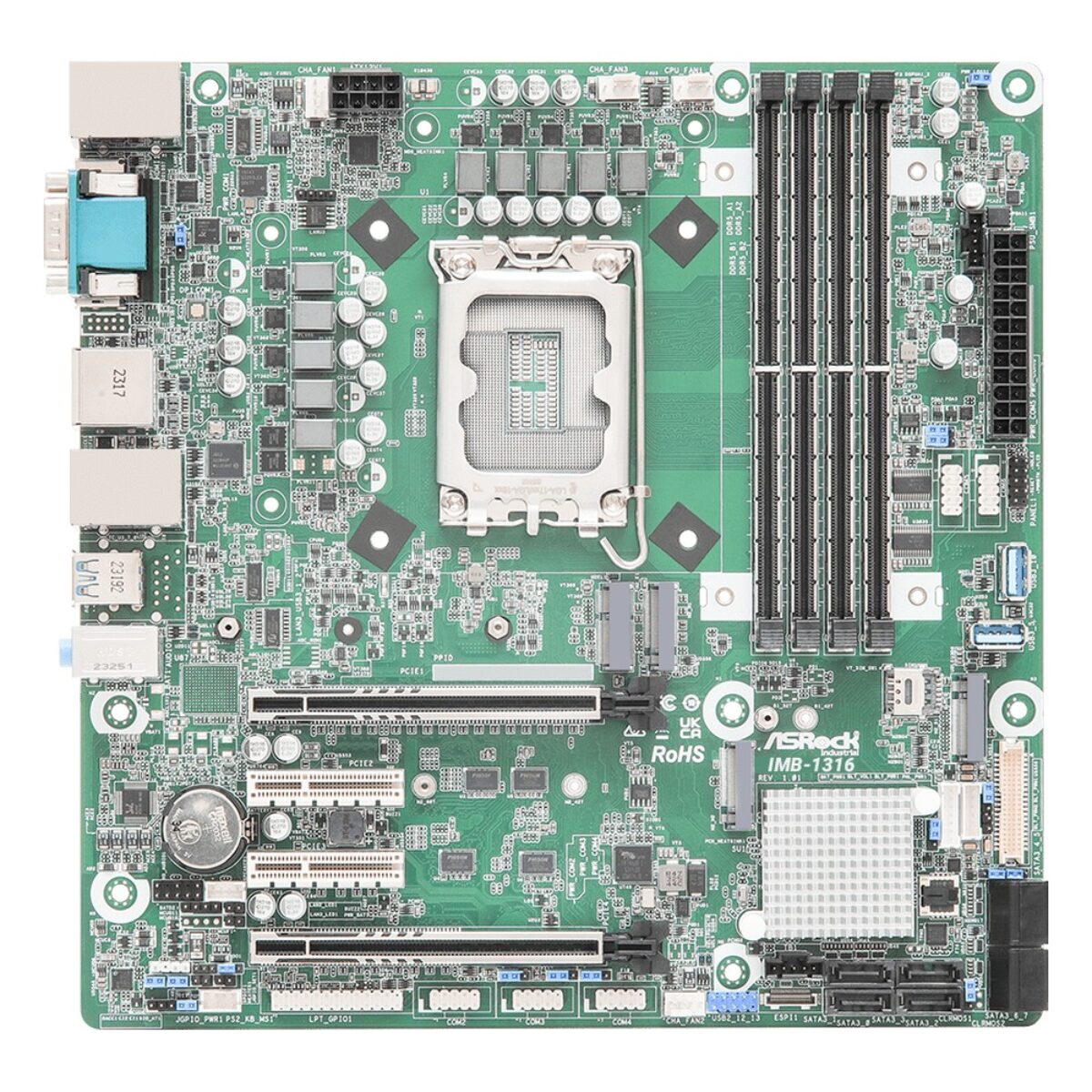

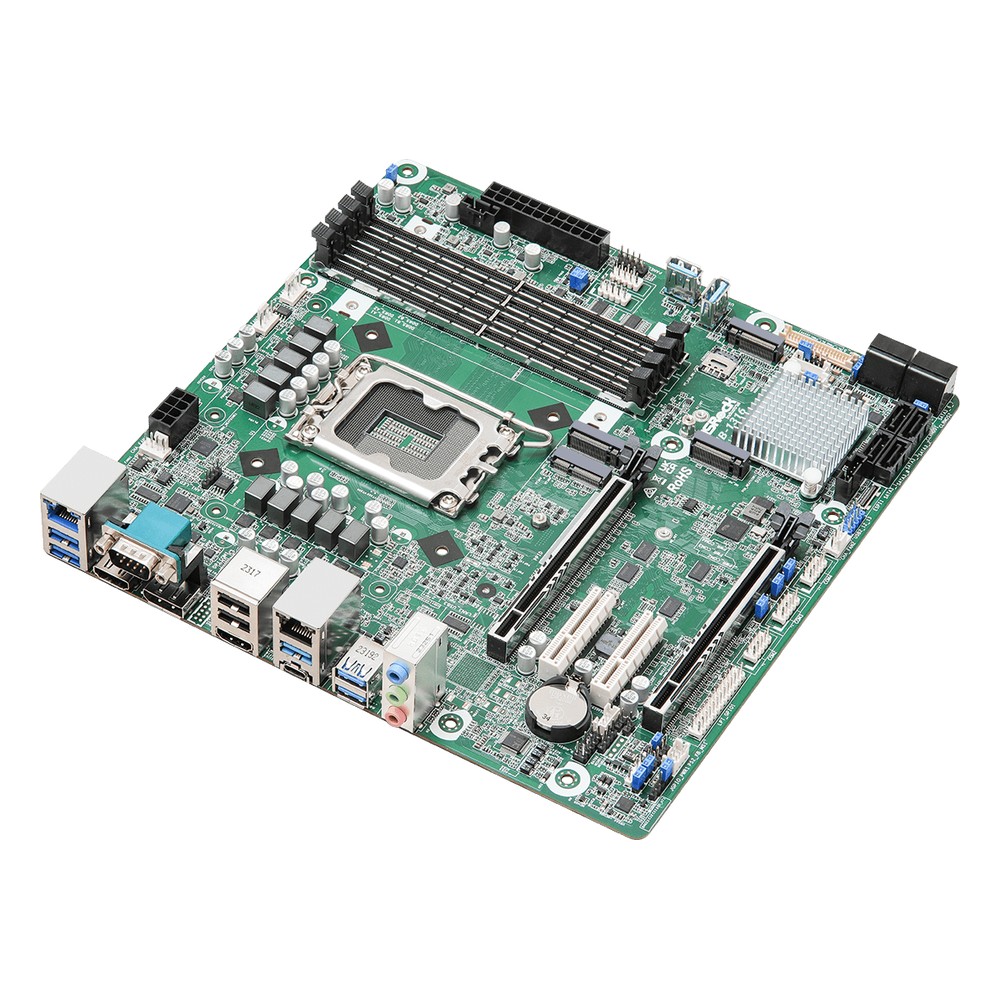

Managed equipment fleets often need remote access, several displays and serial ports for legacy devices, without the cost of ECC memory. The ASRock Industrial IMB-1316 is a Q670 Micro-ATX motherboard for Intel Bartlett Lake-S and 12th to 14th Gen Core processors, with Intel vPro and AMT, quad display and six COM ports.

The LGA1700 socket takes Core Processor Series 2 (Bartlett Lake-S) and 14th, 13th and 12th Gen Core processors up to 125 W, with Intel UHD graphics. Four DDR5 Long-DIMM sockets run at 4400 or 5600 MHz and take non-ECC memory up to 192 GB. Windows 11 and Linux are supported, and the IMB-1316 can suit machine control, digital signage and test equipment builds.

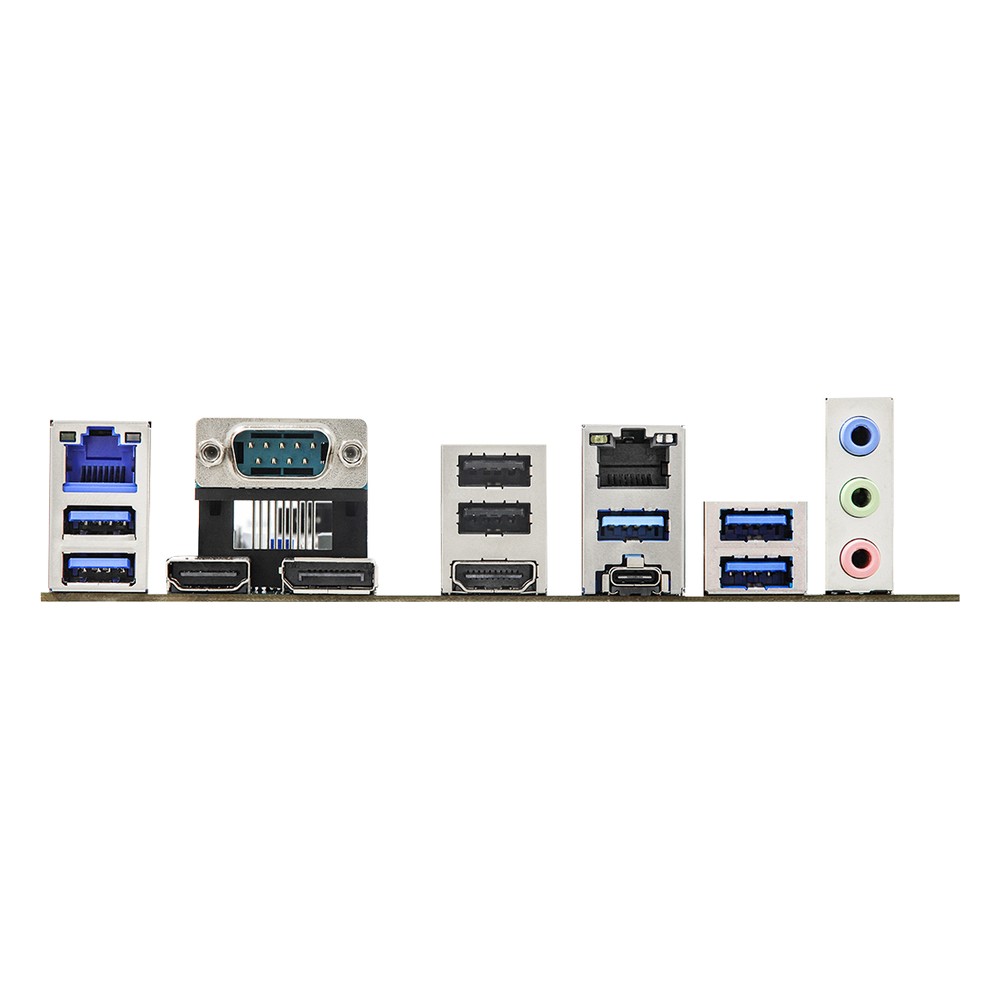

Expansion is two PCIe Gen5 slots, one card at x16 or two at x8, plus two PCIe x4 Gen4 slots. Storage covers an M.2 M key socket at PCIe Gen4 x4, a second at PCIe Gen3 x4 and eight SATA3 ports with VMD RAID 0, 1, 5 and 10. M.2 E key and B key sockets take optional Wi-Fi and 4G or 5G modules, with a SIM slot on the B key. Rear I/O covers two HDMI 2.0b, one DisplayPort, a USB 3.2 Gen2x2 Type-C, five USB 3.2 Gen2, two USB 2.0, three audio jacks, COM1 and an Intel I226LM 2.5GbE port with vPro beside an Intel I210AT 1GbE port. Inside are five more COM ports, 8x GPI and 8x GPO, parallel, LVDS, PS/2, a Thunderbolt header and vertical USB 3.2 Gen2 and Gen1 Type-A ports.

Power is ATX 24+8-pin in AT or ATX mode, and TPM 2.0 is onboard. The board is rated from -20 °C to 70 °C and carries CE and FCC marks. We supply the IMB-1316 with the processor, memory and storage fitted and tested, on its own or built into a complete system. The IMB-X1316 moves to W680 with ECC memory, and the IMB-1315 is the H610 board for 65 W processors.

IMB-1316 Specifications

Overview
Brand & Model	ASRock Industrial IMB-1316
Features	Embedded Expandable Industrial
Performance
Processor Series	Intel Core 14th Gen Raptor Lake Refresh Intel Core Series 2 Bartlett Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake
Processor Models	Core 5 211EF i5-14400F Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Core 5 211E: 2.7~4.9GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core 5 211TE: 1.7~4.8GHz, 10 Cores, 16 Threads, 20MB Cache, 45W Intel Core 5 213PE: 2.7~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 213PTE: 2.1~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 223PQE: 4.0~5.5GHz, 8 Cores, 16 Threads, 24MB Cache, 125W Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W Intel Core 7 253PQE: 3.5~5.7GHz, 10 Cores, 20 Threads, 33MB Cache, 125W Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W Intel Core 9 273PQE: 3.4~5.9GHz, 12 Cores, 24 Threads, 36MB Cache, 125W Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400: 2.5~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400T: 1.5~4.5GHz, 10 Cores, 16 Threads, 20MB Cache, 35W Intel Core i5-14401E: 2.5~4.7GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14401TE: 2.0~4.5GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i5-12400: 2.5~4.4GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14501E: 3.3~5.2GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-14501TE: 2.2~5.1GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14701E: 2.6~5.4GHz, 8 Cores, 16 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i7-14701TE: 2.1~5.2GHz, 8 Cores, 16 Threads, 33MB Cache, 45W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14901E: 2.8~5.6GHz, 8 Cores, 16 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i9-14901TE: 2.3~5.5GHz, 8 Cores, 16 Threads, 36MB Cache, 45W Intel Core i3-12100: 3.3~4.3GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100: 3.4~4.5GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100T: 2.5~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500: 3.0~4.6GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500: 2.5~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500T: 1.6~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700: 2.1~4.9GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700K: 3.6~5.0GHz, 12 Cores, 20 Threads, 25MB Cache, 125W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700: 2.1~5.2GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700T: 1.4~4.9GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900: 2.4~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900K: 3.2~5.2GHz, 16 Cores, 24 Threads, 30MB Cache, 125W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900: 2.0~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W
Performance Cores	4 Cores 6 Cores 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores
Memory	4x DDR5 4400MHz LONG-DIMM Slots, 192GB
Chipset	Intel Q670
BIOS	AMI
Secure Crypto Processor	TPM 2.0 (Trusted Platform Module)
Operating System	Linux Windows 11
Graphics
Integrated GPU	Intel UHD Series
Display Standards	Display Port 1.4a DP++ Dual Channel LVDS HDMI 2.0b
Multi Display Support	Quad Display Support
Display Outputs	1x Display Port 1x LVDS 2x HDMI
Audio
Codec	Realtek ALC897, HD Audio
Interface	Line-In Line-Out Mic-In
I/O
Ethernet	2x Ethernet Ports
	1x 2.5 GbE LAN [RJ45] 1x GbE LAN [RJ45]
LAN Controllers	Intel i210AT Intel I226LM
USB	12x USB Ports
	1x USB 3.2 Gen 2x2 [Type C] 1x USB 3.2 Gen 1 [Type A] 2x USB 2.0 [Board] 2x USB 2.0 [Type A] 6x USB 3.2 Gen 2 [Type A]
Serial	6x Serial Ports
	1x RS232/422/485 [Board] 1x RS232/422/485 [DB9] 4x RS232 [Board]
GPIO	GPIO [8-in, 8-out]
Remote Management	Intel AMT Intel vPro
Expansion
M.2	4x M.2 Expansion Slots
	1x M.2 B-Key [PCIe x1/USB 3.2 Gen 1/USB 2.0/SIM] [3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4 Gen4] [2242/2280/25110] 1x M.2 M-Key [PCIe x4] [2242/2280]
PCIe	4x PCIe Slots
	2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5] 2x PCIe [x4 Slot] [Gen4]
SIM Slots	1x SIM Slots
Wireless Connectivity	Optional 4G/5G Optional WiFi/Bluetooth
Storage
Storage	2x M.2 SSD 8x SATA Ports
NVMe	NVMe SSD Support
RAID	RAID 0 (Striping) RAID 1 (Mirroring) RAID 5 (Striping & Distributed Parity) RAID 10 (Mirroring & Striping)
Power
Power Input	ATX Power Supply [8+24 Pin]
Power Support Modes	AT: PWR on Input ATX: Press Button to Power
Environmental Conditions
Operating Temperature	-20°C to 70°C [-4°F to 158°F]
Storage Temperature	-40°C to 85°C [-40°F to 185°F]
Humidity	5% - 90% (Non-condensing)
Certification	CE FCC
Mechanical Properties
Dimensions	244mm x 244mm x 36mm (9.61" x 9.61" x 1.42")

IMB-1316 Datasheet Download
IMB-1316 User Manual Download

Official ASRock Industrial USA Distributor

Things Embedded is an official ASRock Industrial USA distributor, and we supply the IMB-1316 with the processor, memory and storage fitted and tested, on its own or built into a complete system. Within the ASRock Industrial range, the IMB-X1316 moves to the W680 chipset with ECC DDR5 support on the same Micro-ATX layout.

Across our range, the IMB-1316 sits with our industrial Micro-ATX motherboards, Intel Alder Lake range and ASRock Industrial motherboards.
