ASRock Industrial IMB-1714 ATX Motherboard for Bartlett Lake and 14th Gen Intel Core LGA1700 with Q670, PCIe Gen 5 and PoE
Intel
Linux
Windows
Triple Display Support
2.5GbE
PoE Support
Type C
USB3
3x M.2
7x PCIe
1x SIM
4G
Wi-Fi
RAID
NVMe SSD
Extended Temp
CE
FCCIMB-1714 Overview

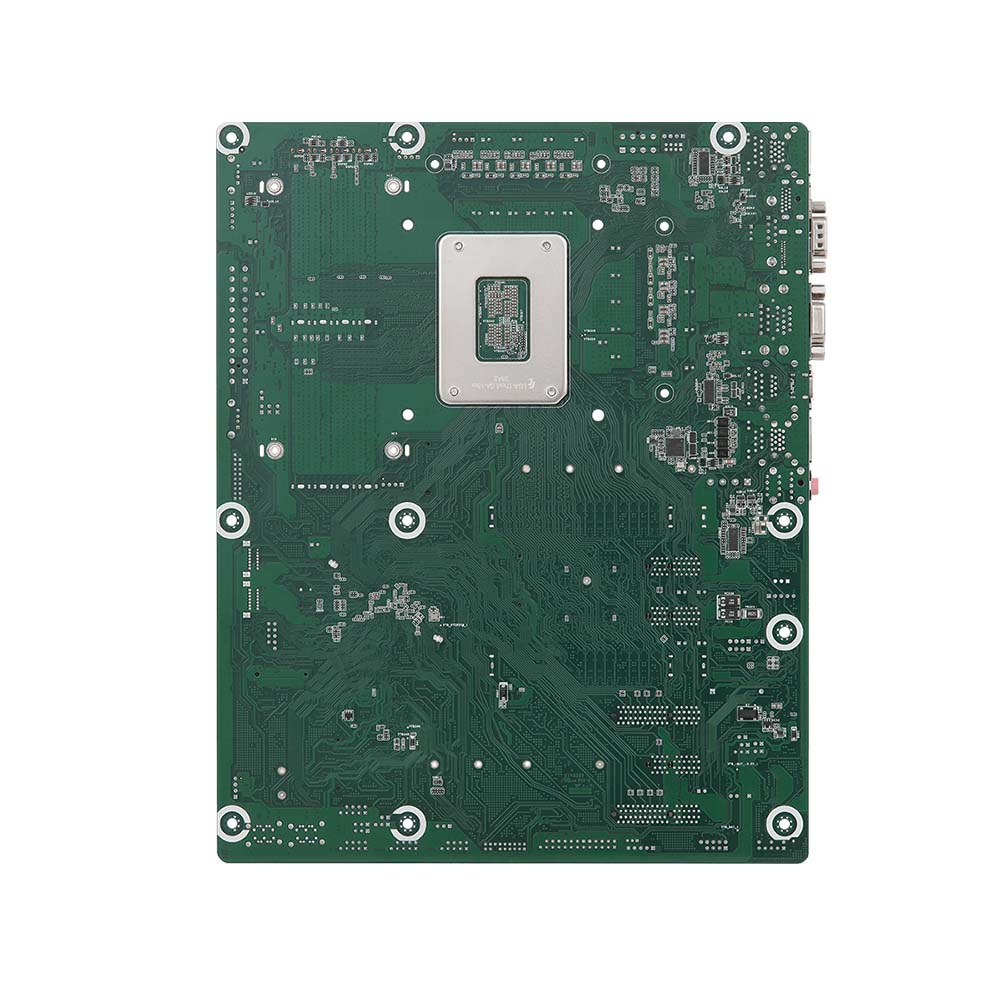

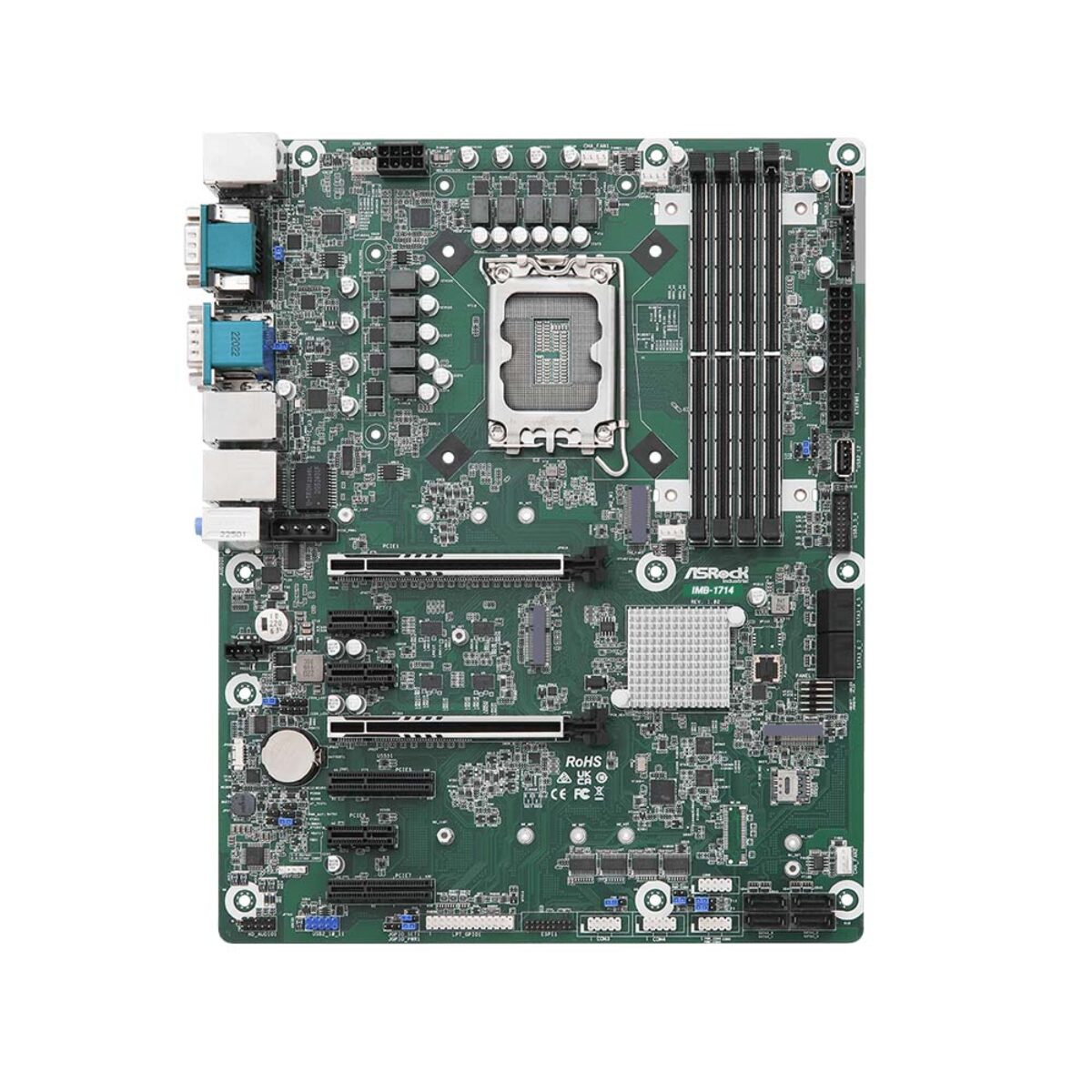

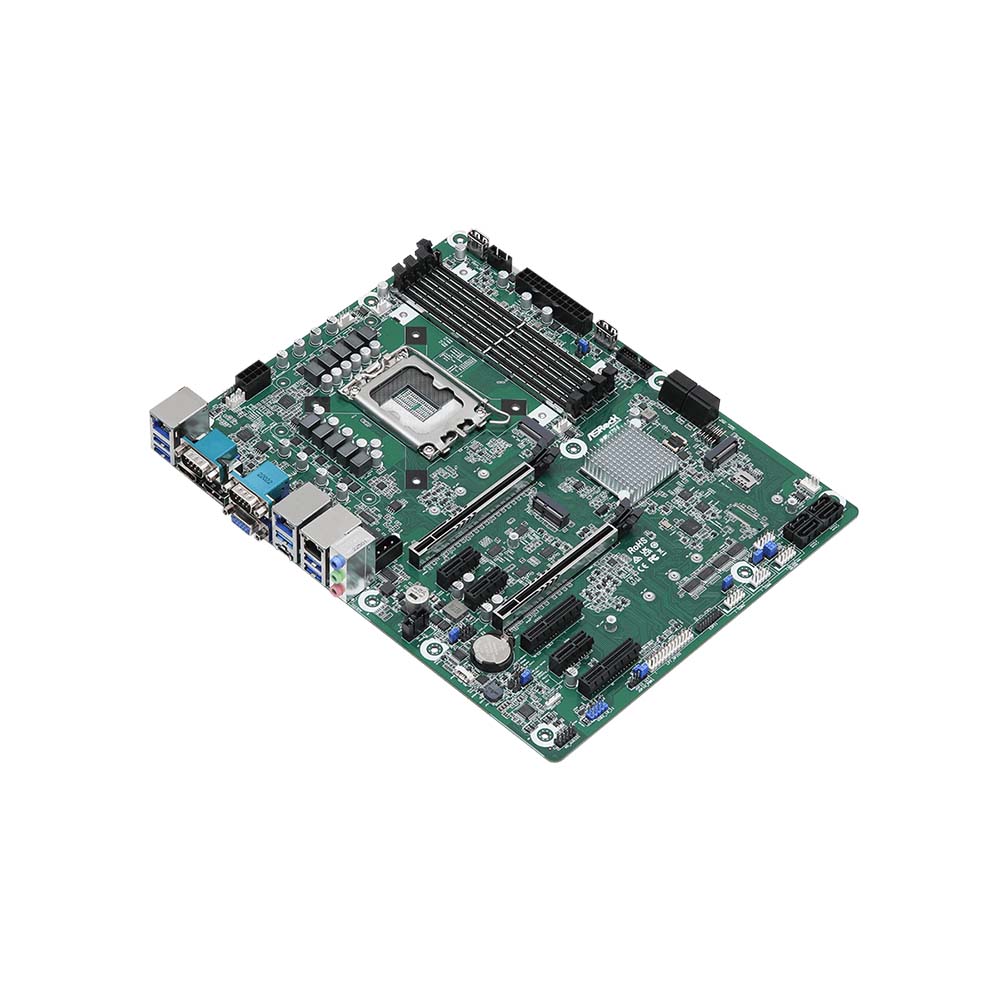

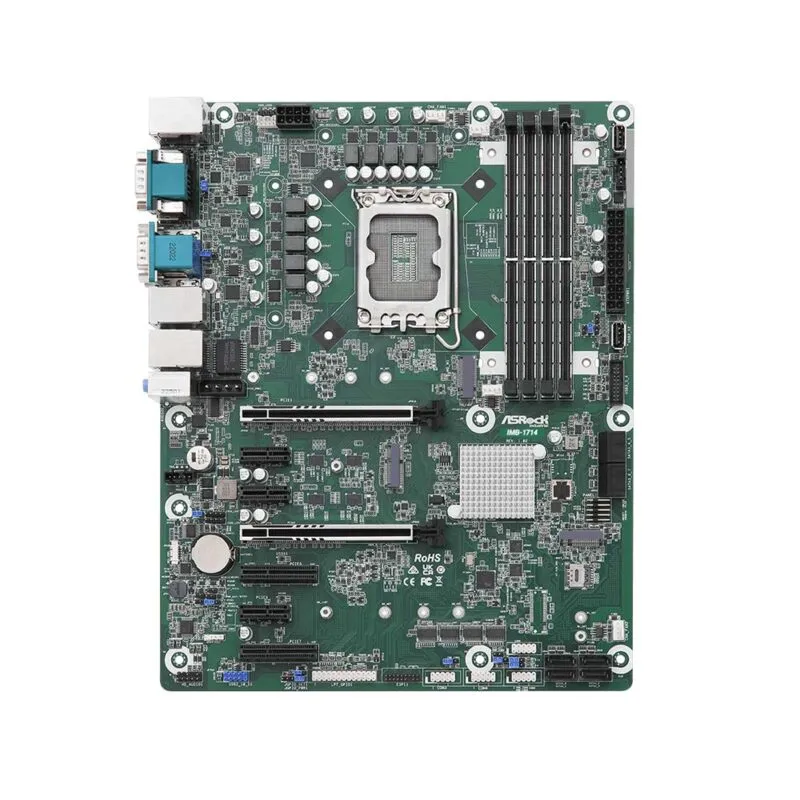

Machines built around a GPU or accelerator card need a fast slot for it, several network ports and plenty of storage. The IMB-1714 is ASRock Industrial’s ATX motherboard for that brief: an LGA1700 board on the Intel Q670 chipset for 13th and 12th Gen Intel Core processors, with two PCIe Gen 5 slots and three 2.5GbE ports, one with PoE.
The socket takes 13th and 12th Gen (Raptor Lake-S and Alder Lake-S) Intel Core processors up to 125 W on the Intel Q670 chipset. The four DDR5 Long-DIMM slots take up to 128 GB, at DDR5-4400 with one module per channel and DDR5-4000 or 3600 with two. Intel UHD Graphics drives HDMI 2.0b and DisplayPort 1.4a at up to 4096 x 2160 at 60 Hz and VGA at up to 1920 x 1200, with up to three displays at once.

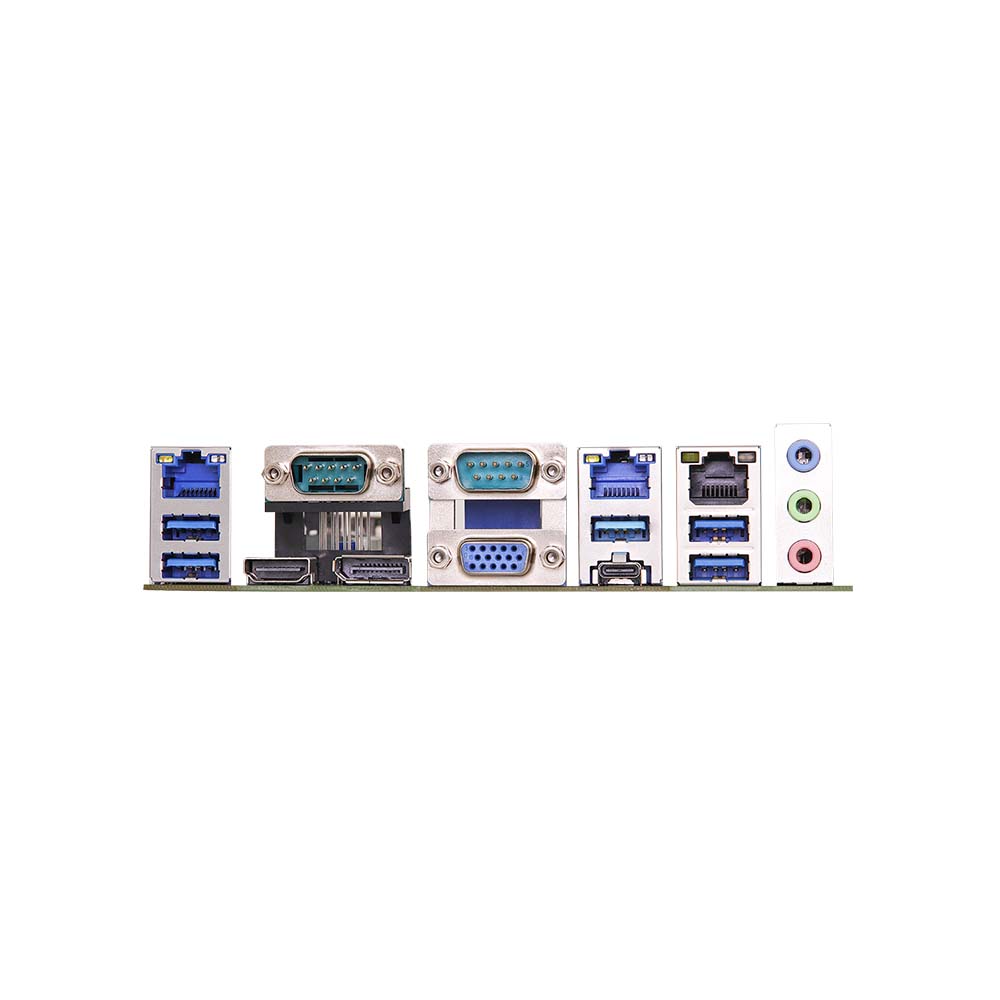

Three 2.5GbE ports run on Intel controllers: LAN1 on an I226V with PoE, LAN2 on an I226LM with vPro and LAN3 on an I226V. USB covers five USB 3.2 Gen 2, a USB 3.2 Gen 2×2 Type-C, two USB 3.2 Gen 1 and four USB 2.0, with two RS-232/422/485 ports at the rear and four RS-232 internally. Expansion covers two PCIe Gen 5 slots (one x16, or x8/x8 across both), two PCIe x4 (Gen 4) and three PCIe x1 (Gen 3), with M.2 E and B keys for Wi-Fi and 4G or 5G. Storage is an M.2 M key (2242 to 25110) on PCIe Gen4 x4 and eight SATA ports with Intel VMD RAID 0/1/5/10. The IMB-X1714 is the W680 version with ECC memory and a second M.2 M key.
Power comes from an ATX 24+8-pin supply with AT and ATX modes. The board operates from 0 to 70 °C and stores from -40 to 85 °C at 5 to 90% humidity, with a TPM 2.0 chip, a 256-segment watchdog timer and Realtek ALC897 audio. A parallel port shared with 8-in/8-out GPIO, PS/2 and a Thunderbolt header sit on the board, which measures 305 x 244 mm.
IMB-1714 Specifications
| Overview | |
|---|---|
| Brand & Model | ASRock Industrial IMB-1714 |
| Features | Embedded Industrial |
| Performance | |
| Processor Series | Intel Core 14th Gen Raptor Lake Refresh Intel Core Series 2 Bartlett Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake |
| Processor Models | Core 5 211EF i5-14400F Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Core 5 211E: 2.7~4.9GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core 5 211TE: 1.7~4.8GHz, 10 Cores, 16 Threads, 20MB Cache, 45W Intel Core 5 213PE: 2.7~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 213PTE: 2.1~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 223PQE: 4.0~5.5GHz, 8 Cores, 16 Threads, 24MB Cache, 125W Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W Intel Core 7 253PQE: 3.5~5.7GHz, 10 Cores, 20 Threads, 33MB Cache, 125W Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W Intel Core 9 273PQE: 3.4~5.9GHz, 12 Cores, 24 Threads, 36MB Cache, 125W Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400: 2.5~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400T: 1.5~4.5GHz, 10 Cores, 16 Threads, 20MB Cache, 35W Intel Core i5-14401E: 2.5~4.7GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14401TE: 2.0~4.5GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i5-12400: 2.5~4.4GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14501E: 3.3~5.2GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-14501TE: 2.2~5.1GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14701E: 2.6~5.4GHz, 8 Cores, 16 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i7-14701TE: 2.1~5.2GHz, 8 Cores, 16 Threads, 33MB Cache, 45W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14901E: 2.8~5.6GHz, 8 Cores, 16 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i9-14901TE: 2.3~5.5GHz, 8 Cores, 16 Threads, 36MB Cache, 45W Intel Core i3-12100: 3.3~4.3GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100: 3.4~4.5GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100T: 2.5~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500: 3.0~4.6GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500: 2.5~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500T: 1.6~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700: 2.1~4.9GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700K: 3.6~5.0GHz, 12 Cores, 20 Threads, 25MB Cache, 125W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700: 2.1~5.2GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700T: 1.4~4.9GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900: 2.4~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900K: 3.2~5.2GHz, 16 Cores, 24 Threads, 30MB Cache, 125W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900: 2.0~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W |
| Performance Cores | 4 Cores 6 Cores 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores |
| Memory | 4x DDR5 4400MHz LONG-DIMM Slots, 192GB |
| Chipset | Intel Q670 |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | Display Port 1.4a DP++ HDMI 2.0b |
| Multi Display Support | Triple Display Support |
| Display Outputs | 1x Display Port 1x HDMI 1x VGA |
| Audio | |
| Codec | Realtek ALC897, HD Audio |
| Interface | Line-In Line-Out Mic-In |
| I/O | |
| Ethernet | 3x Ethernet Ports |
| 1x 2.5 GbE LAN [RJ45] [PoE] 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226LM Intel I226V |
| USB | 12x USB Ports |
| 1x USB 3.2 Gen 2x2 [Type C] 2x USB 2.0 [Board] 2x USB 2.0 [Type A] 2x USB 3.2 Gen 1 [Board] 5x USB 3.2 Gen 2 [Type A] | |
| Serial | 6x Serial Ports |
| 2x RS232/422/485 [Board] 4x RS232 [Board] | |
| GPIO | GPIO [8-in, 8-out] |
| Remote Management | Intel AMT Intel vPro |
| Expansion | |
| M.2 | 3x M.2 Expansion Slots |
| 1x M.2 B-Key [PCIe/USB/SIM] [2242/3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4] [2242/2260/2280/22110/25110] | |
| PCIe | 7x PCIe Slots |
| 2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen5] 2x PCIe [x4 Slot] [Gen4] 3x PCIe [x1 Slot] [Gen3] | |
| SIM Slots | 1x SIM Slots |
| Wireless Connectivity | Optional 4G/5G Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 8x SATA Ports |
| NVMe | NVMe SSD Support |
| RAID | RAID 0 (Striping) RAID 1 (Mirroring) RAID 5 (Striping & Distributed Parity) RAID 10 (Mirroring & Striping) |
| Power | |
| Power Input | ATX Power Supply [8+24 Pin] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Operating Temperature | -20°C to 70°C [-4°F to 158°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 90% (Non-condensing) |
| Certification | CE FCC |
- IMB-1714 Datasheet Download
Official ASRock Industrial USA Distributor
Things Embedded is an official ASRock Industrial USA distributor, supplying the IMB-1714 configured for USA industrial projects. Within the ASRock Industrial range the IMB-X1714 is the W680 version with ECC DDR5 and two M.2 M keys, and the IMB-1713 trades Gen 5 bandwidth for four PCI slots.
With PCIe Gen 5 slots the IMB-1714 sits among our industrial ATX motherboards and our Intel Alder Lake products. Where a machine needs Gen 5 bandwidth for a GPU, three LAN ports and eight SATA drives, this is the model to specify.
