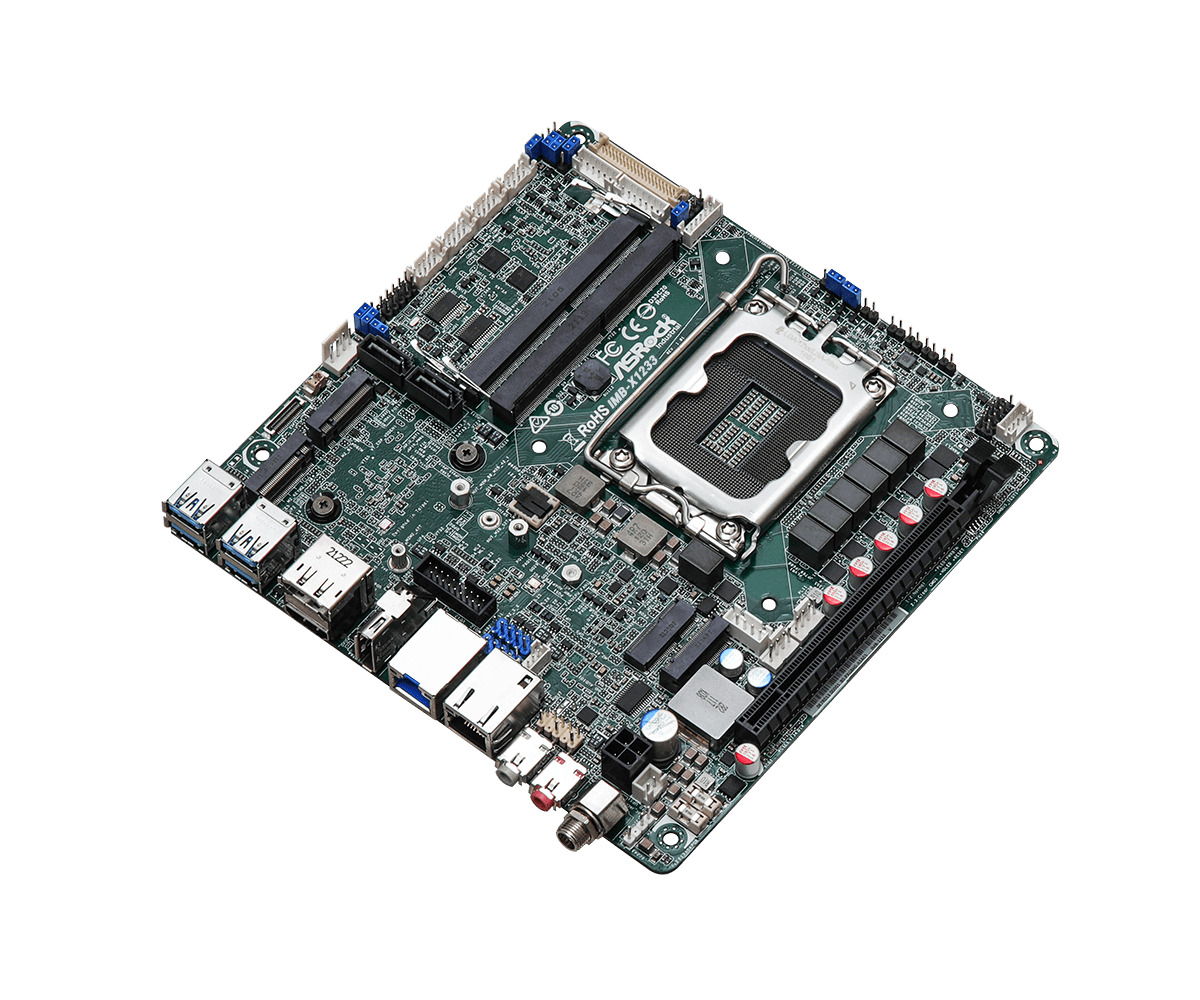

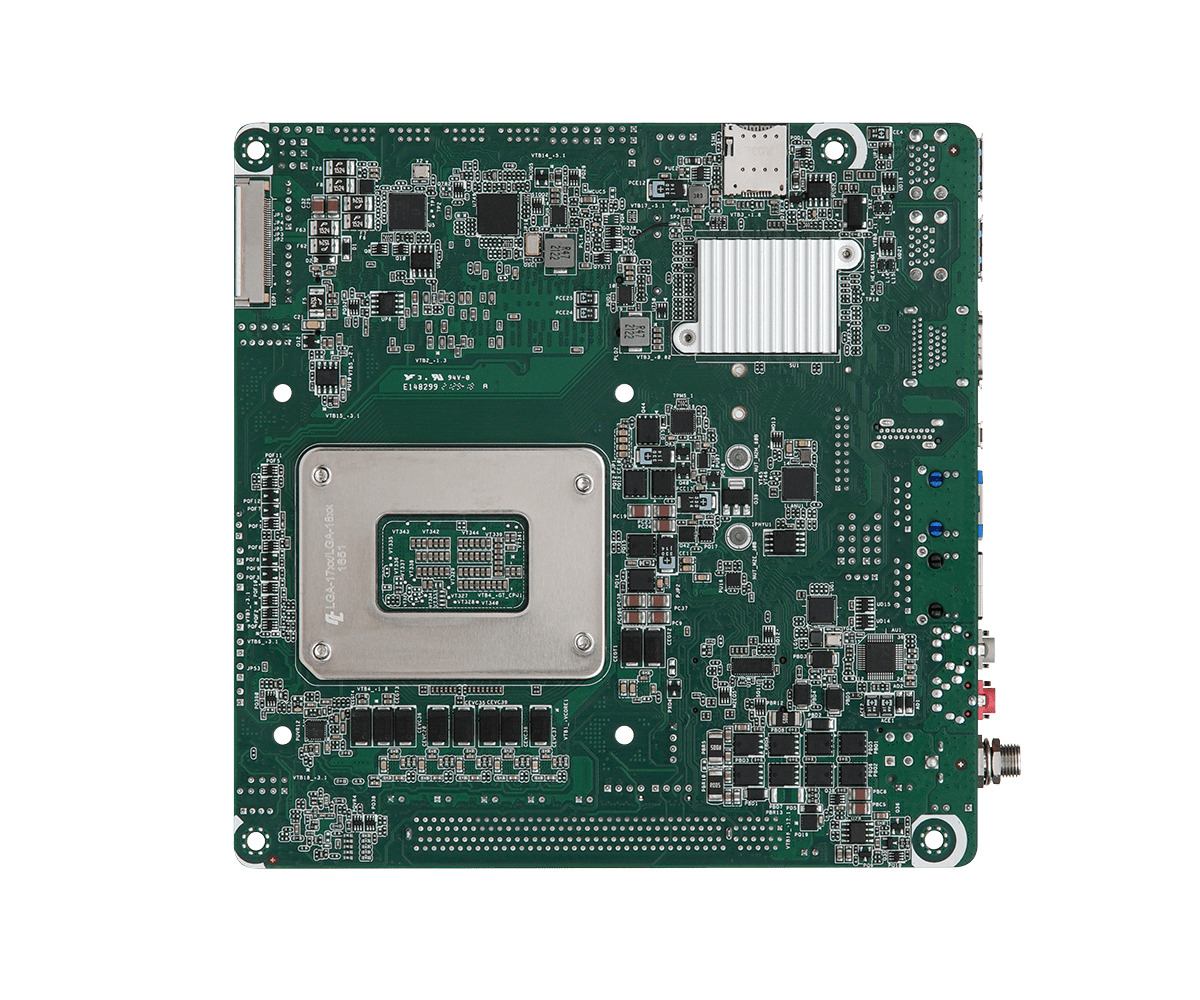

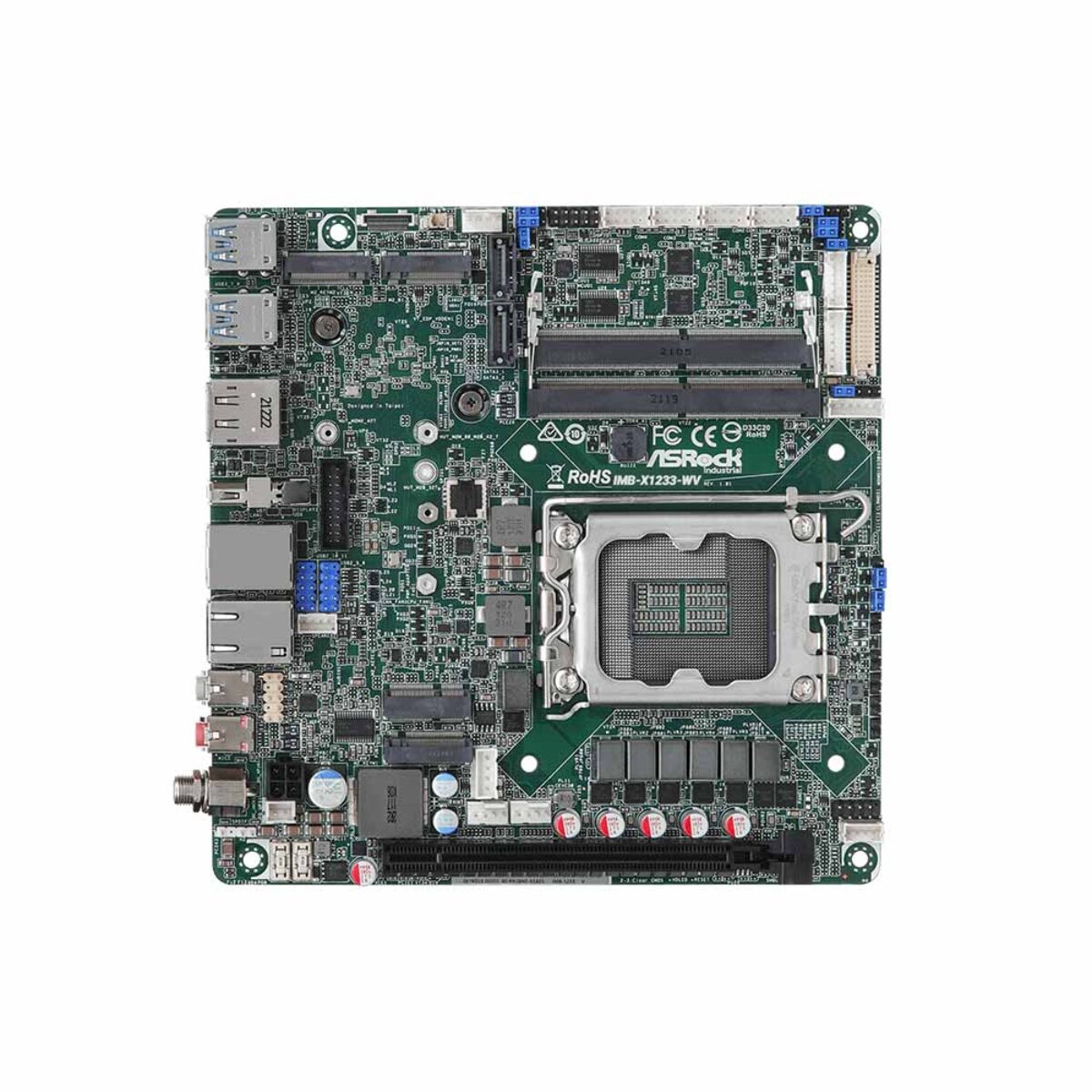

ASRock Industrial IMB-X1233-WV Intel Core Series 2 and 14th, 13th and 12th Gen Light Industrial Mini-ITX Motherboard

Processor Brand: IntelIntel
Operating Software: LinuxLinux
Operating Software: WindowsWindows
Multi Display Support: Quad Display SupportQuad Display Support
Ethernet Speed: 2.5GbE2.5GbE
USB Generation: USB3USB3
M.2: 44x M.2
PCIe: 11x PCIe
SIM Slots: 11x SIM
Connectivity: 4G4G
Connectivity: WirelessWi-Fi
Storage2 RAID RAID: RAIDRAID
Operating Temperature: Extended TemperatureExtended Temp
USA Support Team: +1 407 214 9446 Call
Select section
  • Specifications

IMB-X1233-WV Specifications

Overview
Brand & ModelASRock Industrial IMB-X1233-WV
FeaturesEmbedded
Industrial
Performance
Processor SeriesIntel Core 14th Gen Raptor Lake Refresh
Intel Core Series 2 Bartlett Lake
Intel Core 12th Gen Alder Lake
Intel Core 13th Gen Raptor Lake
Processor ModelsCore 5 211EF
i5-14400F
Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W
Intel Core 5 211E: 2.7~4.9GHz, 10 Cores, 16 Threads, 20MB Cache, 65W
Intel Core 5 211TE: 1.7~4.8GHz, 10 Cores, 16 Threads, 20MB Cache, 45W
Intel Core 5 213PE: 2.7~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 65W
Intel Core 5 213PTE: 2.1~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 45W
Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W
Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W
Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W
Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W
Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W
Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W
Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W
Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W
Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W
Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W
Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i5-13400: 2.5~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W
Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W
Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W
Intel Core i5-14400T: 1.5~4.5GHz, 10 Cores, 16 Threads, 20MB Cache, 35W
Intel Core i5-14401E: 2.5~4.7GHz, 6 Cores, 12 Threads, 24MB Cache, 65W
Intel Core i5-14401TE: 2.0~4.5GHz, 6 Cores, 12 Threads, 24MB Cache, 45W
Intel Core i5-12400: 2.5~4.4GHz, 6 Cores, 12 Threads, 18MB Cache, 65W
Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W
Intel Core i5-14501E: 3.3~5.2GHz, 6 Cores, 12 Threads, 24MB Cache, 65W
Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W
Intel Core i5-14501TE: 2.2~5.1GHz, 6 Cores, 12 Threads, 24MB Cache, 45W
Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W
Intel Core i7-14701E: 2.6~5.4GHz, 8 Cores, 16 Threads, 33MB Cache, 65W
Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W
Intel Core i7-14701TE: 2.1~5.2GHz, 8 Cores, 16 Threads, 33MB Cache, 45W
Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W
Intel Core i9-14901E: 2.8~5.6GHz, 8 Cores, 16 Threads, 36MB Cache, 65W
Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W
Intel Core i9-14901TE: 2.3~5.5GHz, 8 Cores, 16 Threads, 36MB Cache, 45W
Intel Core i3-12100: 3.3~4.3GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i3-13100: 3.4~4.5GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W
Intel Core i3-13100T: 2.5~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W
Intel Core i5-12500: 3.0~4.6GHz, 6 Cores, 12 Threads, 18MB Cache, 65W
Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W
Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W
Intel Core i5-13500: 2.5~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 65W
Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W
Intel Core i5-13500T: 1.6~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 35W
Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W
Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W
Intel Core i7-12700: 2.1~4.9GHz, 12 Cores, 20 Threads, 25MB Cache, 65W
Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W
Intel Core i7-13700: 2.1~5.2GHz, 16 Cores, 24 Threads, 30MB Cache, 65W
Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W
Intel Core i7-13700T: 1.4~4.9GHz, 16 Cores, 24 Threads, 30MB Cache, 35W
Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W
Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W
Intel Core i9-12900: 2.4~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W
Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W
Intel Core i9-13900: 2.0~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W
Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W
Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W
Performance Cores4 Cores
6 Cores
8 Cores
10 Cores
12 Cores
14 Cores
16 Cores
20 Cores
24 Cores
Memory2x DDR4 3200MHz SO-DIMM Slots, 64GB
ChipsetIntel W680
PCIe Gen SupportPCIe 4.0
BIOSAMI
Secure Crypto ProcessorTPM 2.0 (Trusted Platform Module)
Operating SystemLinux
Windows 11
Graphics
Display StandardsDisplay Port 1.4a
DP++
Dual Channel LVDS
eDP 1.4b
HDMI 2.0b
Multi Display SupportQuad Display Support
Display Outputs1x eDP
1x HDMI
1x LVDS
2x Display Ports
Audio
CodecRealtek ALC897, HD Audio
InterfaceLine-Out
Mic-In

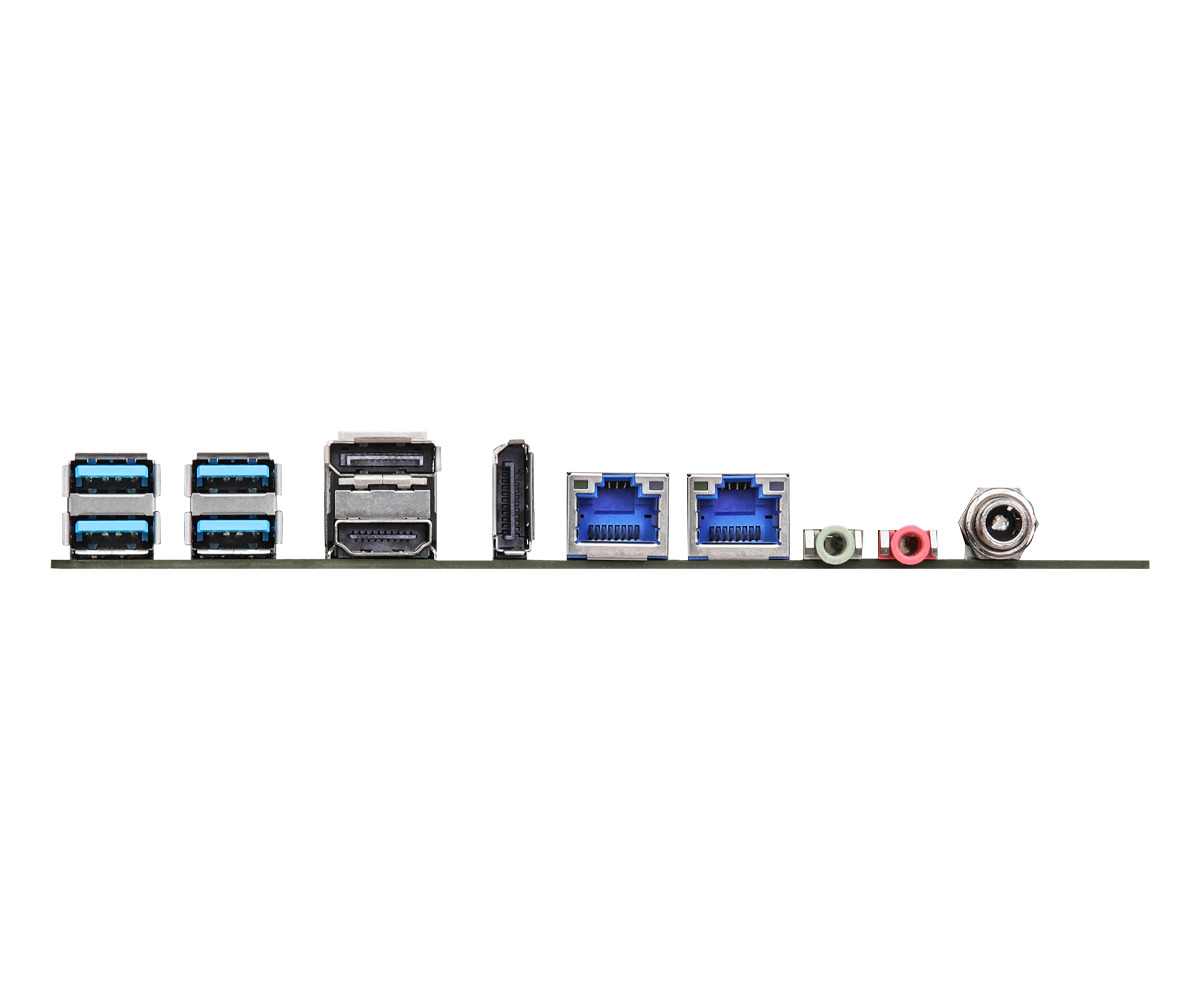

I/O
Ethernet2x Ethernet Ports
2x 2.5 GbE LAN [RJ45]
LAN ControllersIntel I225LM
Intel I225V
Intel I226LM
Intel I226V
USB10x USB Ports
2x USB 3.2 Gen 1 [Board]
4x USB 2.0 [Board]
4x USB 3.2 Gen 2 [Type A]
Remote ManagementIntel AMT
Intel vPro
Expansion
M.24x M.2 Expansion Slots
1x M.2 B-Key [PCIe x2/USB 3.0/SATA] [3042/3052]
1x M.2 E-Key [PCIe x1/USB 2.0] [2230]
1x M.2 M-Key [PCIe x4/SATA] [2242/2260/2280]
1x M.2 M-Key [PCIe x4/SATA] [2242]
PCIe1x PCIe Slots
1x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4]
SIM Slots1x SIM Slots
Wireless ConnectivityOptional 4G/5G
Optional WiFi/Bluetooth
Storage
Storage2x M.2 SSD
2x SATA Ports
RAIDRAID 0 (Striping)
RAID 1 (Mirroring)
RAID 5 (Striping & Distributed Parity)
RAID 10 (Mirroring & Striping)
Power
Power Input12-28V DC, 4-Pin Wafer/Barrel Connector
Power Support ModesAT: PWR on Input
ATX: Press Button to Power
Environmental Conditions
Operating Temperature-20°C to 70°C [-4°F to 158°F]
Storage Temperature-40°C to 85°C [-40°F to 185°F]
Humidity5% - 90% (Non-condensing)
Mechanical Properties
Dimensions170mm x 170mm (6.69" x 6.69")
