ASRock Industrial IMB-X1314 Micro-ATX Motherboard for Bartlett Lake and 14th Gen Intel Core LGA1700 with W680, ECC and Triple 2.5GbE

The IMB-X1314 is ASRock Industrial's Micro-ATX motherboard for 13th and 12th Gen Intel Core processors up to 125 W on the W680 chipset, with ECC or non-ECC DDR4 to 128 GB, three 2.5GbE ports, four PCIe Gen 4 slots and eight SATA ports. It suits compact servers and PCs where memory errors matter.

W680 with ECC Memory: Four ECC or non-ECC DDR4-3200 Long-DIMM slots take up to 128 GB, so memory errors are corrected rather than crashing the software.
Three 2.5GbE Ports: Three Intel I225LM 2.5GbE ports, with AMT and vPro on LAN1, keep separate networks apart.
Four PCIe Gen 4 Slots: An x16 slot that splits to x8/x8 with a second slot, plus two PCIe x4 (Gen 4), for GPUs and I/O cards.
Two M.2 and Eight SATA: M.2 M keys on PCIe Gen4 x4 (up to 25110) and PCIe Gen3 x4, plus eight SATA ports, with VMD RAID 0/1/5/10.
20 Gbps USB-C and Six COM: A USB 3.2 Gen 2×2 Type-C at 20 Gbps, five USB 3.2 Gen 2 and six COM ports cover fast drives and serial equipment.

Datasheet

Intel

Linux

Windows

Quad Display Support

2.5GbE

Type C

4x M.2

4x PCIe

1x SIM

Wi-Fi

NVMe SSD

Extended Temp

Overview Specifications Downloads

USA Support Team: +1 407 214 9446 Call

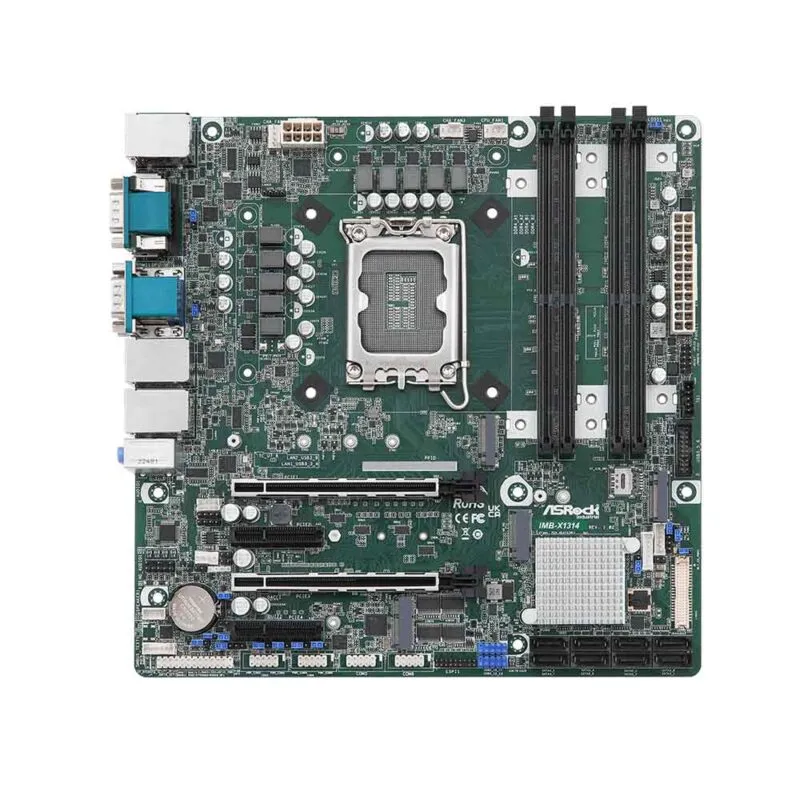

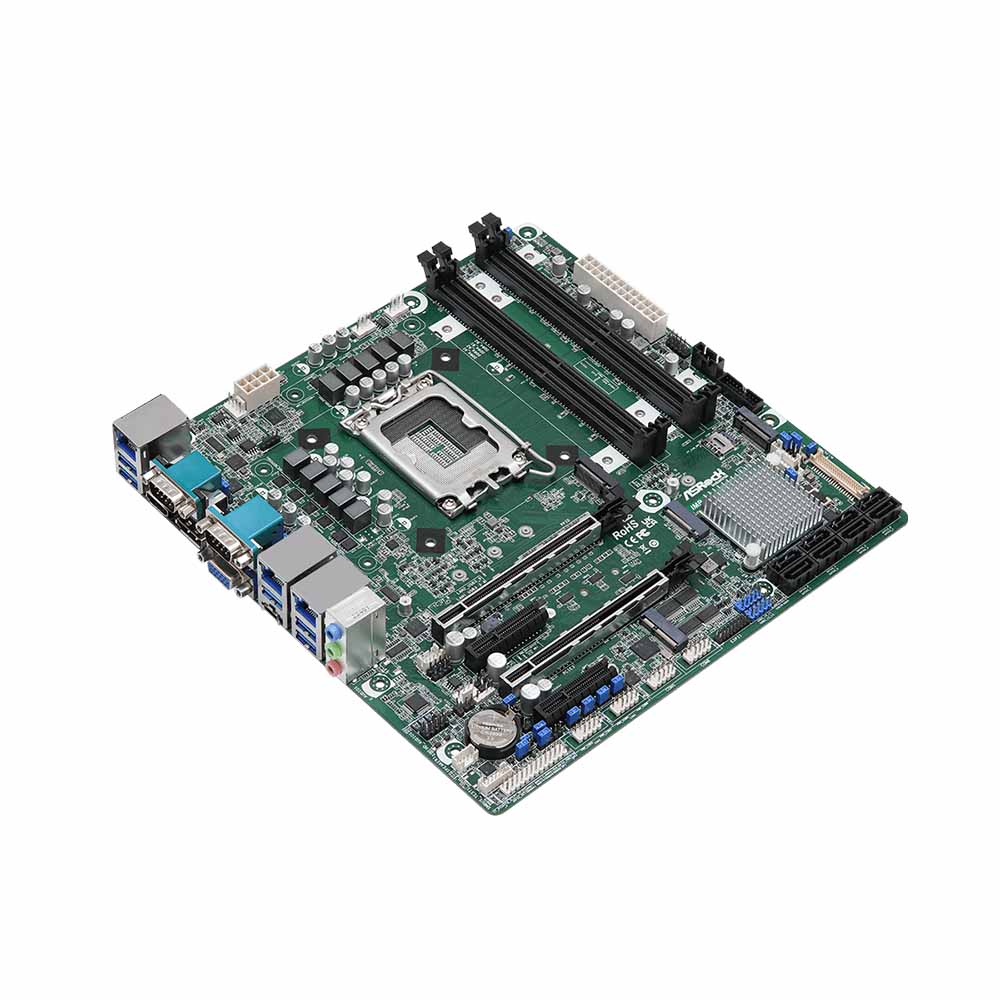

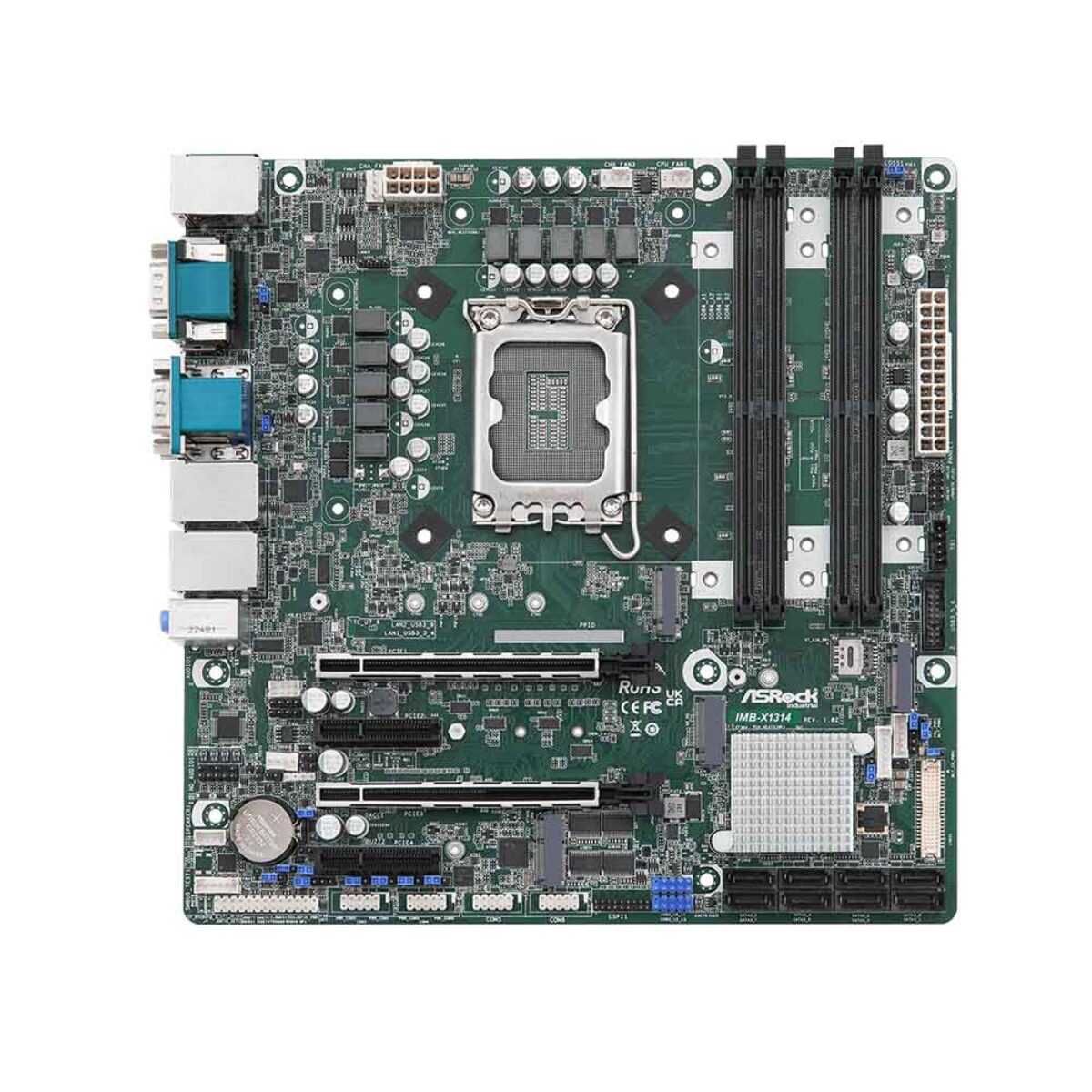

IMB-X1314 Overview

Machines that log data or run control software around the clock need memory that corrects its own errors and room for add-in cards. The IMB-X1314 is ASRock Industrial’s Micro-ATX motherboard for that brief: an LGA1700 board on the Intel W680 chipset for 13th and 12th Gen Intel Core processors, with ECC memory support and three 2.5GbE ports.

The socket takes 13th and 12th Gen (Raptor Lake-S and Alder Lake-S) Intel Core processors up to 125 W on the Intel W680 chipset. The four ECC or non-ECC DDR4-3200 Long-DIMM slots run in dual channel for up to 128 GB, 32 GB per module. Intel UHD Graphics drives HDMI 2.0b and DisplayPort 1.4a at up to 4096 x 2160 at 60 Hz, VGA at up to 1920 x 1200 and an internal dual-channel LVDS connector, with up to four displays at once.

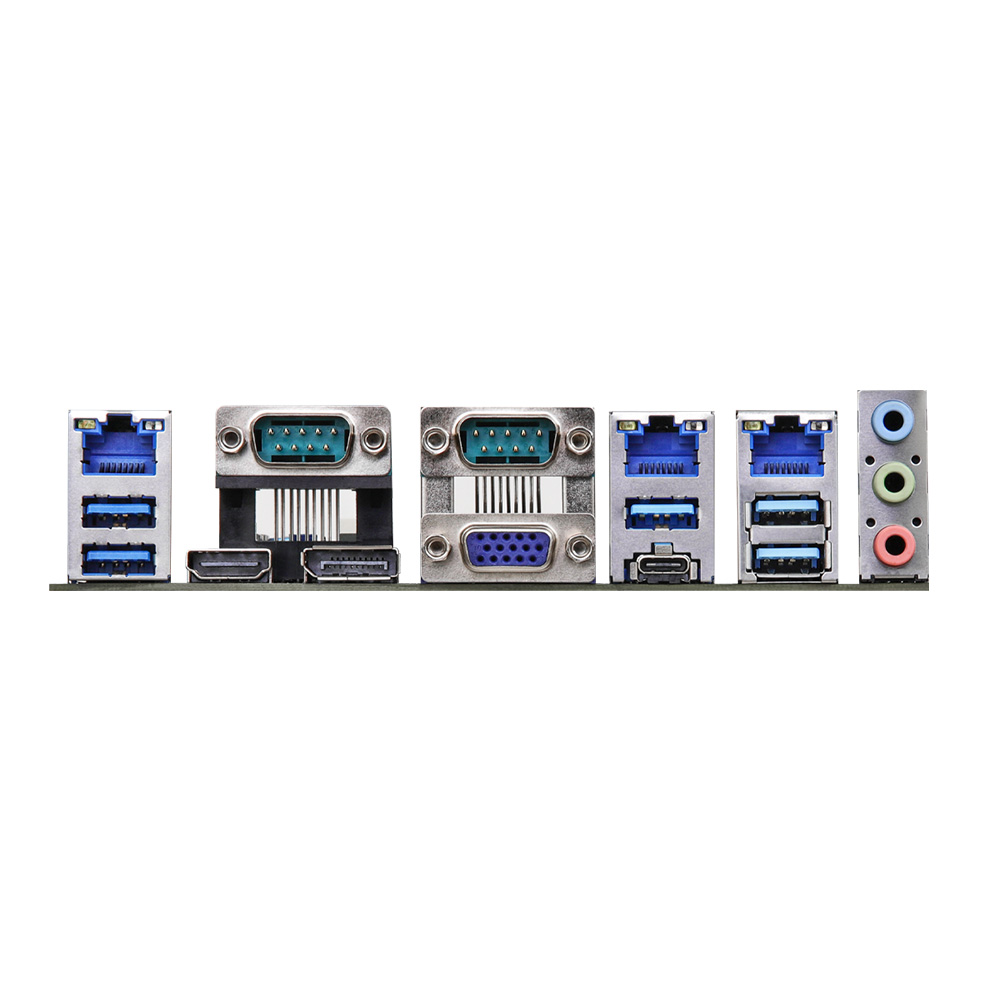

Three Intel I225LM controllers give three 2.5GbE ports, with AMT and vPro on LAN1. The rear carries five USB 3.2 Gen 2 ports, a USB 3.2 Gen 2×2 Type-C at 20 Gbps and two RS-232/422/485 ports, and internal headers add two USB 3.2 Gen 1, four USB 2.0, four RS-232, a parallel port shared with 8-in/8-out GPIO and PS/2. Expansion covers two PCIe Gen 4 slots (one x16, or x8/x8 across both) and two PCIe x4 (Gen 4); an x8 or x16 card in the x4 slots limits the second M.2 M key and the E key. Storage is an M.2 M key up to 25110 on PCIe Gen4 x4, a second M.2 M key on PCIe Gen3 x4 and eight SATA ports with Intel VMD RAID 0/1/5/10, and M.2 B and E keys take 4G/5G and Wi-Fi. The IMB-1314 is the Q670 version with two LAN ports and non-ECC memory.

Power comes from an ATX 24+8-pin supply with AT and ATX modes. The board operates from 0 to 70 °C and stores from -40 to 85 °C, with a TPM 2.0 chip, a 256-segment watchdog timer and Realtek ALC897 audio with line-in, line-out and mic-in. It measures 244 x 244 mm on the Micro-ATX footprint.

IMB-X1314 Specifications

Overview
Brand & Model	ASRock Industrial IMB-X1314
Features	Embedded Industrial
Performance
Processor Series	Intel Core 14th Gen Raptor Lake Refresh Intel Core Series 2 Bartlett Lake Intel Core 12th Gen Alder Lake Intel Core 13th Gen Raptor Lake
Processor Models	Core 5 211EF i5-14400F Intel Core 3 201E: 3.6~4.8GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core 3 201TE: 2.9~4.6GHz, 4 Cores, 8 Threads, 12MB Cache, 45W Intel Core 5 211E: 2.7~4.9GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core 5 211TE: 1.7~4.8GHz, 10 Cores, 16 Threads, 20MB Cache, 45W Intel Core 5 213PE: 2.7~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 213PTE: 2.1~5.2GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 5 221E: 2.7~5.2GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core 5 221TE: 1.8~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 45W Intel Core 5 223PE: 2.9~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 65W Intel Core 5 223PQE: 4.0~5.5GHz, 8 Cores, 16 Threads, 24MB Cache, 125W Intel Core 5 223PTE: 2.3~5.4GHz, 8 Cores, 16 Threads, 24MB Cache, 45W Intel Core 7 251E: 2.1~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core 7 251TE: 1.4~5.4GHz, 24 Cores, 32 Threads, 36MB Cache, 45W Intel Core 7 253PE: 2.5~5.5GHz, 10 Cores, 20 Threads, 33MB Cache, 65W Intel Core 7 253PQE: 3.5~5.7GHz, 10 Cores, 20 Threads, 33MB Cache, 125W Intel Core 7 253PTE: 1.8~5.4GHz, 10 Cores, 20 Threads, 33MB Cache, 45W Intel Core 9 273PE: 2.3~5.7GHz, 12 Cores, 24 Threads, 36MB Cache, 65W Intel Core 9 273PQE: 3.4~5.9GHz, 12 Cores, 24 Threads, 36MB Cache, 125W Intel Core 9 273PTE: 1.4~5.5GHz, 12 Cores, 24 Threads, 36MB Cache, 45W Intel Core i3-14100: 3.5~4.7GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-14100T: 2.7~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-13400: 2.5~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-13400E: 2.4~4.6GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400: 2.5~4.7GHz, 10 Cores, 16 Threads, 20MB Cache, 65W Intel Core i5-14400T: 1.5~4.5GHz, 10 Cores, 16 Threads, 20MB Cache, 35W Intel Core i5-14401E: 2.5~4.7GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14401TE: 2.0~4.5GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i5-12400: 2.5~4.4GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-14500: 2.6~5.0GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-14501E: 3.3~5.2GHz, 6 Cores, 12 Threads, 24MB Cache, 65W Intel Core i5-14500T: 1.7~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-14501TE: 2.2~5.1GHz, 6 Cores, 12 Threads, 24MB Cache, 45W Intel Core i7-14700: 2.1~5.4GHz, 20 Cores, 28 Threads, 33MB Cache, 65W Intel Core i7-14701E: 2.6~5.4GHz, 8 Cores, 16 Threads, 33MB Cache, 65W Intel Core i7-14700T: 1.3~5.2GHz, 20 Cores, 28 Threads, 33MB Cache, 35W Intel Core i7-14701TE: 2.1~5.2GHz, 8 Cores, 16 Threads, 33MB Cache, 45W Intel Core i9-14900: 2.0~5.8GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-14901E: 2.8~5.6GHz, 8 Cores, 16 Threads, 36MB Cache, 65W Intel Core i9-14900T: 1.1~5.5GHz, 24 Cores, 32 Threads, 36MB Cache, 35W Intel Core i9-14901TE: 2.3~5.5GHz, 8 Cores, 16 Threads, 36MB Cache, 45W Intel Core i3-12100: 3.3~4.3GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100E: 3.2~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-12100TE: 2.1~4.0GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100: 3.4~4.5GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100E: 3.3~4.4GHz, 4 Cores, 8 Threads, 12MB Cache, 60W Intel Core i3-13100T: 2.5~4.2GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i3-13100TE: 2.4~4.1GHz, 4 Cores, 8 Threads, 12MB Cache, 35W Intel Core i5-12500: 3.0~4.6GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500E: 2.9~4.5GHz, 6 Cores, 12 Threads, 18MB Cache, 65W Intel Core i5-12500TE: 1.9~4.3GHz, 6 Cores, 12 Threads, 18MB Cache, 35W Intel Core i5-13500: 2.5~4.8GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500E: 2.4~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 65W Intel Core i5-13500T: 1.6~4.6GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i5-13500TE: 1.3~4.5GHz, 14 Cores, 20 Threads, 24MB Cache, 35W Intel Core i7-12700E: 2.1~4.8GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700: 2.1~4.9GHz, 12 Cores, 20 Threads, 25MB Cache, 65W Intel Core i7-12700K: 3.6~5.0GHz, 12 Cores, 20 Threads, 25MB Cache, 125W Intel Core i7-12700TE: 1.4~4.6GHz, 12 Cores, 20 Threads, 25MB Cache, 35W Intel Core i7-13700: 2.1~5.2GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700E: 1.9~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i7-13700T: 1.4~4.9GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i7-13700TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-12900E: 2.3~5.0GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900: 2.4~5.1GHz, 16 Cores, 24 Threads, 30MB Cache, 65W Intel Core i9-12900K: 3.2~5.2GHz, 16 Cores, 24 Threads, 30MB Cache, 125W Intel Core i9-12900TE: 1.1~4.8GHz, 16 Cores, 24 Threads, 30MB Cache, 35W Intel Core i9-13900: 2.0~5.6GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900E: 1.8~5.2GHz, 24 Cores, 32 Threads, 36MB Cache, 65W Intel Core i9-13900TE: 1.0~5.0GHz, 24 Cores, 32 Threads, 36MB Cache, 35W
Performance Cores	4 Cores 6 Cores 8 Cores 10 Cores 12 Cores 14 Cores 16 Cores 20 Cores 24 Cores
Memory	4x DDR4 3200MHz LONG-DIMM Slots, 128GB
Chipset	Intel W680
BIOS	AMI
Secure Crypto Processor	TPM 2.0 (Trusted Platform Module)
Operating System	Linux Windows 11
Graphics
Integrated GPU	Intel UHD Series
Display Standards	Display Port 1.4a Dual Channel LVDS HDMI 2.0b
Multi Display Support	Quad Display Support
Display Outputs	1x Display Port 1x HDMI 1x LVDS 1x VGA
Audio
Codec	Realtek ALC897, HD Audio
Interface	Line-In Line-Out Mic-In
I/O
Ethernet	3x Ethernet Ports
	3x 2.5 GbE LAN [RJ45]
LAN Controllers	Intel I225LM Intel I225V Intel I226LM Intel I226V
USB	12x USB Ports
	1x USB 3.2 Gen 2x2 [Type C] 2x USB 3.2 Gen 1 [Board] 4x USB 2.0 [Board] 5x USB 3.2 Gen 2 [Type A]
Serial	6x Serial Ports
	2x RS232/422/485 [DB9] 4x RS232/422/485 [Board]
GPIO	GPIO [8-in, 8-out]
Remote Management	Intel AMT Intel vPro
Expansion
M.2	4x M.2 Expansion Slots
	1x M.2 B-Key [PCIe/USB] [3042/3052] 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4] [2242/2260/2280] 1x M.2 M-Key [PCIe x4] [25110]
PCIe	4x PCIe Slots
	2x PCIe [x16 Slot] [1x16 Signal or 2x8 Signal] [Gen4] 2x PCIe [x4 Slot] [Gen4]
SIM Slots	1x SIM Slots
Wireless Connectivity	Optional 4G/5G Optional WiFi/Bluetooth
Storage
Storage	2x M.2 SSD 8x SATA Ports
NVMe	NVMe SSD Support
RAID	RAID 0 (Striping) RAID 1 (Mirroring) RAID 5 (Striping & Distributed Parity) RAID 10 (Mirroring & Striping)
Power
Power Input	ATX Power Supply [8+24 Pin]
Environmental Conditions
Operating Temperature	-20°C to 70°C [-4°F to 158°F]
Storage Temperature	-40°C to 85°C [-40°F to 185°F]
Humidity	5% - 90% (Non-condensing)
Certification	CE FCC
Mechanical Properties
Weight	1 Kg (2.2 Lbs)
Dimensions	244mm x 36mm x 244mm (9.61" x 1.42" x 9.61")

IMB-X1314 Datasheet Download

Official ASRock Industrial USA Distributor

Things Embedded is an official ASRock Industrial USA distributor, supplying the IMB-X1314 configured for USA industrial projects. Within the ASRock Industrial range the IMB-1314 is the Q670 version for builds that do not need ECC, and the IMB-X1712 moves to ATX with W680, ECC and two PCI slots.

With W680 and ECC memory the IMB-X1314 sits among our ATX and Micro-ATX industrial motherboards and our Alder Lake boards and systems. Where a compact machine needs ECC memory, three LAN ports and add-in cards, this is the model to specify.
