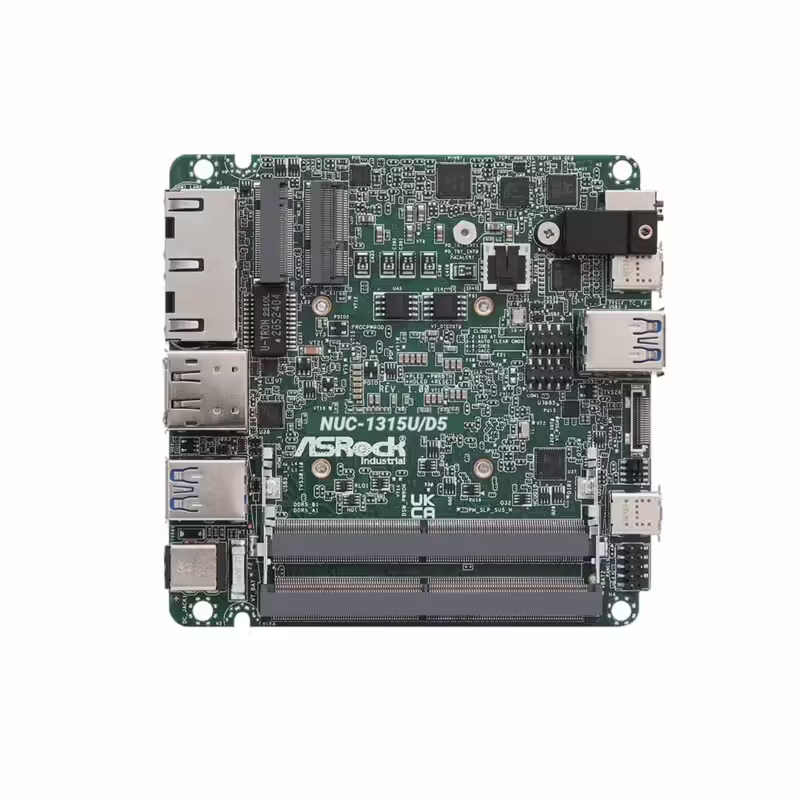

ASRock Industrial NUC-1315U/D5 Industrial Intel Core Raptor Lake i3-1315U NUC Motherboard with DDR5 Memory
Intel
Linux
Windows
Quad Display Support
2.5GbE
USB3
2x M.2
Wi-Fi
NVMe SSD
Extended Temp
CE
FCCNUC-1315U/D5 Specifications
| Overview | |
|---|---|
| Brand & Model | ASRock Industrial NUC-1315U/D5 |
| Features | Compact Embedded Industrial |
| Performance | |
| Processor Series | Intel Core 13th Gen Raptor Lake |
| Processor Models | Intel Core i3-1315U: 1.2~4.5GHz, 6 Cores, 8 Threads, 10MB Cache, 15W |
| Performance Cores | 6 Cores |
| Memory | 2x DDR5 4800MHz SO-DIMM Slot, 32GB |
| BIOS | AMI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | Display Port 1.4a HDMI 2.0b |
| Multi Display Support | Quad Display Support |
| Display Outputs | 1x Display Port 1x HDMI 2x USB Type C |
| Audio | |
| Codec | Realtek ALC256, HD Audio |
| Interface | Line-Out Mic-In |
| I/O | |
| Ethernet | 2x Ethernet Ports |
| 2x 2.5 GbE LAN [RJ45] | |
| LAN Controllers | Intel I226LM Intel I226V |
| USB | 4x USB Ports |
| 2x USB 2.0 [Board] 2x USB 3.2 Gen 2 [Type A] | |
| Serial | 1x Serial Ports |
| 1x RS232/422/485 [Board] | |
| Expansion | |
| M.2 | 2x M.2 Expansion Slots |
| 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] 1x M.2 M-Key [PCIe x4] [2242/2260/2280] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 1x M.2 SSD 1x SATA Port |
| NVMe | NVMe SSD Support |
| Power | |
| Power Input | 12-19V DC [Barrel Connector] |
| Power Support Modes | AT: PWR on Input ATX: Press Button to Power |
| Environmental Conditions | |
| Operating Temperature | -20°C to 70°C [-4°F to 158°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Weight | 0.5 Kg (1.1 Lbs) |
| Dimensions | 104mm x 38mm x 102mm (4.09" x 1.5" x 4.02") |
