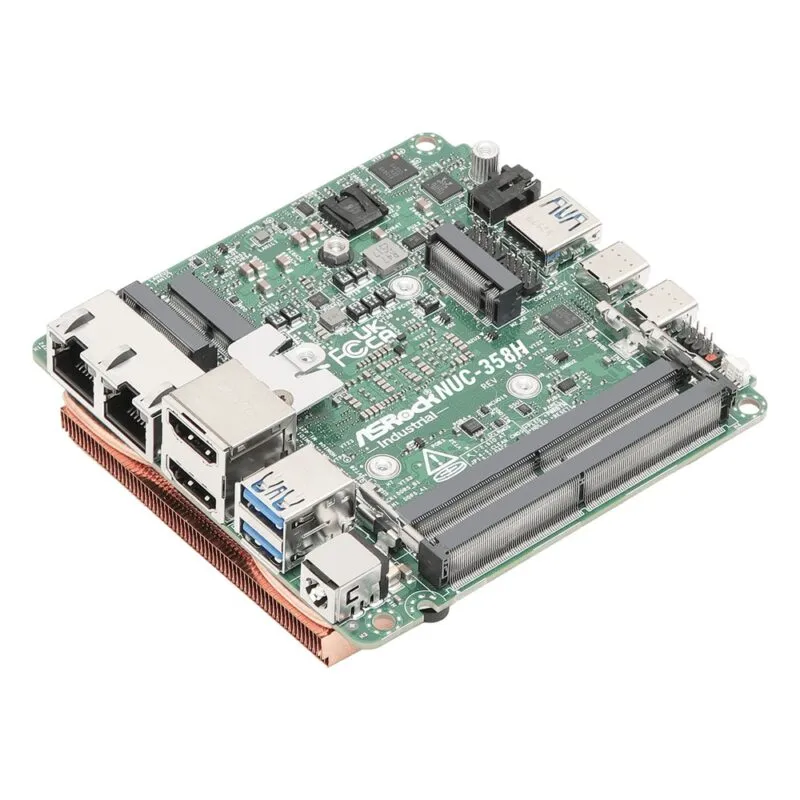

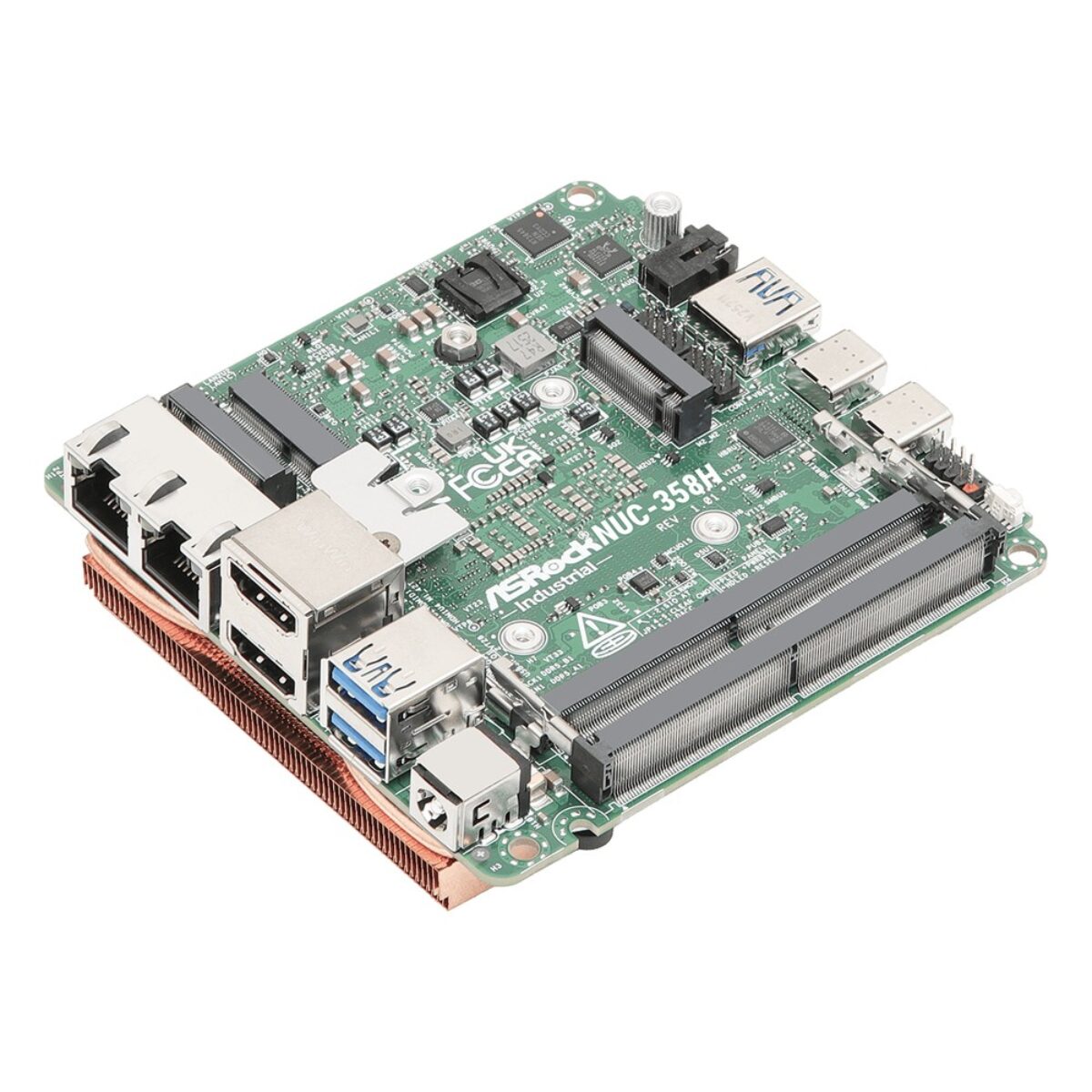

ASRock Industrial NUC-358H Intel Core Ultra X7 358H NUC Motherboard with Arc B390, ECC and Dual 2.5GbE

Vision systems, AI-assisted inspection and multi-screen signage often need the computer to sit inside the equipment’s own enclosure. A NUC motherboard suits that kind of build. The ASRock Industrial NUC-358H is the higher-performance board in the NUC Ultra 300 Motherboard Series series, built around the Intel Core Ultra X7 358H with Arc B390 graphics and an integrated NPU for AI work.

The Core Ultra X7 358H is a Panther Lake-H processor with 16 cores (four performance, eight efficient and four low-power efficient) rated at 25 W. Its Intel NPU is rated at 50 TOPS, so the NUC-358H can run inference models next to general application code, while the Arc B390 graphics drive the screens. Two SO-DIMM sockets take up to 128 GB of DDR5 7200, and every processor in the series supports Intel In-Band ECC. Intel PTT firmware TPM and a watchdog timer are built in.

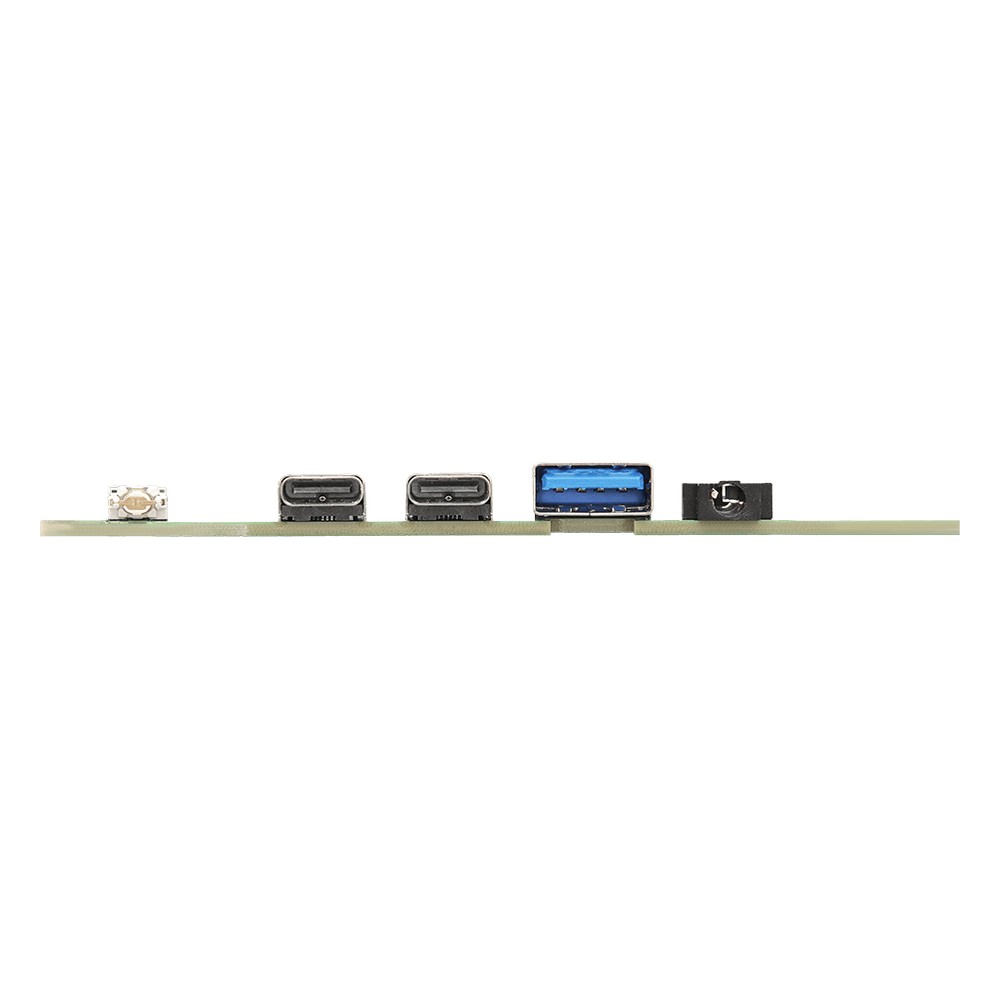

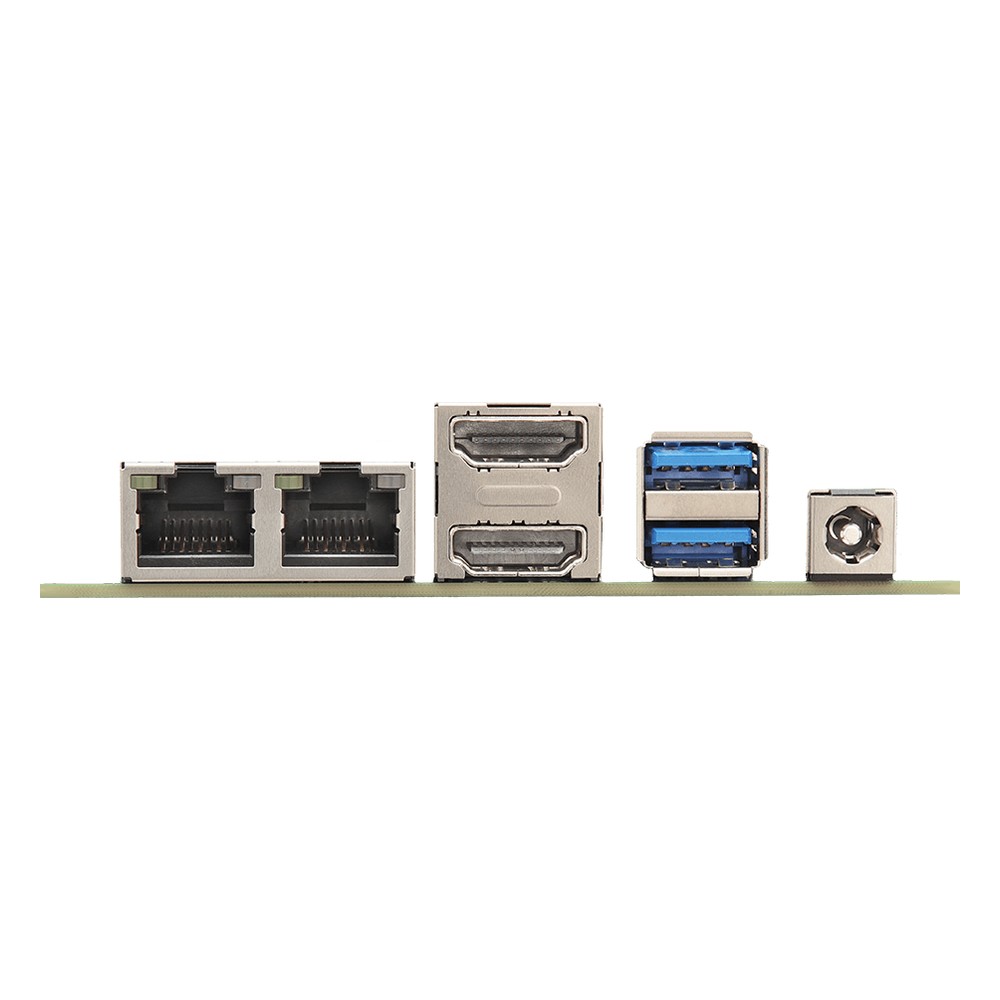

Networking is two Intel 2.5GbE ports, an I226LM on LAN1 and an I226V on LAN2. Up to four displays can run at once: two HDMI 2.1 outputs rated up to 8K at 60 Hz, DisplayPort 2.1 through a USB4 port with Thunderbolt 4 support, and DisplayPort 1.4a through a USB 3.2 Type-C port. Three USB 3.2 Gen2 Type-A ports, a headphone and microphone combo jack, two internal USB 2.0 and one internal RS-232/422/485 header complete the I/O. Storage runs on two M.2 Key M sockets, one at PCIe Gen5 and one at Gen4, with Intel VMD RAID 0 or 1, and an M.2 Key E socket with CNVi takes an optional Wi-Fi and Bluetooth module.

Power is 12 to 24 V DC through a DC jack, with AT and ATX power-on modes. The NUC-358H is rated from -20 °C to 70 °C and carries CE and FCC marks. We supply it configured and tested, with memory, NVMe storage and the OS image fitted. The NUC-325 offers the same board design with a Core Ultra 5 325, the NUC BOX-358H puts the same processor in a complete NUC mini PC, and the NUC-1340P/D5 is the earlier 13th Gen Intel Core NUC motherboard.
