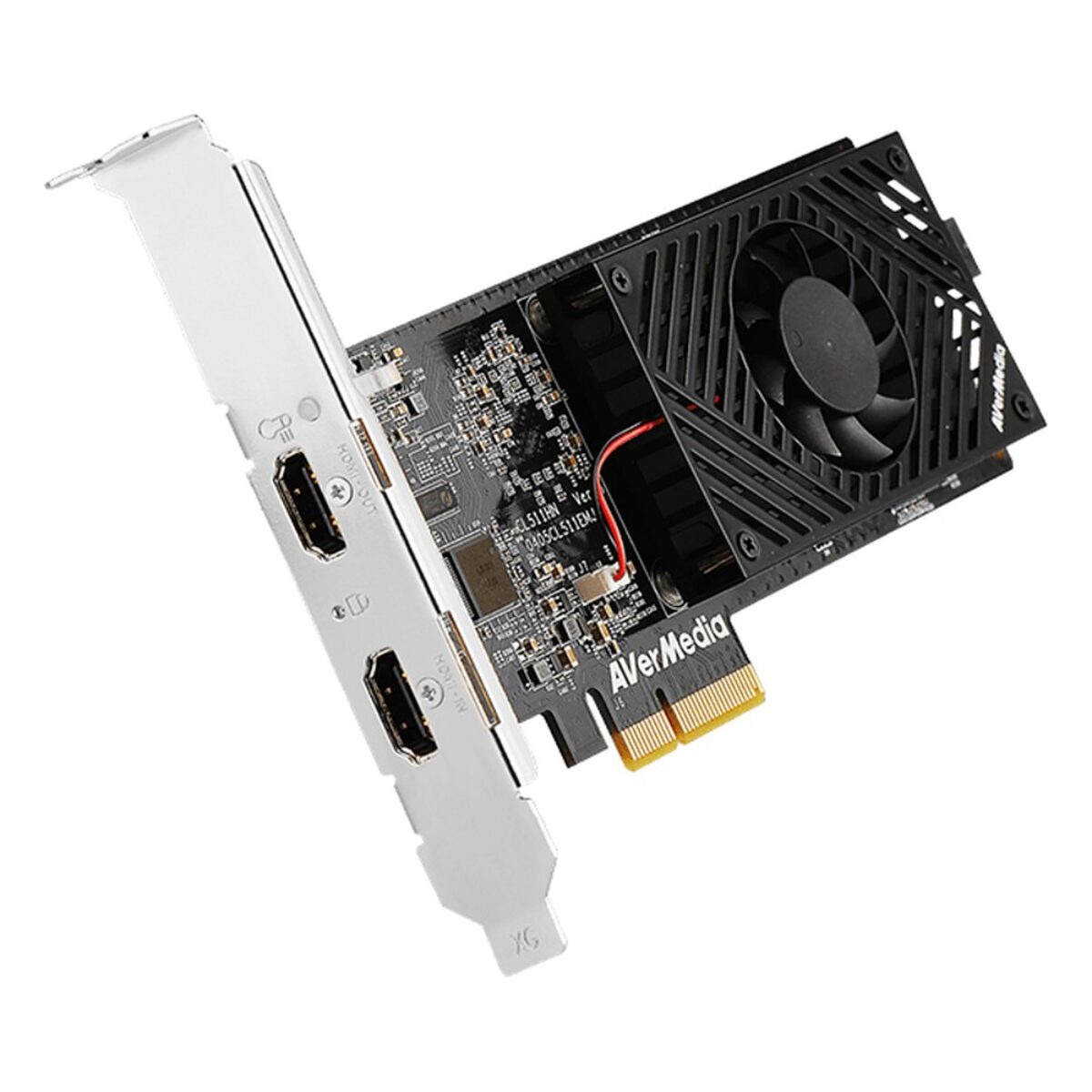

AVerMedia CL511HN PCIe HDMI 2.0 Frame Grabber with 4K60 Input and Pass-Through
PCI Express
Linux
Windows
CE
FCCCL511HN Overview
When a single high-resolution source has to be recorded and still shown on a local display, a grabber with a pass-through output saves a splitter in the signal chain. The AVerMedia CL511HN does that with one HDMI 2.0 input and an HDMI-OUT port on a low-profile PCIe card, and AVerMedia states the pass-through continues with the host powered off. For more sources at lower frame rates, the CL314H1 takes four HDMI inputs, and the CL311-M2 handles HDMI plus analog video.
Input and capture run at up to 4096 x 2160 and 60 fps with HDR, in 8-bit or 10-bit. The CL511HN outputs YUV 4:4:4 (IYU2, AYUV, V410, Y410), YUV 4:2:2 (YUY2, YUYV, UYVY, V210, Y210), YUV 4:2:0 (I420, NV12, YV12, P010) and RGB565, RGB555, RGB24, RGB32 and ARGB, so 10-bit HDR material can stay 10-bit into the application. Audio is HDMI embedded, up to eight-channel LPCM at 32, 44.1 or 48 kHz.
The card uses a PCIe Gen2 x4 interface in a low-profile form factor, with an onboard fan under a shroud to cool the capture electronics. A signal-lock LED on the bracket and an RGB temperature LED make it easier to confirm a live input during commissioning, and multi-card operation is supported. AVerMedia provides Windows drivers and Linux V4L2 support on x64 hosts, which needs a specific FPGA firmware version on the card.
The CL511HN is rated from 0 °C to 55 °C at 5% to 95% RH and carries FCC and CE marks. We supply the CL511HN fitted and tested in the host computer it will run in, with drivers and the required FPGA firmware installed and the pass-through checked before it ships. Speak to our team about the host PC and slot layout for your 4K60 sources.
CL511HN Specifications
| Overview | |
|---|---|
| Brand & Model | AVerMedia CL511HN |
| Performance | |
| Operating System | Linux Windows 10 Windows 7 |
| Video Capture | |
| Host Interface | PCIe [x4, Gen2] |
| Simultaneous Video Inputs | 1 |
| Video Input | 1x HDMI2.0 |
| Video Resolution Input | 4K60 [4096×2160p @ 60/50fps] |
| Video Output | 1x HDMI2.0 |
| Video Resolution Output | 4K60 [4096x2160p @ 60/50/30/25/24fps] |
| Color Format | I420 NV12 4:2:0 8Bit P010 4:2:0 10Bit RGB24 4:4:4 8Bit RGB32 4:4:4 8Bit V410 Y410 YUY2 4:2:2 8Bit YV12 4:2:0 8Bit |
| Audio Input | 1x HDMI Embedded Audio Input |
| Environmental Conditions | |
| Operating Temperature | 0°C to 55°C [32°F to 131°F] |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 151mm x 69mm (5.94" x 2.70") |
- CL511HN Datasheet Download
AVerMedia Edge AI Systems in the USA
Things Embedded supplies the AVerMedia CL511HN in the USA, and we supply the CL511HN with drivers loaded and tested in your host system before it ships. Within the AVerMedia range, the CL314H1 four HDMI 1.4a inputs, with 4K30 on two channels or 1080p60 on all four, and you can compare every model on our AVerMedia frame grabbers page.
For alternatives from our own range, see our video capture cards and frame grabbers.
