Axiomtek GOT315B-ADL-WCD 15.6″ Full HD Industrial Touch Panel PC with Intel Core i3 to i9 LGA1700 and 10-36 V DC

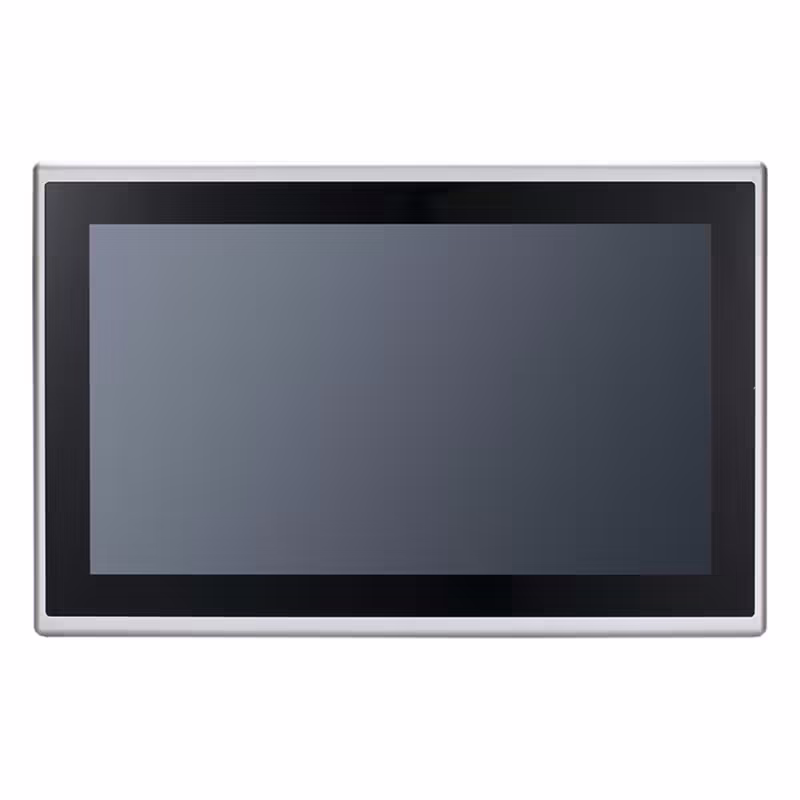

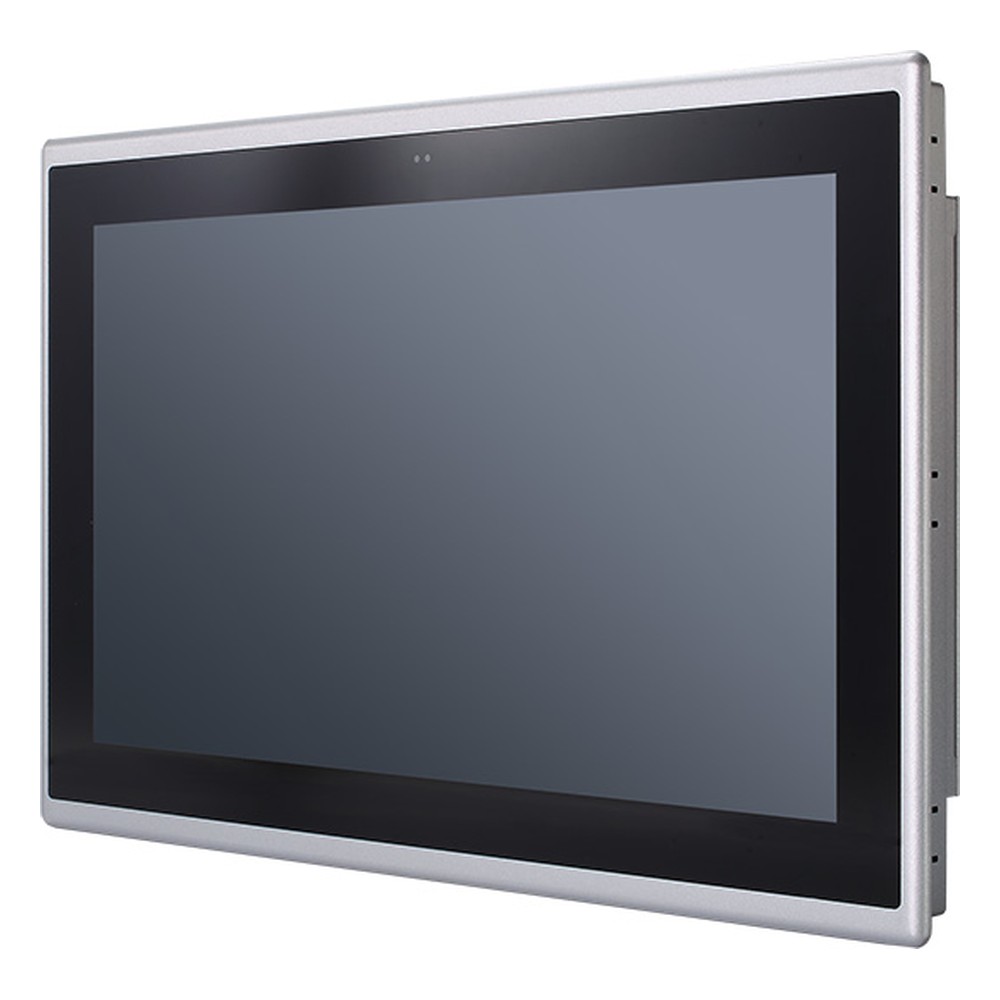

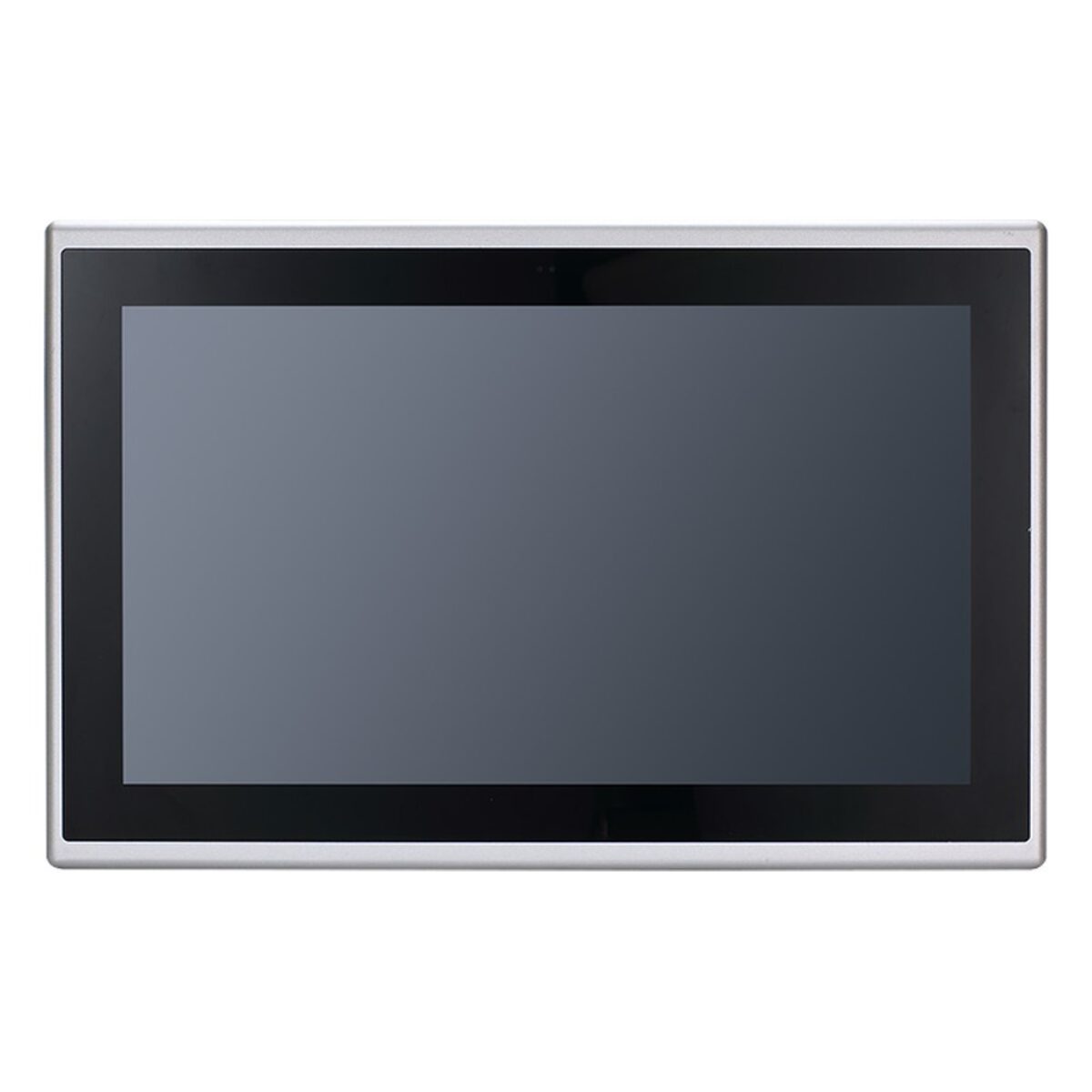

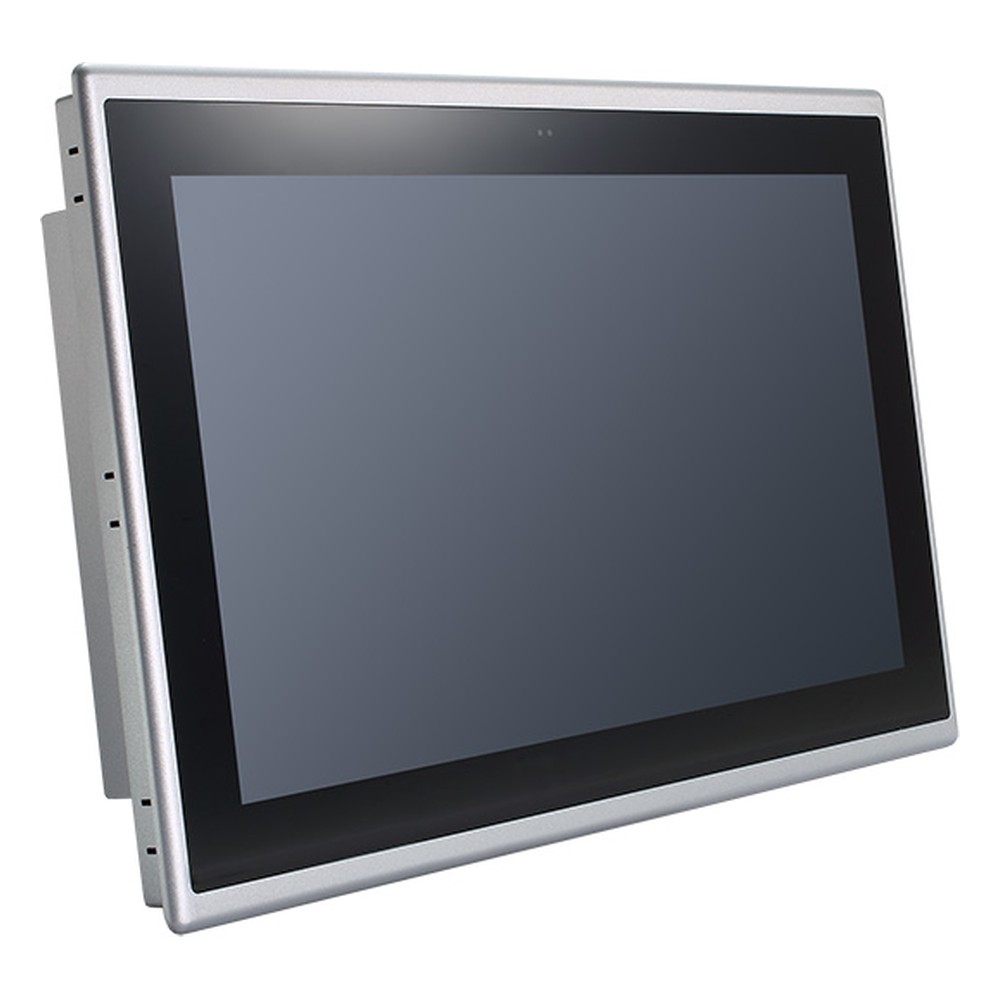

Machine and process HMIs often sit in a cabinet door where a 15 inch class screen fits the space and the front has to survive splashes and cleaning. The GOT315B-ADL-WCD is Axiomtek’s 15.6 inch industrial touch panel PC for those positions: a 15.6″ Full HD TFT LCD at 450 nits with projected capacitive multi-touch, behind a flat IP65-rated front bezel, with fanless cooling and a socketed Intel Core processor.

An Intel H610 chipset with an LGA1700 socket takes 12th, 13th and 14th Gen Intel Core i3, i5, i7 and i9 processors or a Pentium, up to 35 W, for anything from a basic operator screen to SCADA clients. Intel UHD Graphics 770 drives the display. Memory is one DDR4-3200 SO-DIMM socket for up to 32 GB, storage is a swappable 2.5 inch SATA HDD or SSD tray, and TPM 2.0 is on board. Windows 11, Windows 11 IoT or Linux can be installed.

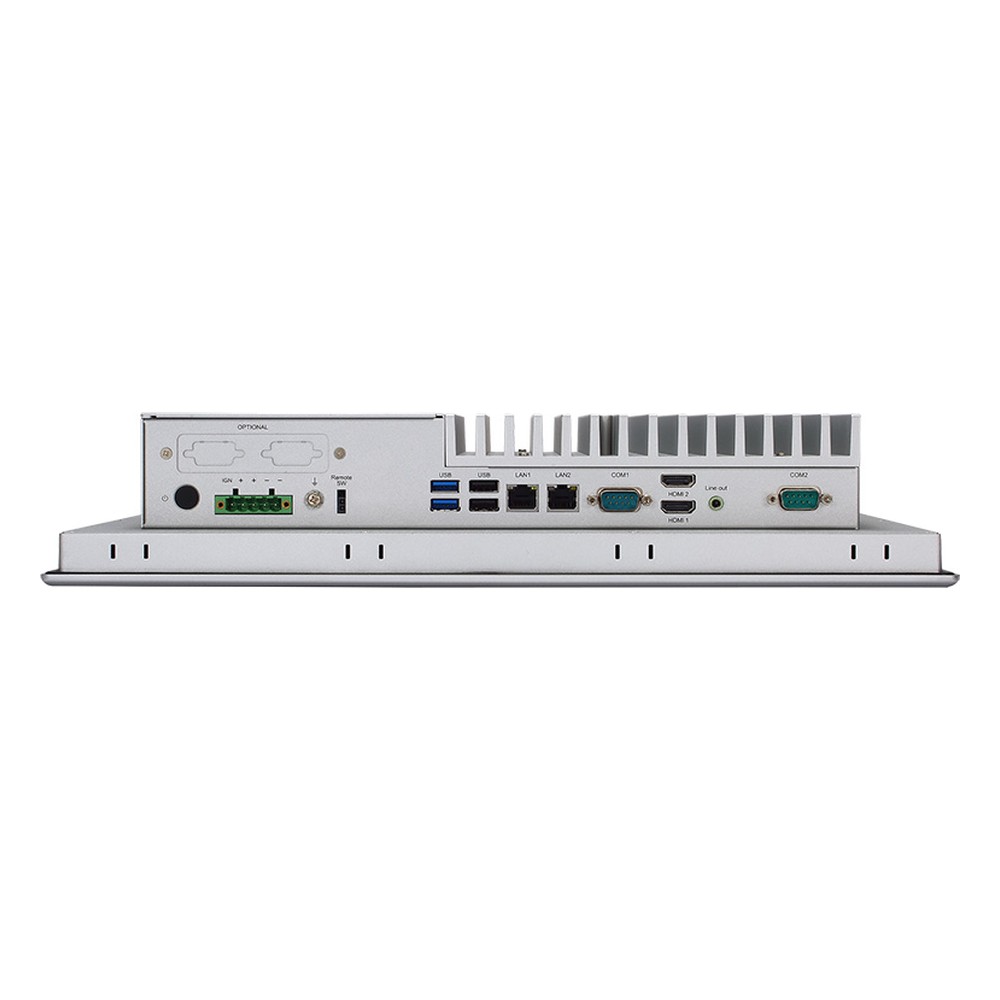

The rear I/O carries an Intel I219-V Gigabit port and an Intel I225-V 2.5GbE port, two USB 3.2 Gen 1 and two USB 2.0 Type-A ports, an RS-232/422/485 port and an RS-232 port on DB9, two HDMI 1.4b outputs and line-out. A flexible I/O window takes COM3, COM4 and digital I/O as a build option. An M.2 Key E 2230 slot suits an optional Wi-Fi module, and a full-size Mini PCIe slot with a nano SIM holder suits an optional 4G LTE kit. The GOT321B-ADL-WCD is the 21.5 inch model on the same board, and the GOT815A-TGL-WCD is the 15.6 inch IP69K stainless steel model.

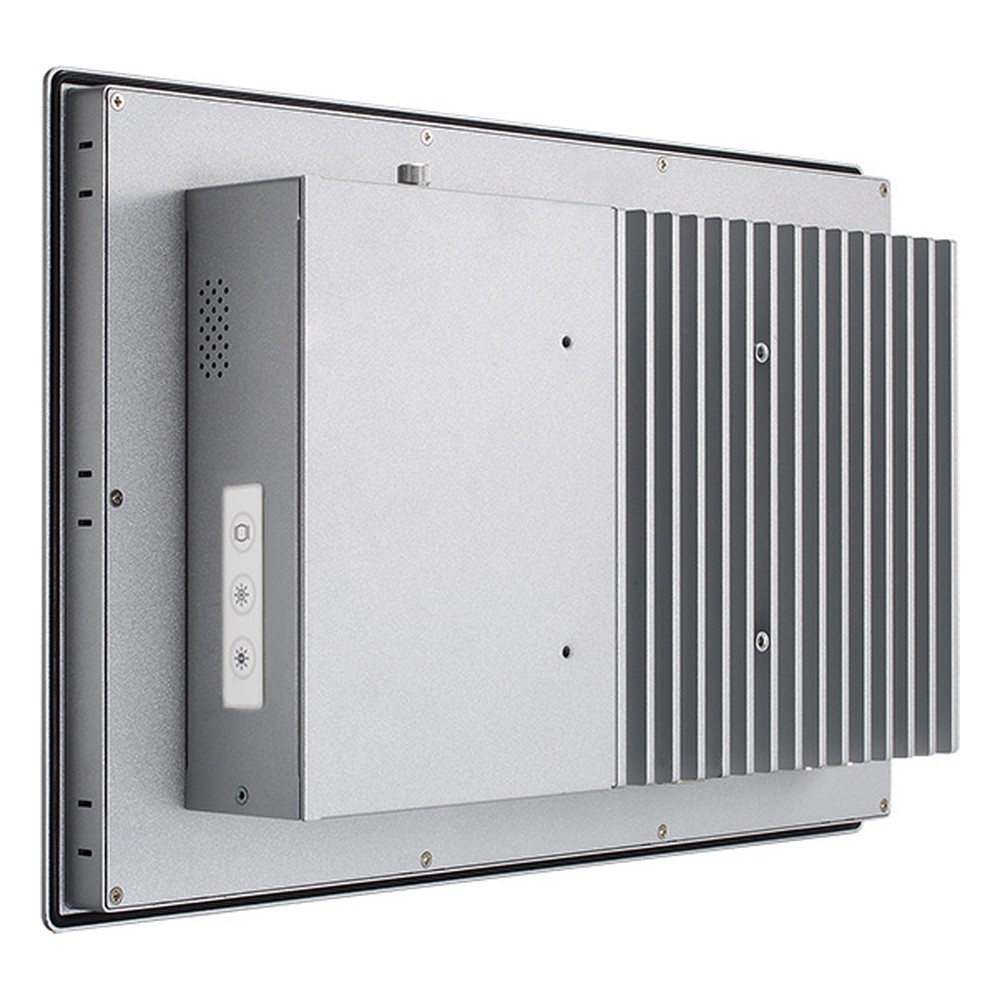

Power is 10 to 36 V DC on a terminal block, with ignition sensing and AT or ATX power modes set in the BIOS. The GOT315B-ADL-WCD runs fanless from −10 °C to 50 °C at 10 to 95% humidity, non-condensing, carries CE Class A, FCC Class A and UKCA marks and meets IEC/EN 61000-6-2 and 61000-6-4. It installs in a panel cut-out with the supplied kit, or on a VESA mount, desk stand or wall. Axiomtek suggests it for factory automation and oil pipe monitoring.
