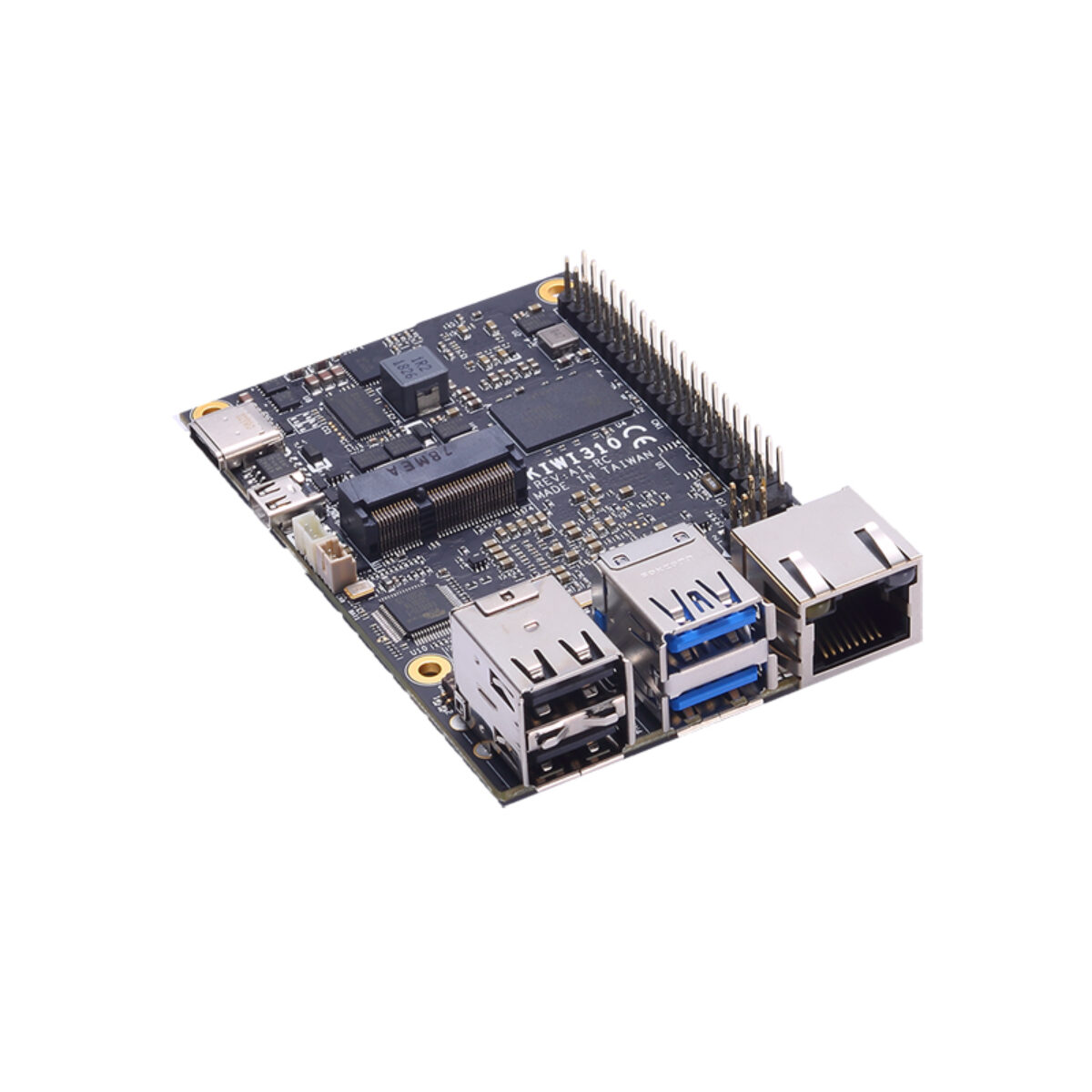

Axiomtek KIWI310 Intel Core N3350 1.8″ SBC
Intel
Linux
Windows
USB3
1x M.2
Wi-Fi
CE
FCCKIWI310 Specifications
| Overview | |
|---|---|
| Brand & Model | Axiomtek KIWI310 |
| Features | Compact Embedded Fanless Industrial |
| Performance | |
| Processor Series | Intel Celeron N Series Apollo Lake |
| Processor Models | Intel Celeron N3350: 1.1~2.4GHz, 2 Cores, 2 Threads, 2MB Cache, 6W |
| Performance Cores | 2 Cores |
| Memory | 4GB Soldered On-board |
| BIOS | AMI |
| Operating System | Linux |
| Graphics | |
| Integrated GPU | Intel HD Series |
| Display Outputs | 1x Mini HDMI |
| I/O | |
| Ethernet | 1x Ethernet Ports |
| 1x GbE LAN [RJ45] | |
| USB | 4x USB Ports |
| 2x USB 2.0 [Type A] 2x USB 3.1 Gen 1 [Type A] | |
| GPIO | GPIO [40-lines] |
| Expansion | |
| M.2 | 1x M.2 Expansion Slots |
| 1x M.2 E-Key [PCIe x1/USB 2.0] [2230] | |
| Wireless Connectivity | Optional WiFi/Bluetooth |
| Storage | |
| Storage | 64GB eMMC |
| Power | |
| Power Input | 12V [USB-C] 15V [USB-C] 20V [USB-C] 9V [USB-C] |
| Environmental Conditions | |
| Thermal Dissipation | Optional Heatsink |
| Operating Temperature | 0°C to 60°C [32°F to 140°F] |
| Humidity | 10% - 95% (Non-condensing) |
| Certification | CE FCC UKCA |
| Mechanical Properties | |
| Weight | 0.1 Kg (0.22 Lbs) |
| Dimensions | 85mm x 56mm x 1.6mm (3.35" x 2.2" x 0.06") |
- KIWI310 Datasheet Download
