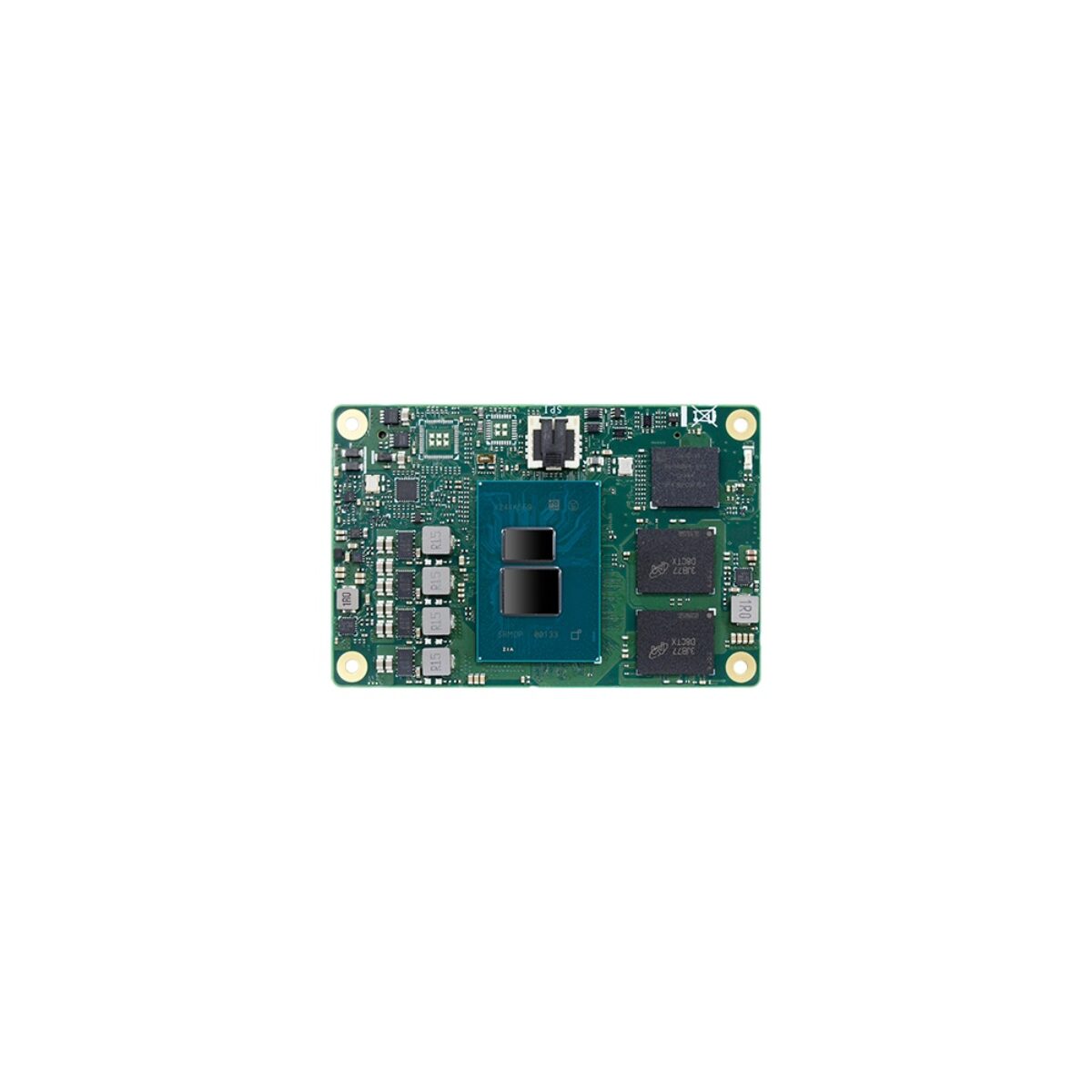

DFI ADN9A2
Intel- Linux
- Windows
Dual Display Support
2.5GbE
USB3- CE
- FCC
ADN9A2 Specifications
| Overview | |
|---|---|
| Brand & Model | DFI ADN9A2 |
| Features | Compact Embedded Expandable |
| Performance | |
| Processor Series | See Variant Specifications |
| Processor Models | See Variant Specifications |
| Performance Cores | See Variant Specifications |
| Memory | See Variant Specifications |
| BIOS | AMD SPI |
| Secure Crypto Processor | TPM 2.0 (Trusted Platform Module) |
| Operating System | Linux Windows 10 Windows 11 |
| Graphics | |
| Integrated GPU | Intel UHD Series |
| Display Standards | DP++ |
| Multi Display Support | Dual Display Support |
| I/O | |
| Ethernet | 1x Ethernet Ports |
| 1x 2.5 GbE LAN [Board] | |
| LAN Controllers | Intel I226IT Intel I226LM |
| USB | 10x USB Ports |
| 8x USB 2.0 [Board] 2x USB 3.2 Gen 2 [Board] | |
| Digital I/O | DIO [8-lines] |
| Environmental Conditions | |
| Operating Temperature | -5°C to 65°C [23°F to 149°F] |
| Storage Temperature | -40°C to 85°C [-40°F to 185°F] |
| Humidity | 5% - 90% (Non-condensing) |
| Certification | CE FCC |
| Mechanical Properties | |
| Dimensions | 84mm x 55mm (3.30” x 2.16”) |
No specifications match your search.
See product variants.
ADN9A2 Variants
| Overview | |
|---|---|
| Brand & Model | DFI ADN9A2-BC86-N97 |
| Performance | |
| Processor Series | Processor N Series Alder Lake |
| Processor Models | N97 |
| Performance Cores | 4 |
| Memory | 8GB Soldered On-board |
| Overview | |
|---|---|
| Brand & Model | DFI ADN9A2-BC86-N50 |
| Performance | |
| Processor Series | Processor N Series Alder Lake |
| Processor Models | N50 |
| Performance Cores | 2 |
| Memory | 8GB Soldered On-board |
| Overview | |
|---|---|
| Brand & Model | DFI ADN9A2-BC86-N305 |
| Performance | |
| Processor Series | Processor N Series Alder Lake |
| Processor Models | i3-N305 |
| Performance Cores | 8 |
| Memory | 8GB Soldered On-board |
| Overview | |
|---|---|
| Brand & Model | DFI ADN9A2-BC16-7425E |
| Performance | |
| Processor Series | Atom X Series Alder Lake |
| Processor Models | x7425E |
| Performance Cores | 4 |
| Memory | 16GB Soldered On-board |
- ADN9A2 Datasheet Download
