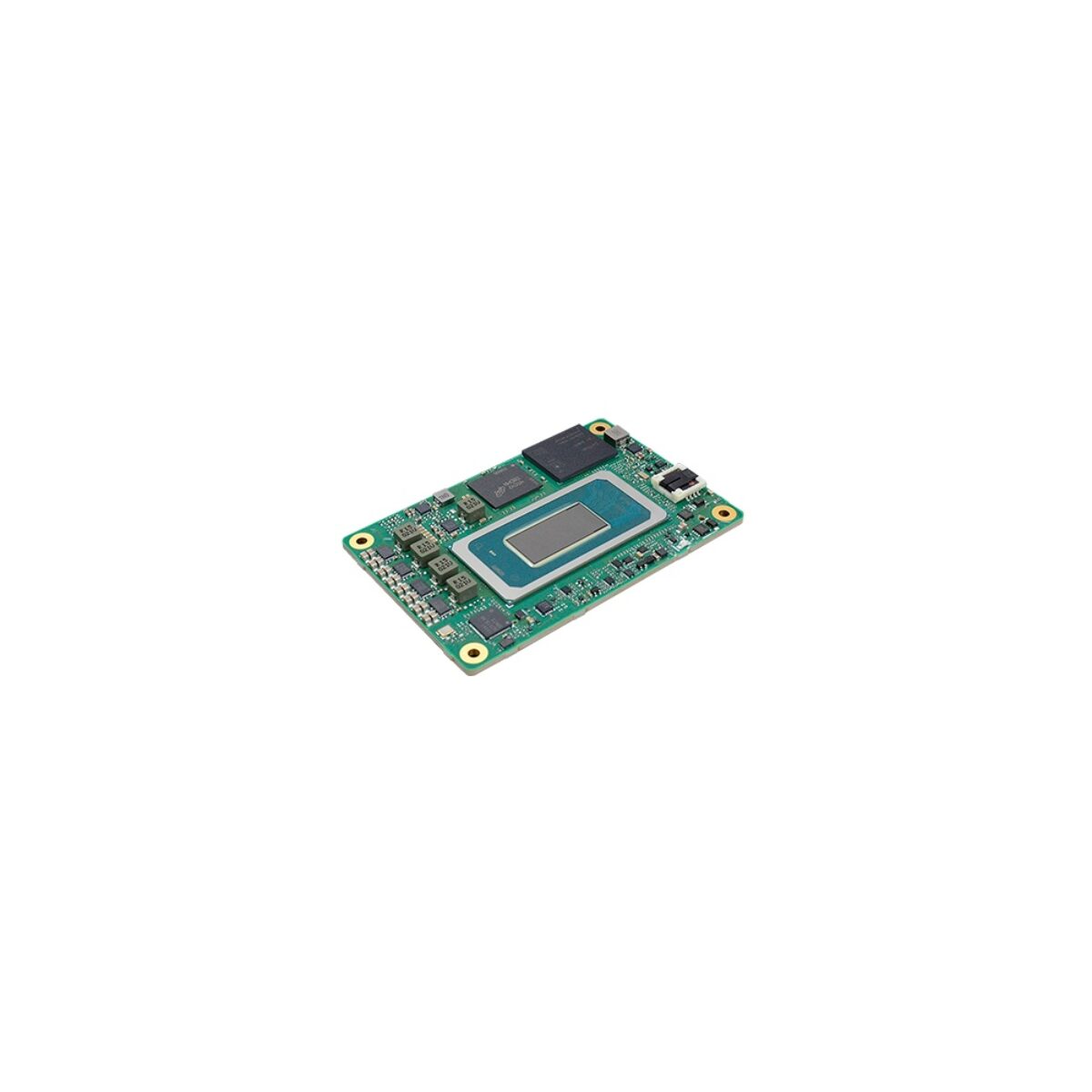

DFI MTU9A2 Intel Core Ultra COM Express Mini Type 10 Module

Processor Brand: IntelIntel
Operating Software: LinuxLinux
Operating Software: WindowsWindows
Multi Display Support: Dual Display SupportDual Display Support
Ethernet Speed: 2.5GbE2.5GbE
USB Generation: USB3USB3
Operating Temperature: Extended TemperatureExtended Temp
Operating Temperature: Wide Temperature [-40 to 85°C]Wide Temp
Certification: CECE
Certification: FCCFCC
USA Support Team: +1 407 214 9446 Call
Select section
  • Specifications

MTU9A2 Specifications

Overview
Brand & ModelDFI MTU9A2
FeaturesCompact
Expandable
Performance
Processor SeriesIntel Core Ultra Series 1 Meteor Lake
Processor ModelsIntel Core Ultra 5 125U: 1.3~4.3GHz, 12 Cores, 14 Threads, 12MB Cache, 15W
Intel Core Ultra 7 155U: 1.7~4.8GHz, 12 Cores, 14 Threads, 12MB Cache, 15W
Intel Core Ultra 7 165U: 1.7~4.9GHz, 12 Cores, 14 Threads, 12MB Cache, 15W
Performance Cores12 Cores
AI Performance11 TOPS
Memory16GB Soldered On-board
32GB Soldered On-board
PCIe Gen SupportPCIe 4.0
BIOSAMD SPI
Secure Crypto ProcessorTPM 2.0 (Trusted Platform Module)
Operating SystemLinux
Windows 10
Windows 11
Graphics
Integrated GPUIntel UHD Series
Display StandardsDP++
Multi Display SupportDual Display Support
I/O
Ethernet1x Ethernet Ports
1x 2.5 GbE LAN [Board]
LAN ControllersIntel I226IT
USB10x USB Ports
8x USB 2.0 [Board]
2x USB 3.2 Gen 2 [Board]
Digital I/ODIO [8-lines]
Power
Power Support ModesAT: PWR on Input
ATX: Press Button to Power
Environmental Conditions
Operating Temperature-40°C to 85°C [-40°F to 185°F]
Storage Temperature-40°C to 85°C [-40°F to 185°F]
Humidity5% - 90% (Non-condensing)
CertificationCE
FCC
RoHS
UKCA
Mechanical Properties
Dimensions84mm x 55mm (3.30” x 2.16”)
