Diamond Systems JANUS-MM-LP : JNMM-2L-XT 2 Port Isolated CAN Bus PC/104 Module with 16-Channels Digital I/O
JNMM-2L-XT Overview

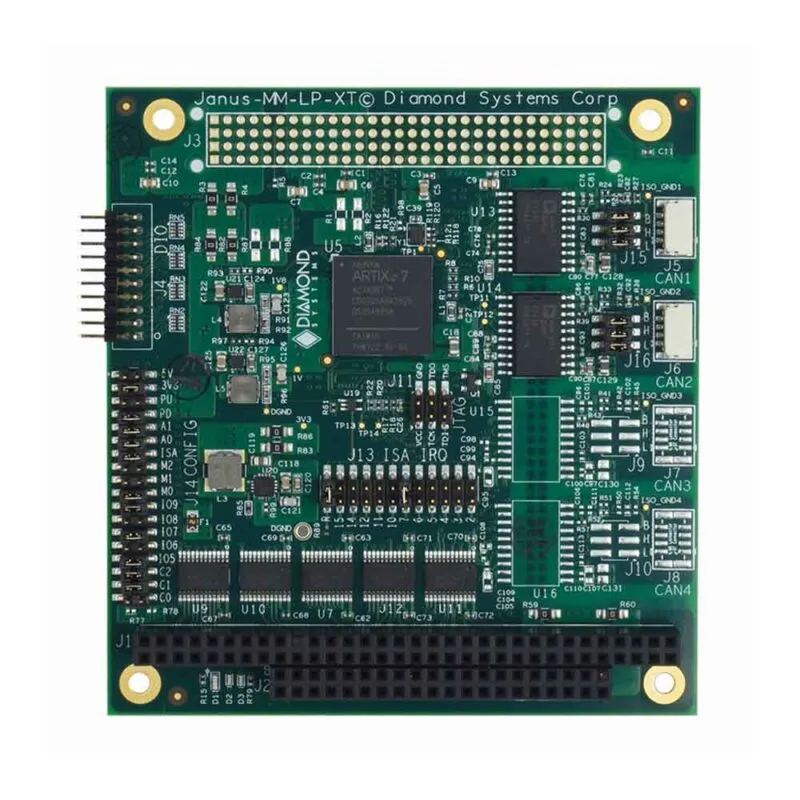

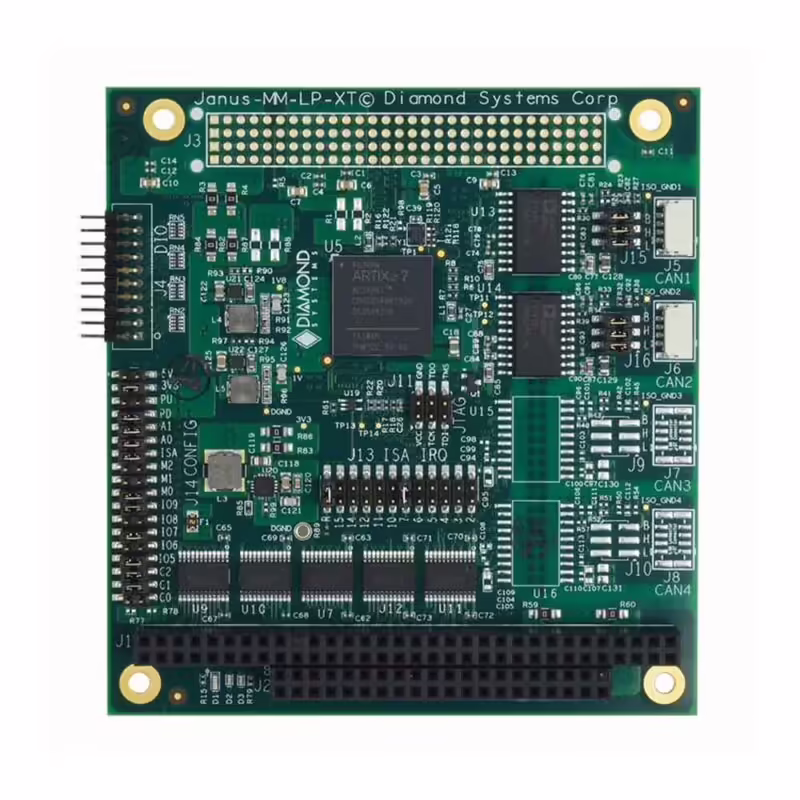

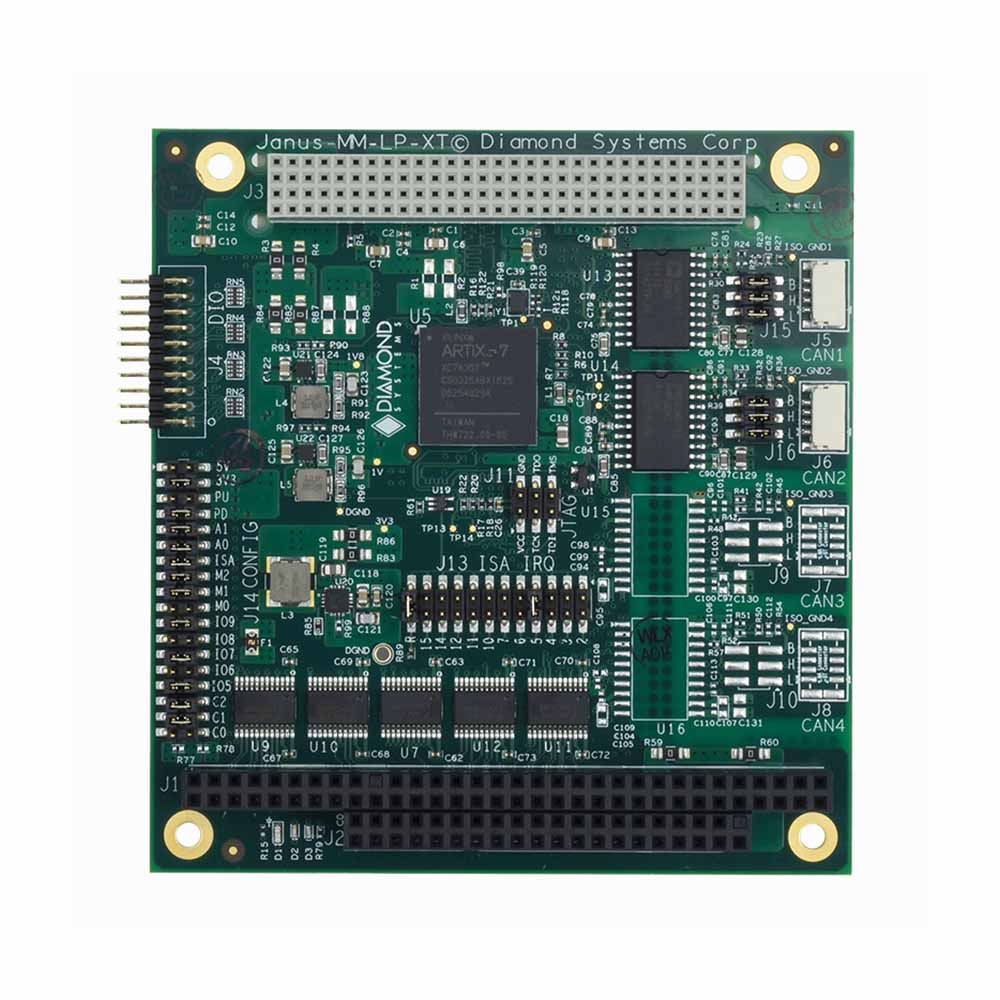

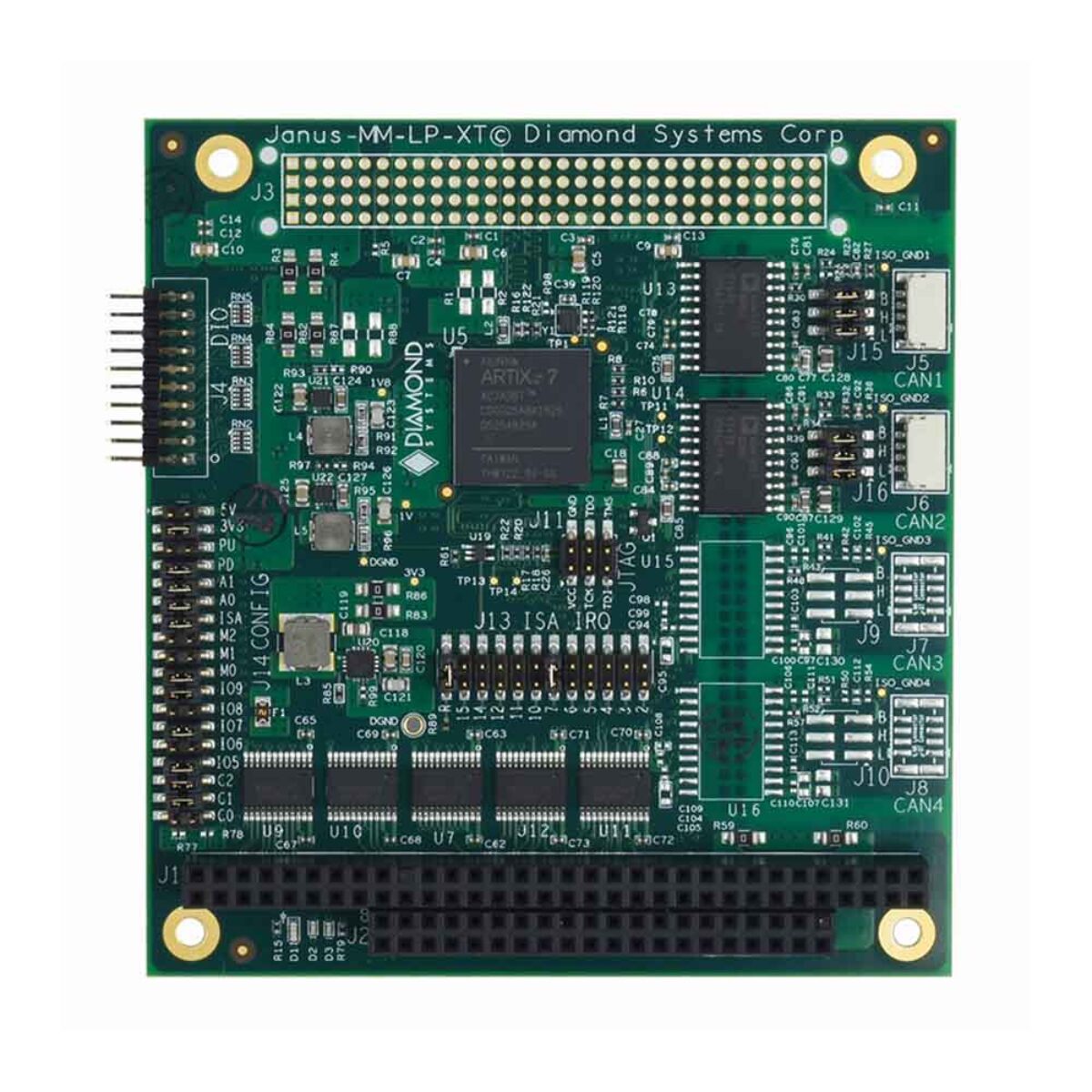

A PC/104 stack on the ISA bus may need to reach one or two CAN networks without giving up another stack position to separate digital I/O. The JNMM-2L-XT is the dual-port PC/104 build in the Diamond Systems JANUS-MM-LP series, an isolated CAN bus module that puts two CAN 2.0B ports and 16 digital I/O lines on one board.
An FPGA core holds the CAN controller and digital I/O logic, with data rates up to 1 Mbps. The JNMM-2L-XT supports standard 11-bit and extended 29-bit identifiers, expanded message queues of 16 eight-byte transmit and 31 eight-byte receive entries, and 16 receive filters. It connects to the host over the PC/104 ISA bus.
Each CAN port has its own ADM3053 combined isolator and transceiver, giving 500 V isolation port to port and port to host, and jumper-selectable biased split termination to reduce noise. The 16 digital I/O lines sit in two 8-bit ports with software direction control, jumper-selectable 3.3 V or 5 V logic and selectable pull-up or pull-down resistors. Latching connectors keep the wiring secure. The JNMM-4L-XT offers four CAN ports on PC/104, and the JNMM-2LP-XT is the two-port PC/104-Plus version.
Power is 5 V DC from the stack. Diamond Systems tests the JNMM-2L-XT for -40 to 85 °C operation at 5 to 95% humidity, non-condensing, and specifies MIL-STD-202G compatible shock and vibration. A basic CAN driver with APIs and a monitor program supports Windows Embedded Standard 7 and Ubuntu Linux 12.04 LTS, with a digital I/O cable and per-port CAN cables available.
JNMM-2L-XT Specifications
| Overview | |
|---|---|
| Brand & Model | Diamond Systems JANUS-MM-LP : JNMM-2L-XT |
| Features | Compact Industrial Rugged Isolated I/O |
| I/O | |
| CANbus | 2x CANbus Ports |
| 2x Isolated CANbus [Board] | |
| Digital I/O | DIO [16-lines] |
| Power | |
| Power Input | 5V DC [Bus] |
| Environmental Conditions | |
| Operating Temperature | -40°C to 85°C [-40°F to 185°F] |
| Mechanical Properties | |
| Weight | 71 g (2.5 oz) |
| Dimensions | 90mm x 96mm (3.55" x 3.78") |
| CAN Circuit | |
| Number of CAN ports | 2 or 4 CANbus 2.0B |
| Data rates | Up to 1Mbps |
| Controller | FPGA based |
| Transceiver | ADM3053 isolation + transceiver |
| Isolation | 500V port-to-port and port-to-host |
| Frames | Standard 11-bit identifier |
| Extended 29-bit identifier | |
| Message queues | Expanded TX and RX message queues |
| 16 8-byte transmit message queues | |
| 31 8-byte receive message queues | |
| Receive filters | 16 |
| Termination | Jumper selectable biased split termination |
| Digital I/O | |
| Number of lines | 16 programmable DIO lines arranged in 2 8-bit ports |
| Logic levels | 3.3V or 5V, jumper selectable |
| Pull-up/pull-down | Jumper selectable |
| Direction control | Software programmable |
| General | |
| Host interface | PCI or ISA, self selecting |
| Connectors | Latching connectors for increased ruggedness |
| Input power | +5VDC ±5% |
| Power consumption | tbd W at 5VDC |
| Operating System support | Windows Embedded Standard 7 |
| Linux Ubuntu 12.04LTS | |
| Operating temperature | -40ºC to +85°C (-40ºF to +185°F) |
| Operating humidity | 5% to 95% non-condensing |
| Shock | MIL-STD-202G compatible |
| Vibraion | MIL-STD-202G compatible |
| MTBF | tbd hours at 20°C |
| Form Factor | PC/104-Plus: |
| 3.55″ x 3.775″ (90mm x 96mm) | |
| Weight | 2.5oz (71g) |
| RoHS | Compliant |
Official Diamond Systems USA Distributor
Things Embedded is an official Diamond Systems USA distributor, supplying and specifying the JNMM-2L-XT as Diamond Systems builds it for USA vehicle and industrial projects. It stacks on PC/104 hosts such as the HELIOS Vortex86 SBCs, and the EMM-4M-XT adds four serial ports to the same PC/104 stack.
It belongs with our CAN I/O modules, our PC/104 range and our data acquisition and I/O boards. Where an ISA-bus PC/104 stack needs two isolated CAN ports and some digital control, this is the model to specify.
