Giada F108D-N100 Intel N100 (Alder Lake-N) Booksize Signage Player with Triple Display and Dual LAN

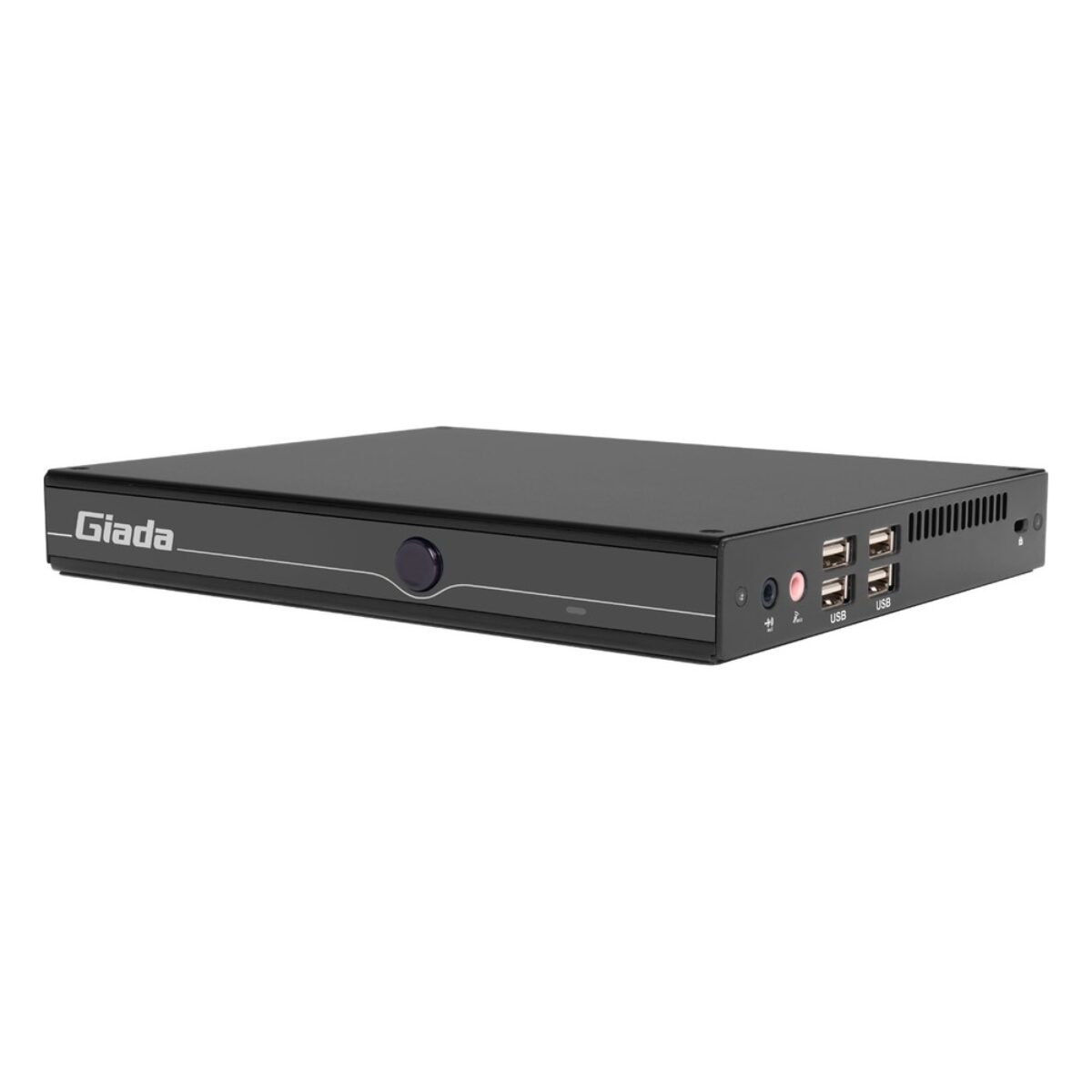

Behind a menu board or inside a retail display, a signage player has to fit a tight space and keep running with little attention. The Giada F108D-N100 is a booksize signage player built around the Intel Processor N100, with three 4K-capable display outputs and two Gigabit Ethernet ports. It is part of the F108D series, alongside the F108D-N150 and F108D-N97, which share the same I/O with a different Intel N-series processor.

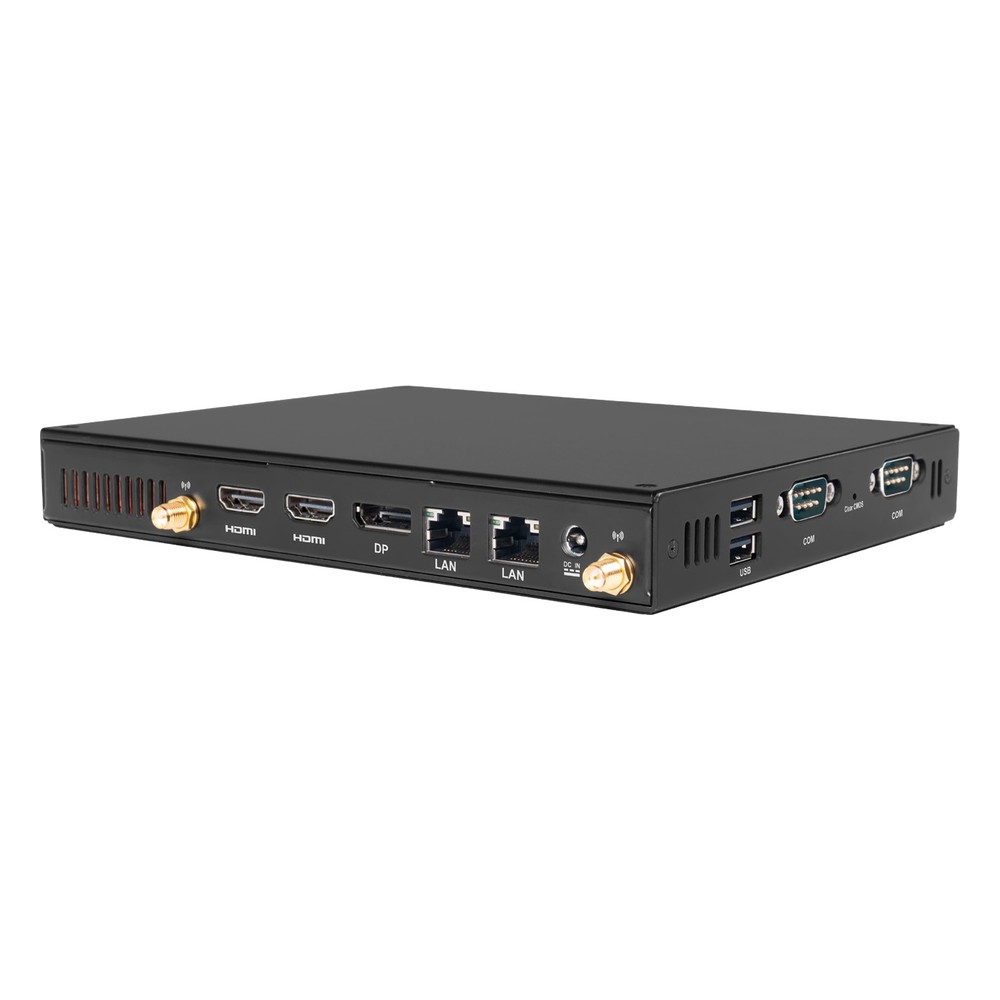

The N100 is a Alder Lake-N processor with four cores and four threads at a 6 W TDP, paired with Intel UHD Graphics. On the F108D-N100 it drives one DisplayPort and two HDMI outputs at up to 4096 x 2160 at 60 Hz, so one player can run three screens with separate content. Memory is one DDR4-3200 SO-DIMM slot taking up to 16 GB, storage is an M.2 2280 PCIe 3.0 x4 SSD slot, and TPM 2.0 is optional where your content management system needs it.

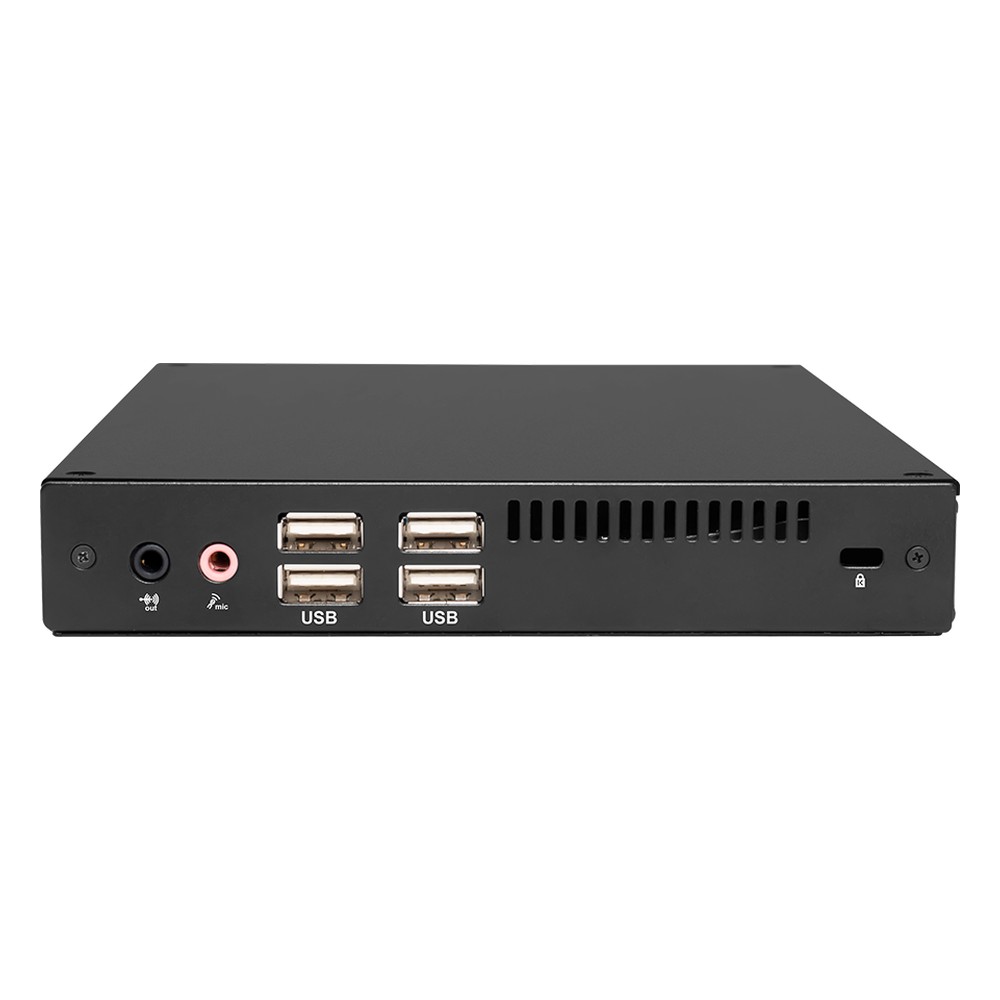

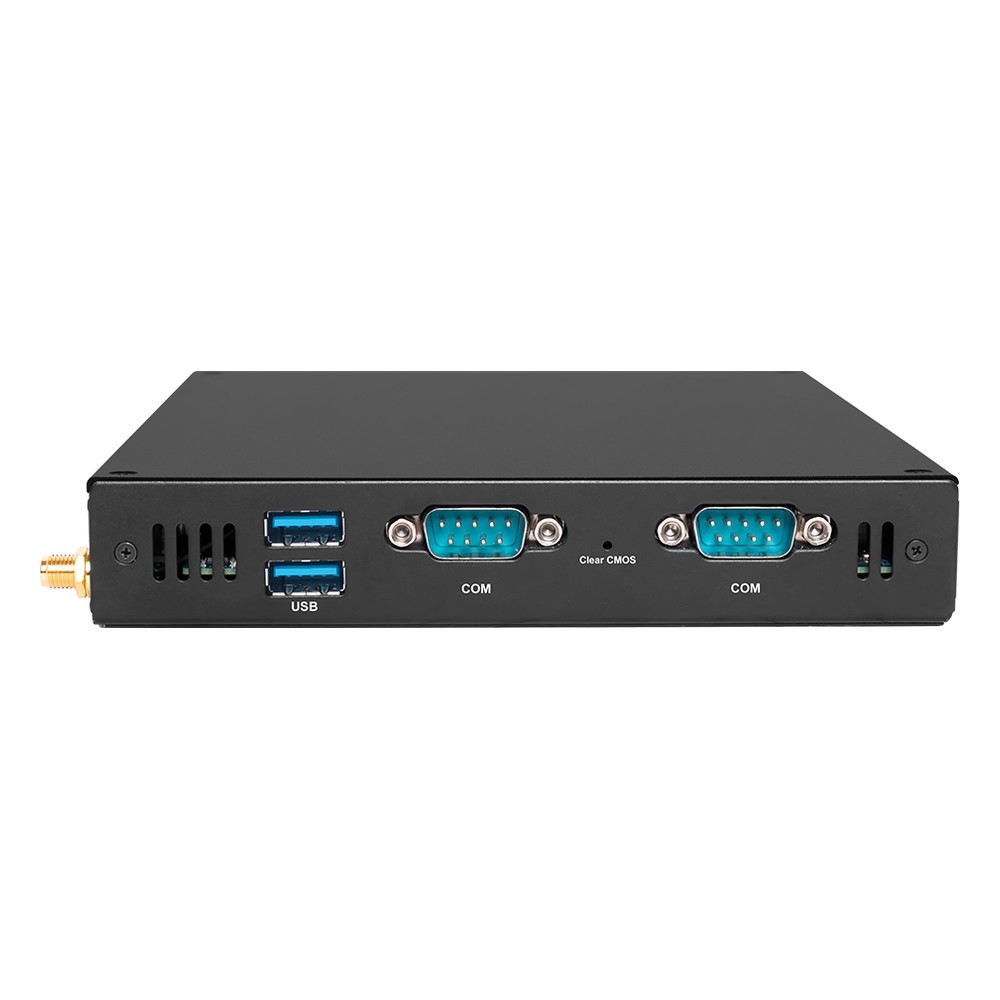

Two Realtek Gigabit Ethernet ports let you keep the content network apart from a local display or control network. There are two USB 3.2 Gen2 and four USB 2.0 ports for touch overlays, cameras and keyboards, two RS232 ports on DB9 for screen control or serial peripherals, plus mic-in and audio-out. An M.2 E-Key slot takes an optional Wi-Fi and Bluetooth module, and an M.2 B-Key slot with a SIM socket takes an optional 4G module for sites without a wired connection.

This build is fanless, so there is no fan to clog with dust in a kiosk or ceiling void. The F108D-N100 runs from 0 °C to 45 °C with 0.7 m/s airflow and up to 95% non-condensing humidity, from a 19 V DC adapter, with watchdog and auto power-on for unattended restarts. Giada lists CE, FCC Class B and UKCA, and an optional VESA kit mounts it behind a display. We supply it with memory, storage and a Windows 11 or Linux image installed and tested before it ships.
