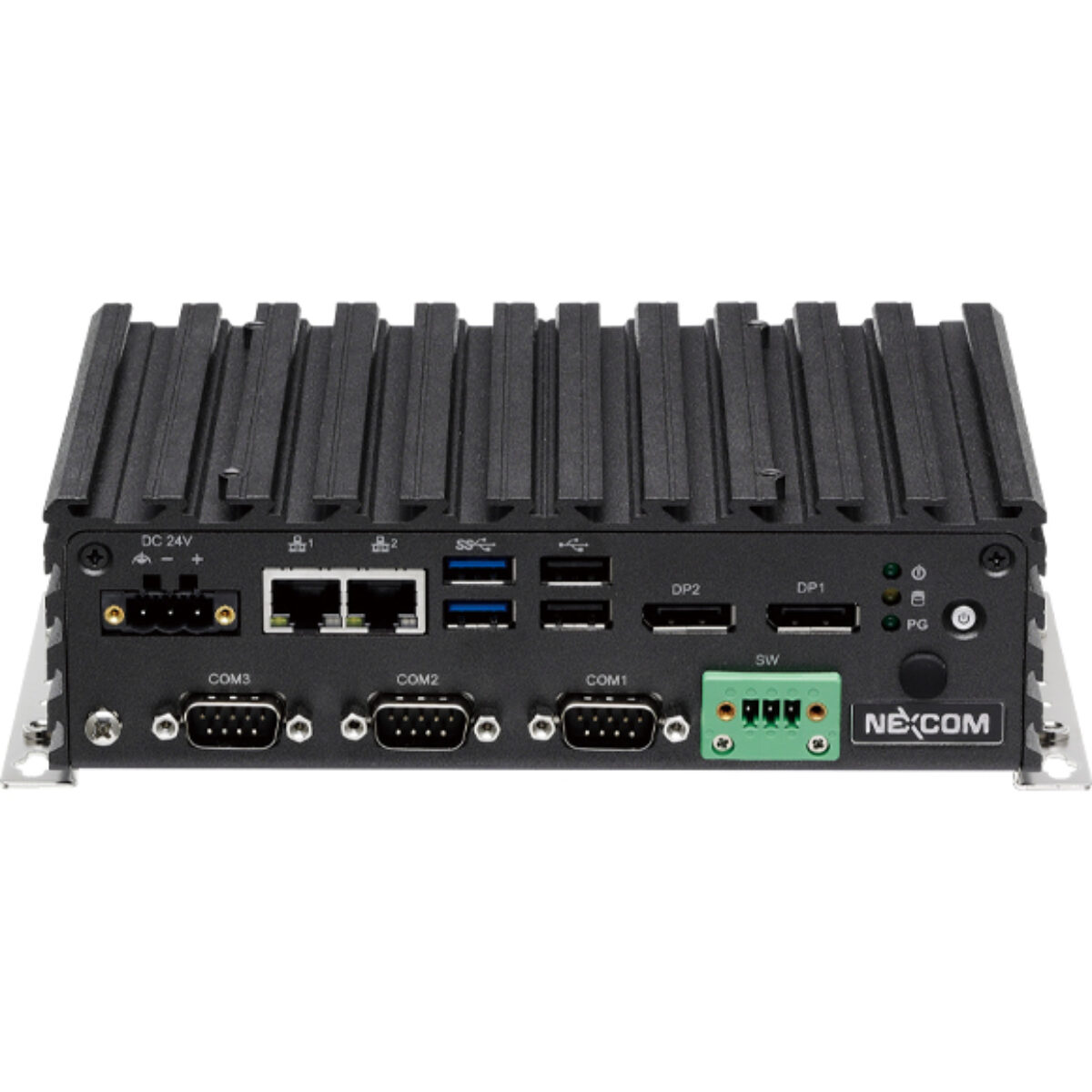

Nexcom NISE 108 Intel Celeron J3455 Compact Fanless Box PC with 2.5-inch Drive Bay and 24 V DC

Control cabinets usually run from a 24 V supply, and the computer inside often has to log data locally and talk to serial devices at the same time. The NISE 108 is a Nexcom Fanless Box PC built around that brief, with a quad-core Intel Celeron J3455, a 2.5 inch drive bay, three COM ports and a 24 V DC input. For four COM ports and Elkhart Lake processors in the same case style, see the NISE 109 series.

The Intel Celeron J3455 is an Apollo Lake processor with four cores, and one DDR3L SO-DIMM socket takes up to 8 GB at 1866 MHz. Storage is a 2.5 inch SATA HDD or SSD plus an M.2 2242 SATA module, with no cable connections on the storage. Linux and Windows 10 IoT Enterprise 64-bit are supported on the NISE 108.

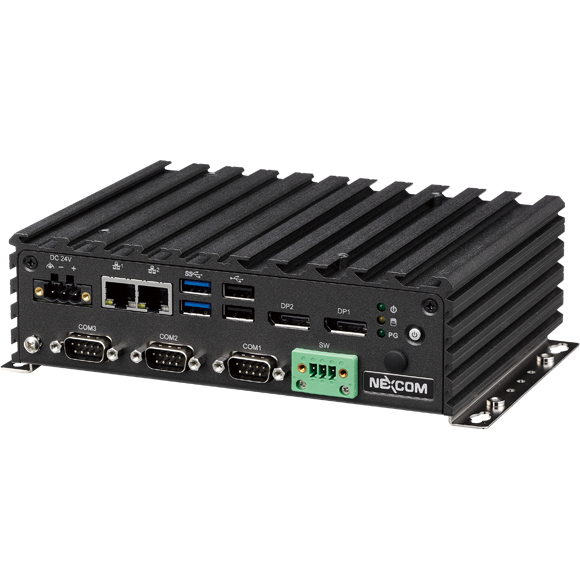

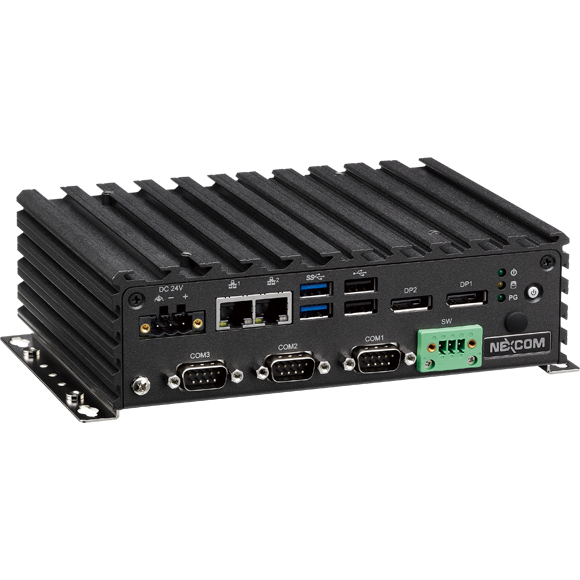

Most I/O sits on the front panel: two Intel I210-IT GbE ports with Wake on LAN, teaming and PXE, two USB 3.0 and two USB 2.0 ports, and two DisplayPort outputs for dual independent displays. COM3 supports RS232/422/485 with auto flow control, set in the BIOS without jumpers, and COM1 and COM2 are RS232, with ring and 5 V or 12 V options on COM2. A mini-PCIe socket takes Wi-Fi, 3.5G or 4G, and the NISE 108 also has a three-pin remote power switch.

This Fanless Box PC runs from -5 °C to 55 °C with industrial grade devices, on a 24 V DC input, with an optional 24 V, 60 W adapter. It is rated to 2 Grms vibration with an SSD fitted, in an aluminum and metal case of 185 x 131 x 54 mm, and carries CE and FCC Class A approval.
